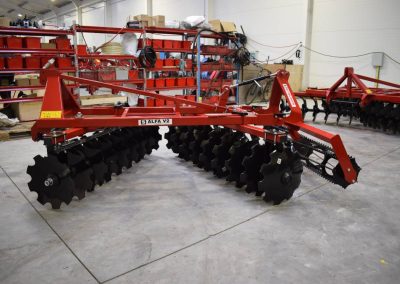

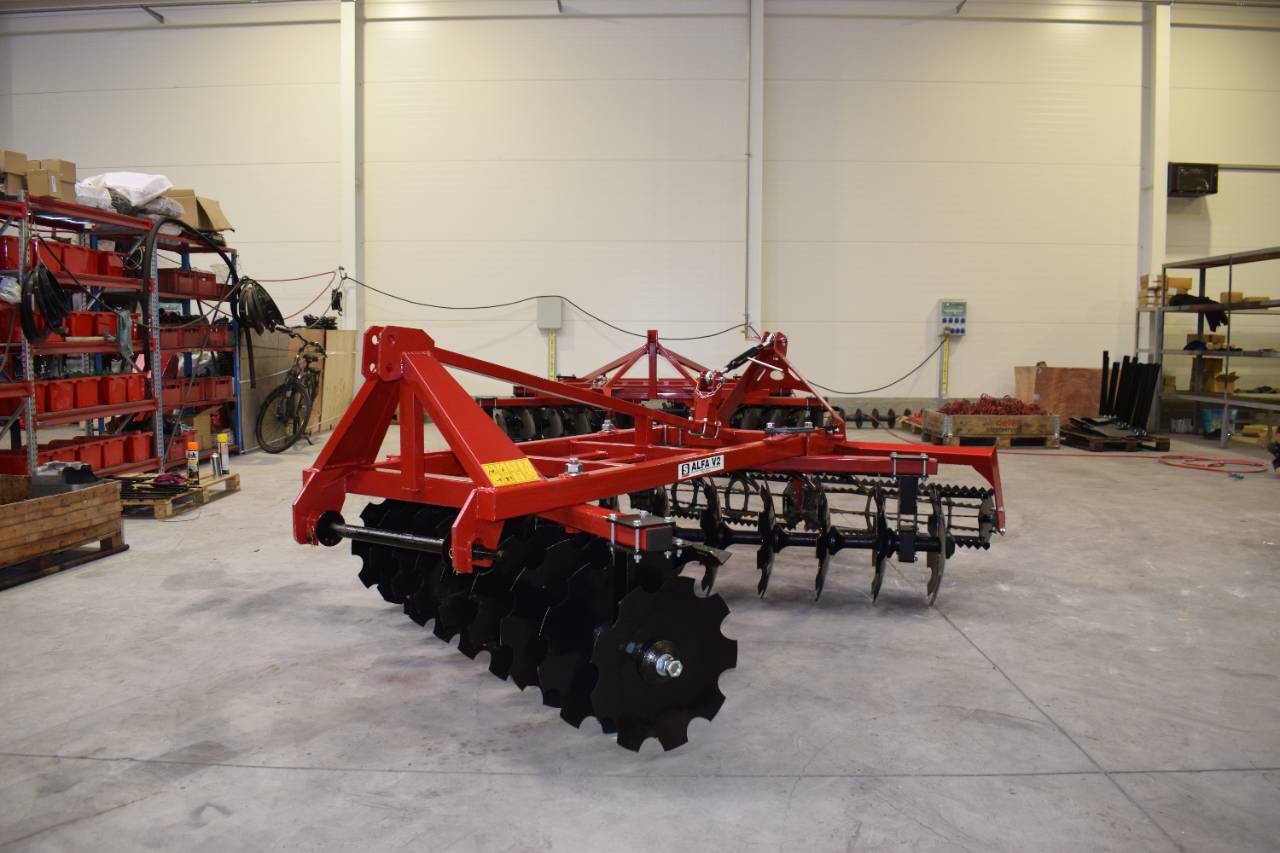

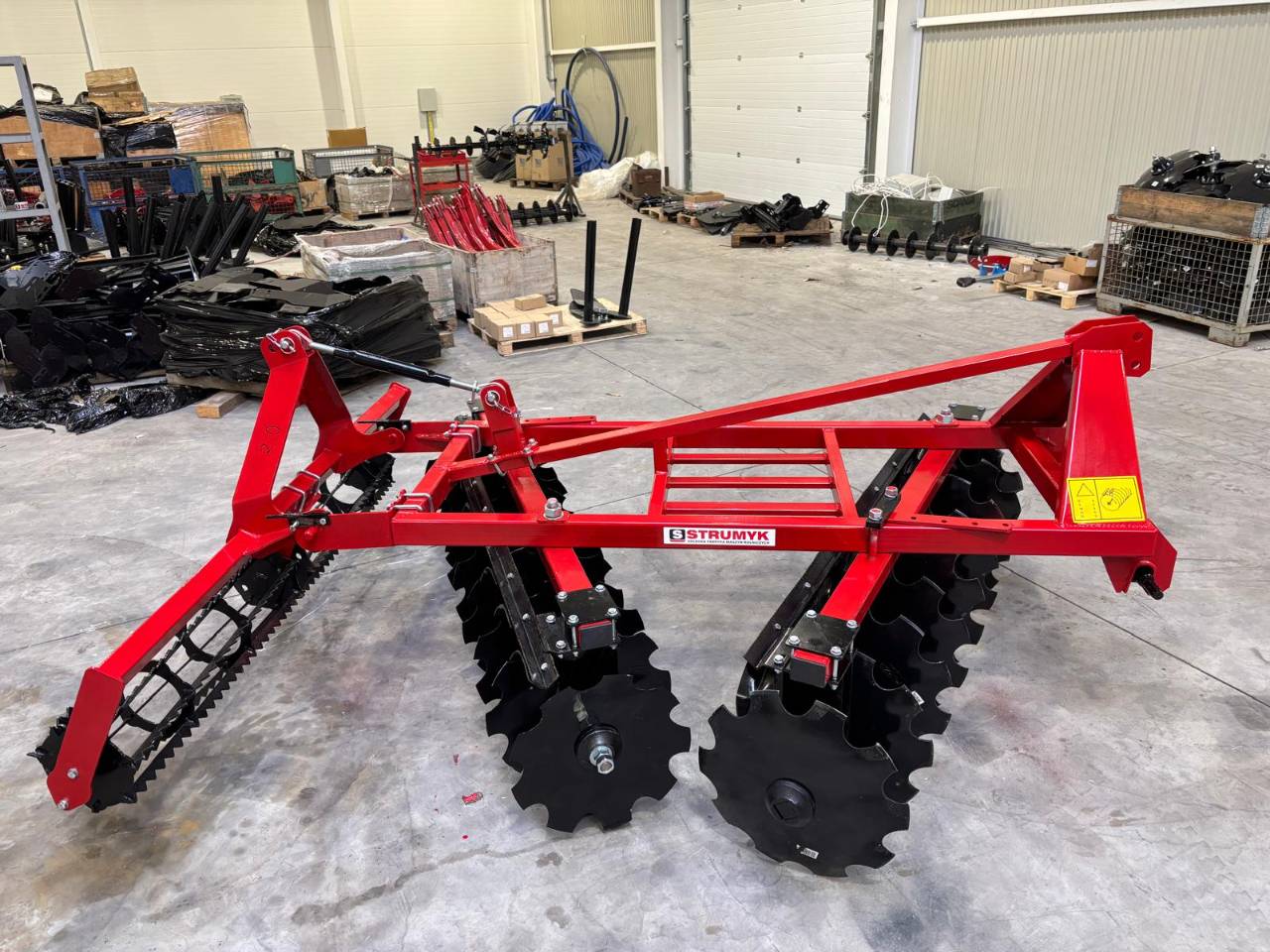

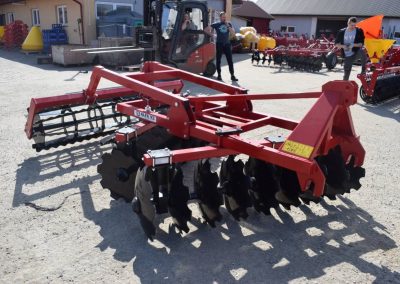

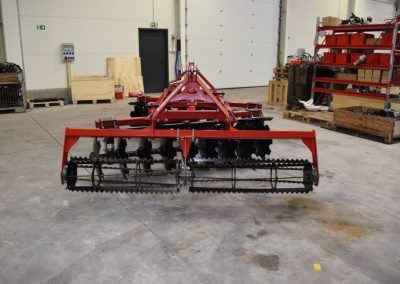

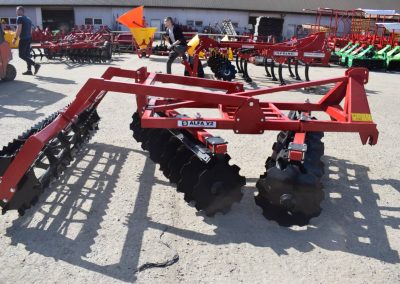

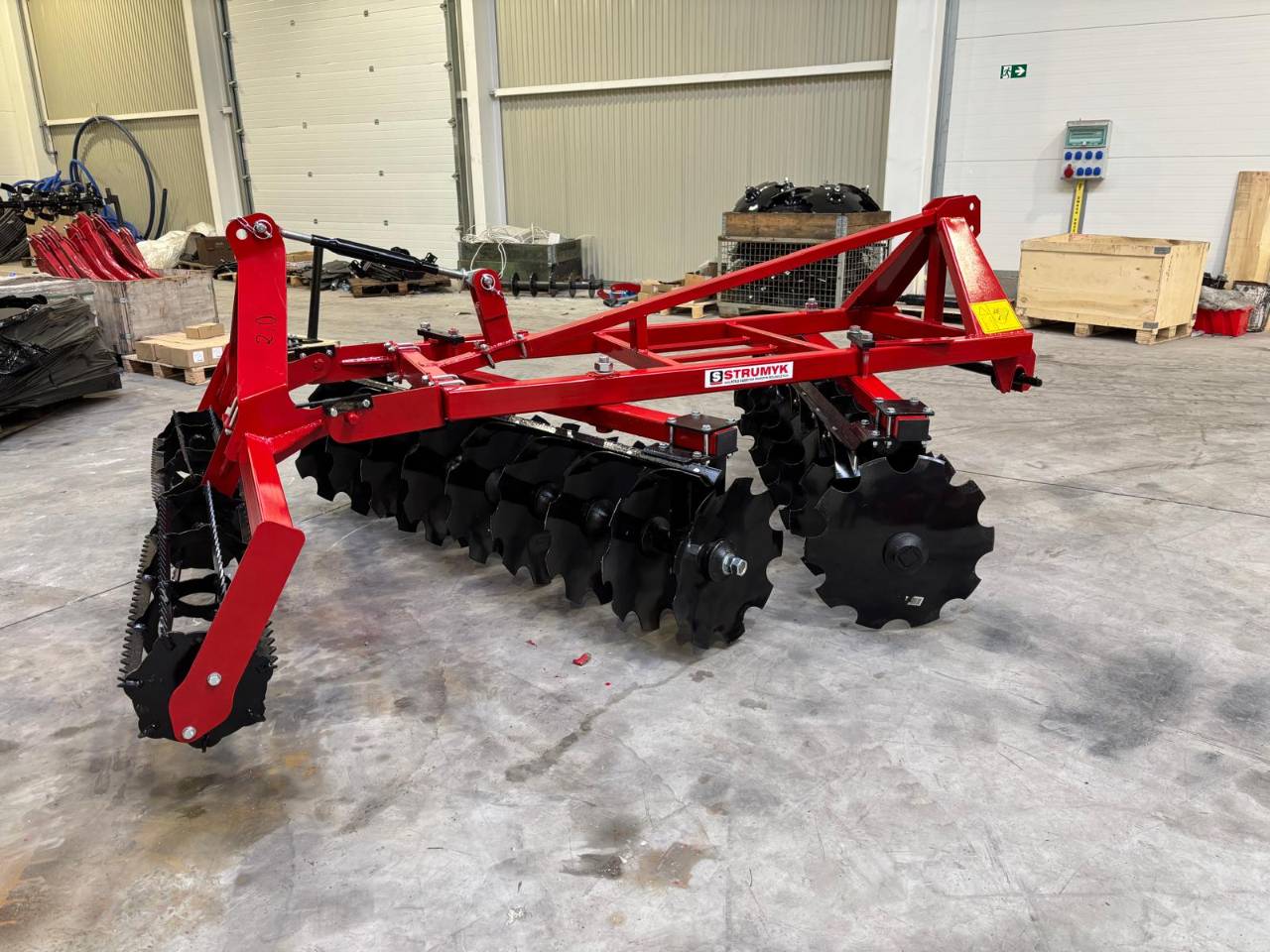

ALFA V2
Disc harrow
The lightweight and compact design has been engineered to work with low- and medium-horsepower tractors, ensuring effective soil cultivation with low energy consumption. Boron steel discs ensure durability and effective soil mixing.
The reinforced frame and precise disc placement ensure even field cultivation and stable operation in a variety of soil conditions. Its simple design ensures reliability and ease of use.
The option to choose from a range of working widths, combined with the design featuring a shaft mounting point, makes this equipment a versatile solution for both smaller farms and users seeking a flexible setup tailored to their specific needs.
| TYPE | V2/14 | V2/16 | V2/18 | V2/20 | V2/20S | V2/22 | V2/24 | V2/27 |
|---|---|---|---|---|---|---|---|---|
| WIDTH (M) | 1,4 | 1,6 | 1,8 | 2,0 | 2,0 | 2,2 | 2,4 | 2,7 |
| NUMBER OF PLATES | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| DIAMETER OF THE PLATES | 460/510/560 | |||||||
| NUMBER OF BEARINGS | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| WEIGHT (KG) | 340 | 375 | 410 | 440 | 455 | 475 | 565 | 615 |
| POWER REQUIREMENT (HP) | 18–24 | 20–28 | 25–32 | 34–52 | 34–52 | 44–60 | 55–65 | 65–75 |
| OUTPUT (HA/H) | 1.0–2.2 | 1.1–2.2 | 1.2–2.8 | 1.3–3.5 | 1.3–3.5 | 1.4–4.2 | 1.5–4.6 | 1.6–5.2 |
Standard equipment
510 mm Polish boron steel plate
structural reinforcement
drawbar
powder coating
Optional extras
Polish plates, 510–610 mm, made of boron steel
shaft mounting

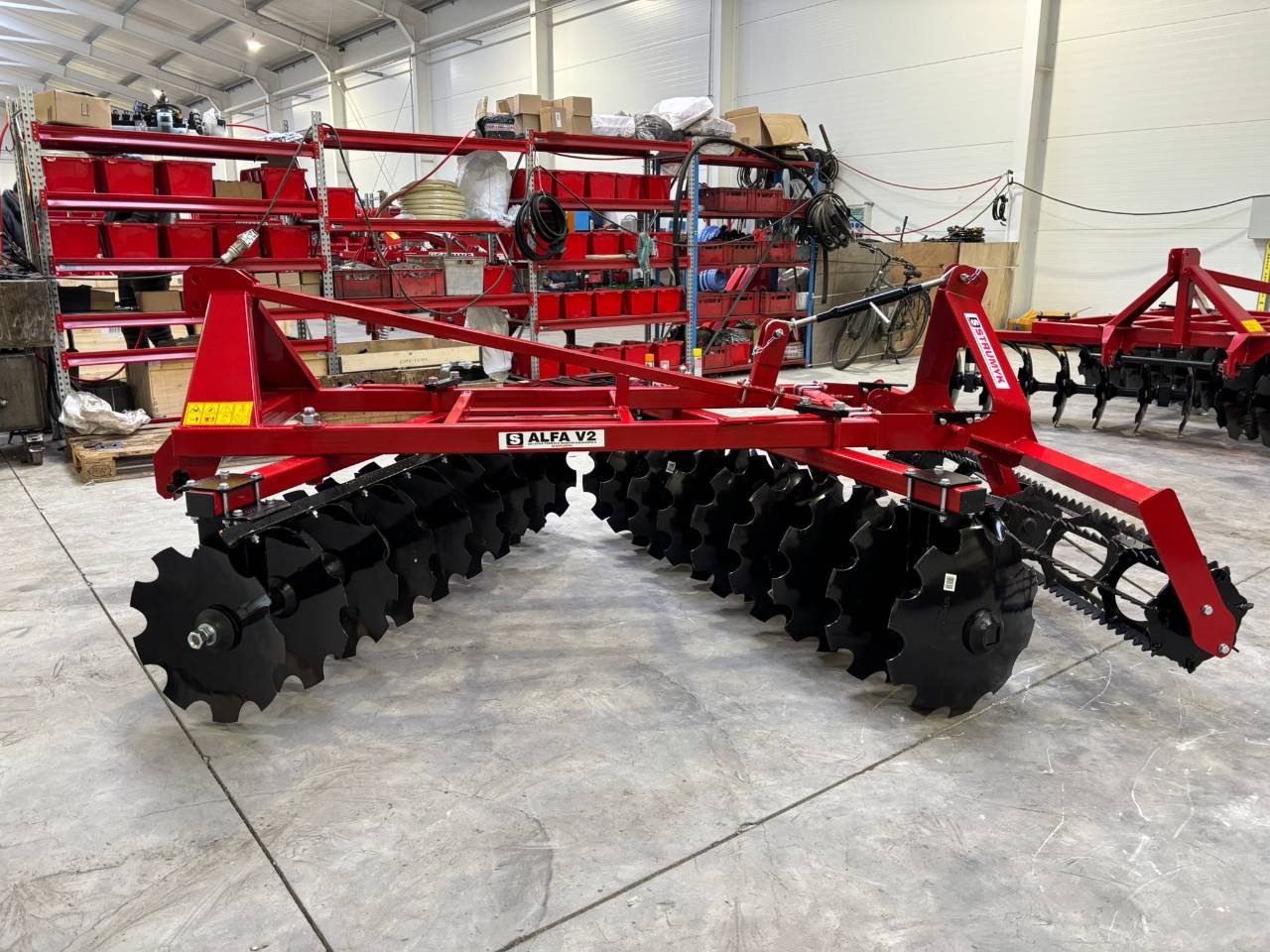

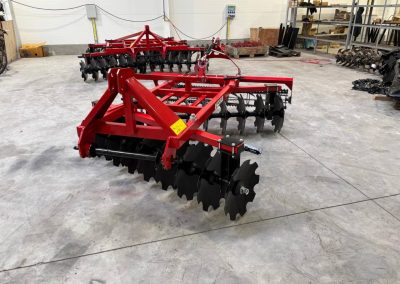

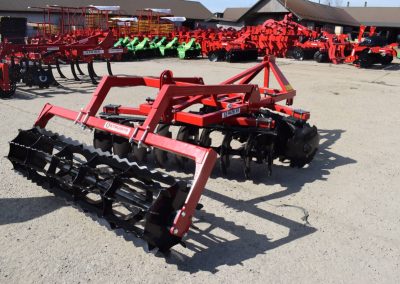

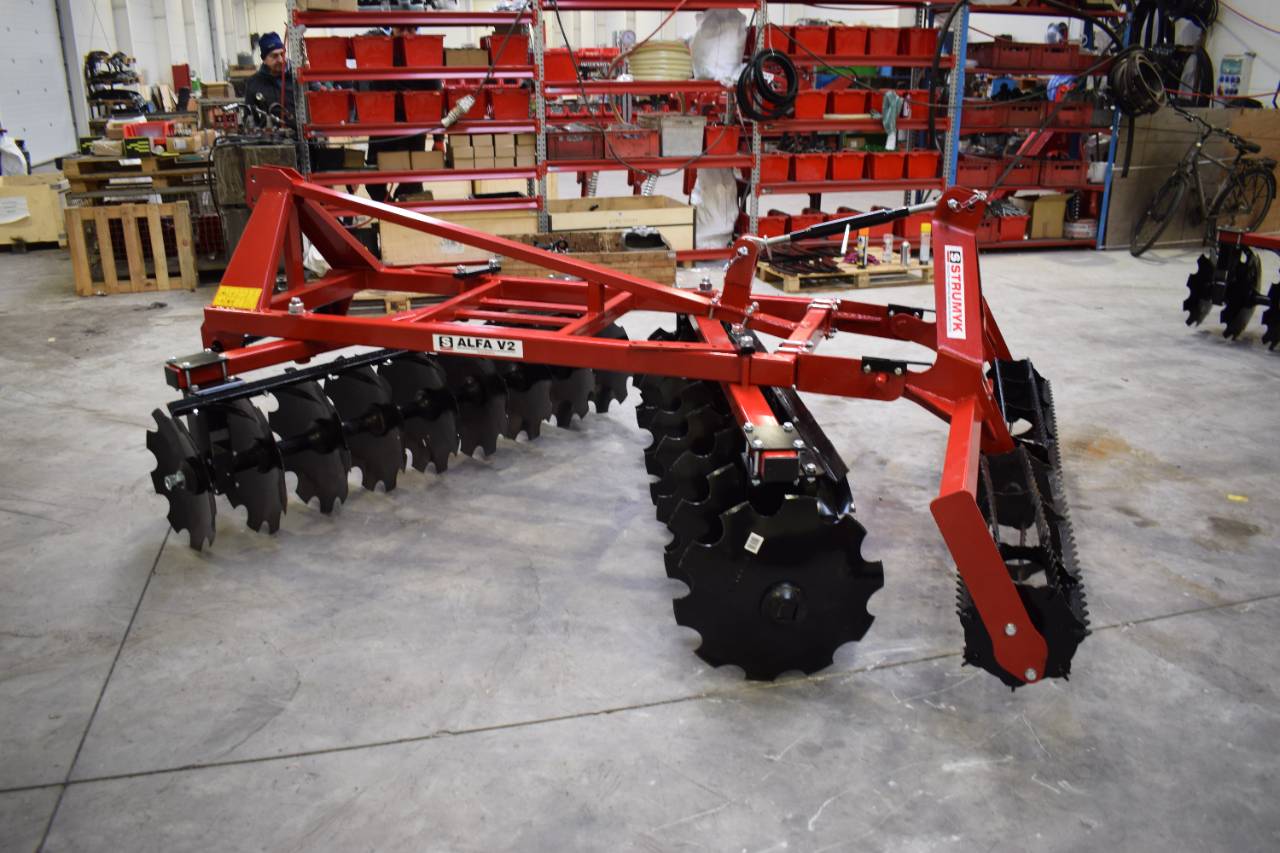

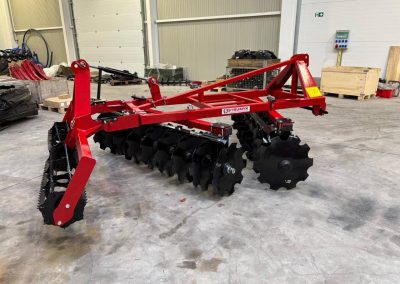

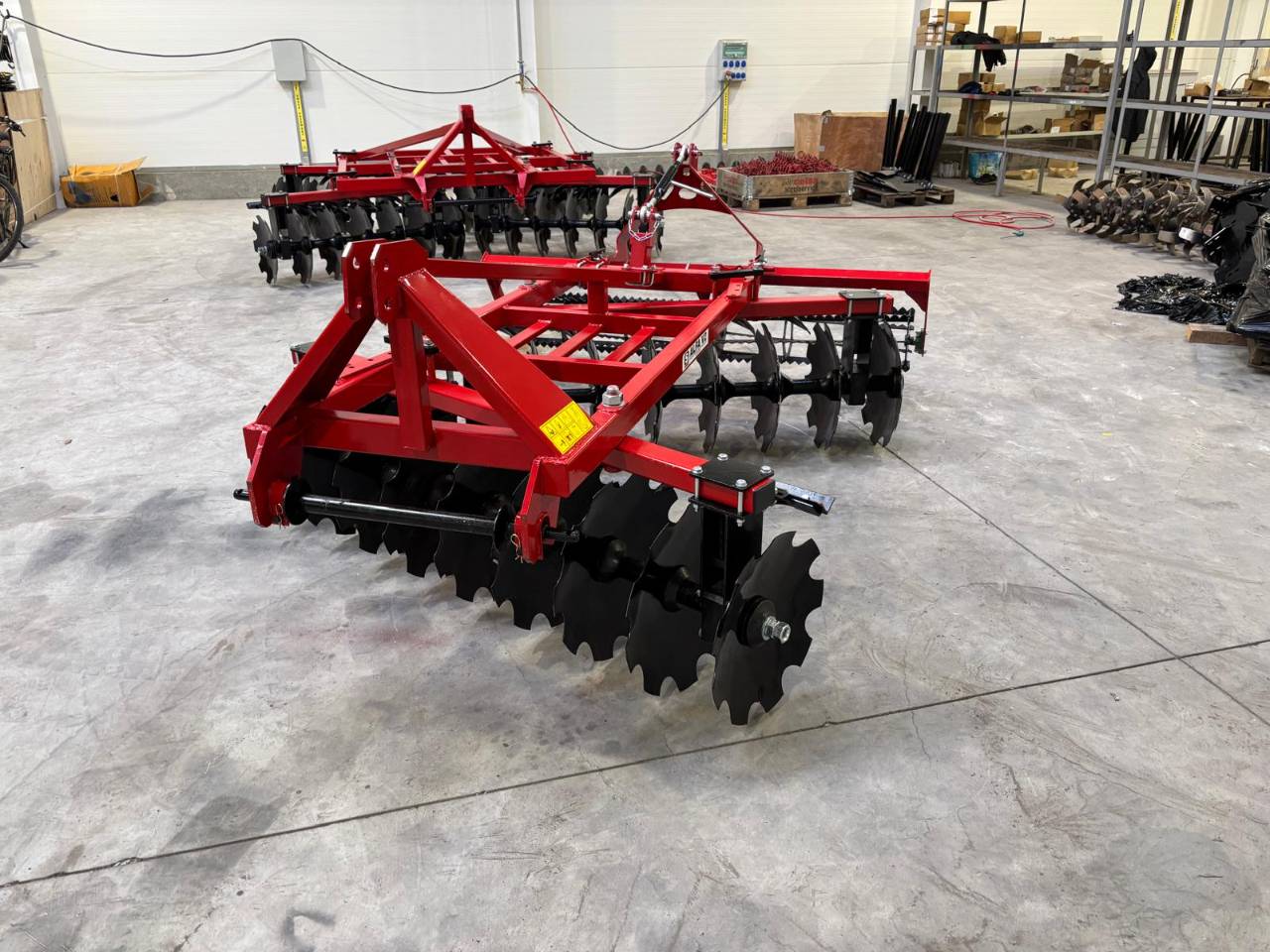

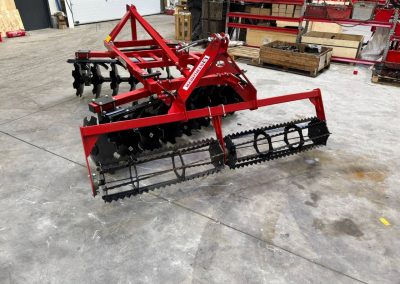

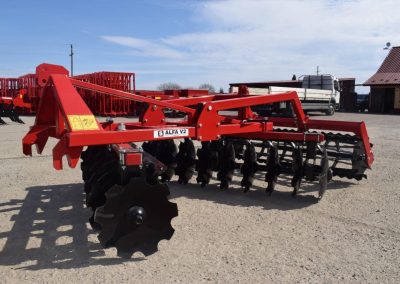

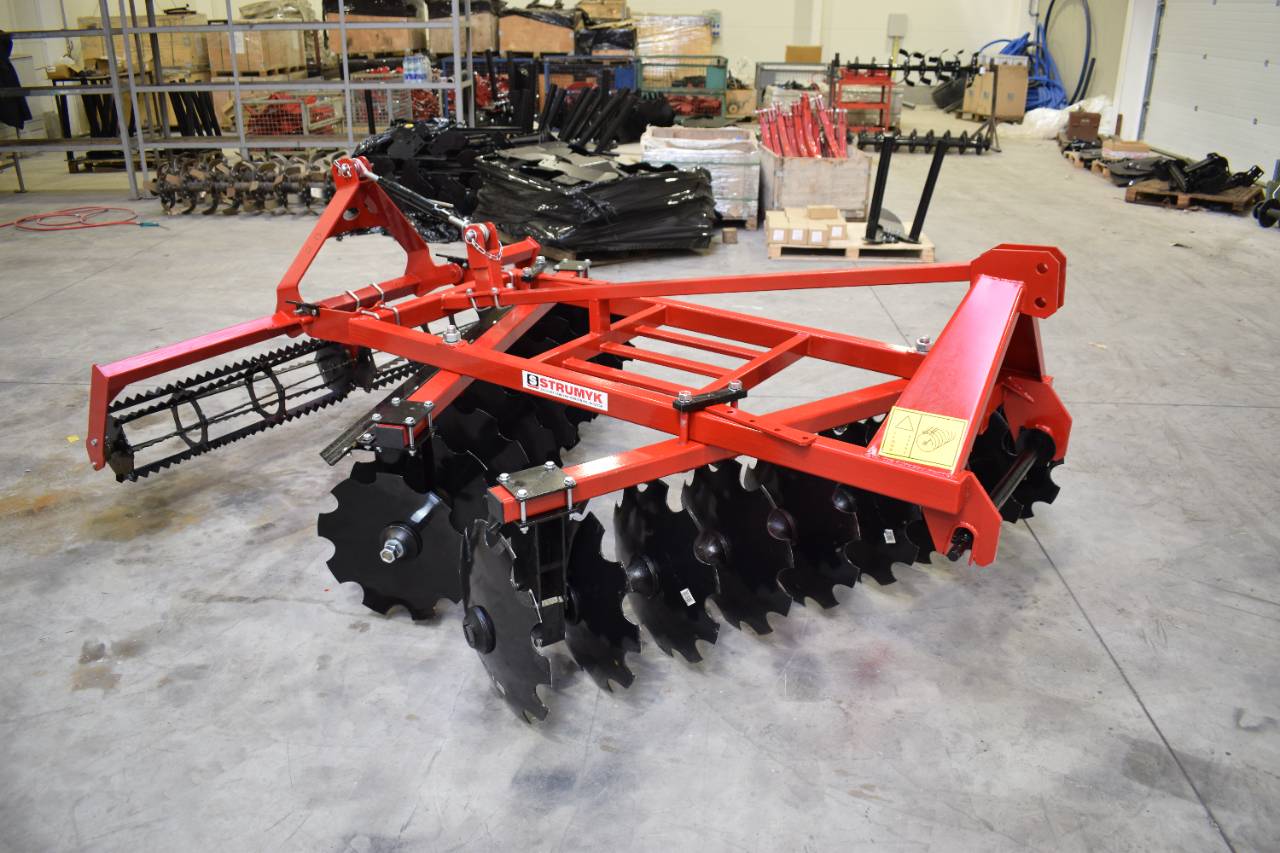

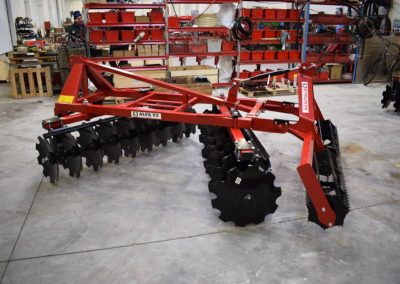

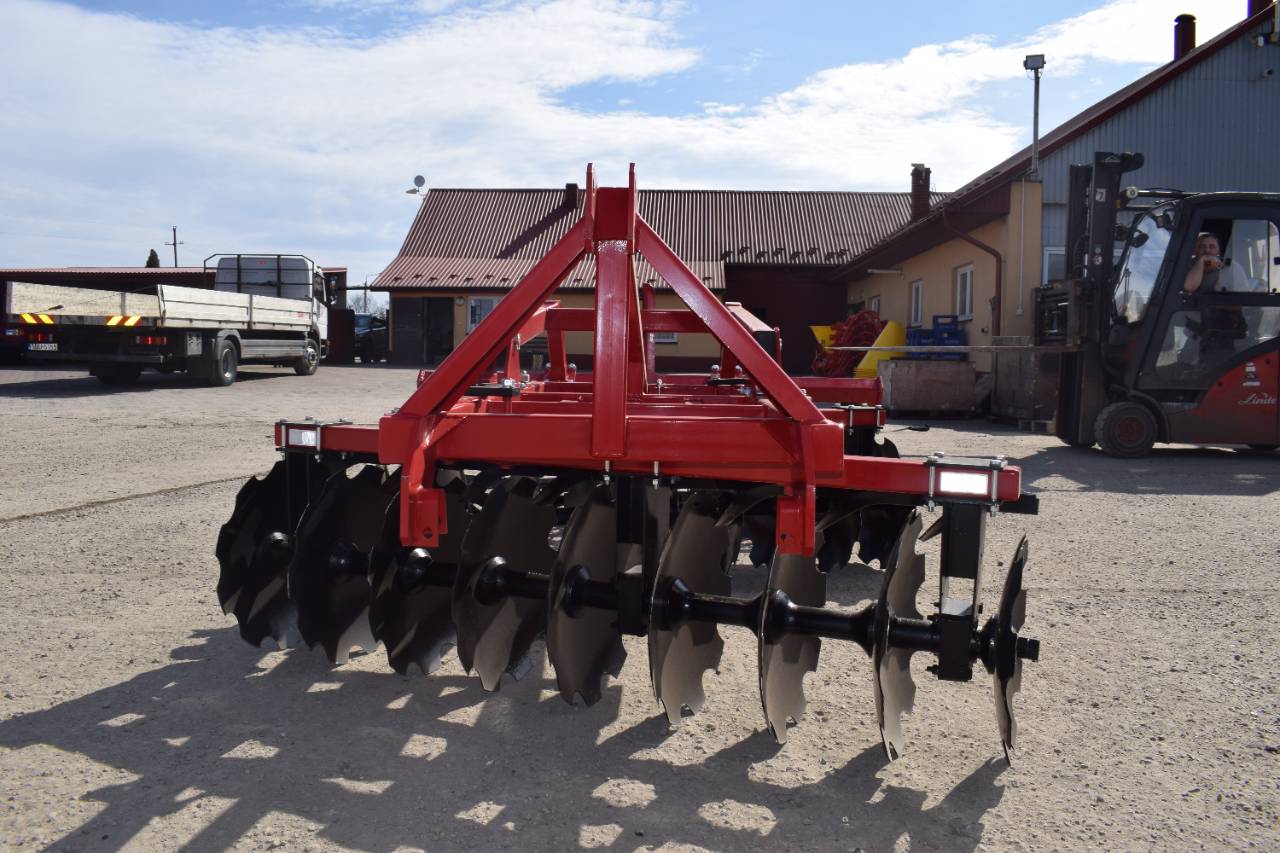

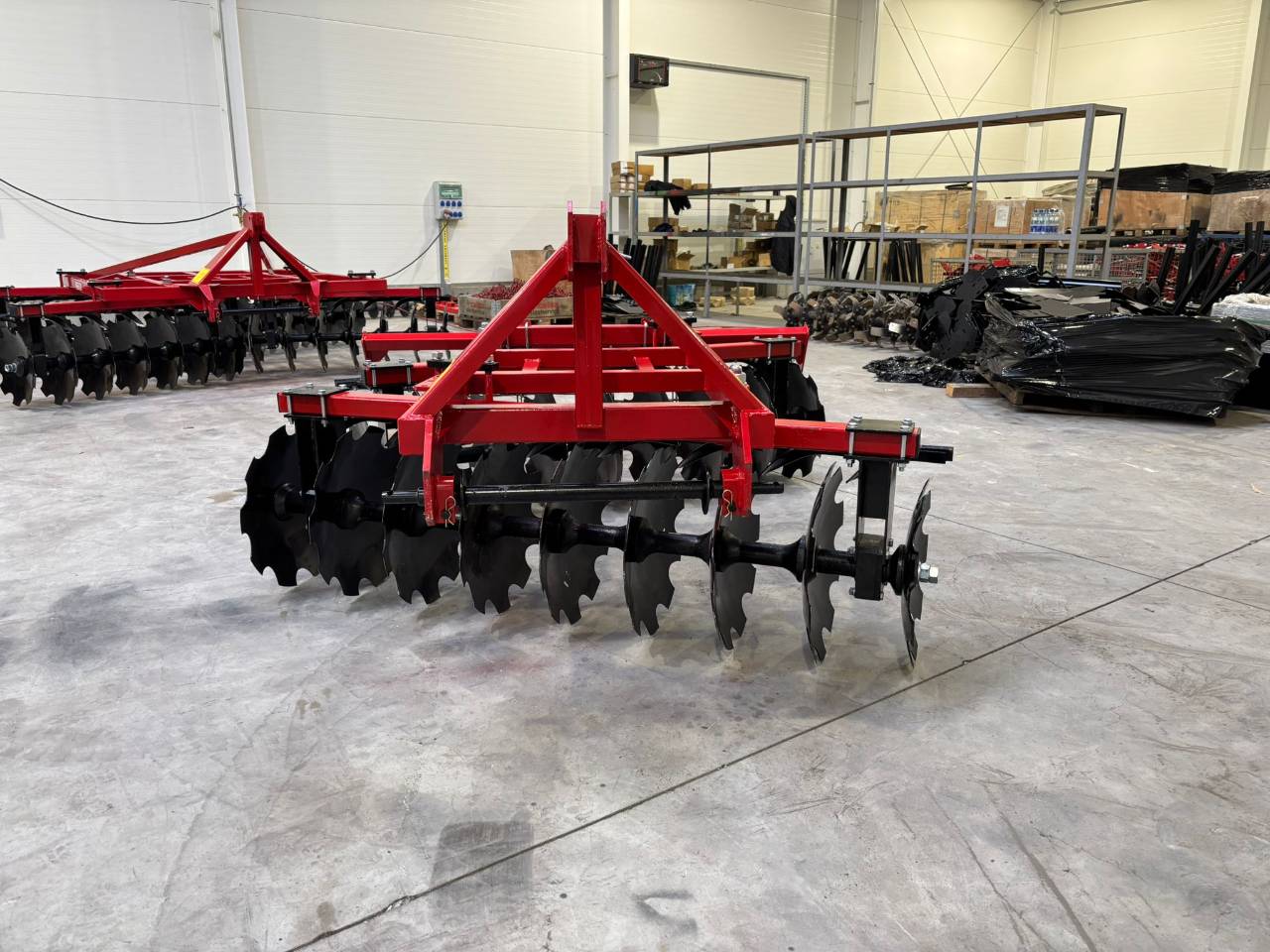

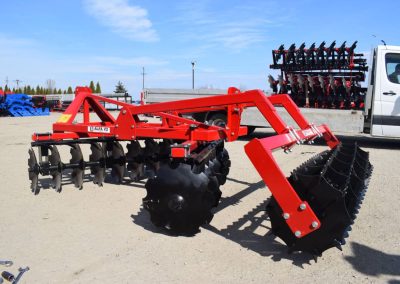

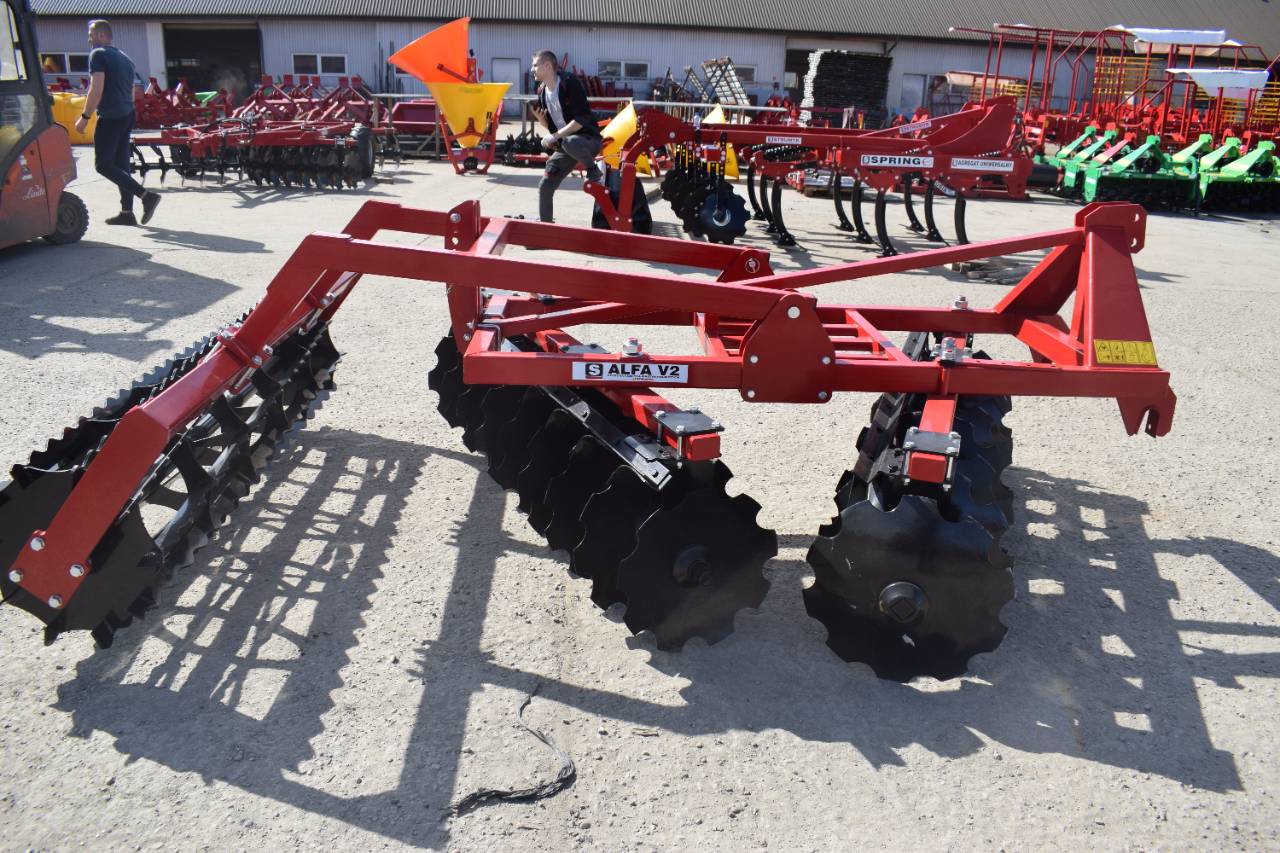

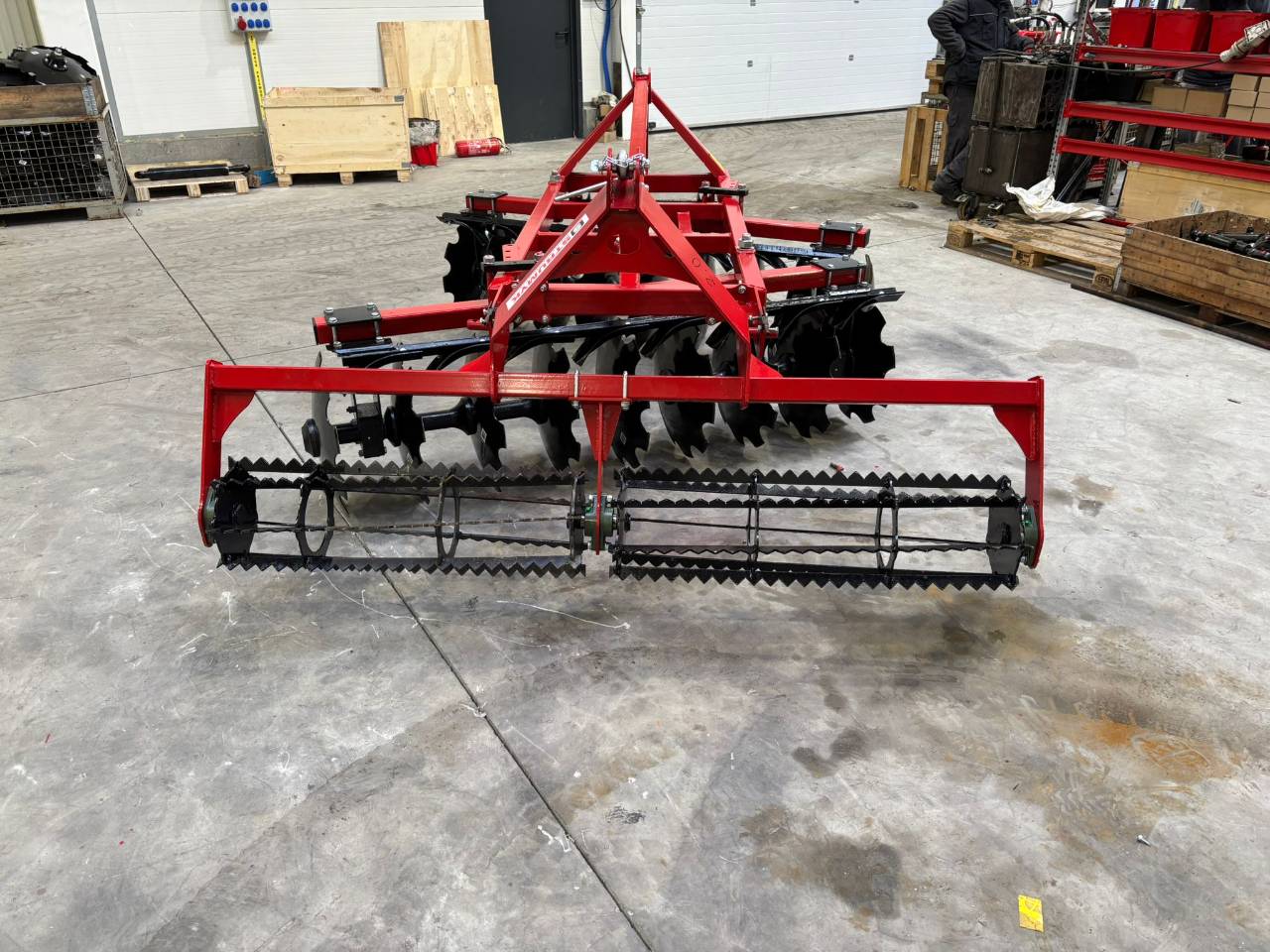

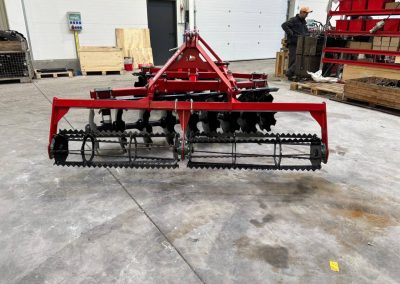

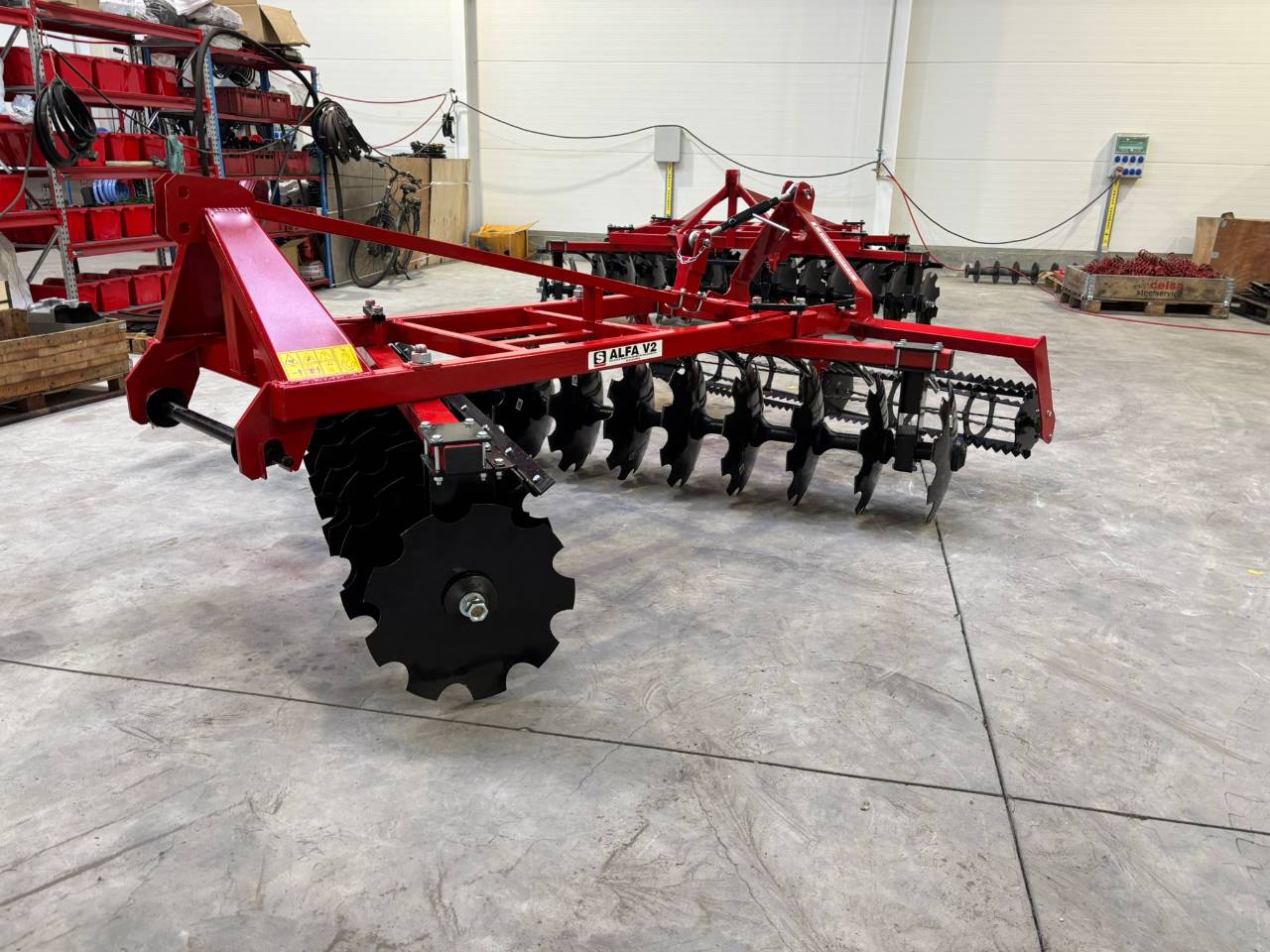

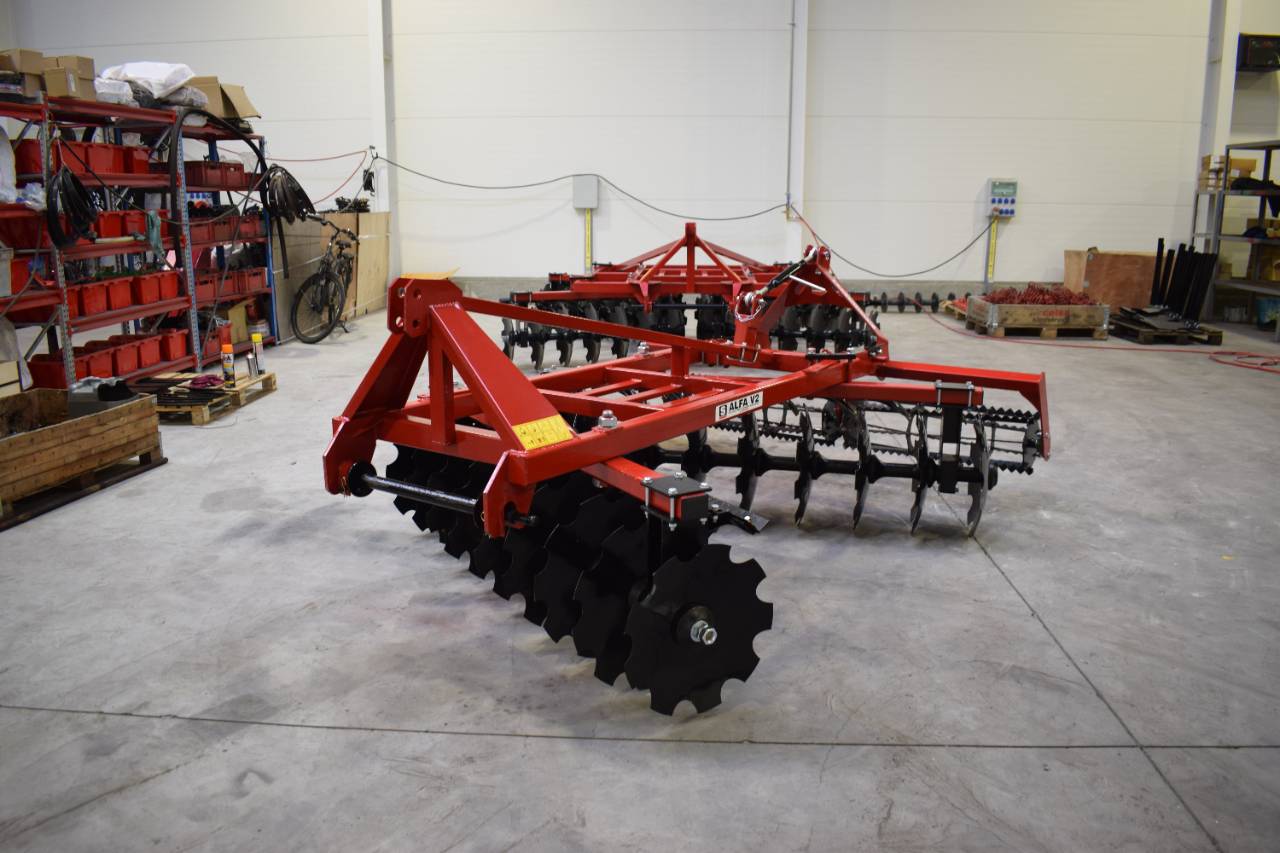

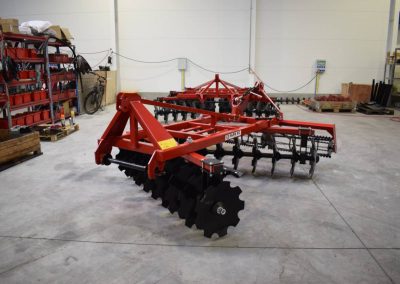

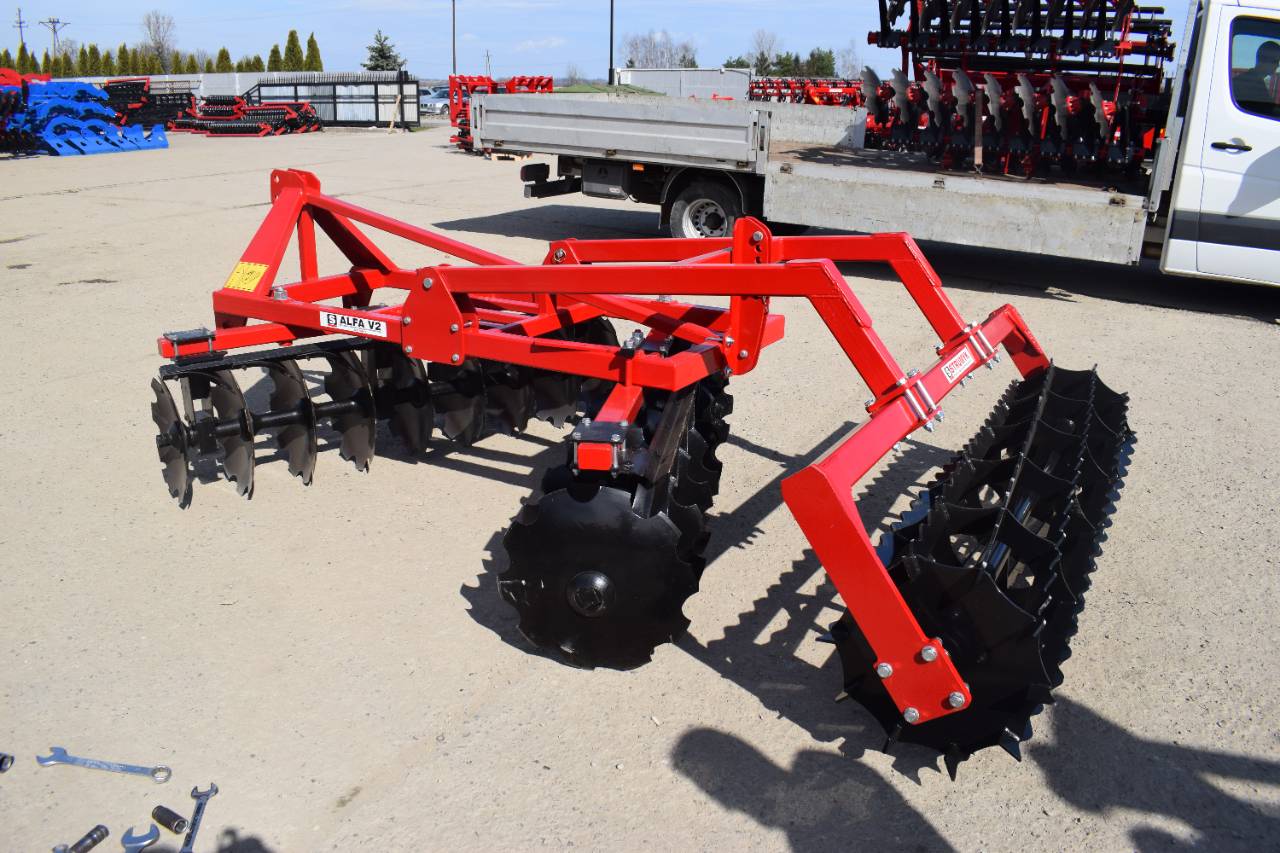

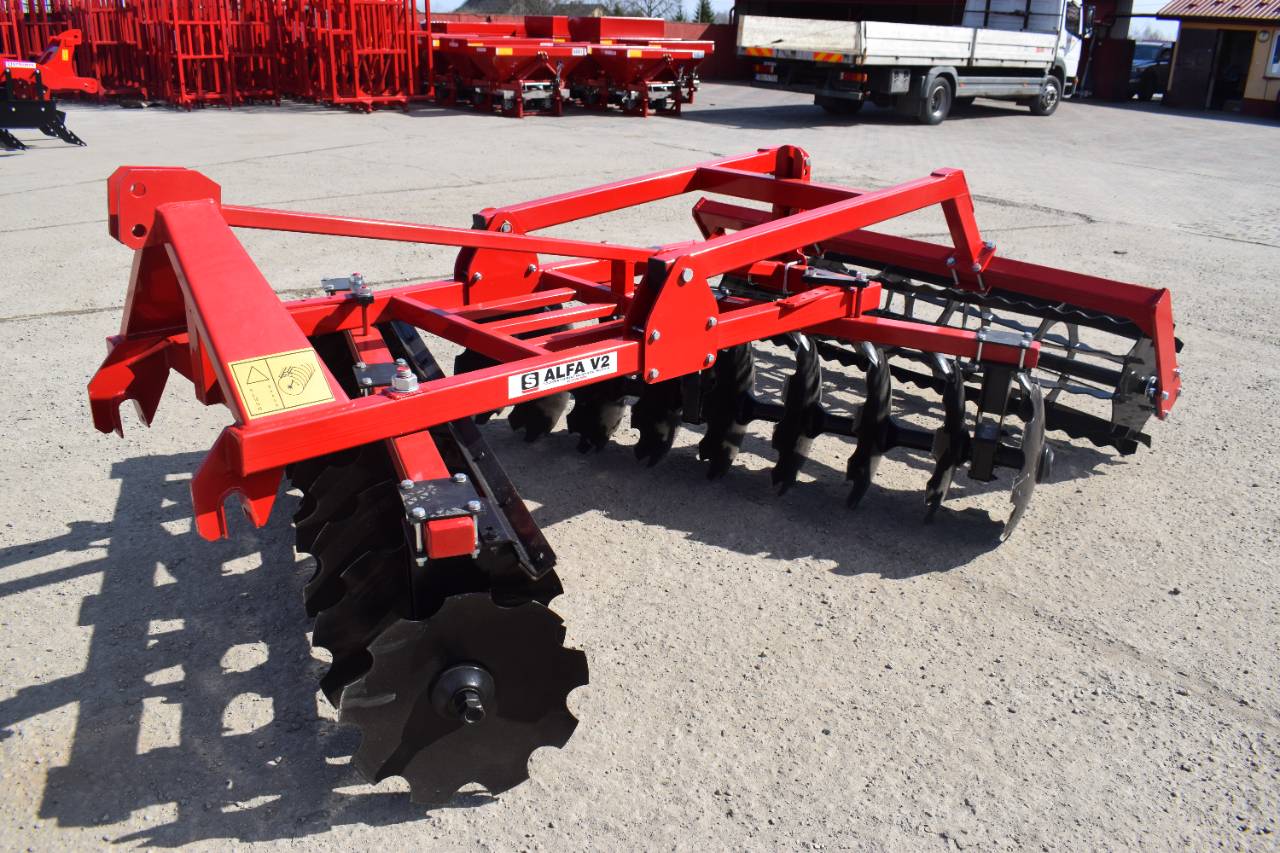

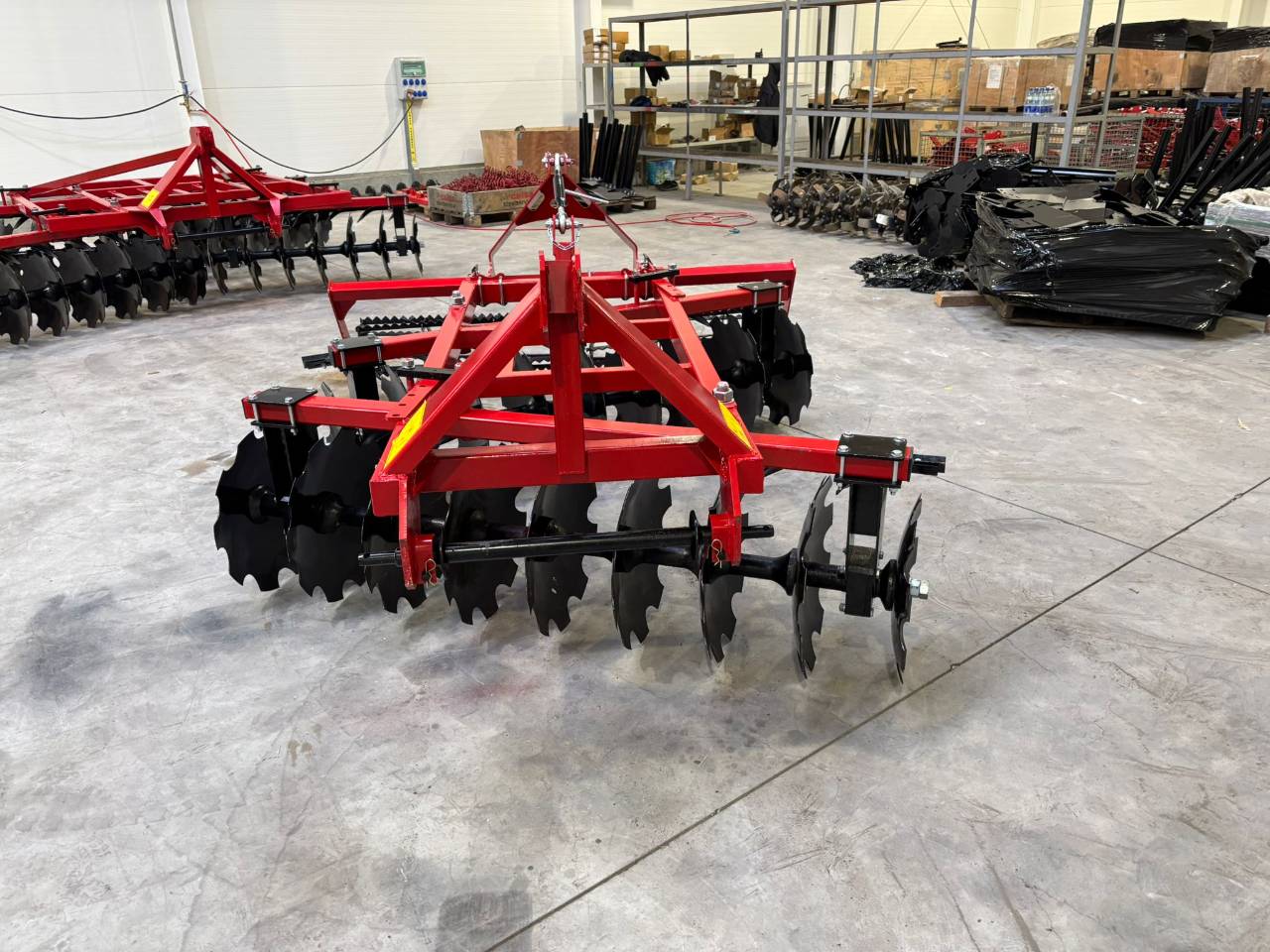

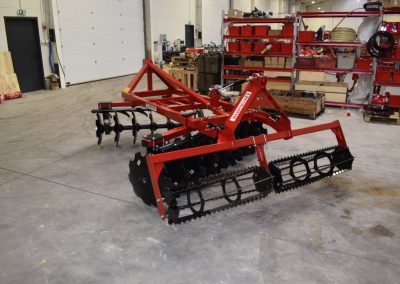

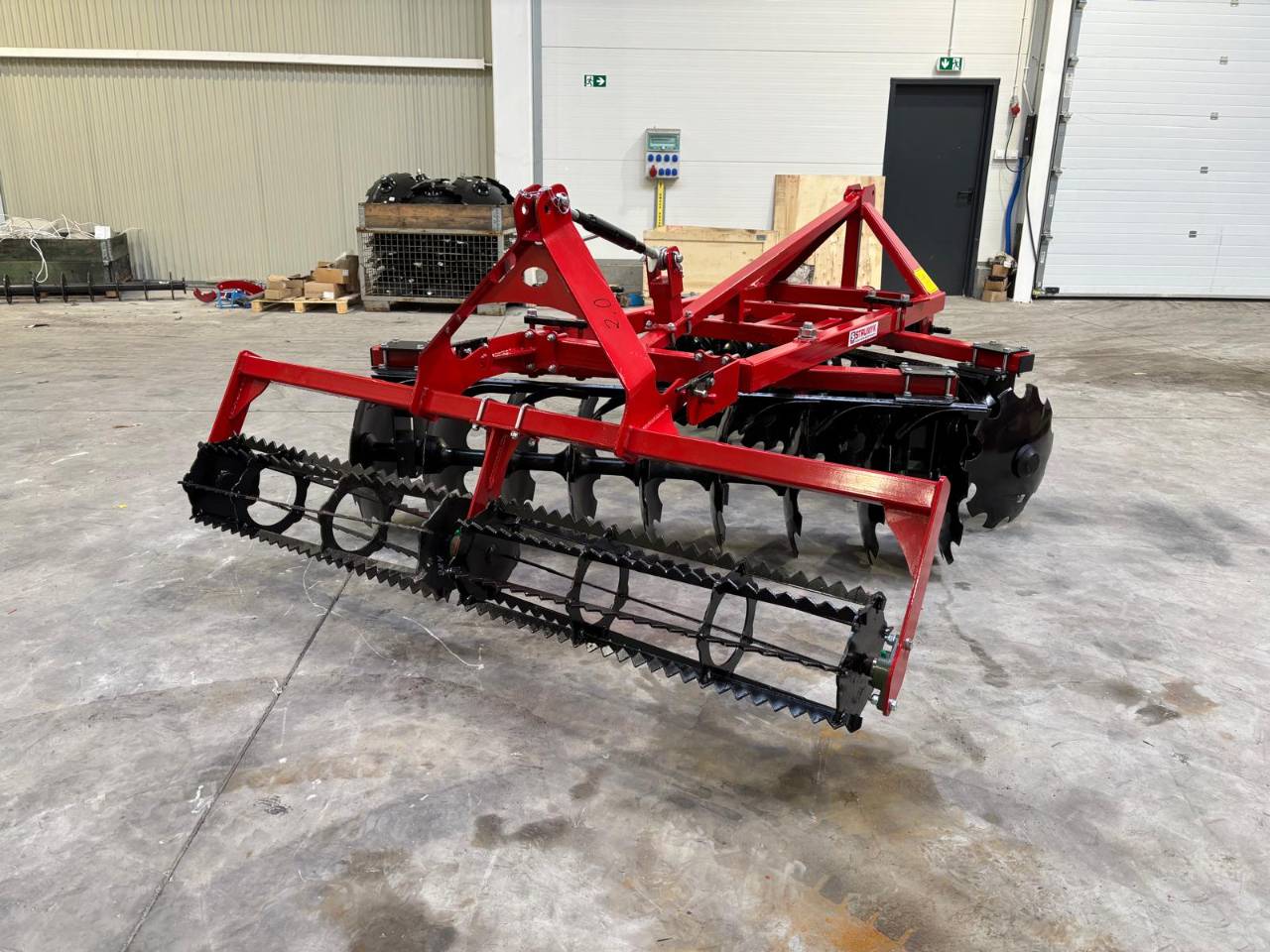

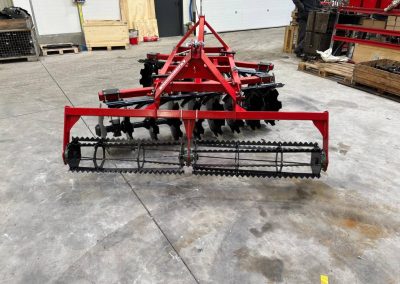

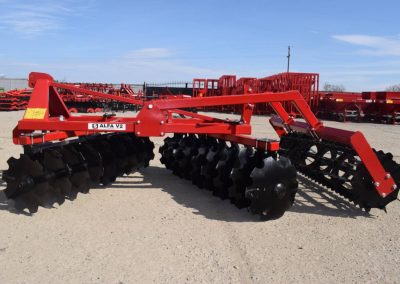

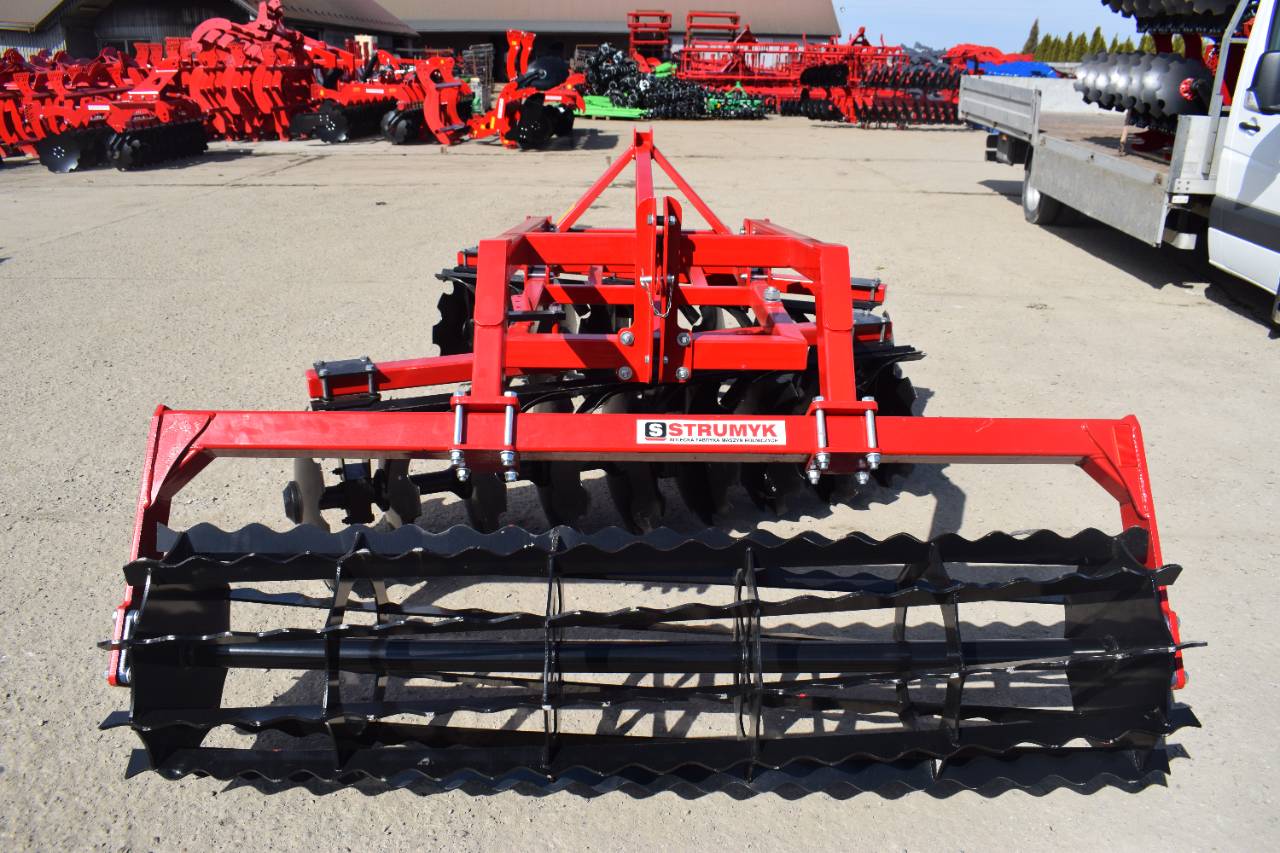

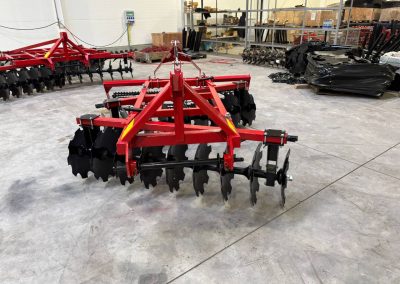

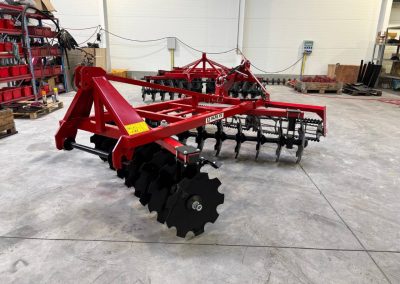

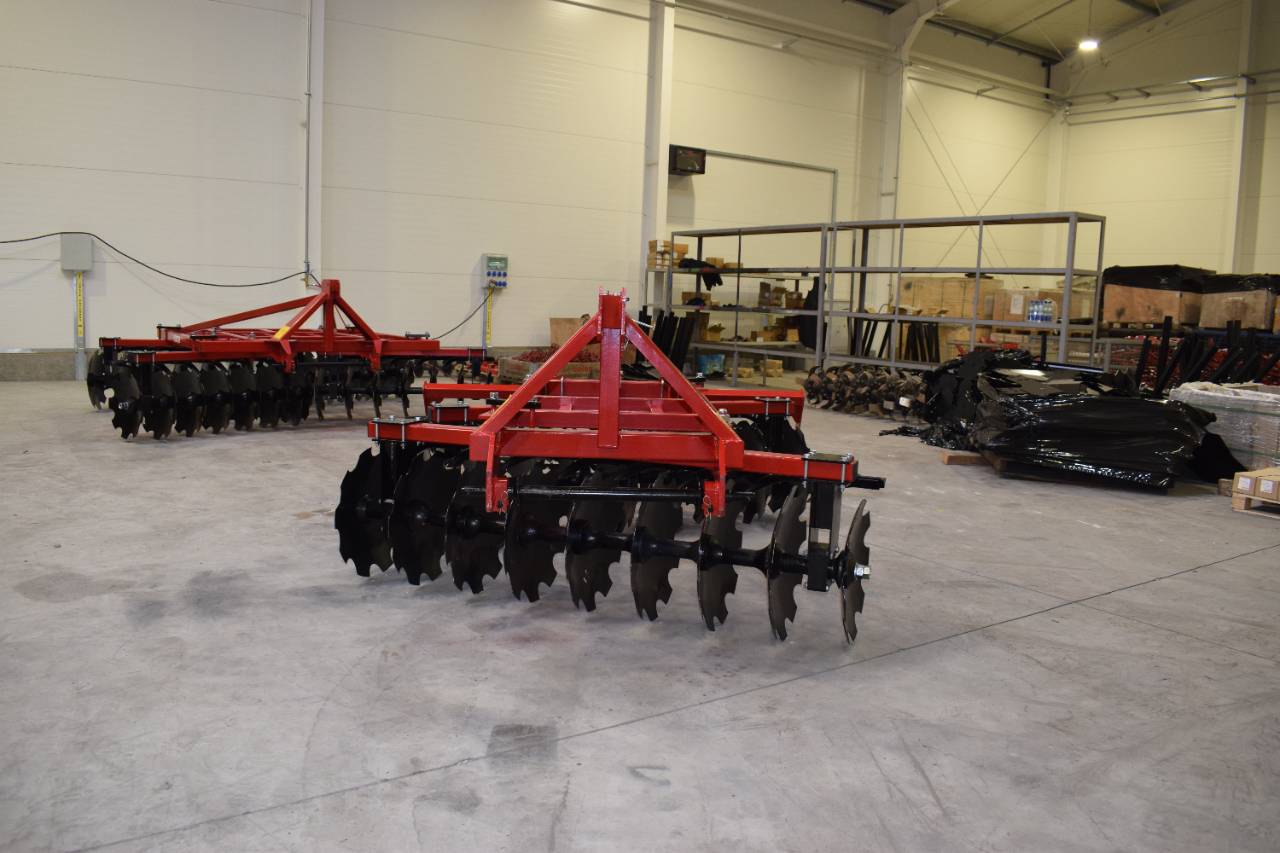

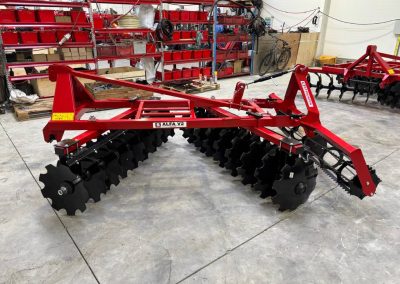

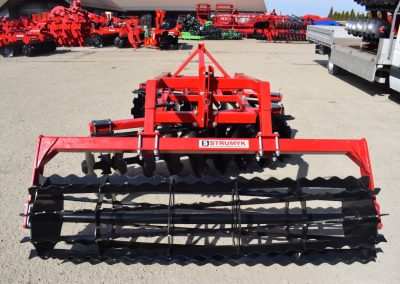

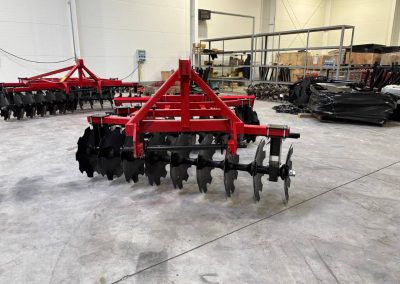

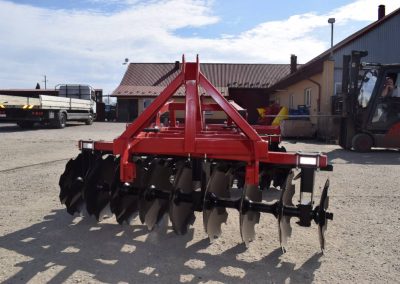

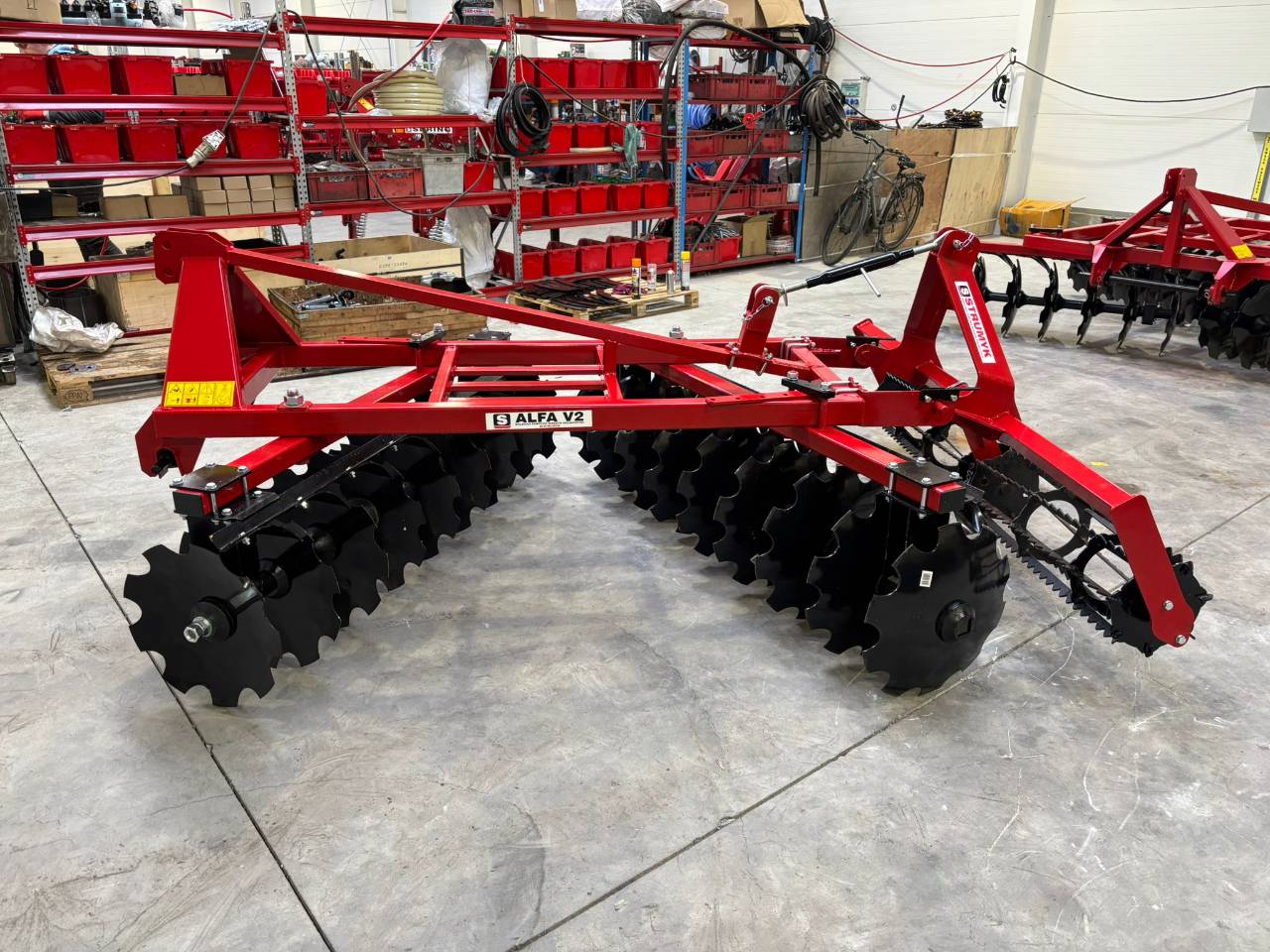

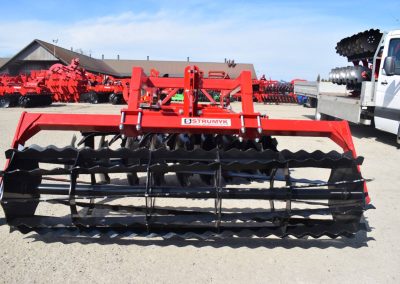

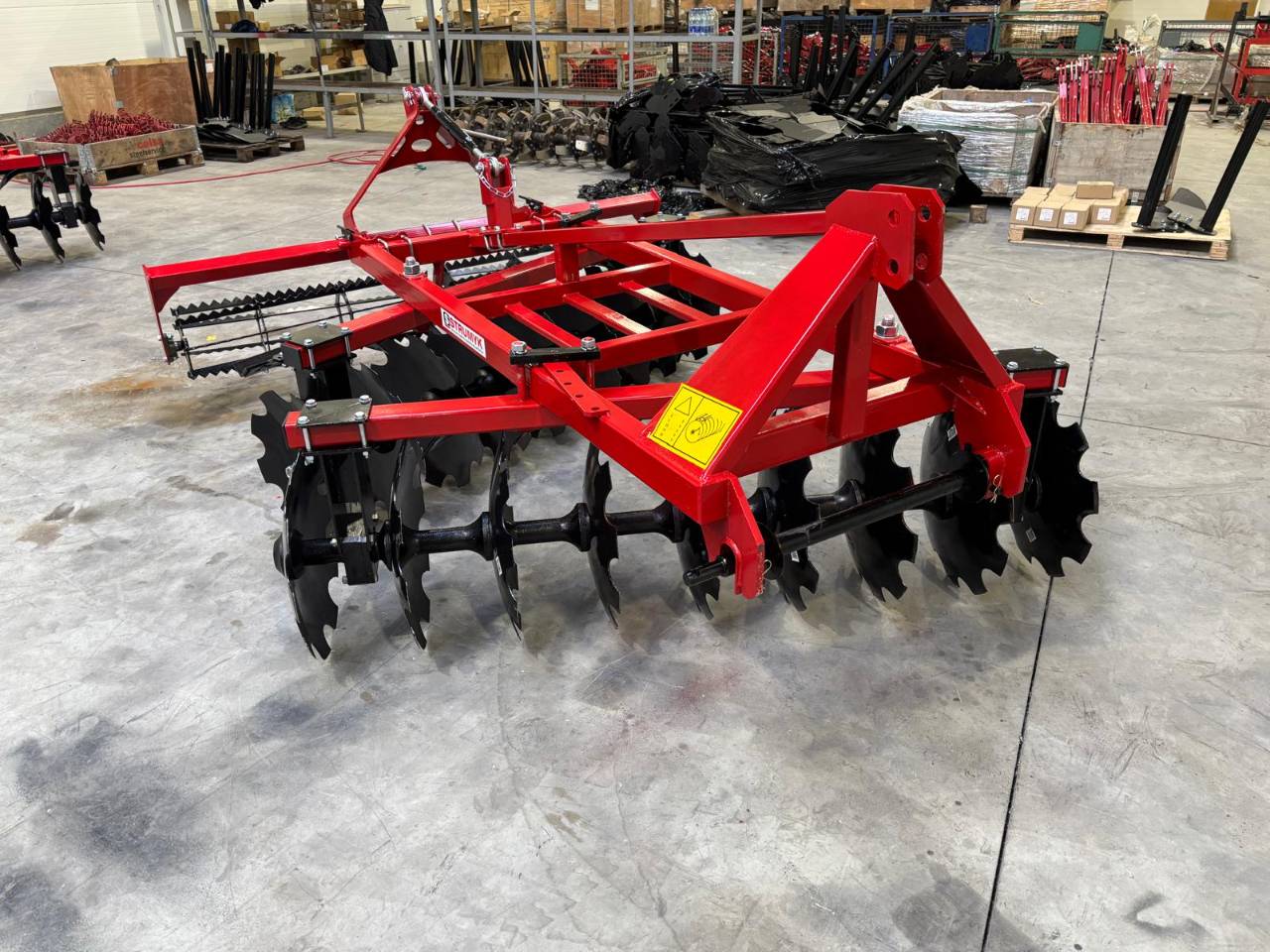

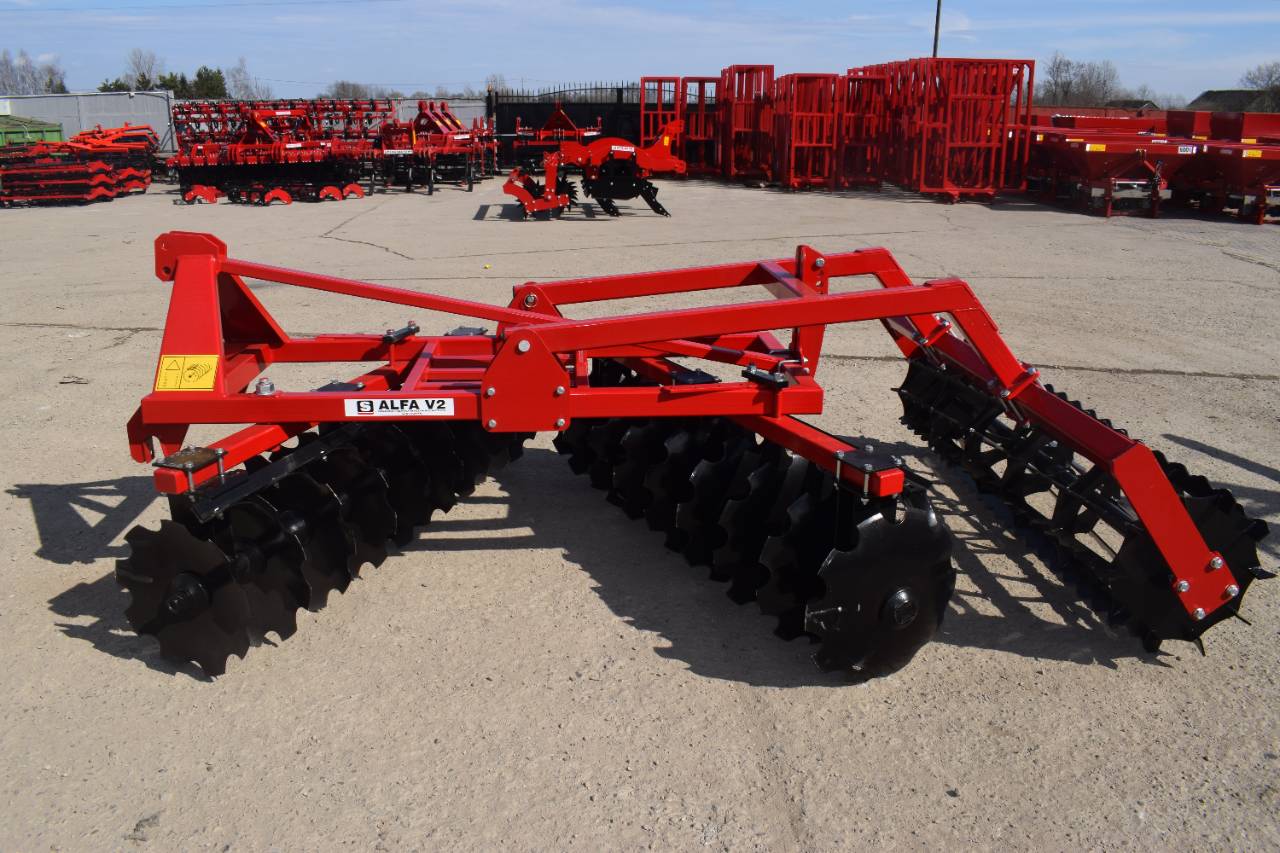

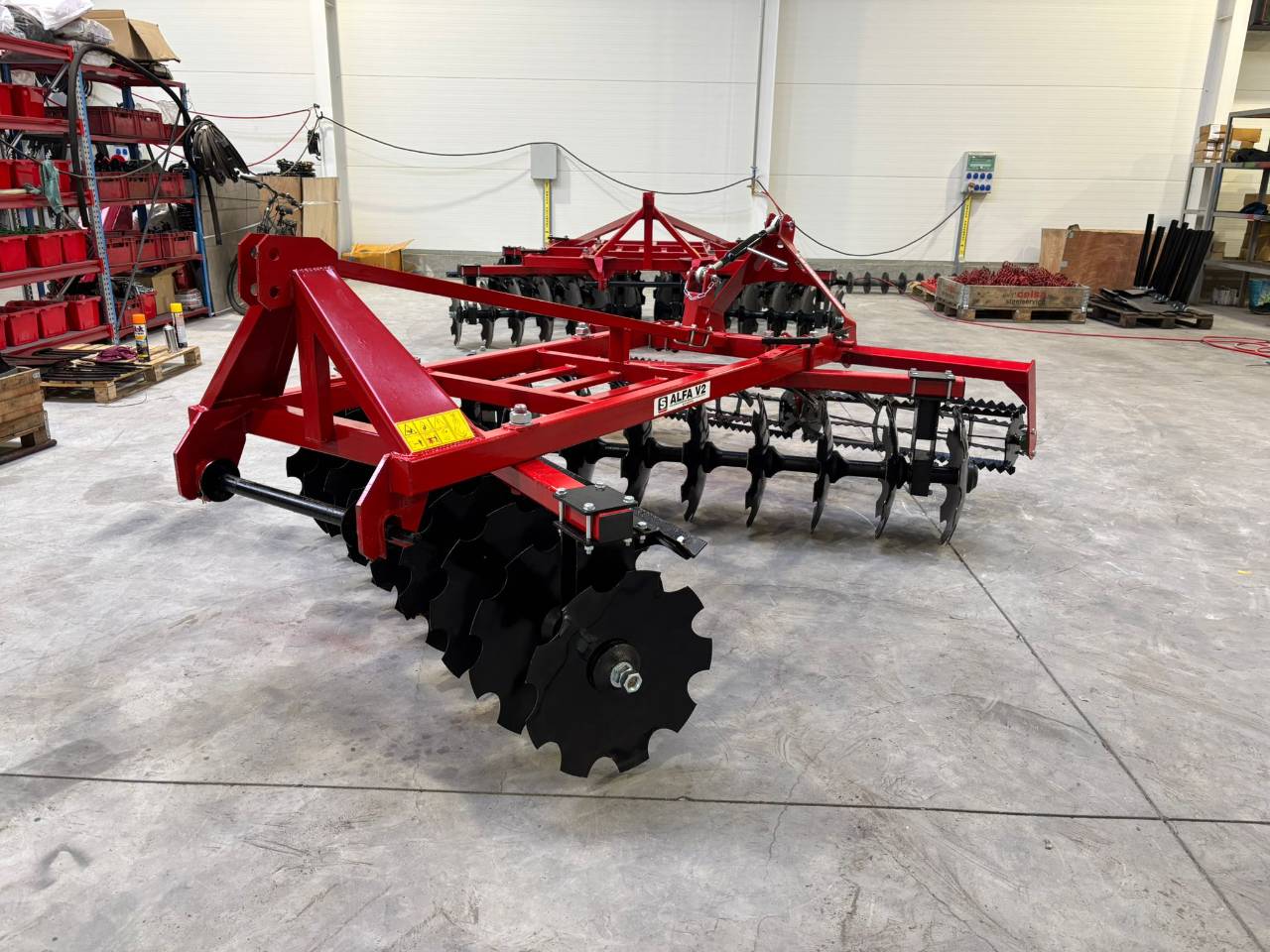

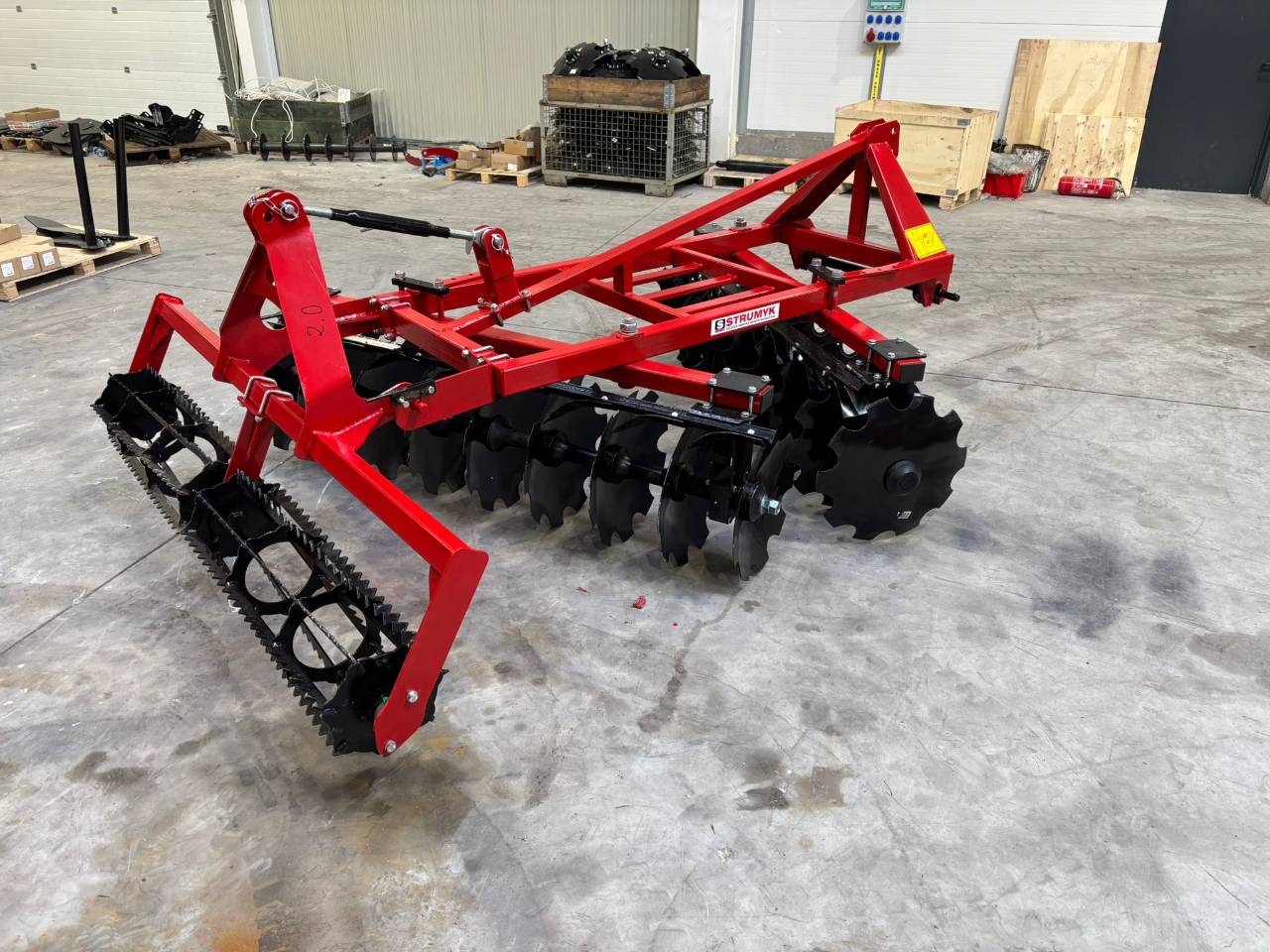

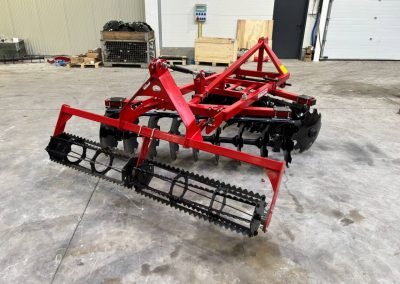

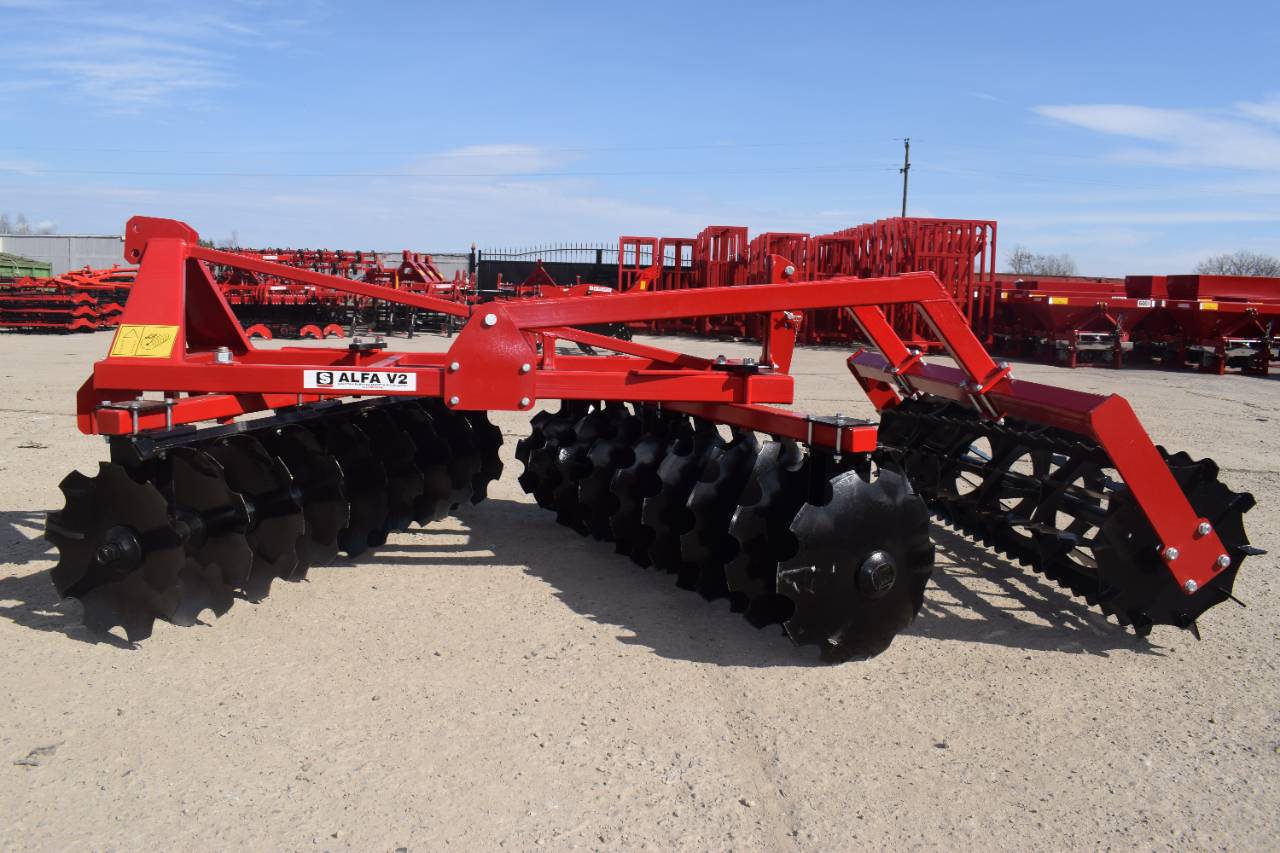

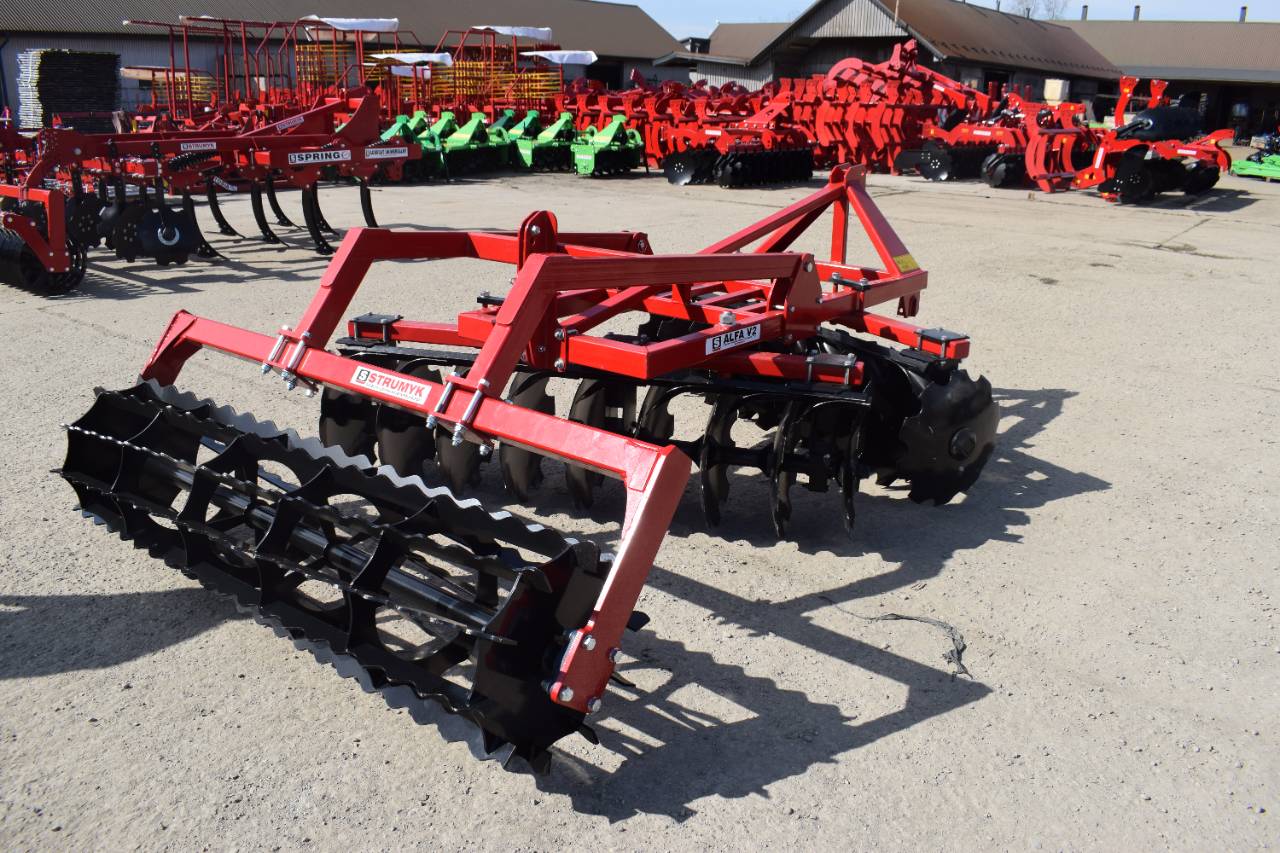

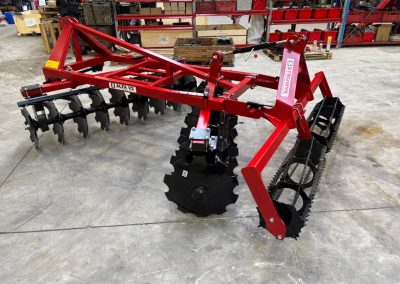

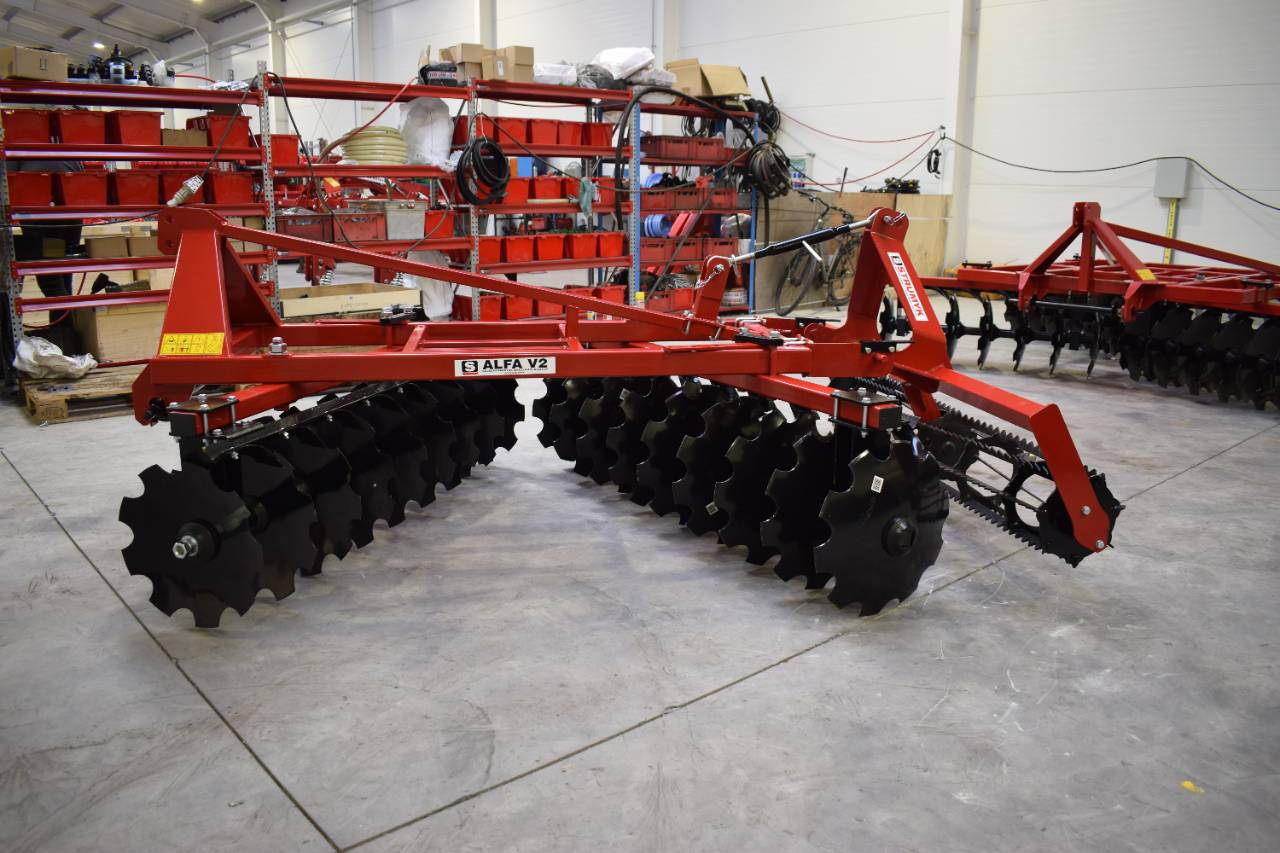

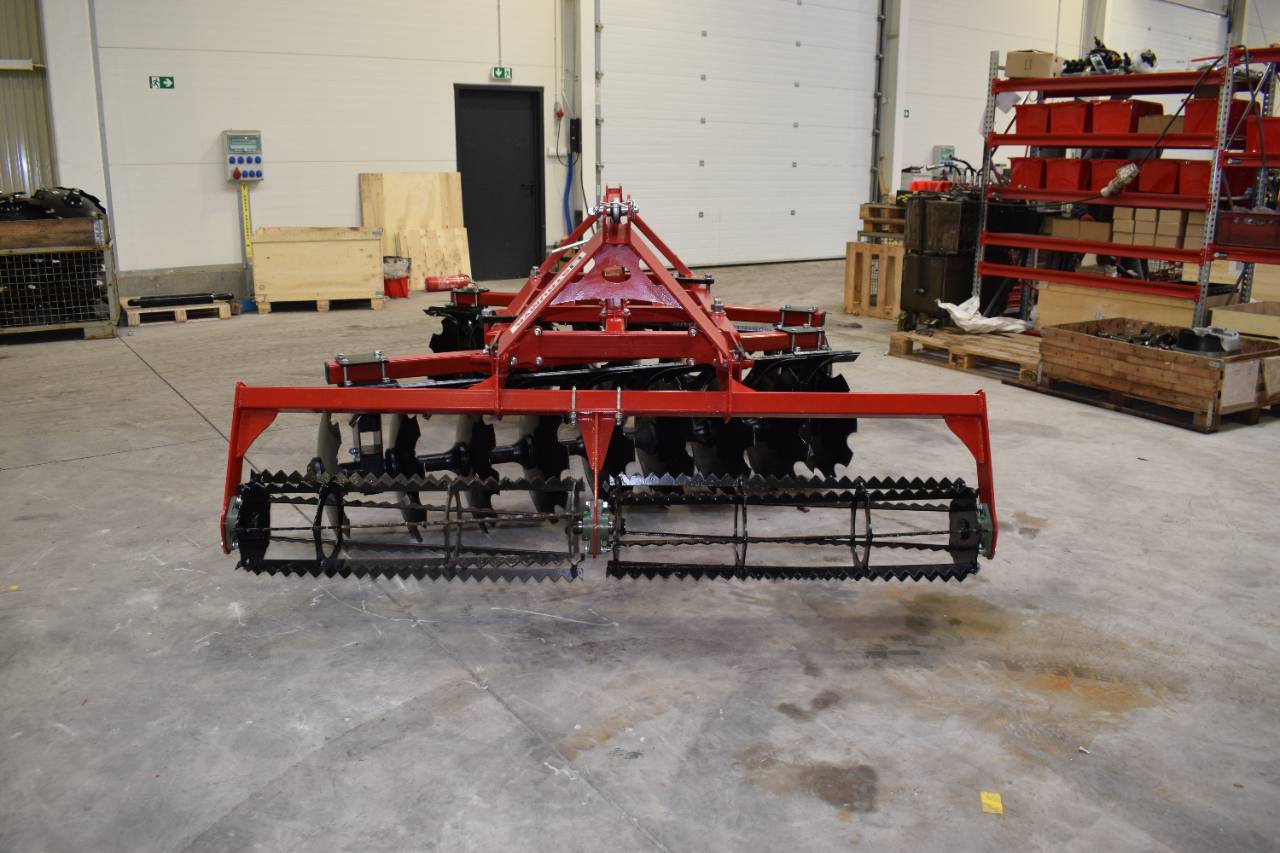

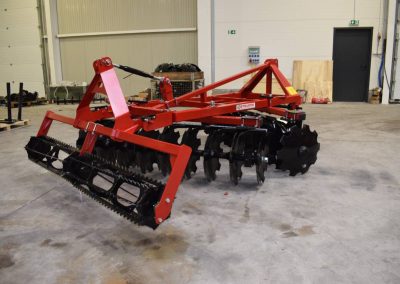

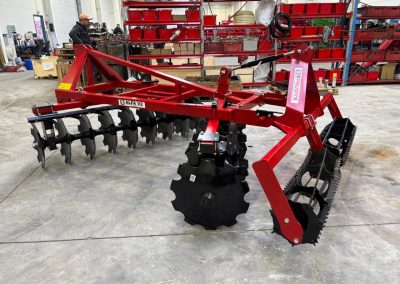

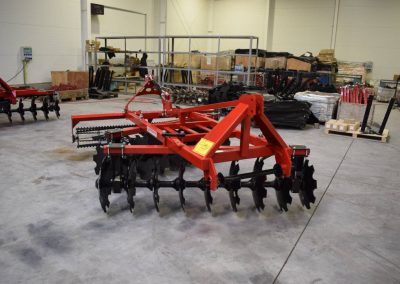

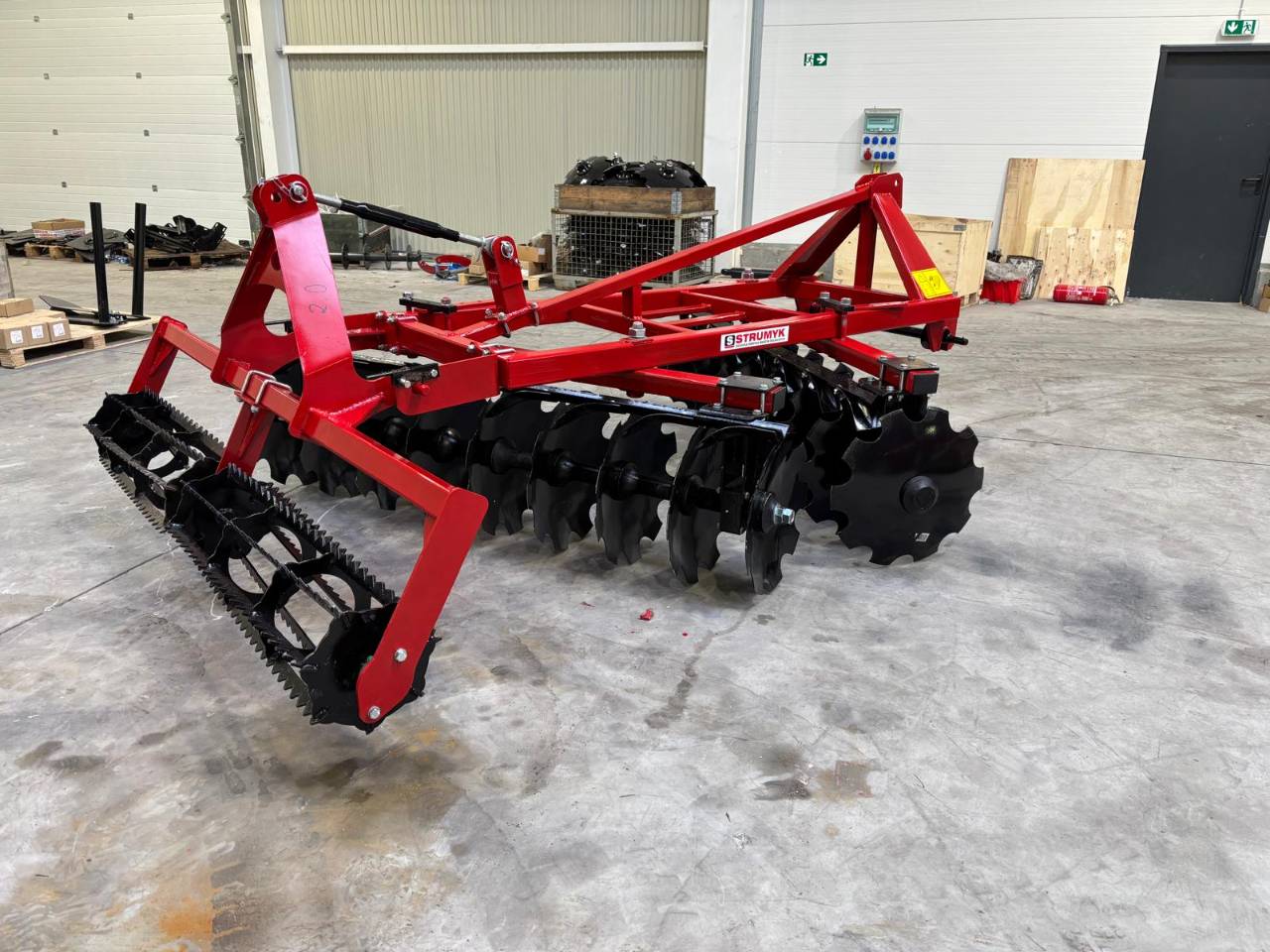

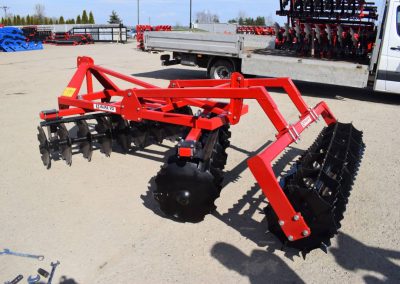

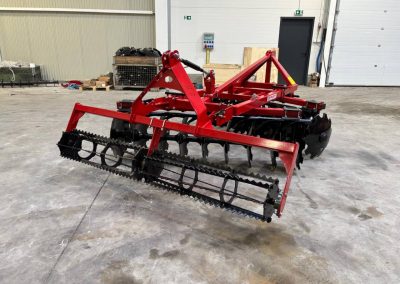

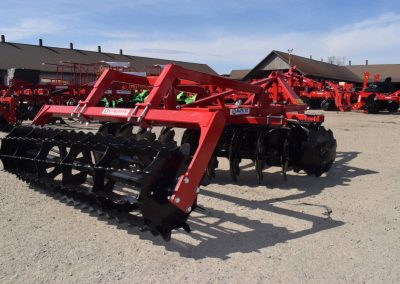

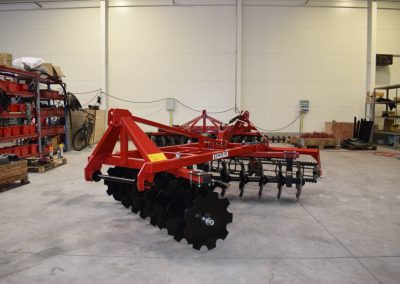

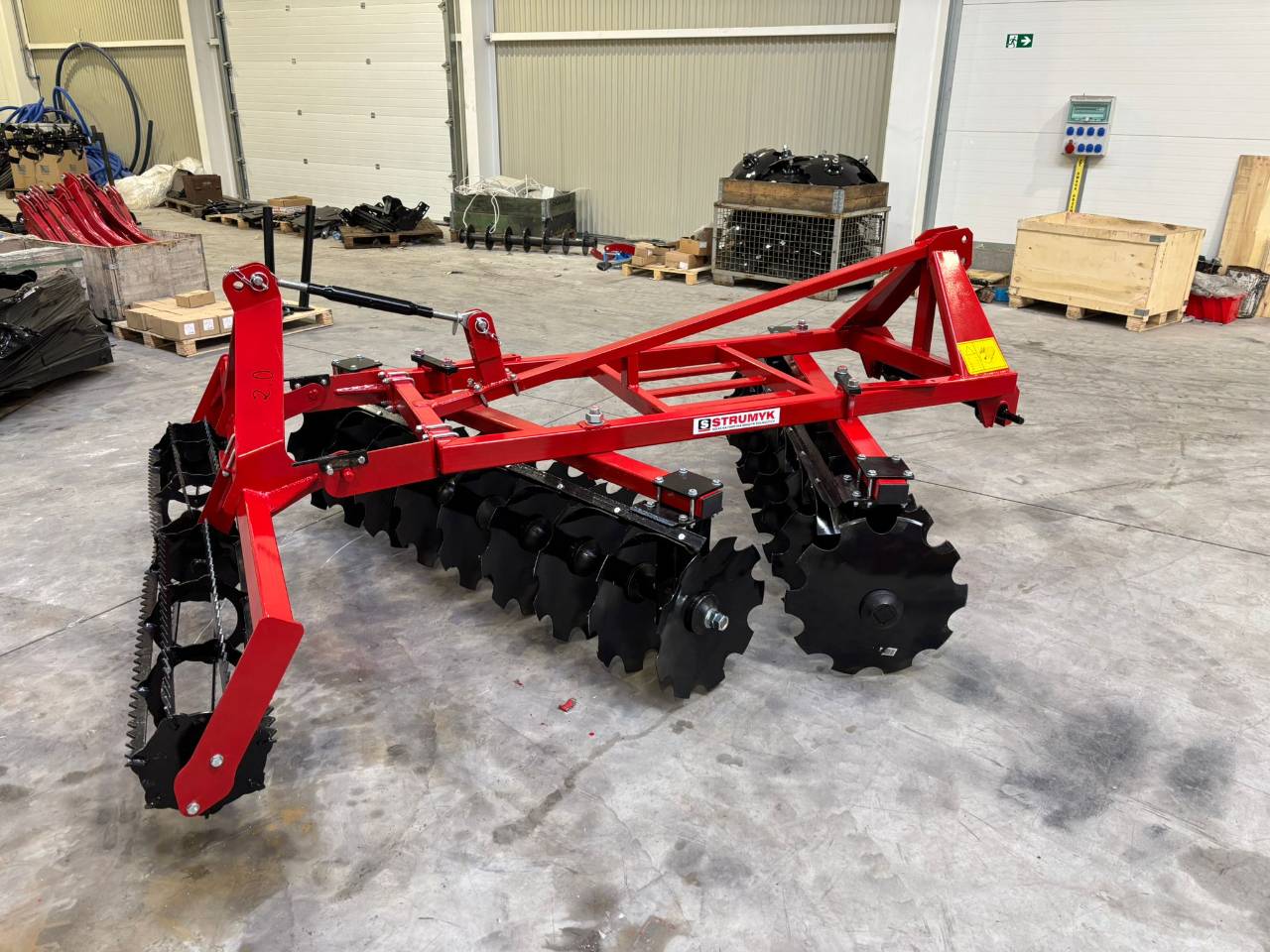

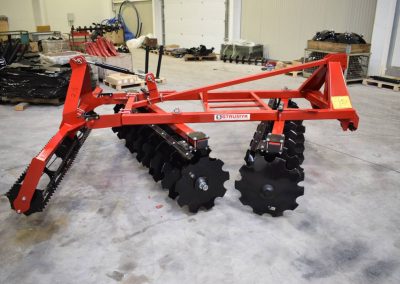

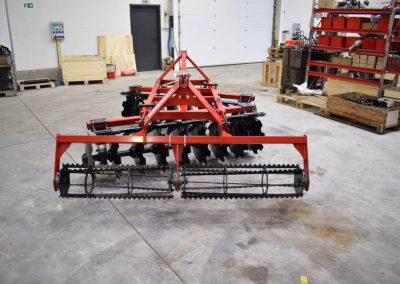

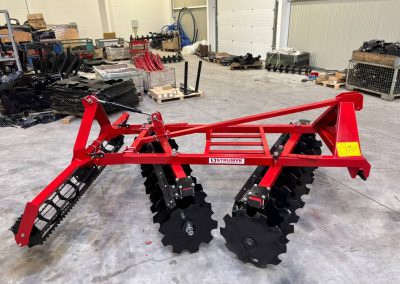

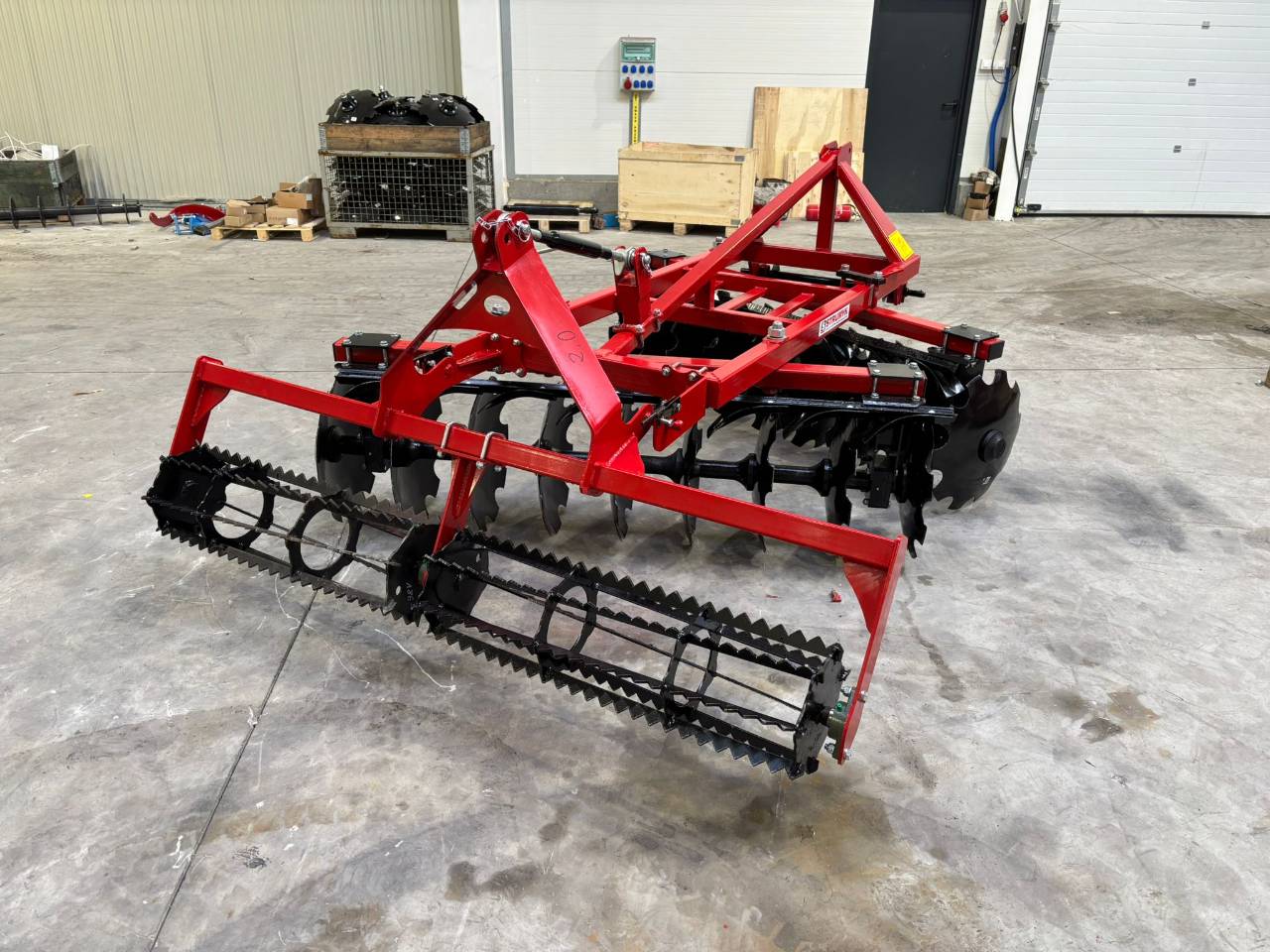

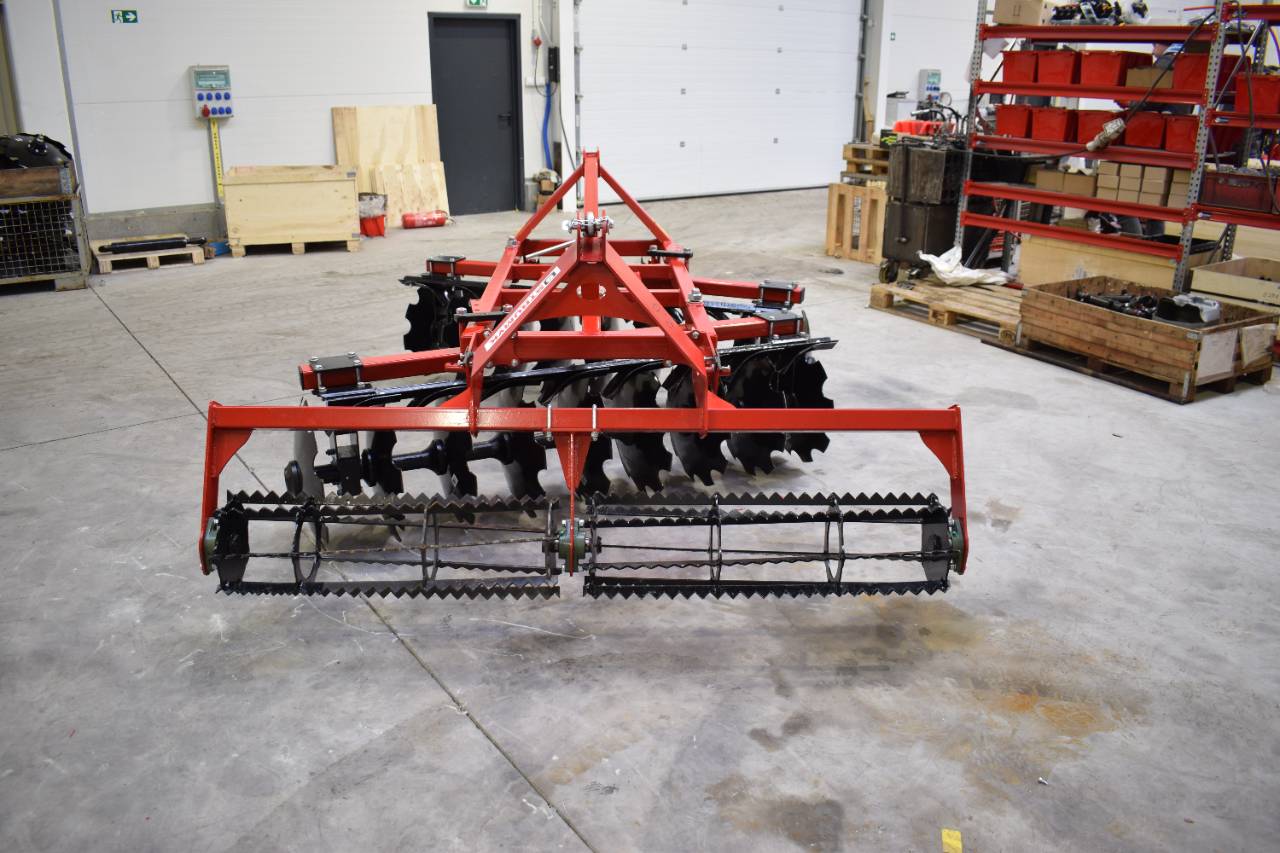

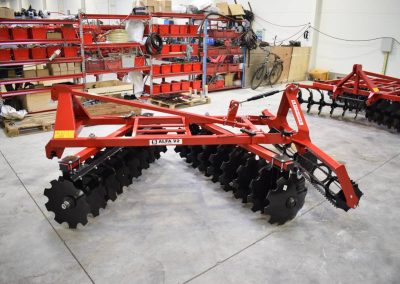

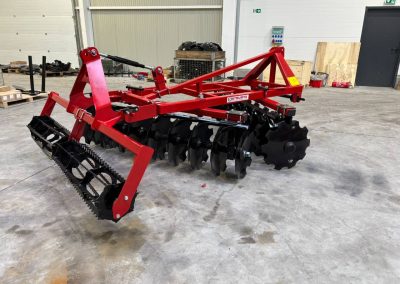

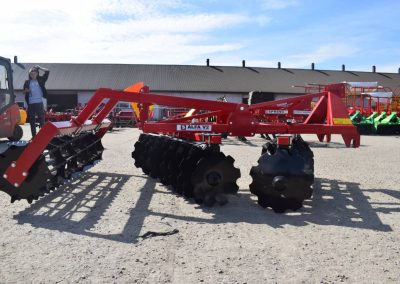

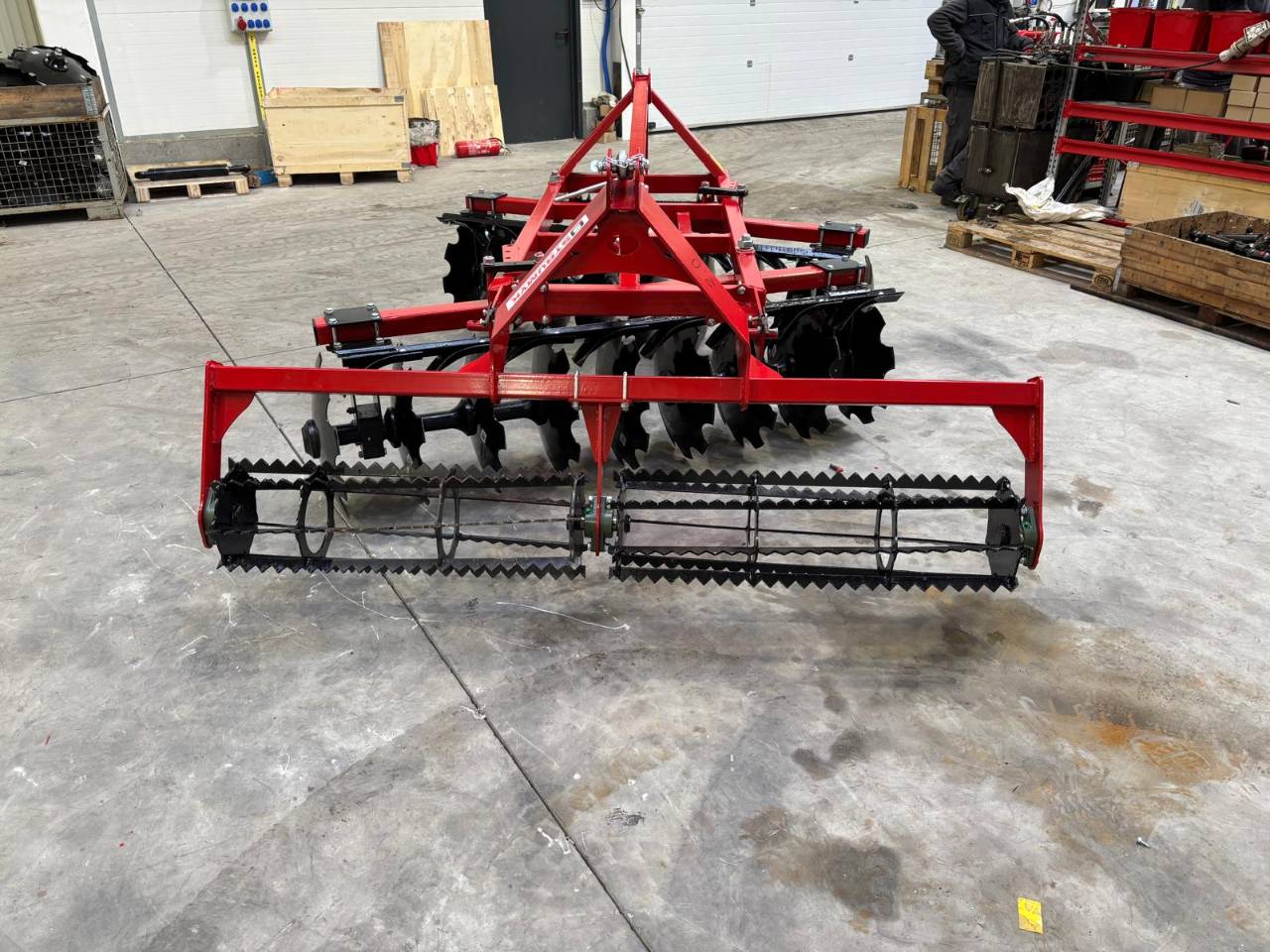

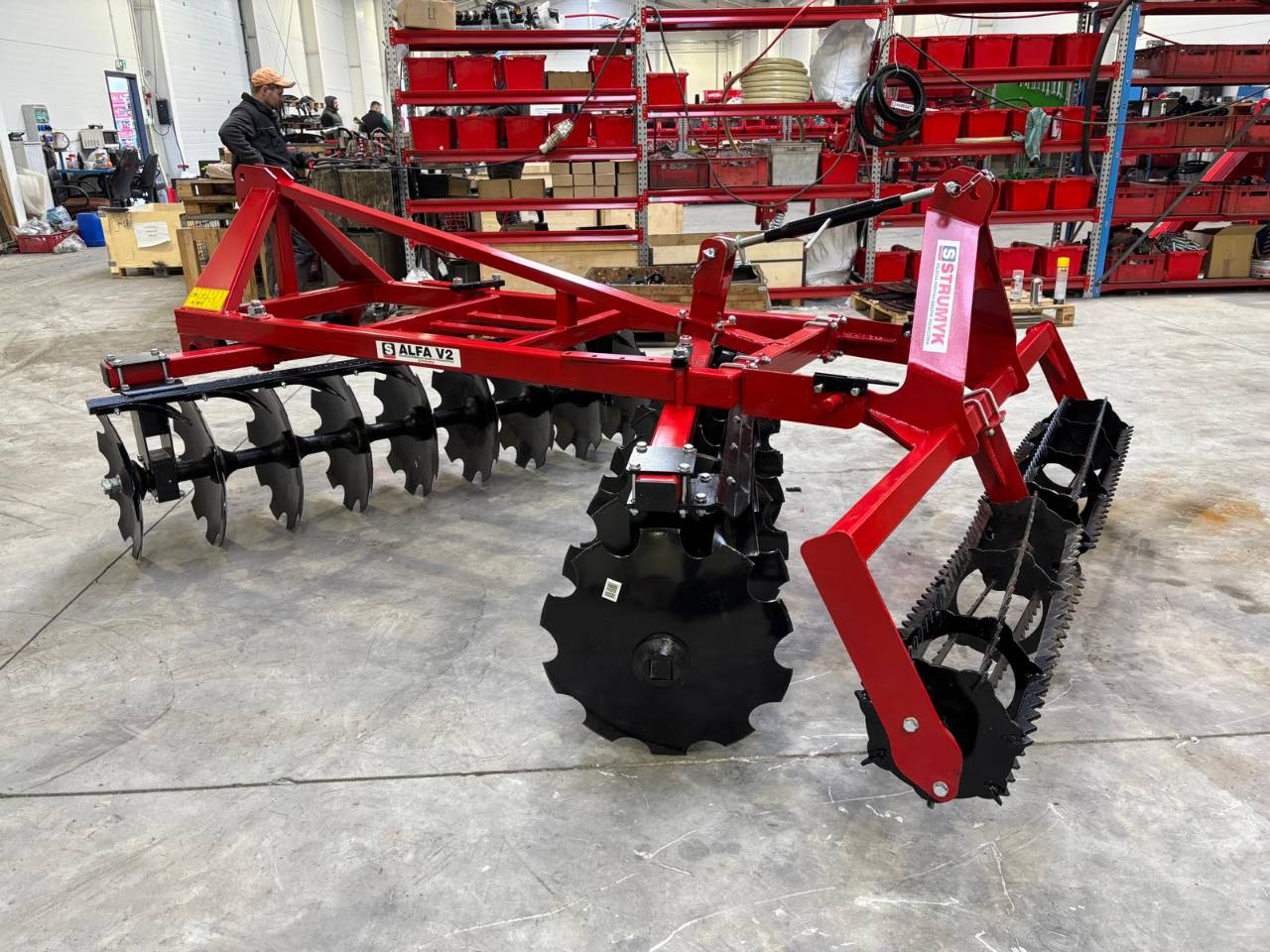

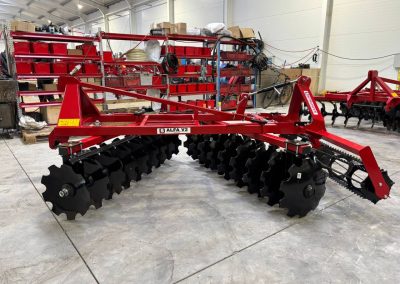

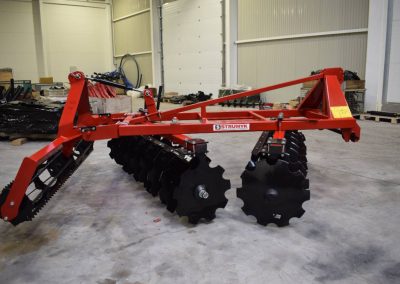

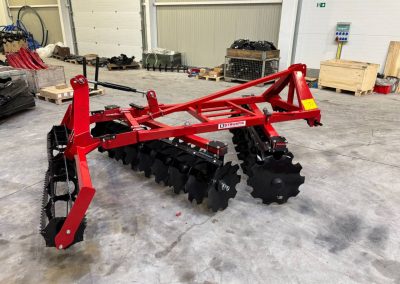

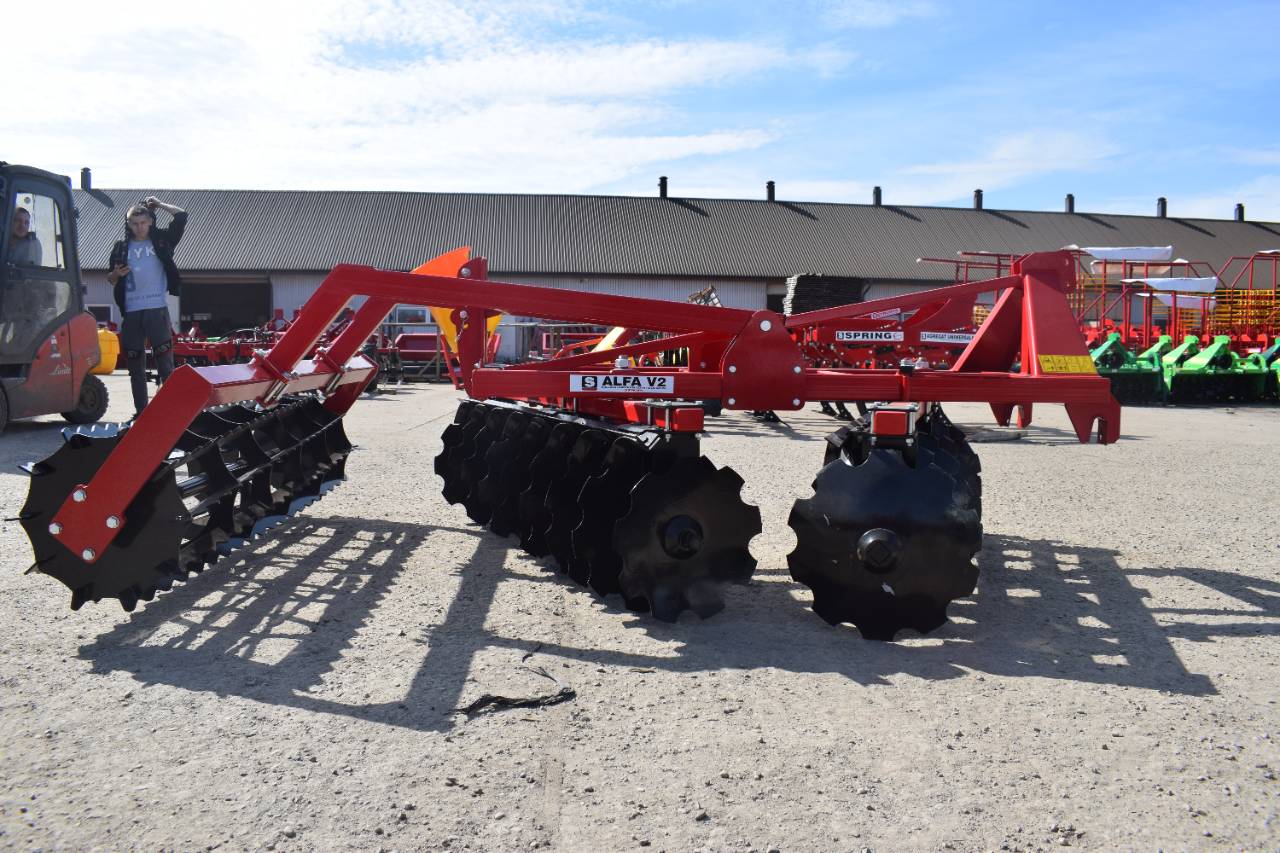

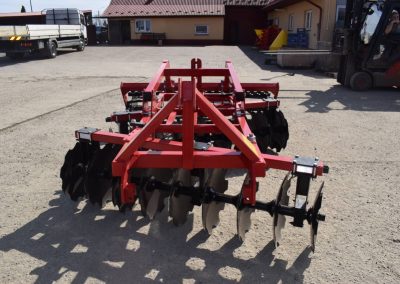

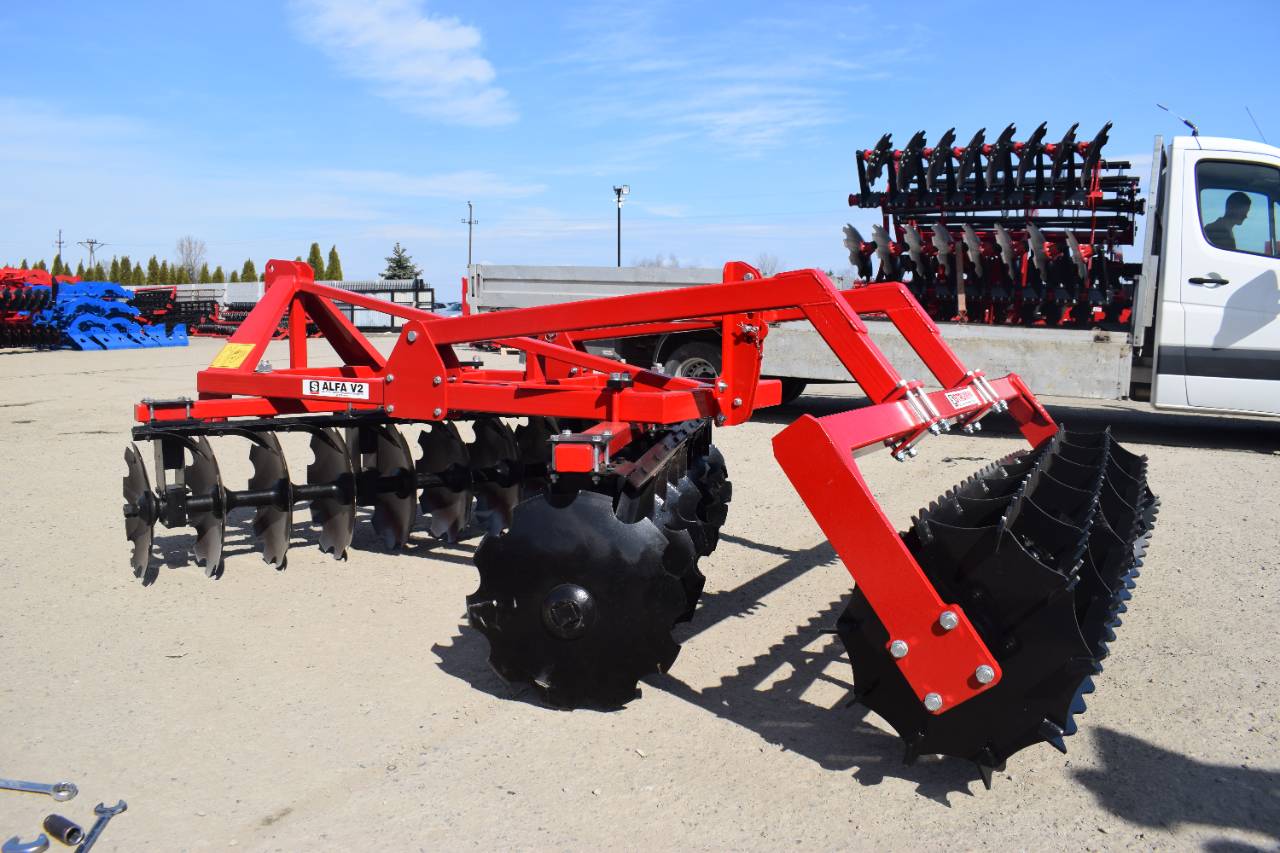

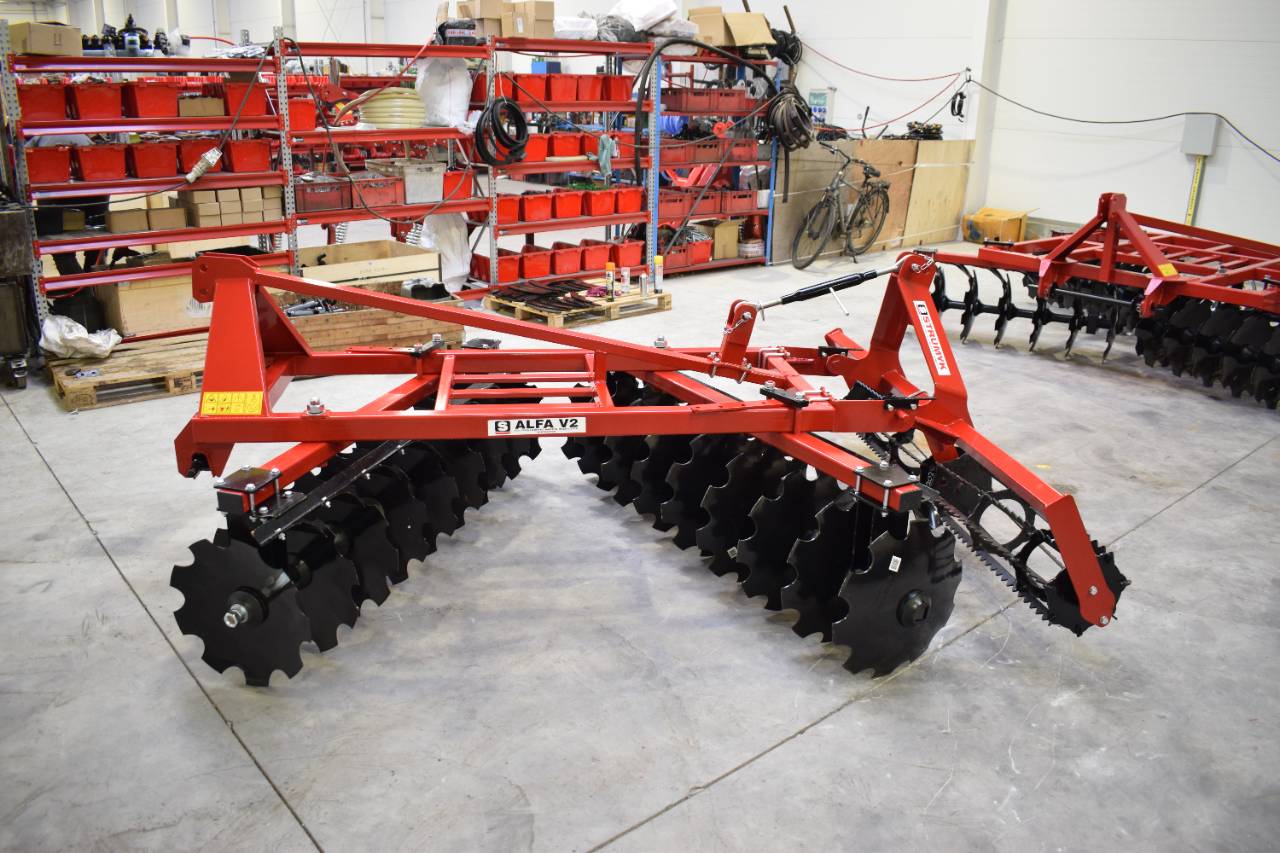

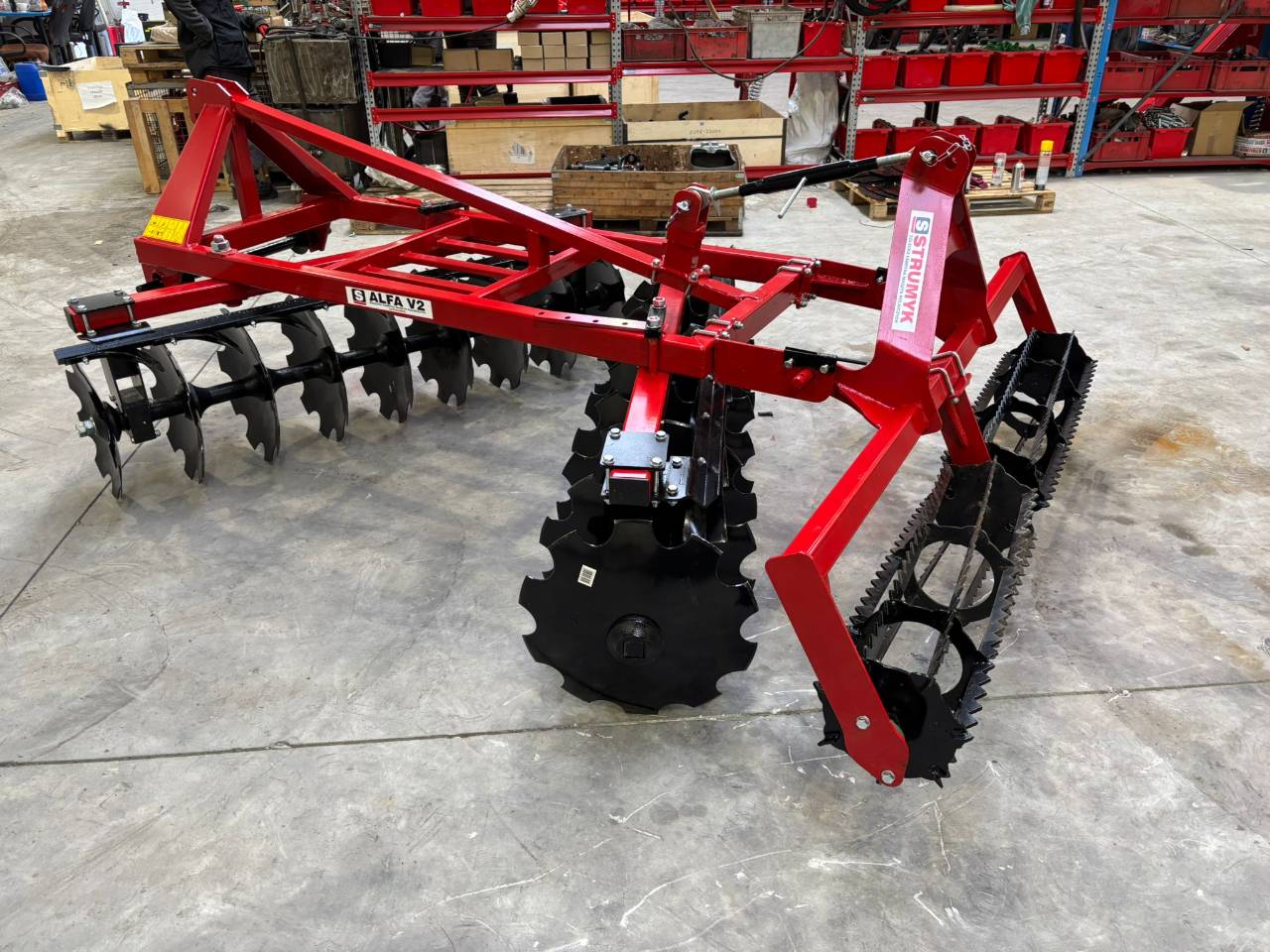

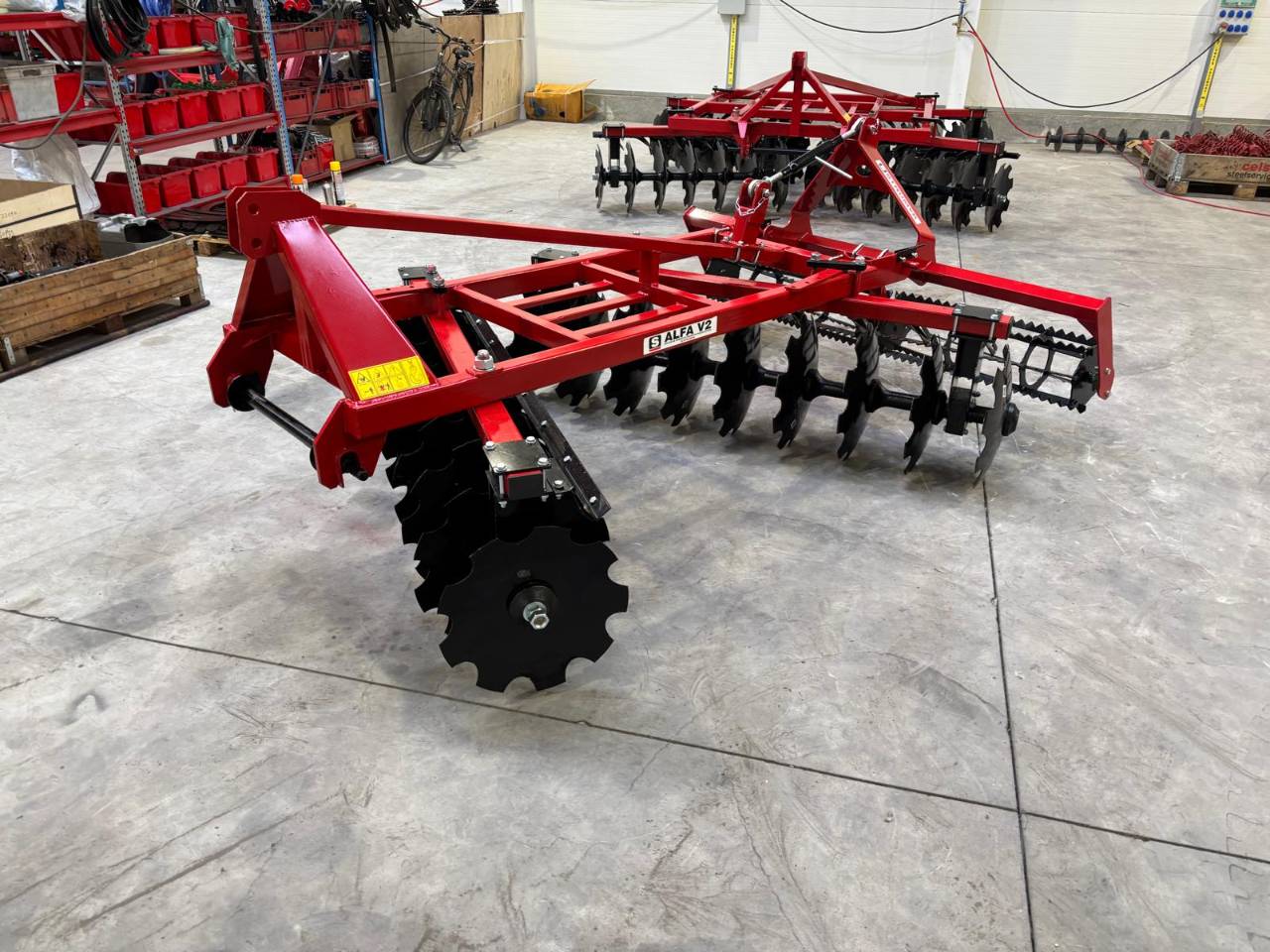

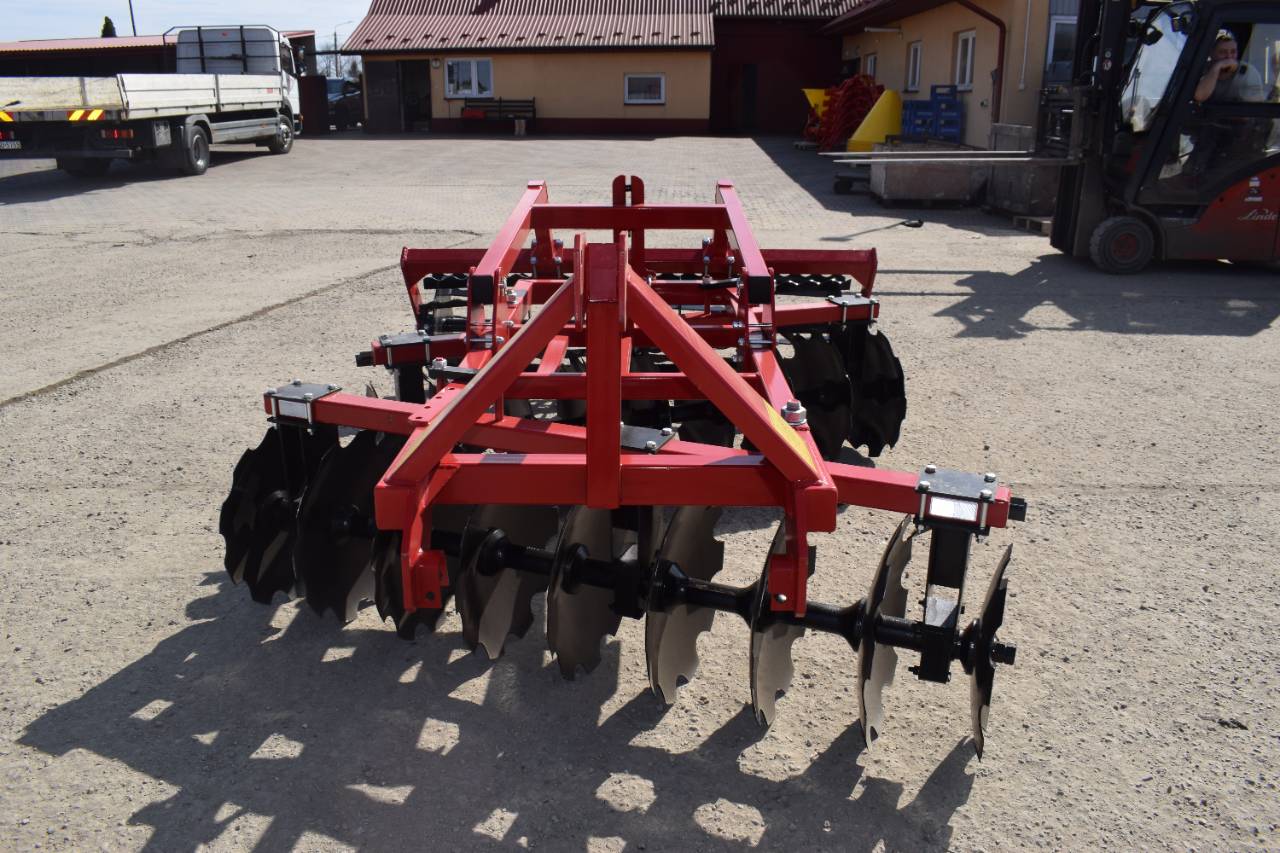

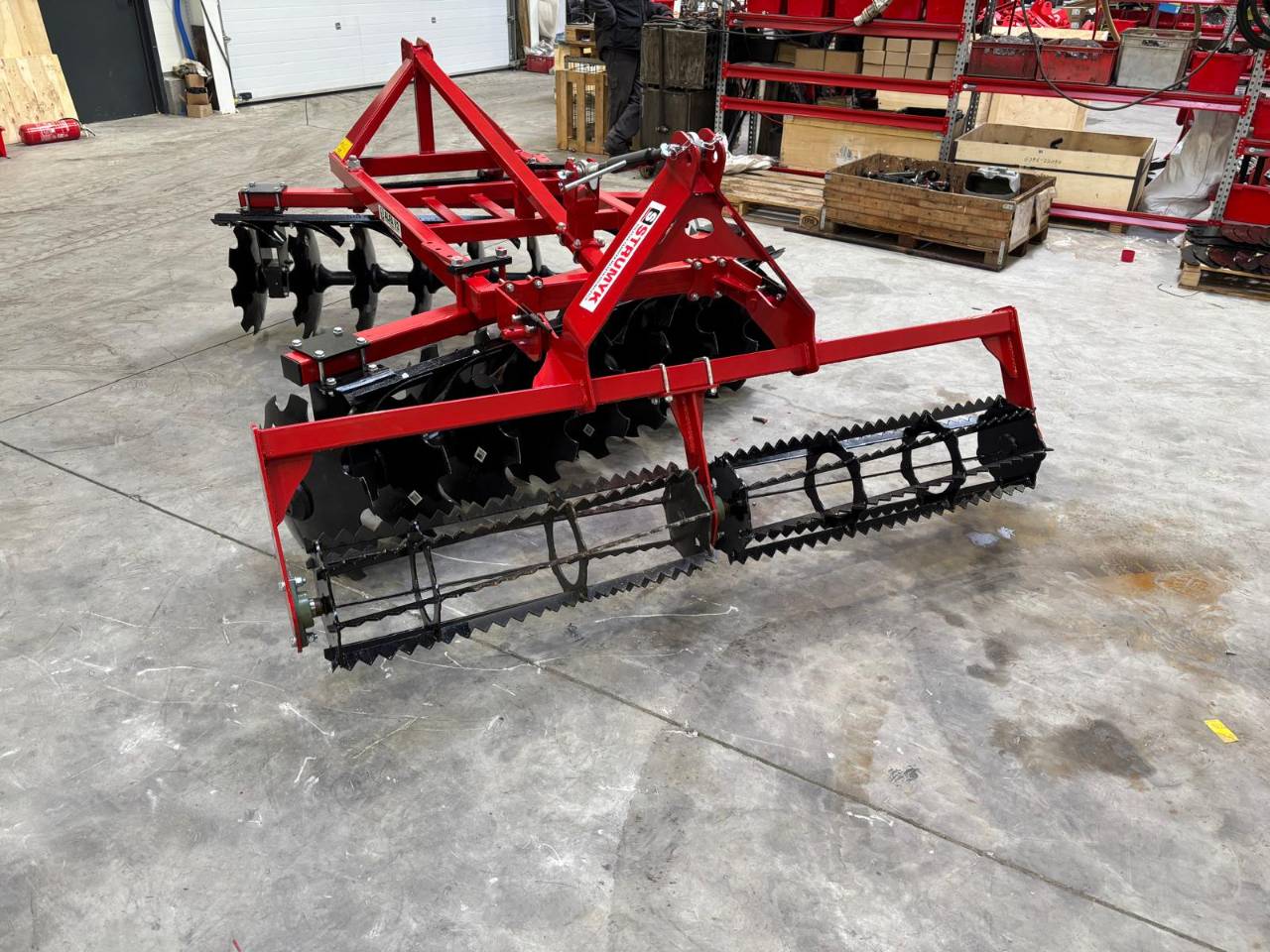

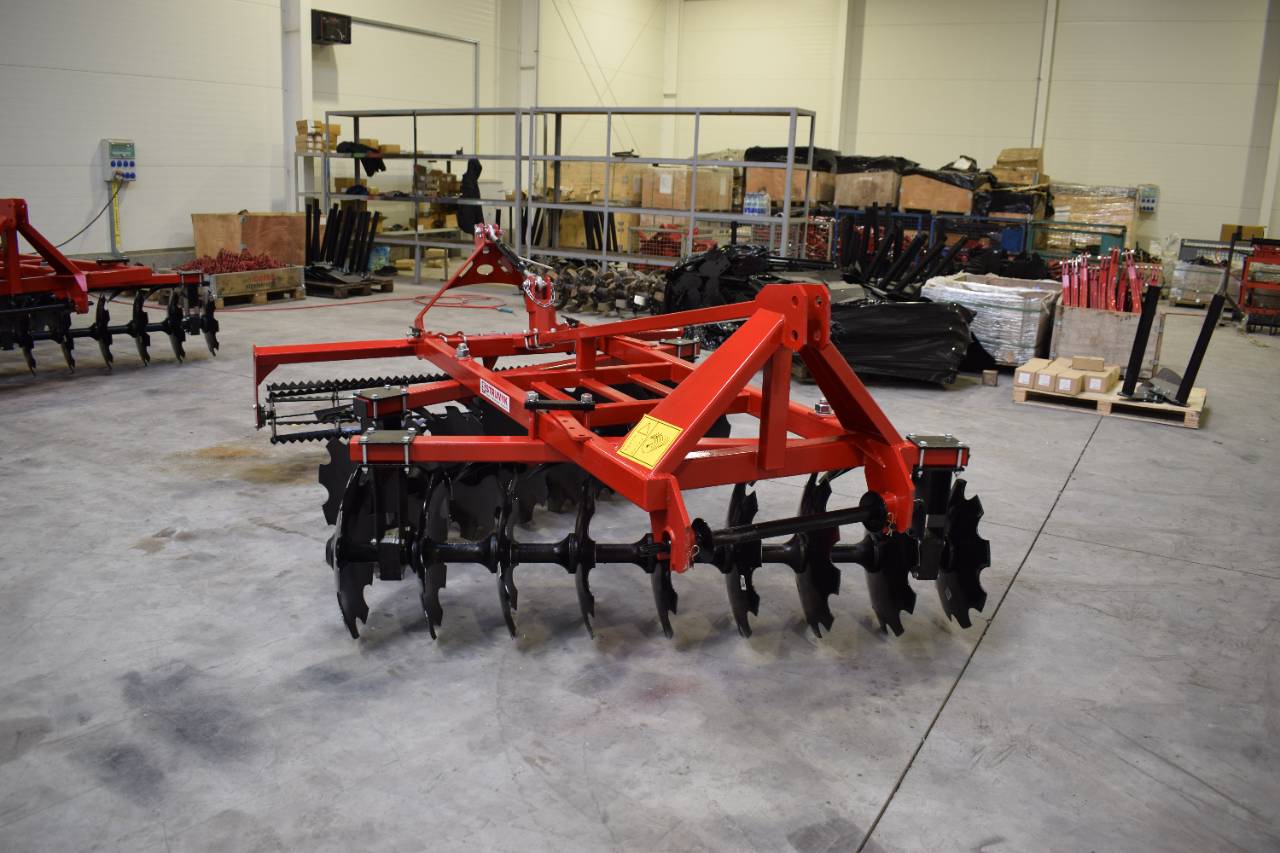

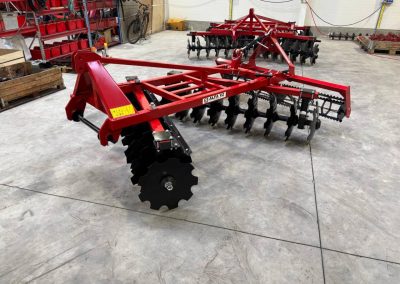

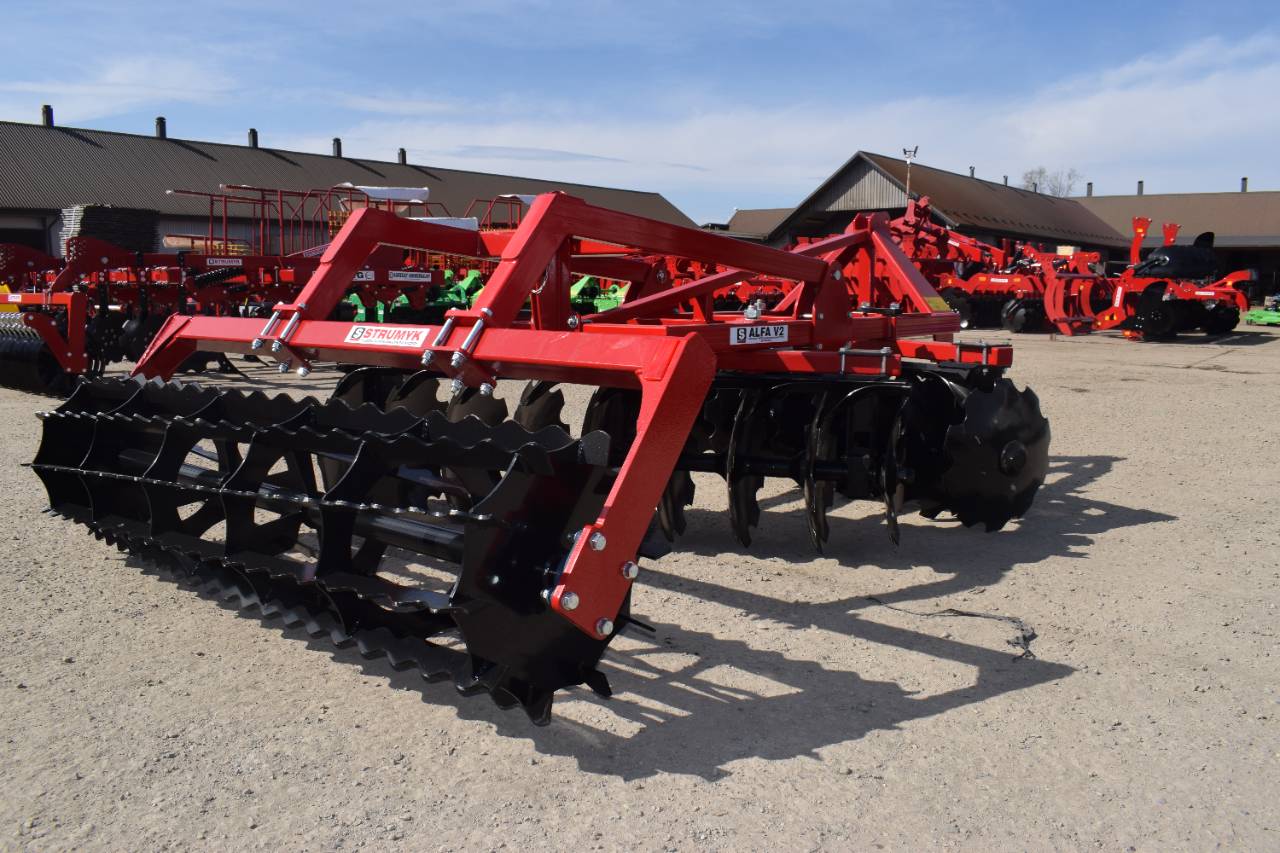

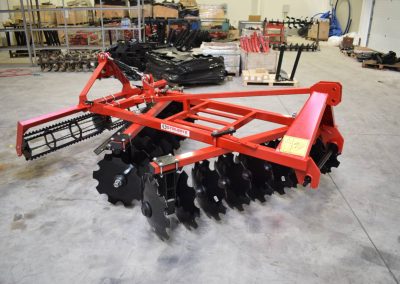

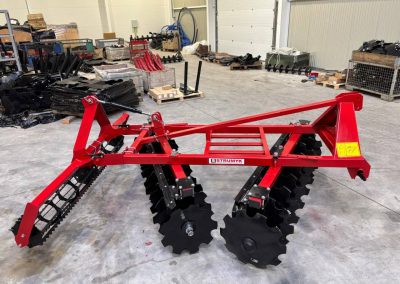

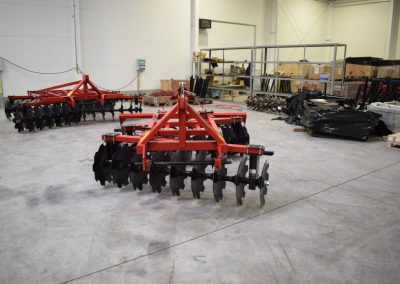

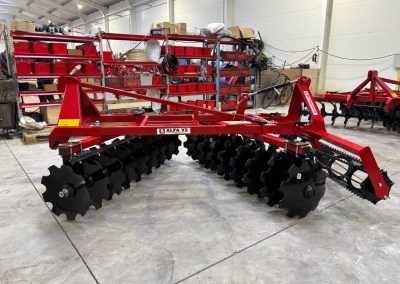

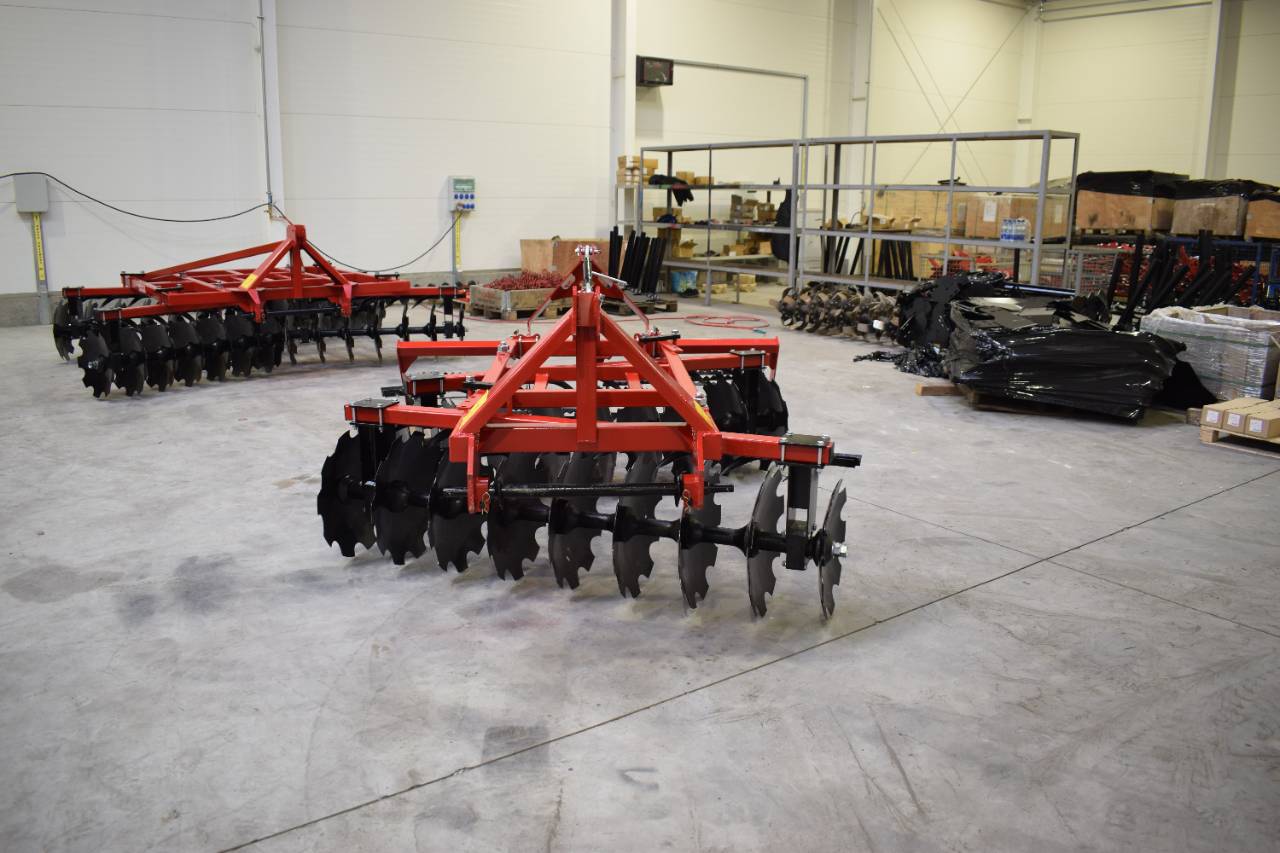

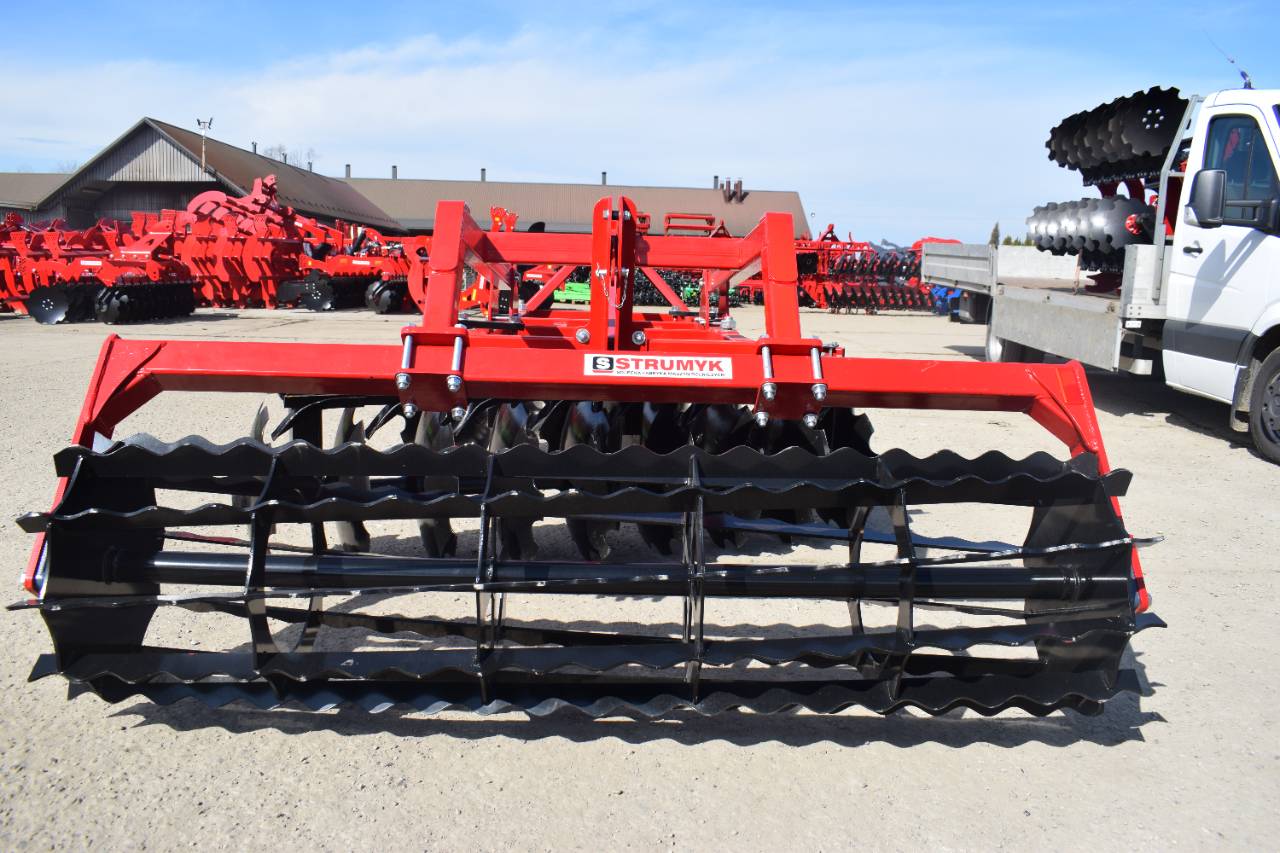

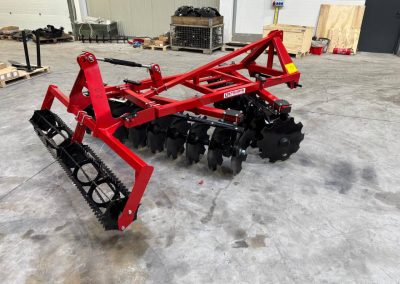

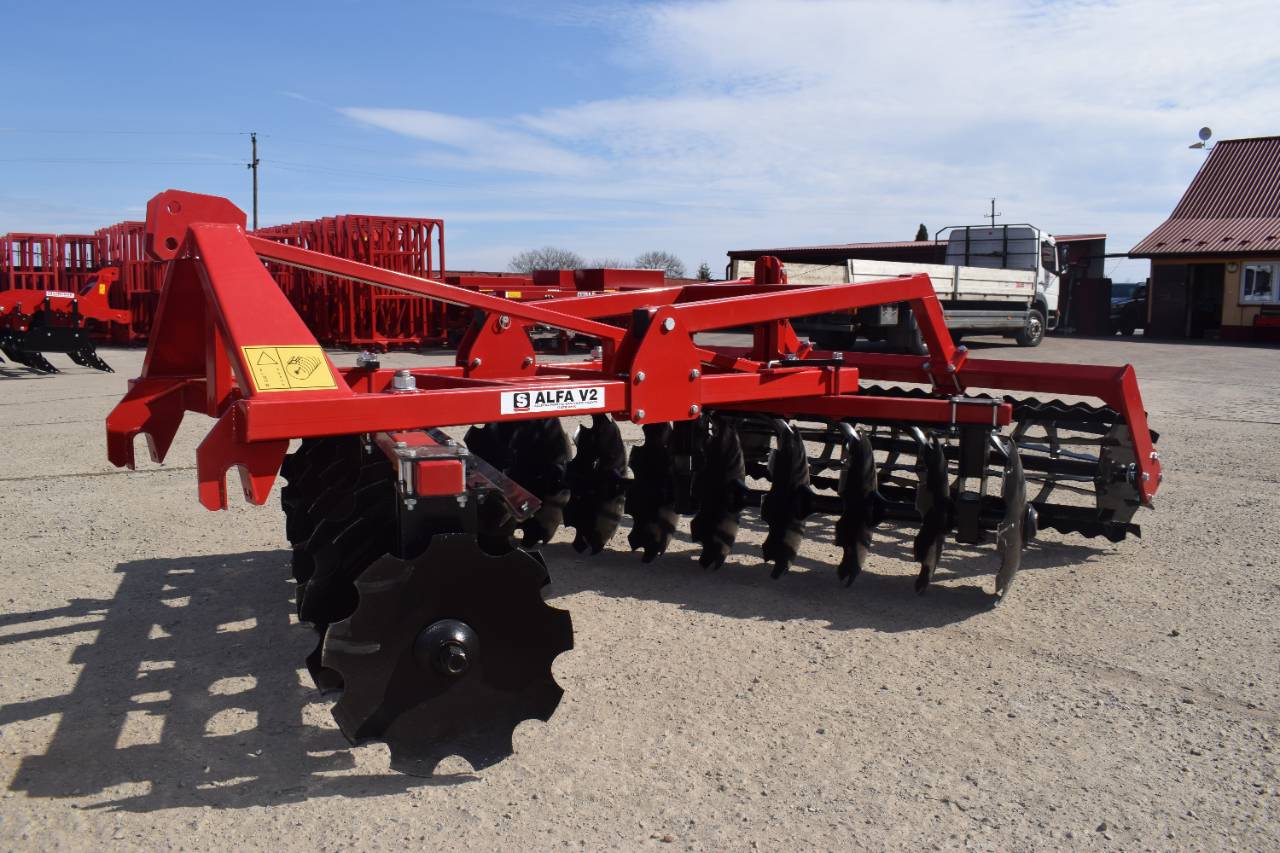

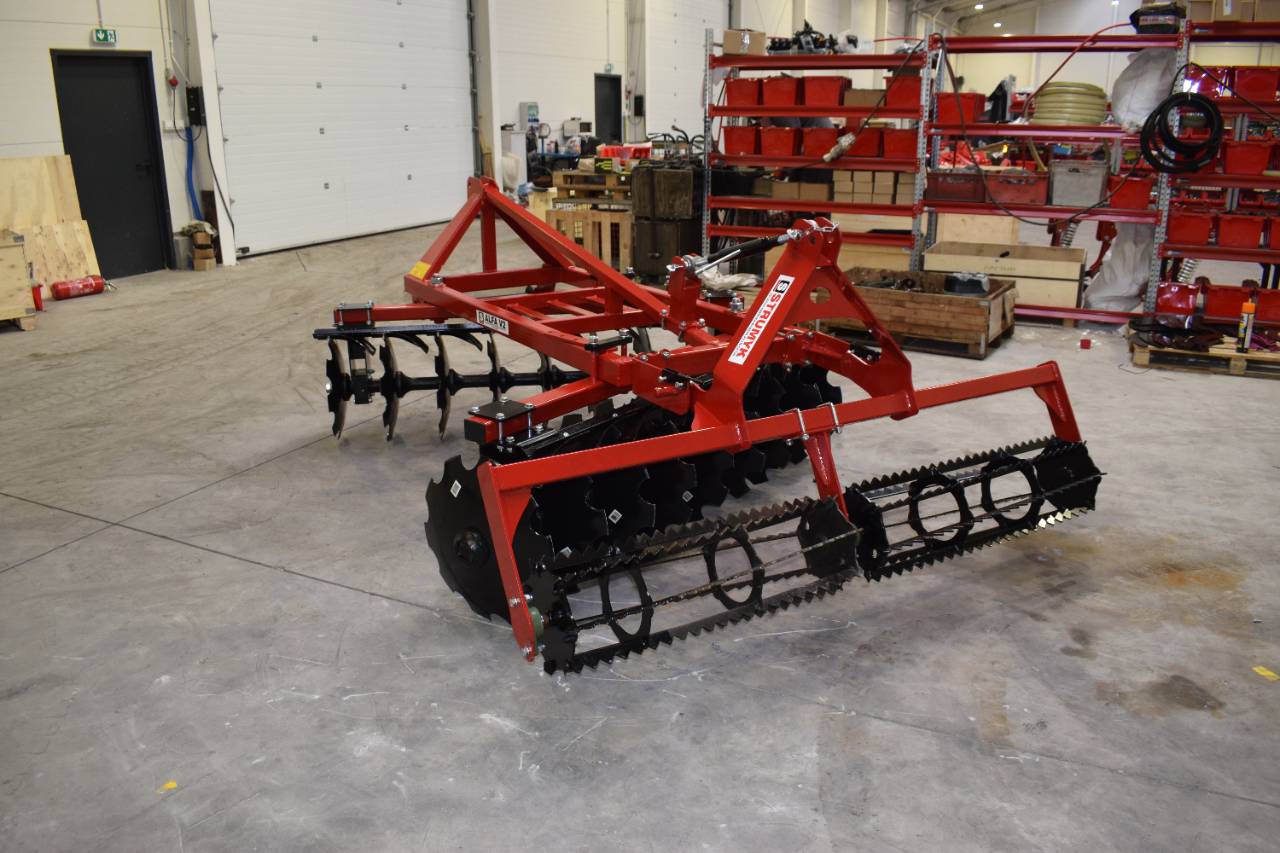

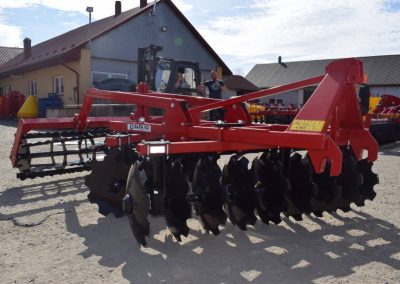

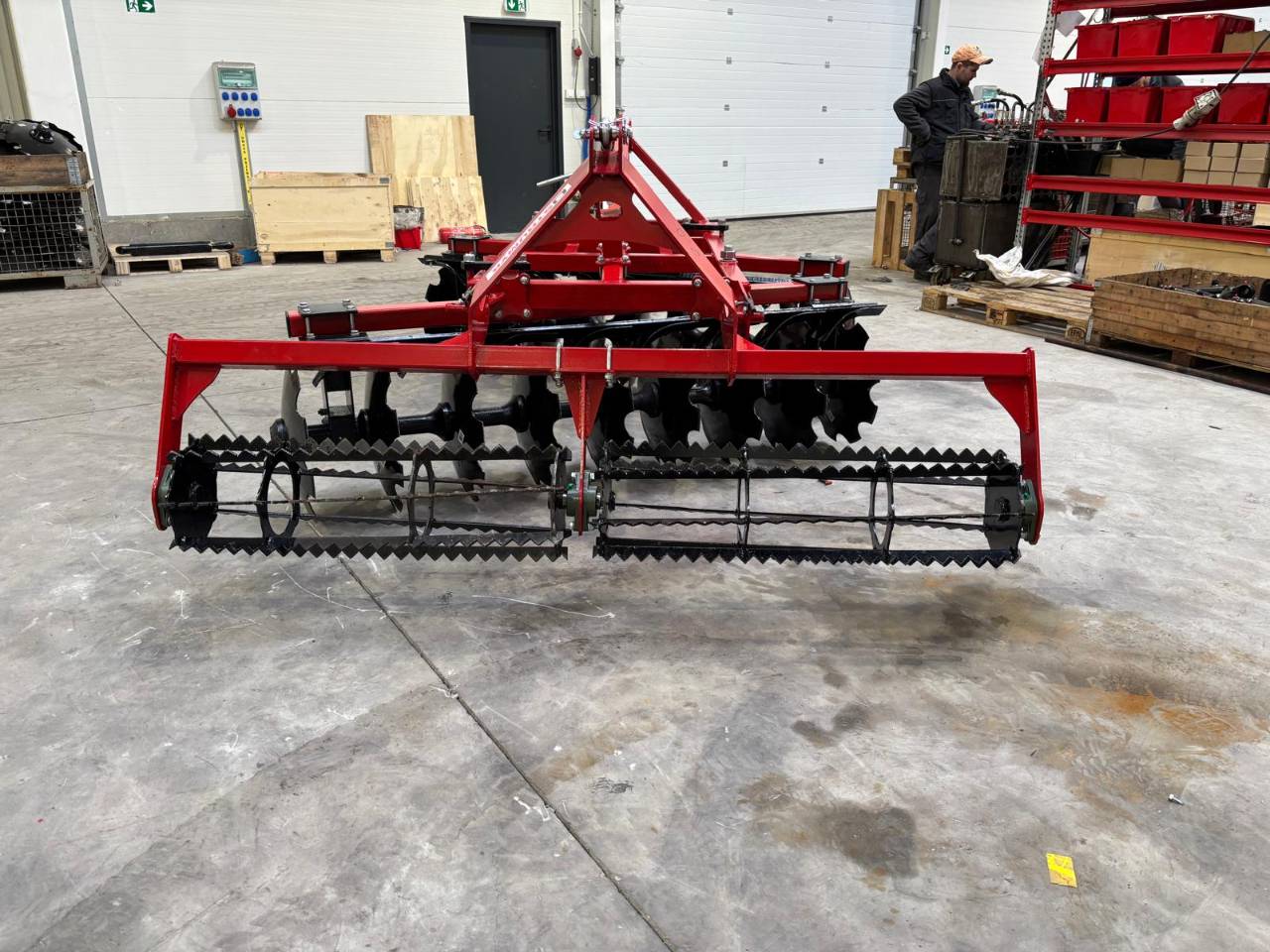

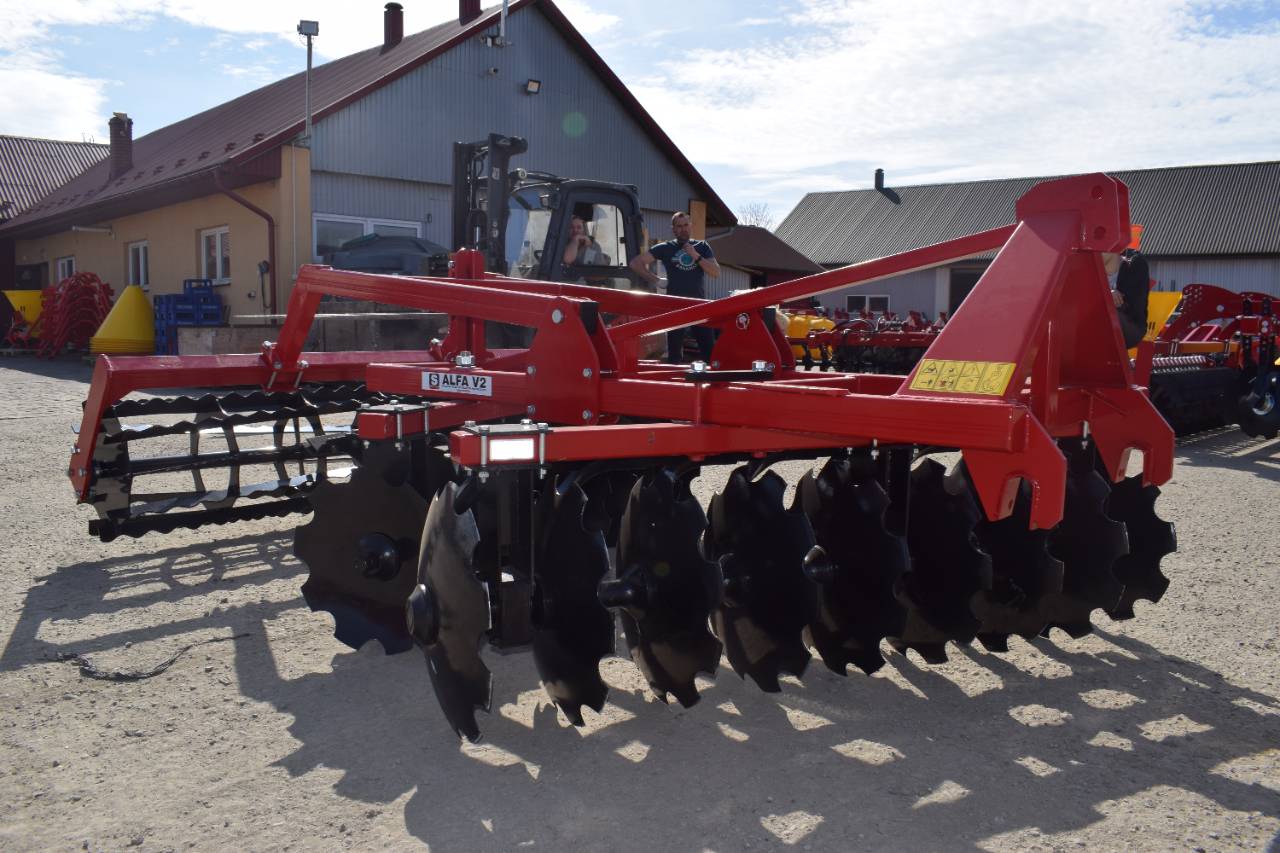

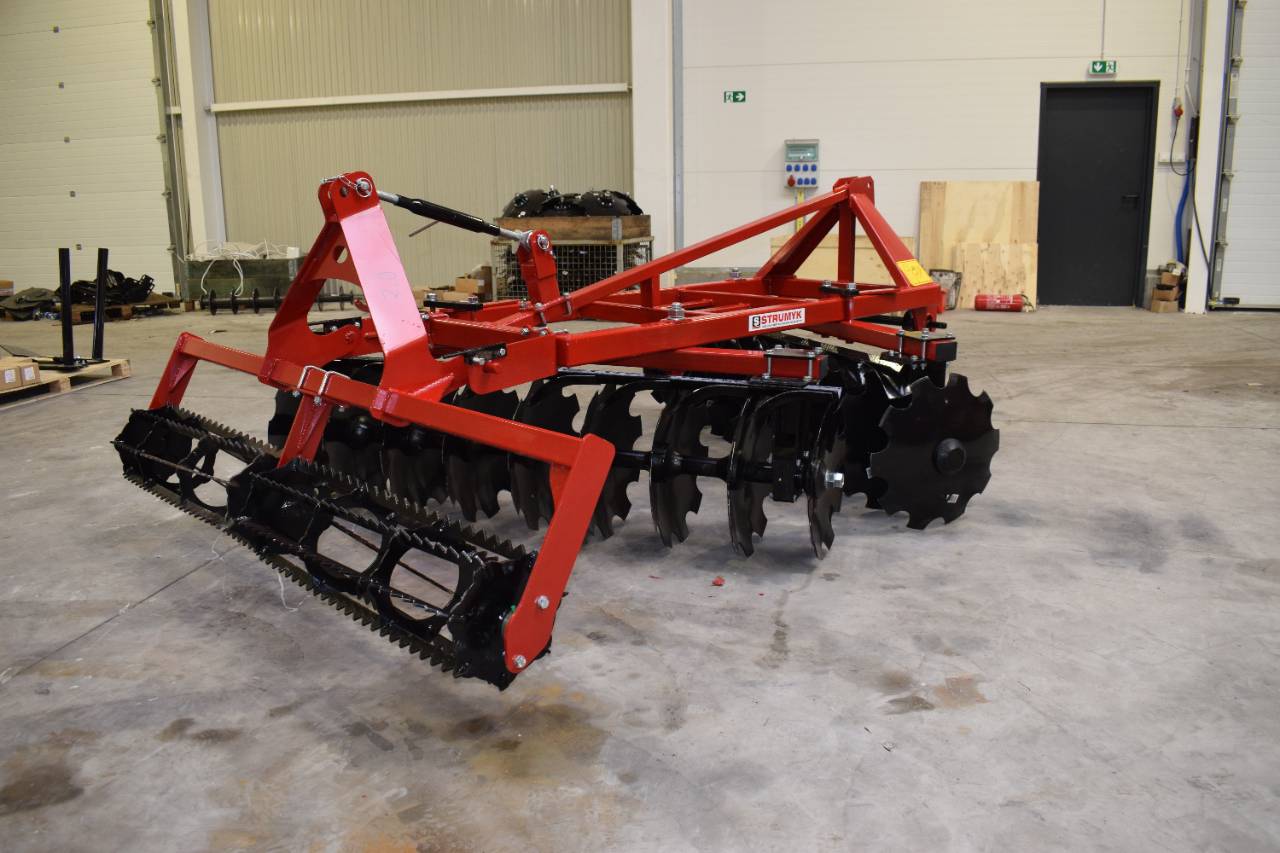

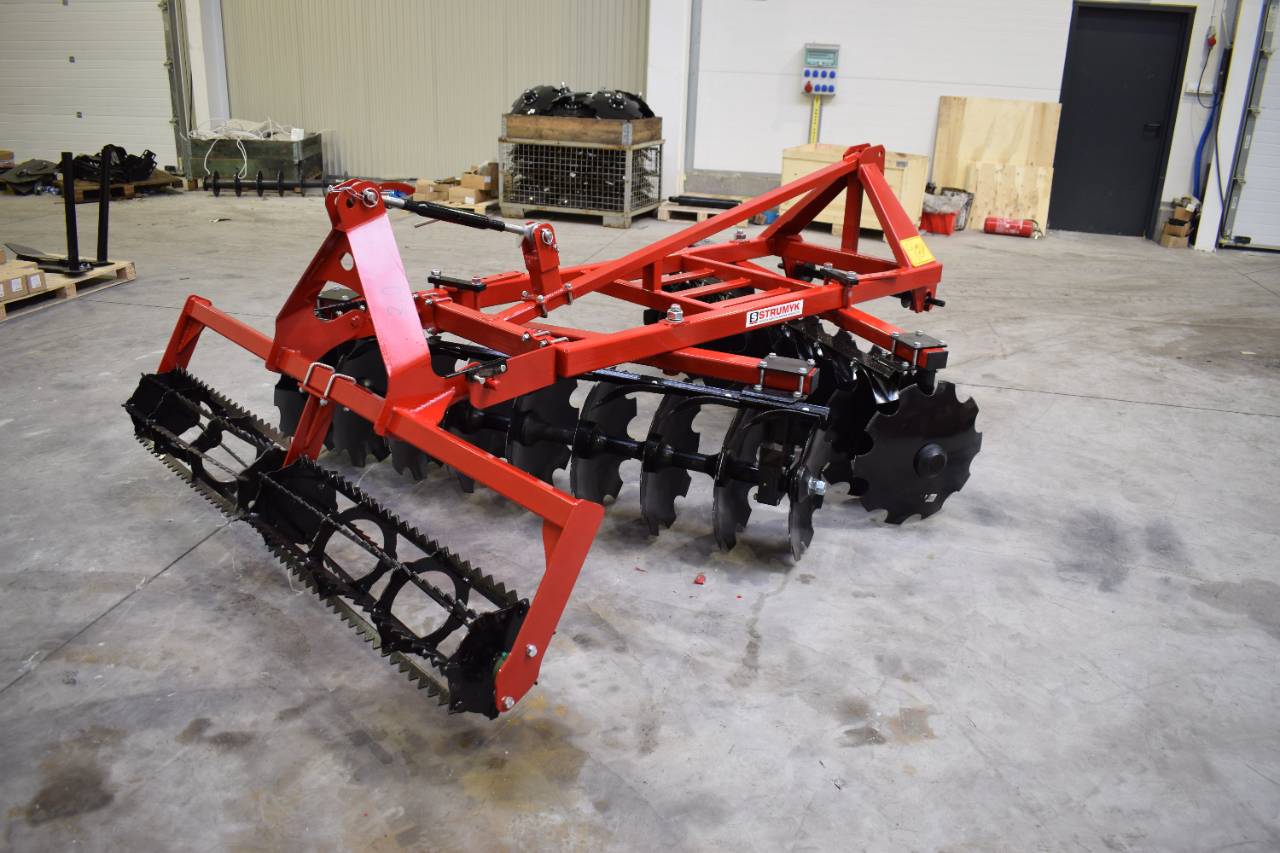

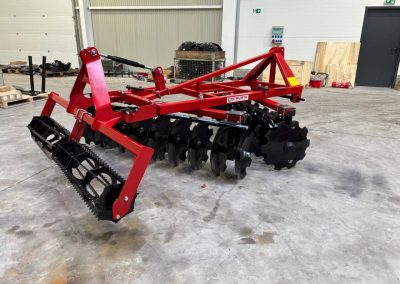

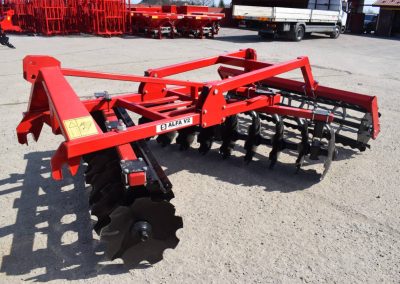

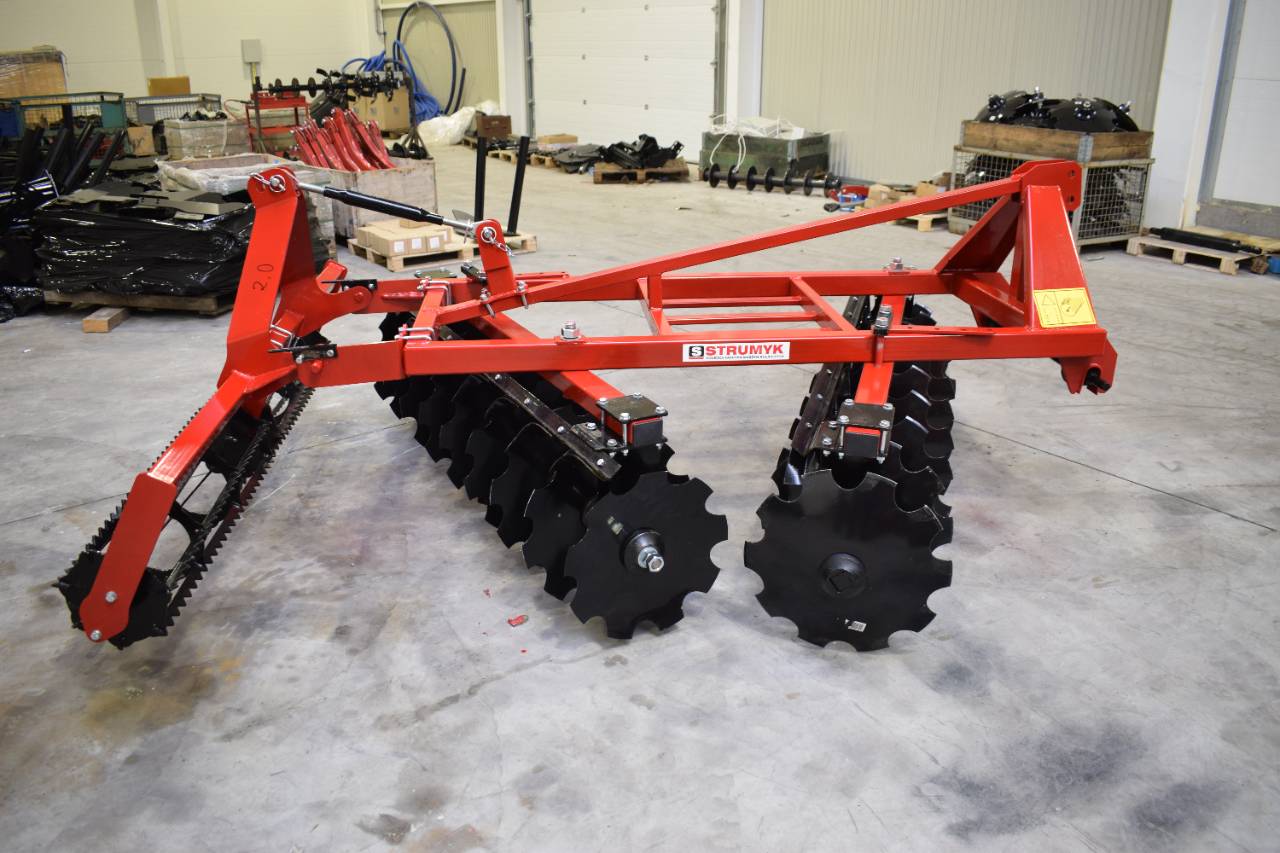

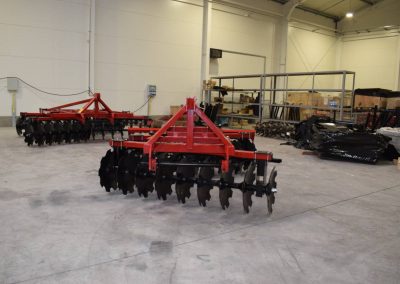

Gallery
