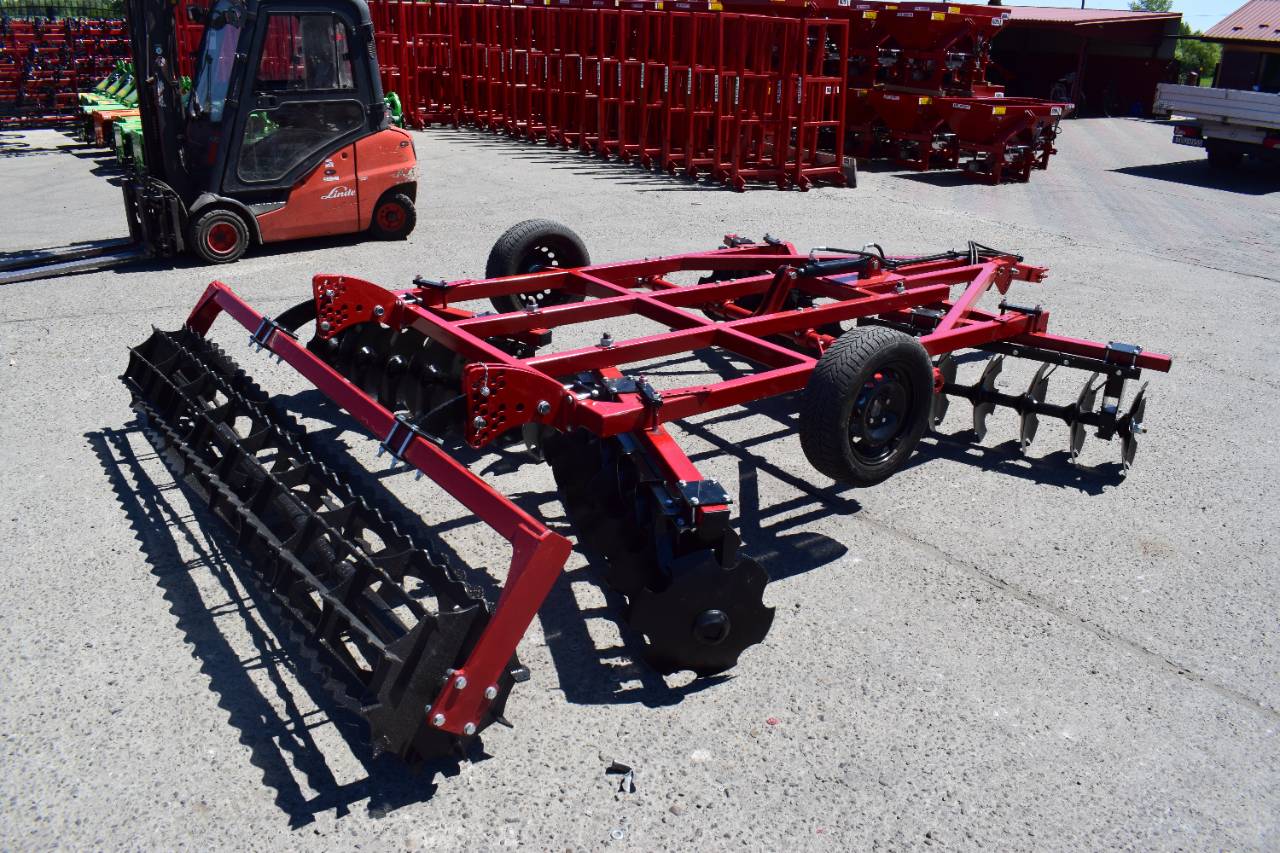

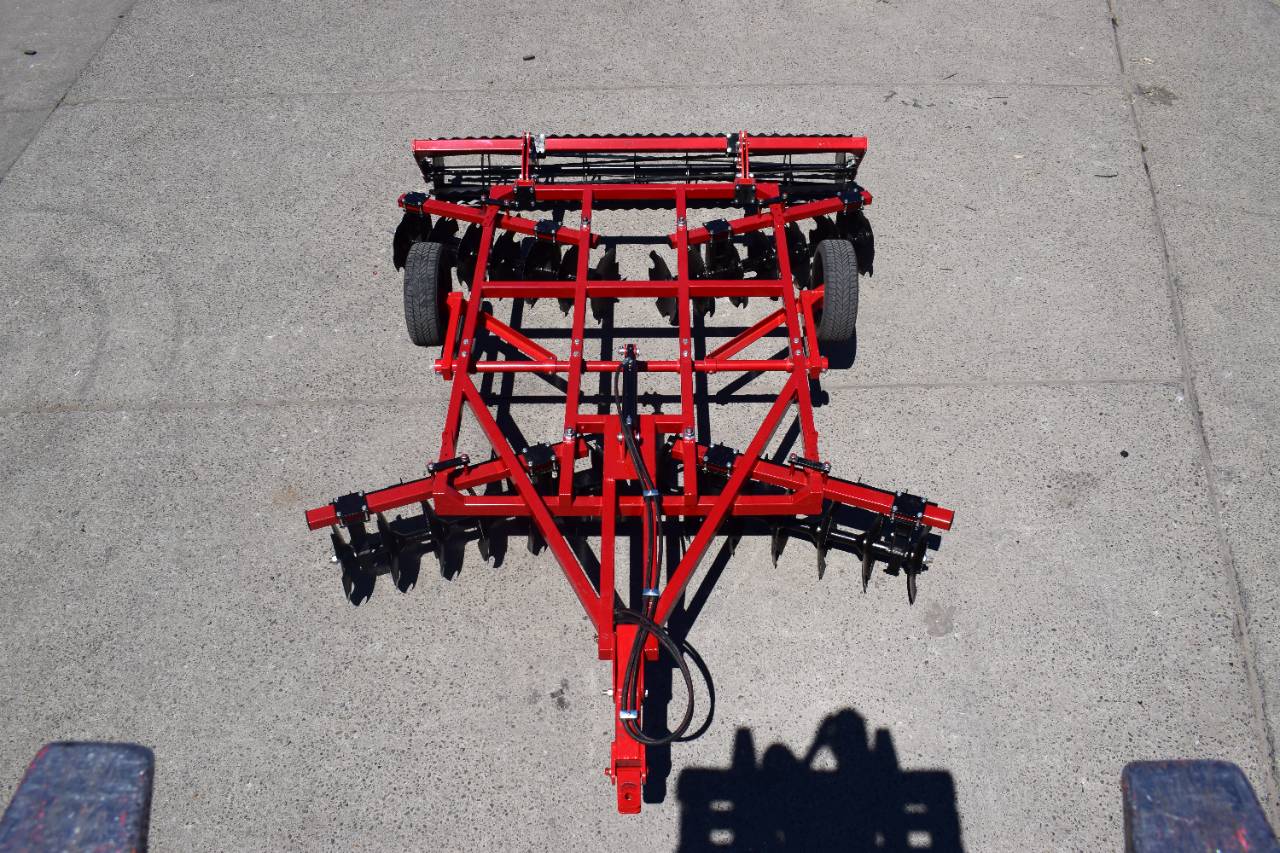

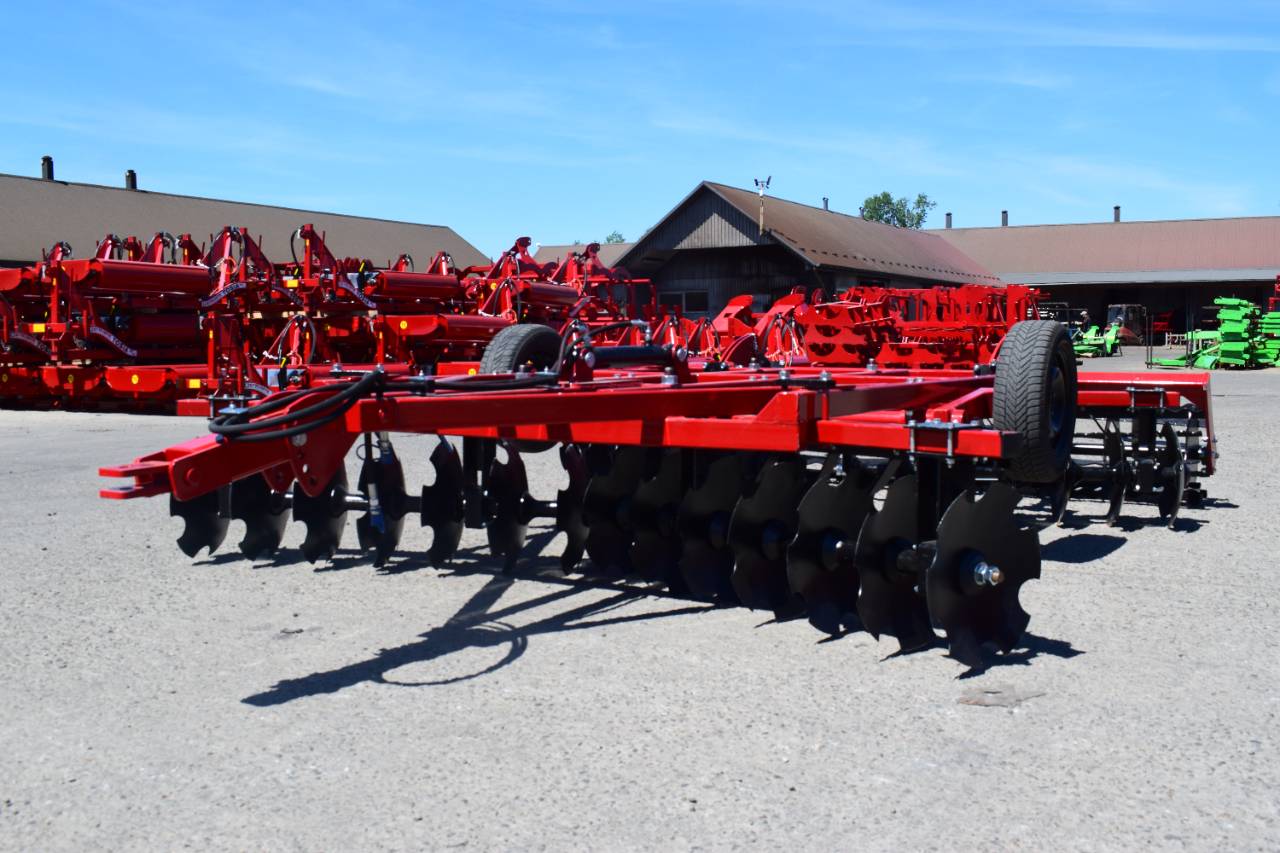

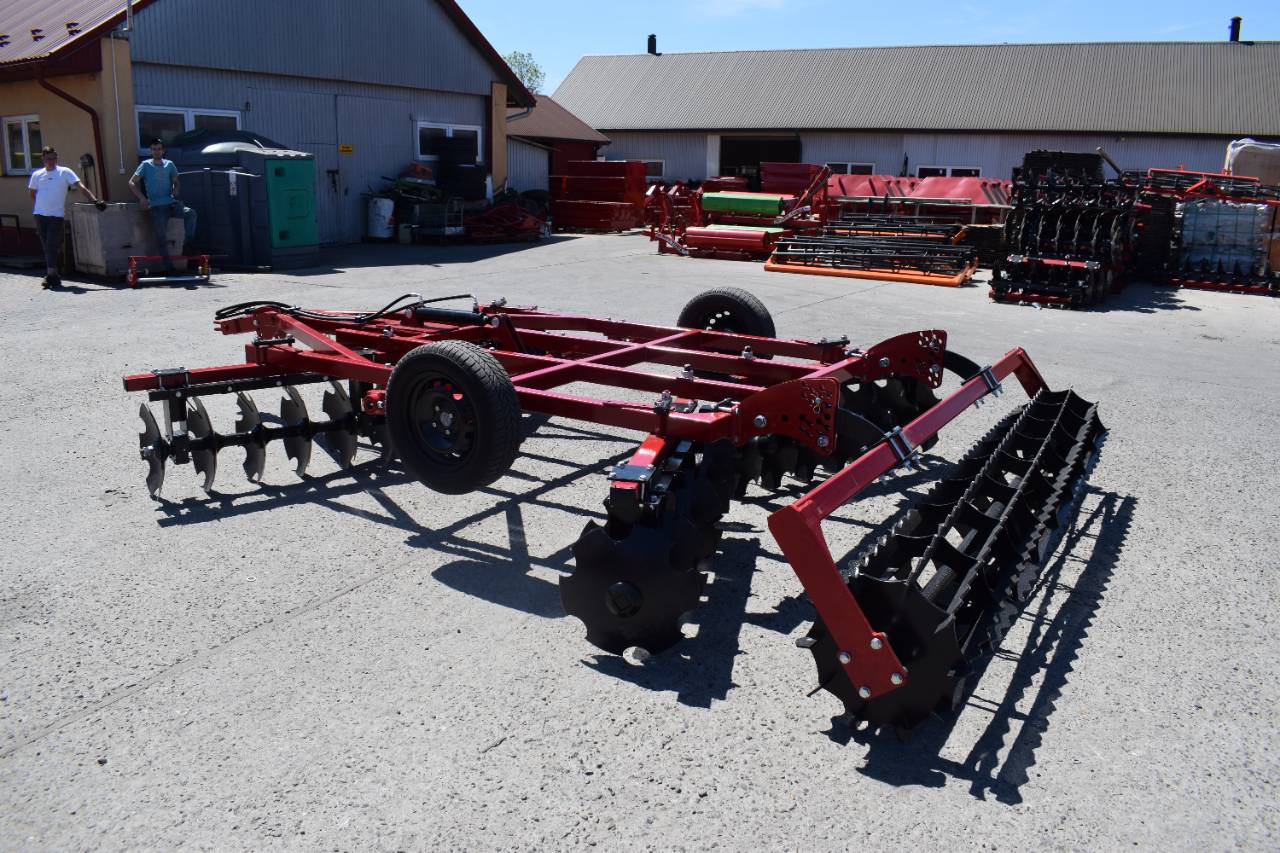

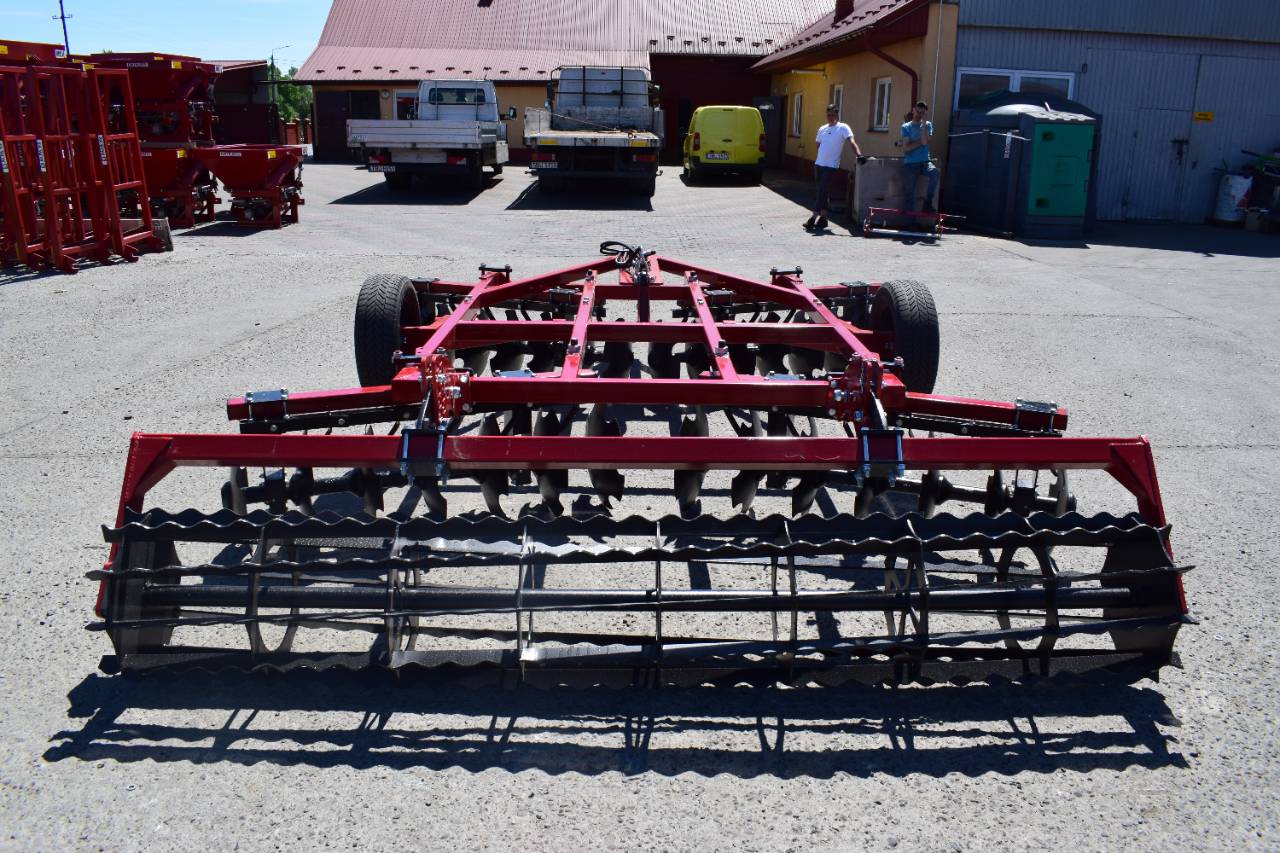

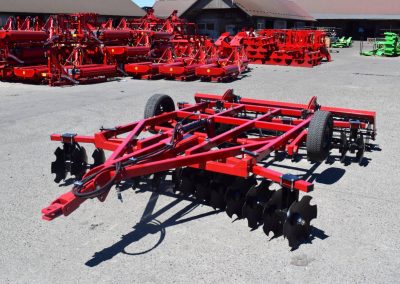

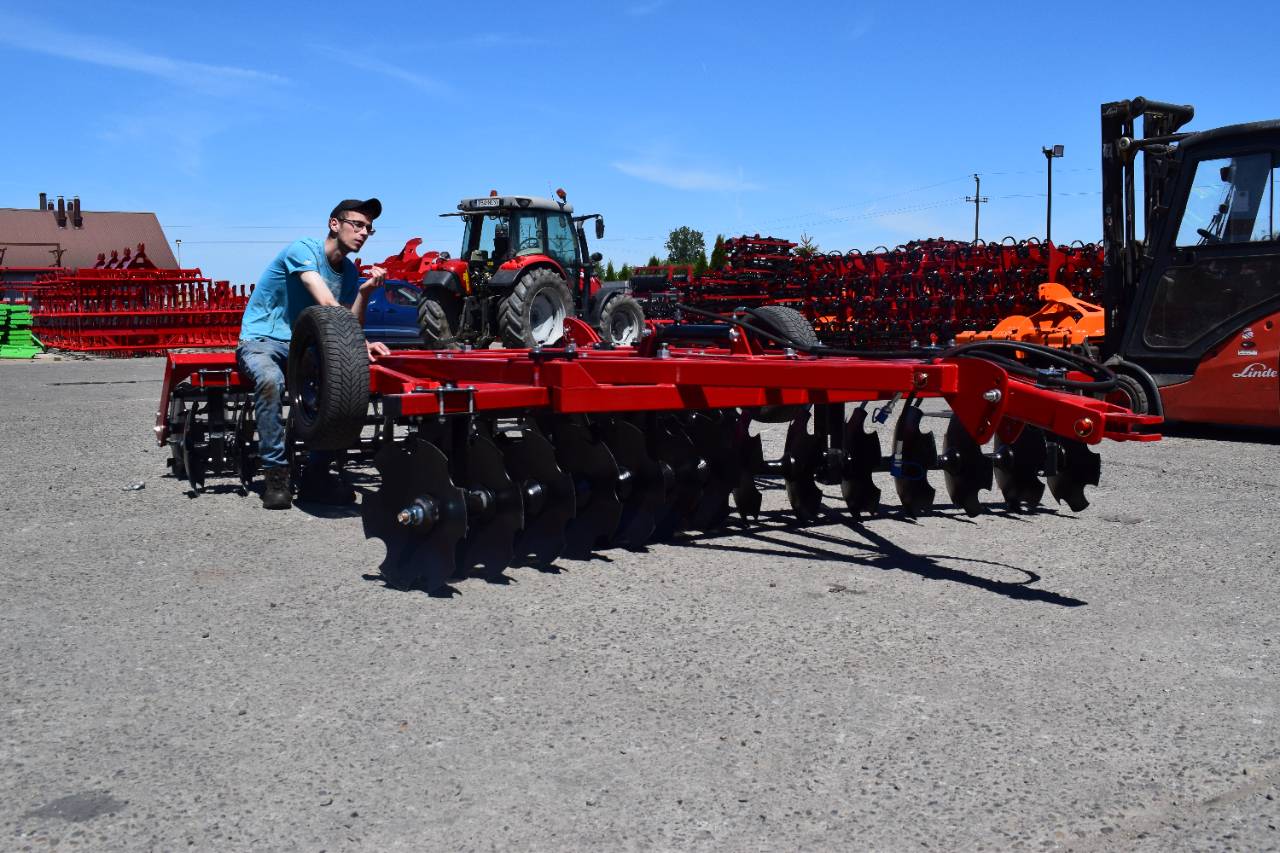

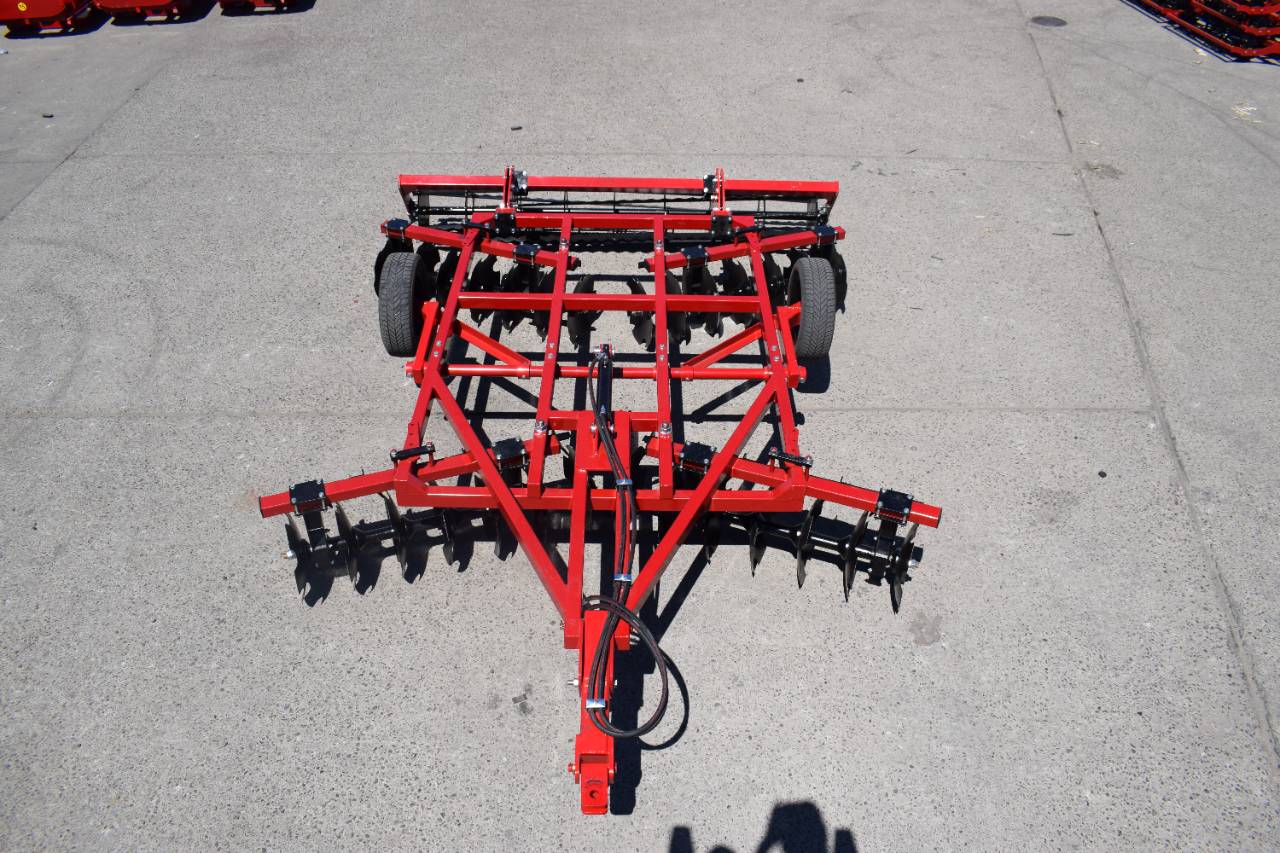

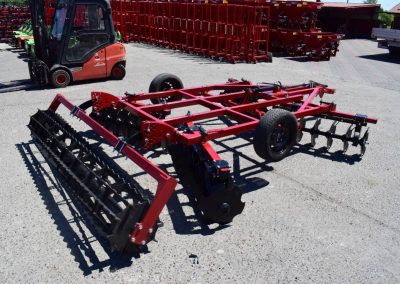

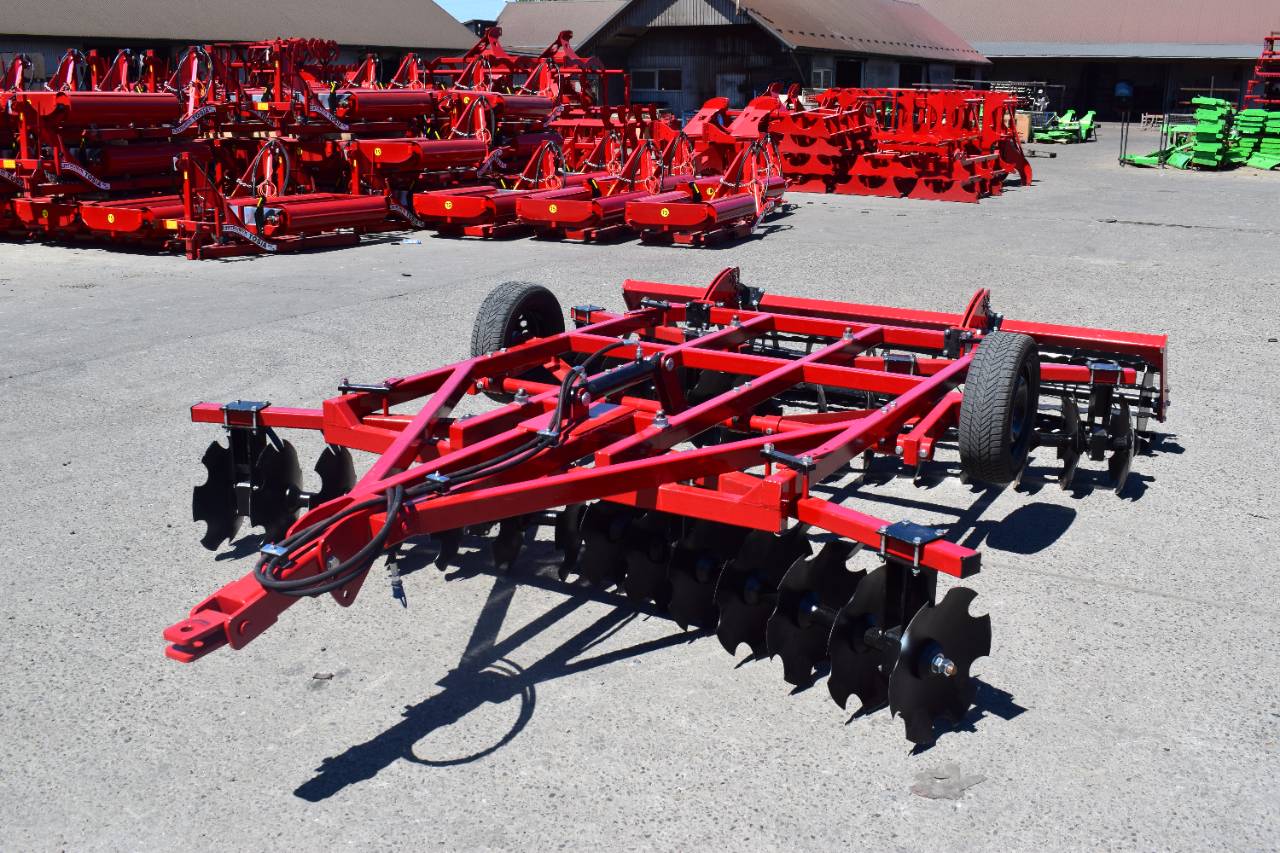

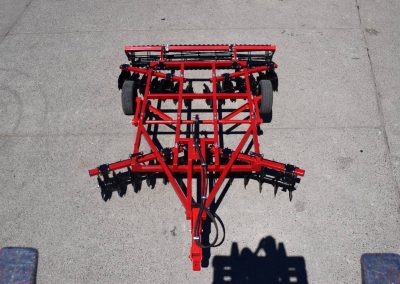

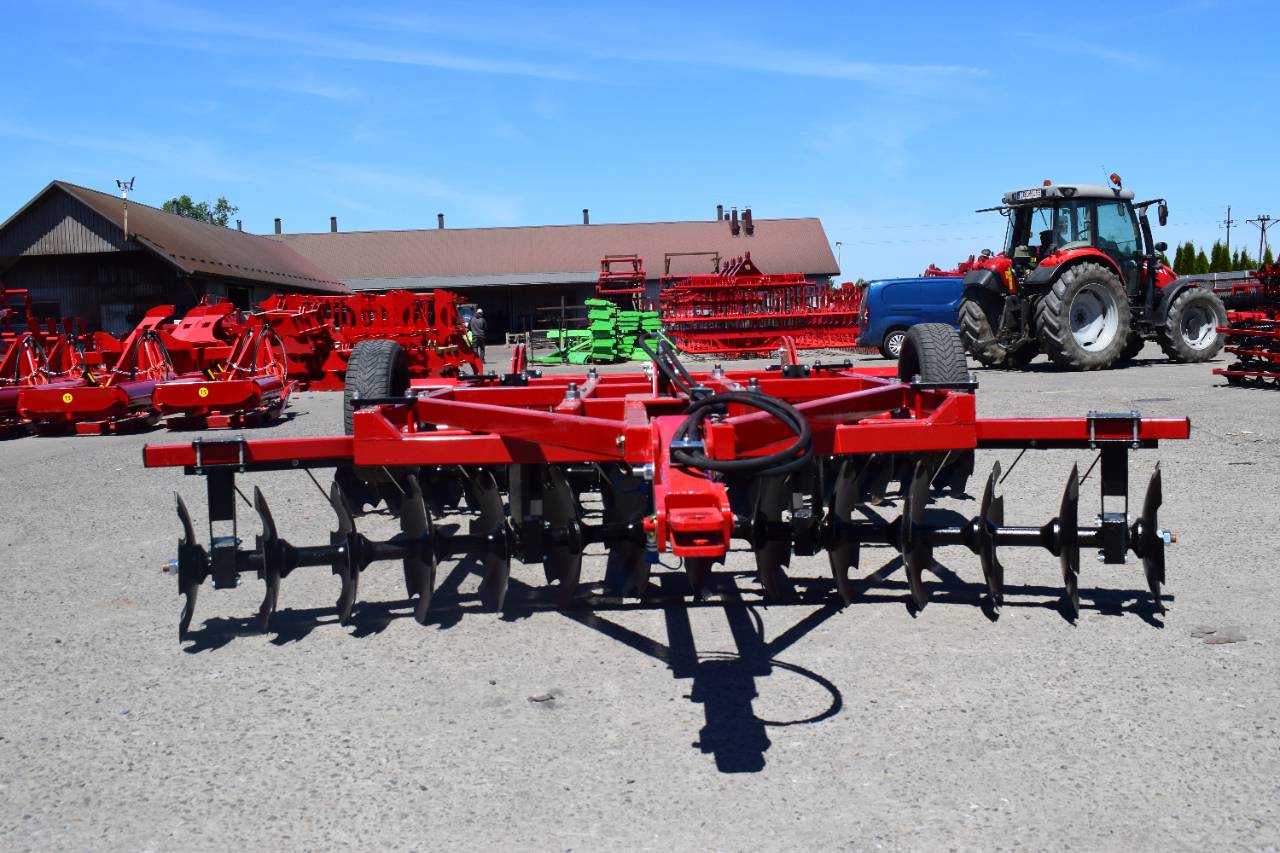

ALFA X4+
Semi-mounted disc harrow
The semi-mounted design with support wheels ensures stable operation and comfortable handling of the machine at wider working widths. The reinforced frame and boron steel discs ensure effective mixing of crop residues and a long service life under heavy use.
The option to choose the diameter of the discs and to fit additional working components allows the machine to be adapted to soil conditions and cultivation methods. This is a practical solution for farms looking for an efficient, durable and easy-to-use disc harrow.
| TYPE | X4+/22 | X4+/25 | X4+/27 | X4+/32 | X4+/36 |
|---|---|---|---|---|---|
| WIDTH (M) | 2,2 | 2,5 | 2,7 | 3,15 | 3,50 |
| NUMBER OF PLATES | 16 | 20 | 24 | 28 | 32 |
| DIAMETER OF THE PLATES | 460/510/560 | 460/510/560 | 460/510/560 | 460/510/560 | 460/510/560 |
| NUMBER OF BEARINGS | 8 | 8 | 8 | 8 | 8 |
| WEIGHT (KG) | 650 | 700 | 800 | 850 | 900 |
| POWER REQUIREMENT (HP) | 60–70 | 65–85 | 75–85 | 80–90 | 80–90 |
| OUTPUT (HA/H) | 1.7–5.2 | 1.7–5.2 | 1.7–5.2 | 1.9–5.4 | 1.9–5.4 |
| NUMBER OF WHEELS | 2 | 2 | 2 | 2 | 2 |
Standard equipment
460 mm Polish plate made of boron steel
structural reinforcement
support wheels
powder coating
Optional extras
Polish plates, 510–610 mm, made of boron steel
shaft mounting

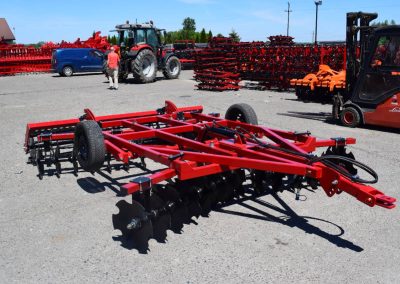

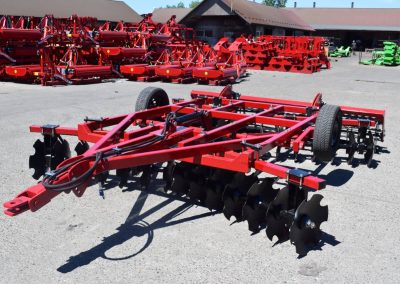

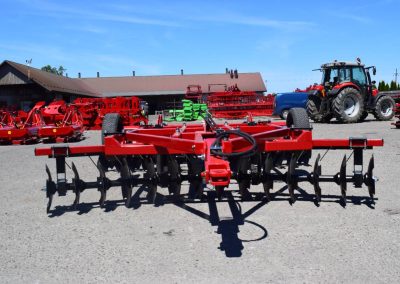

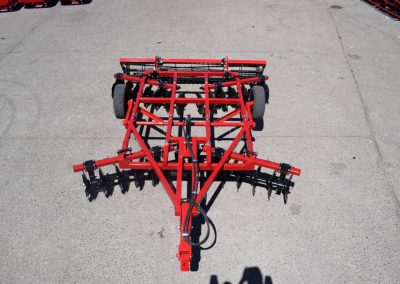

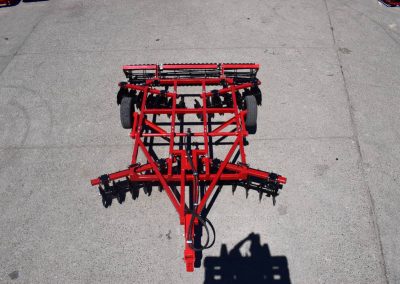

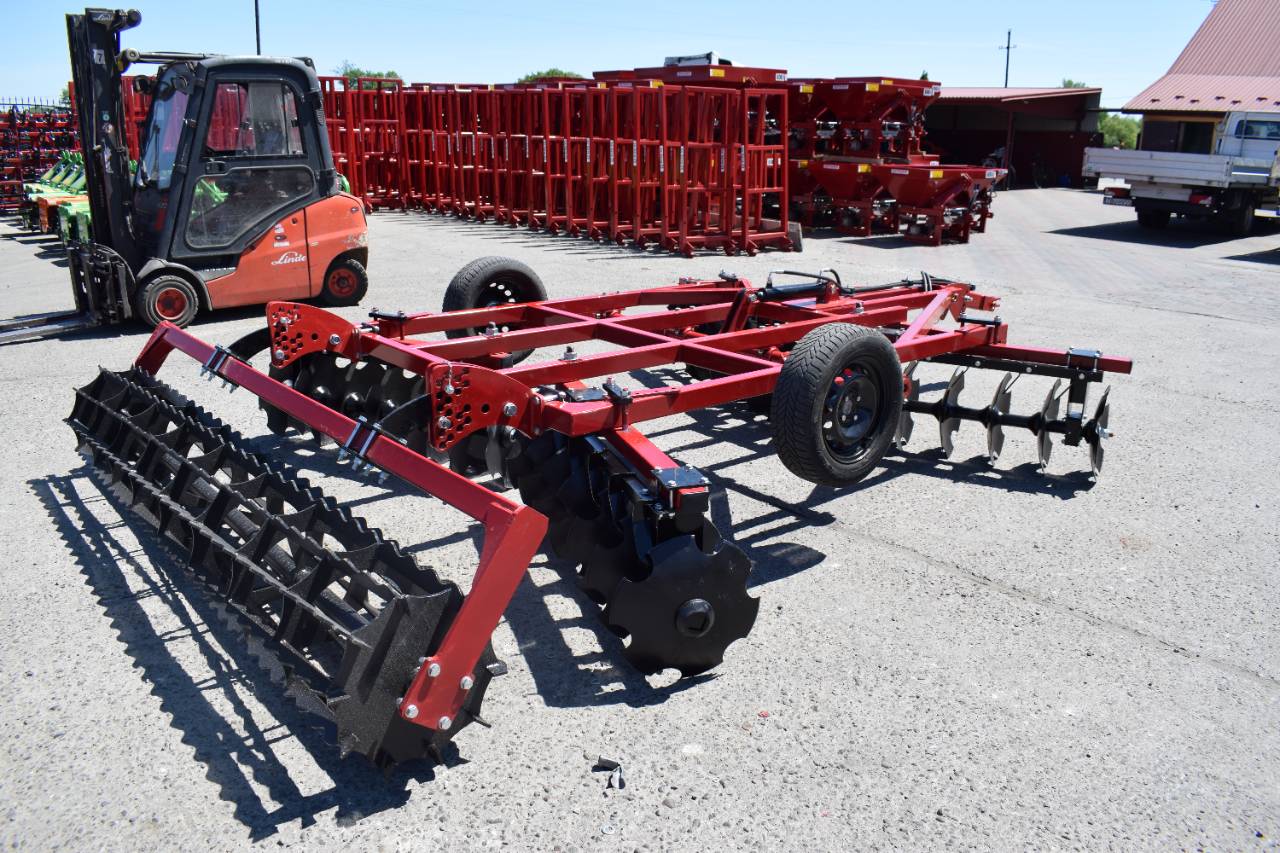

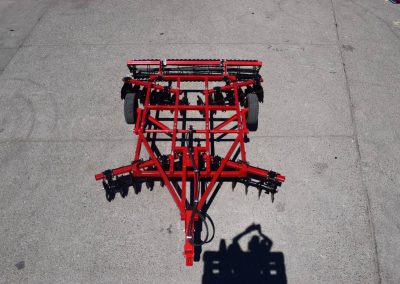

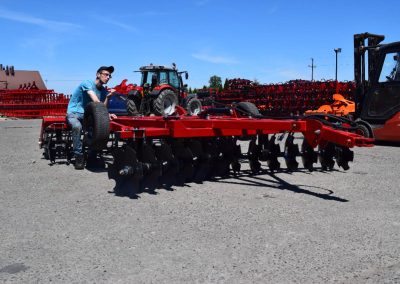

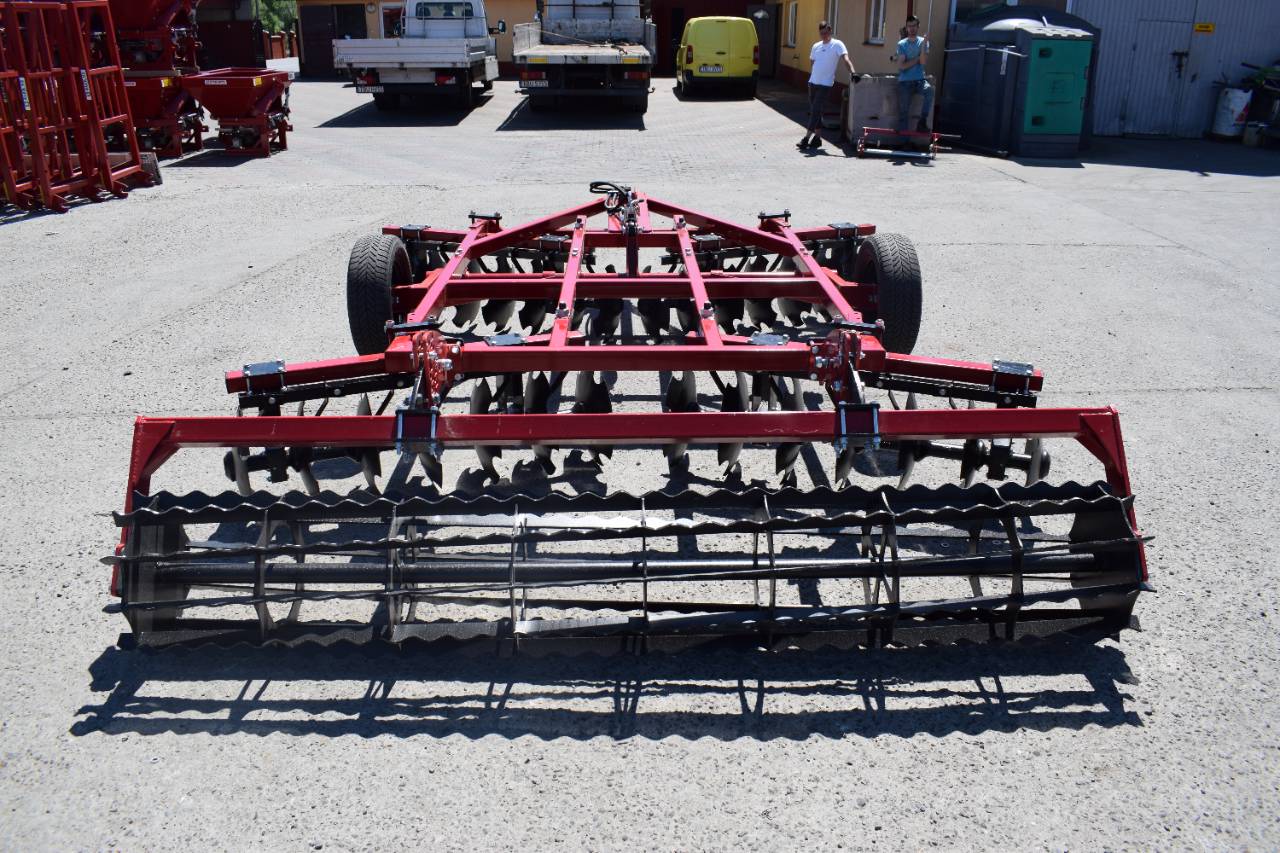

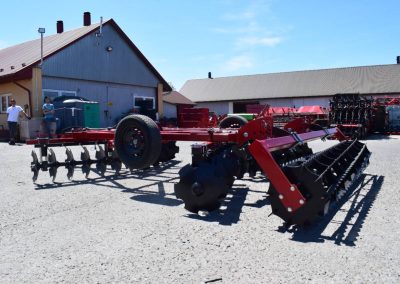

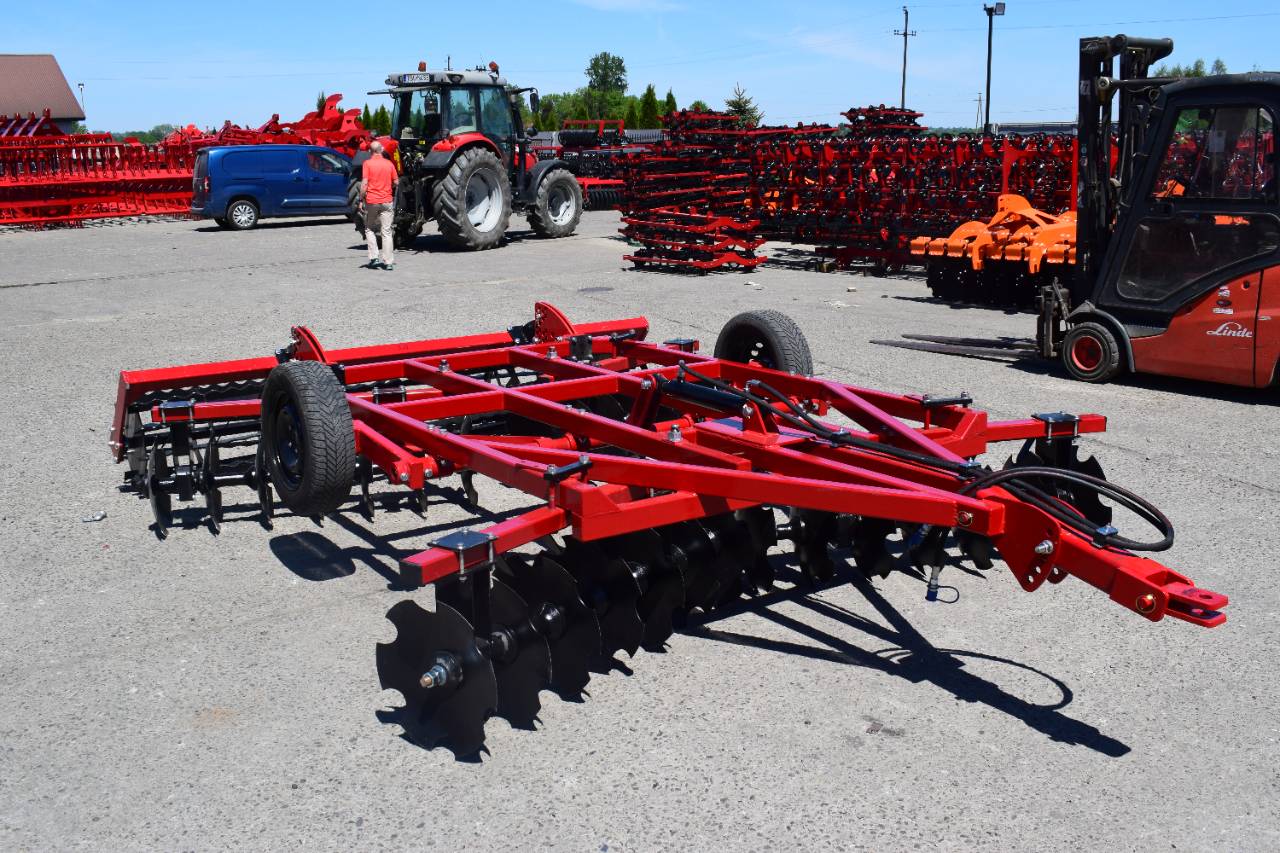

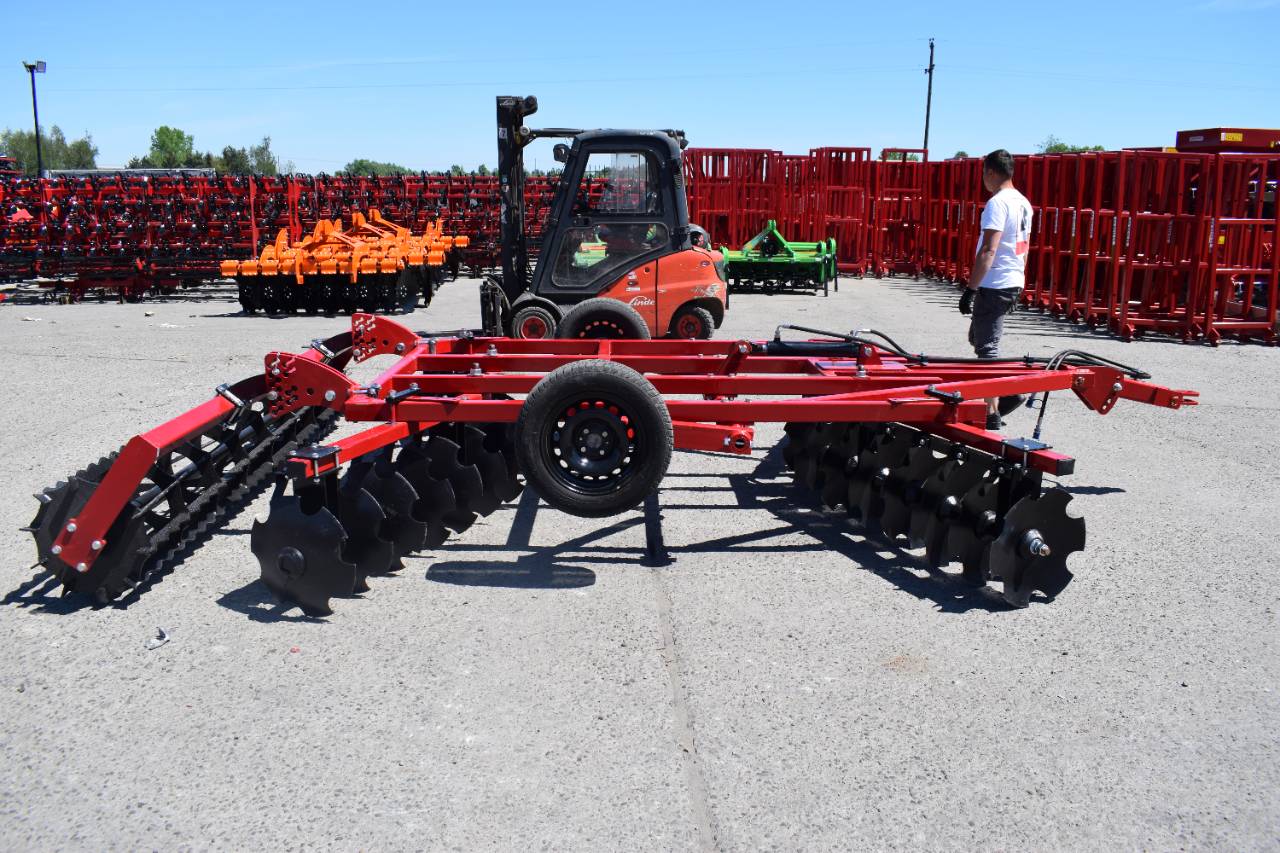

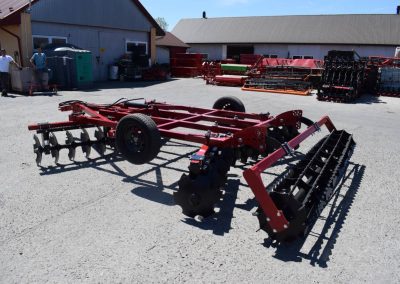

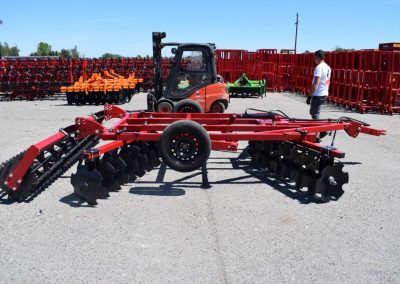

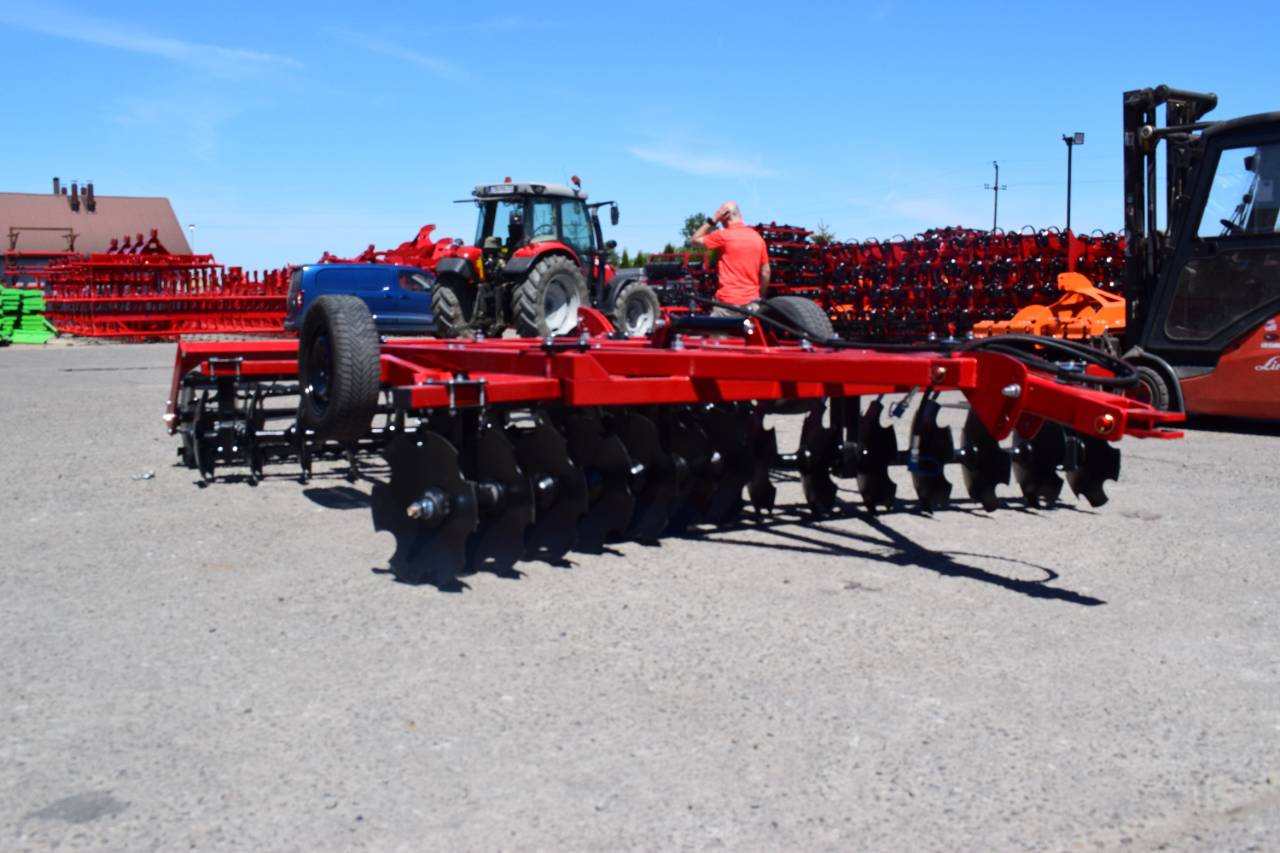

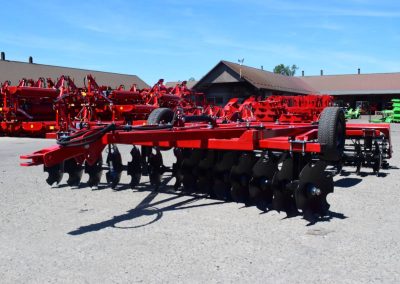

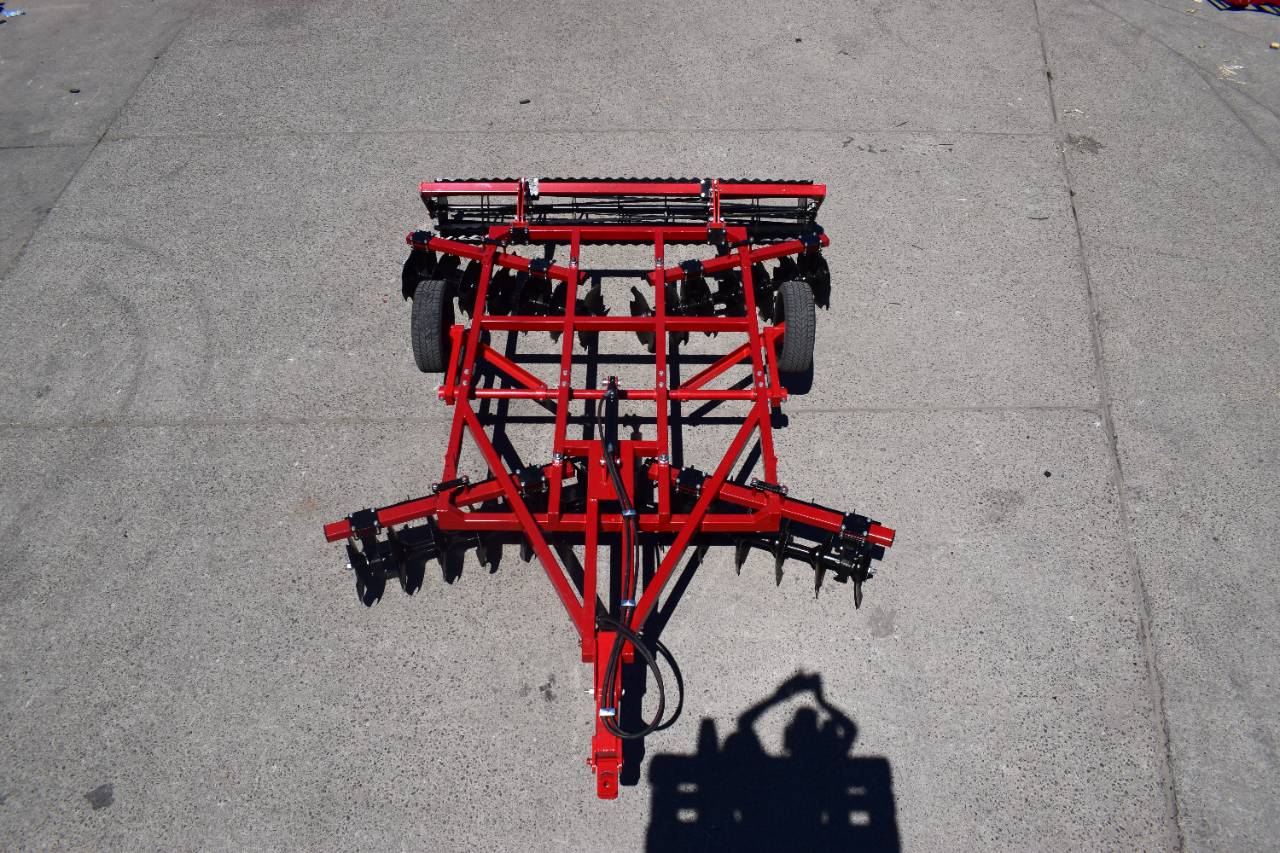

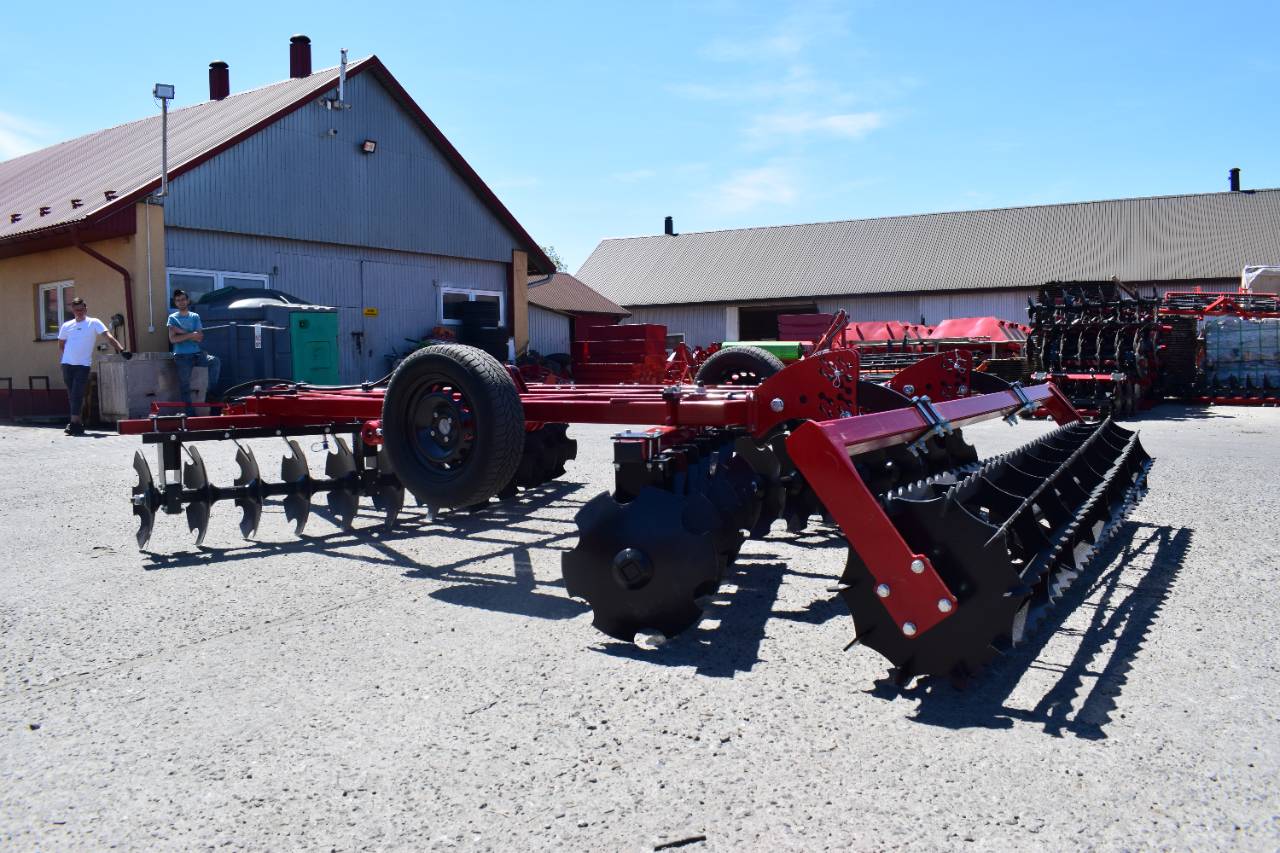

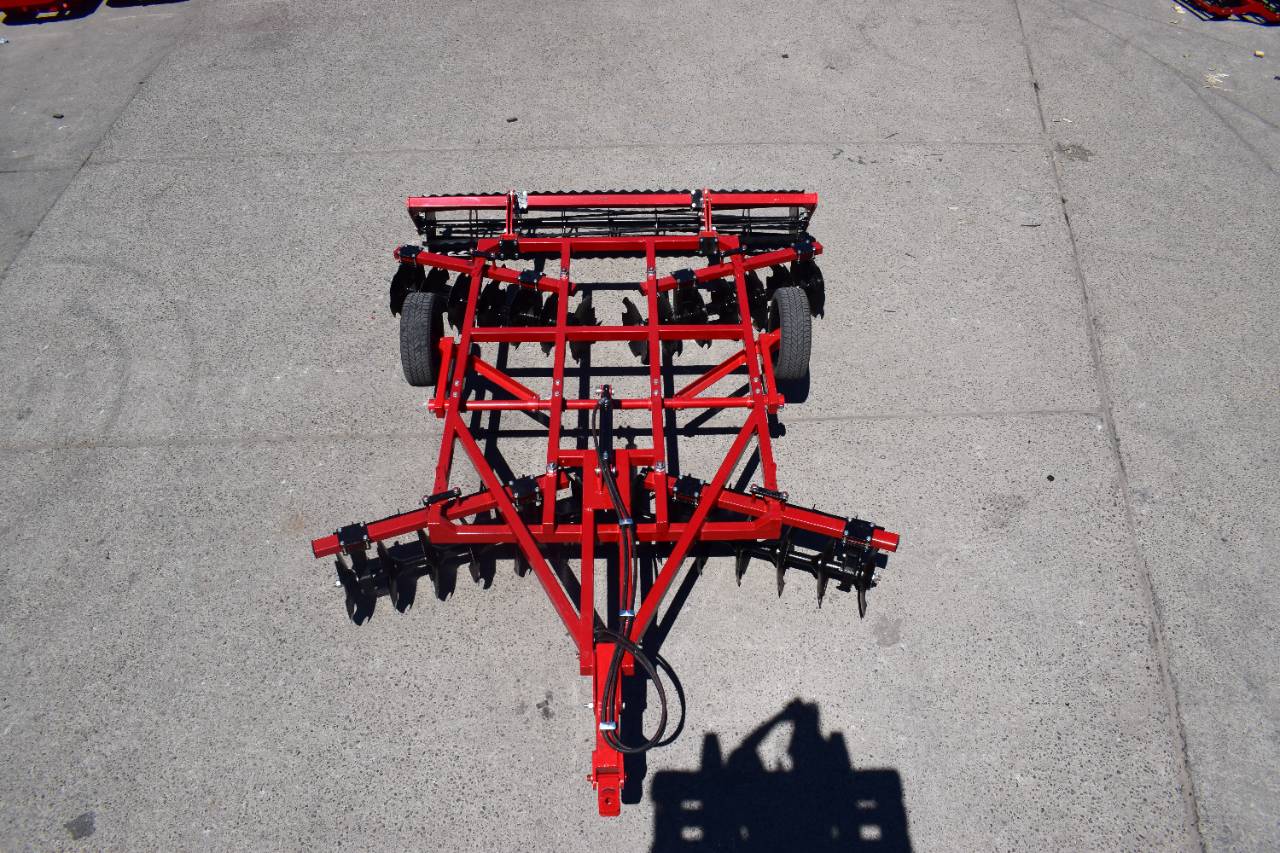

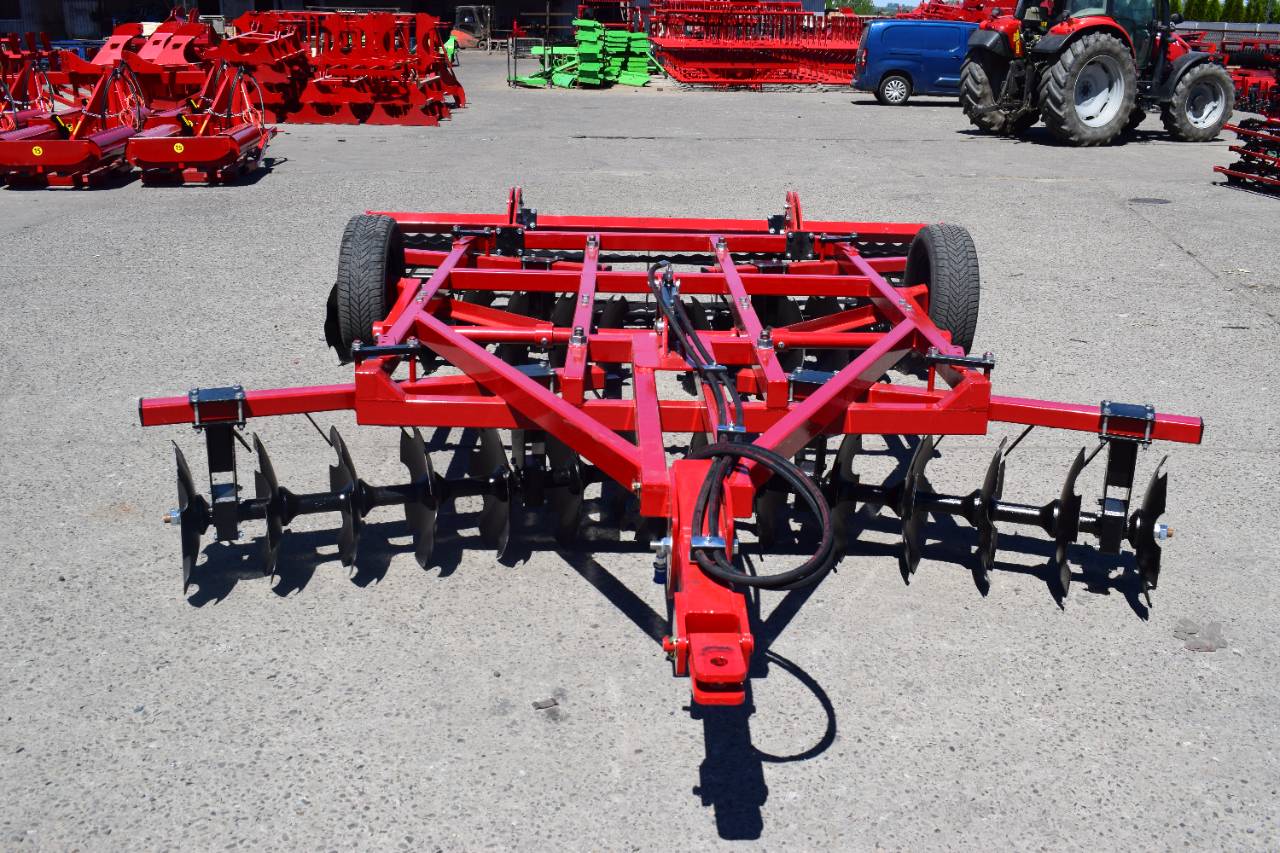

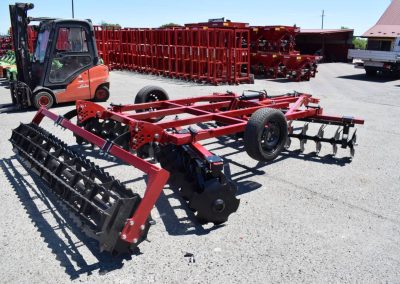

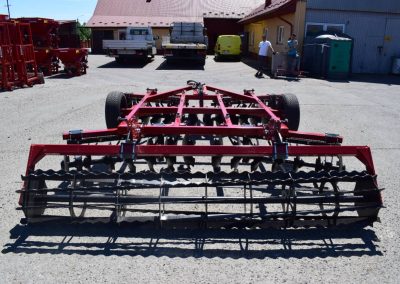

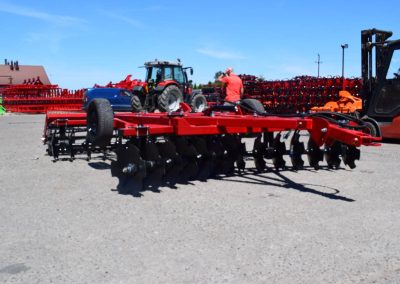

Gallery
