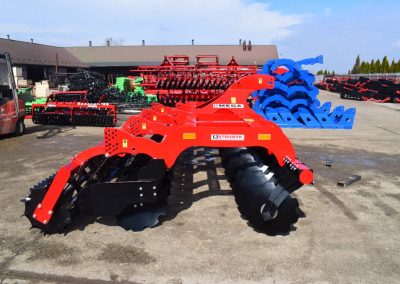

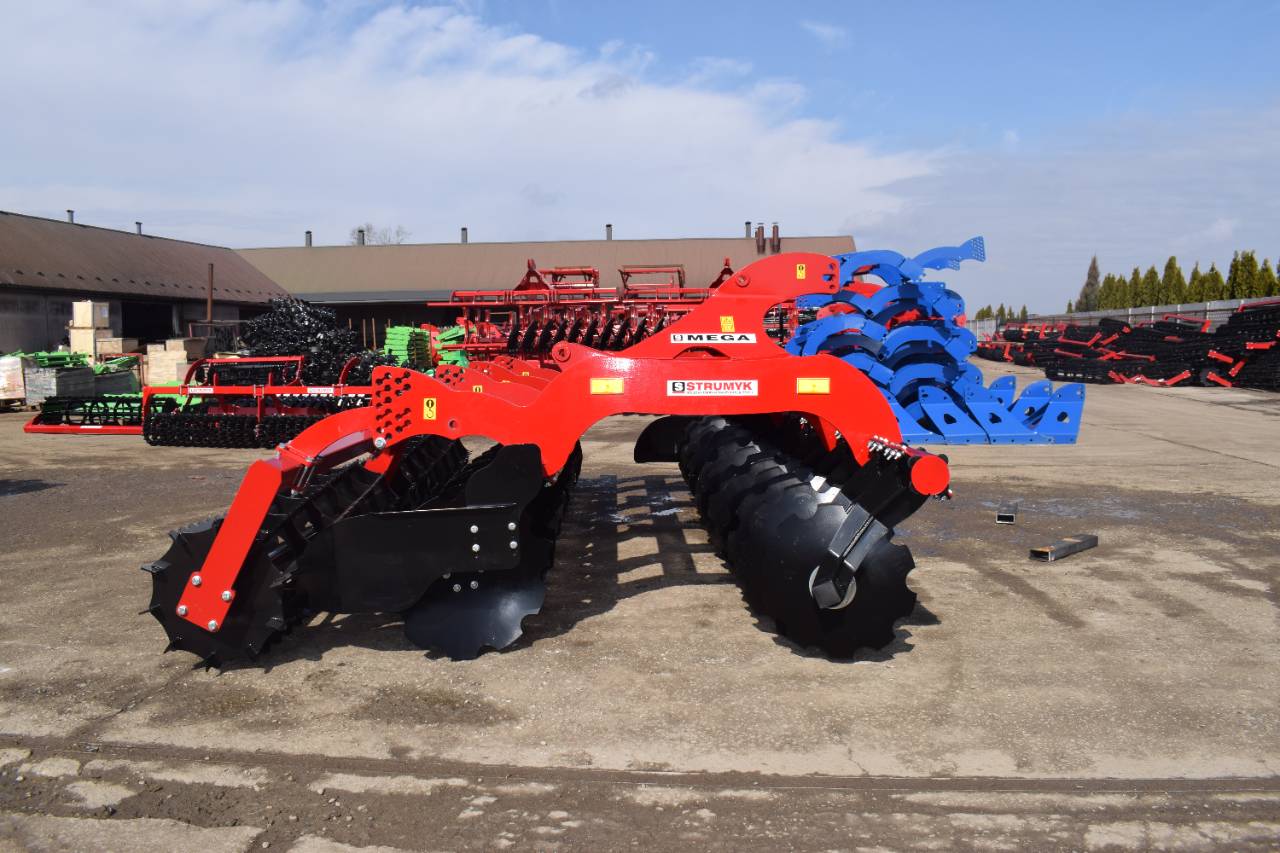

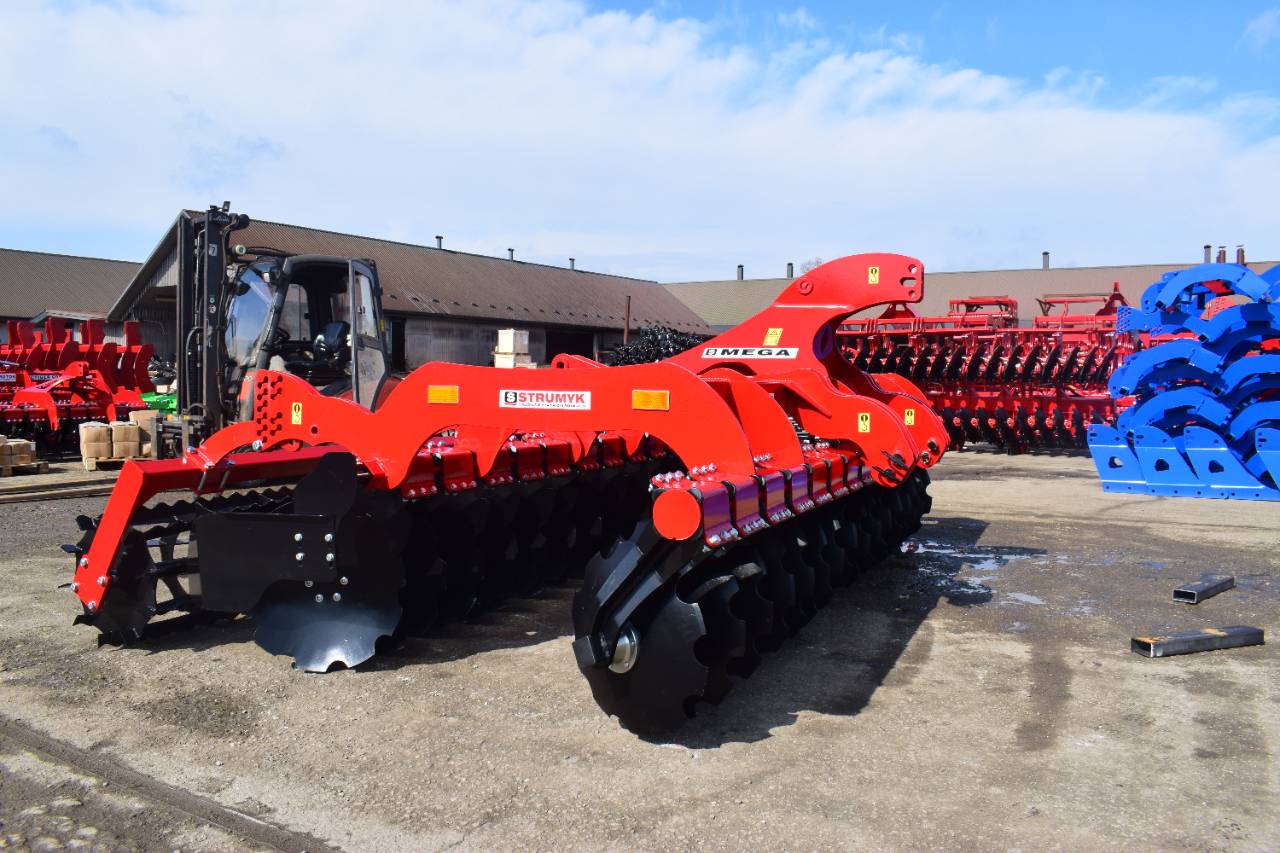

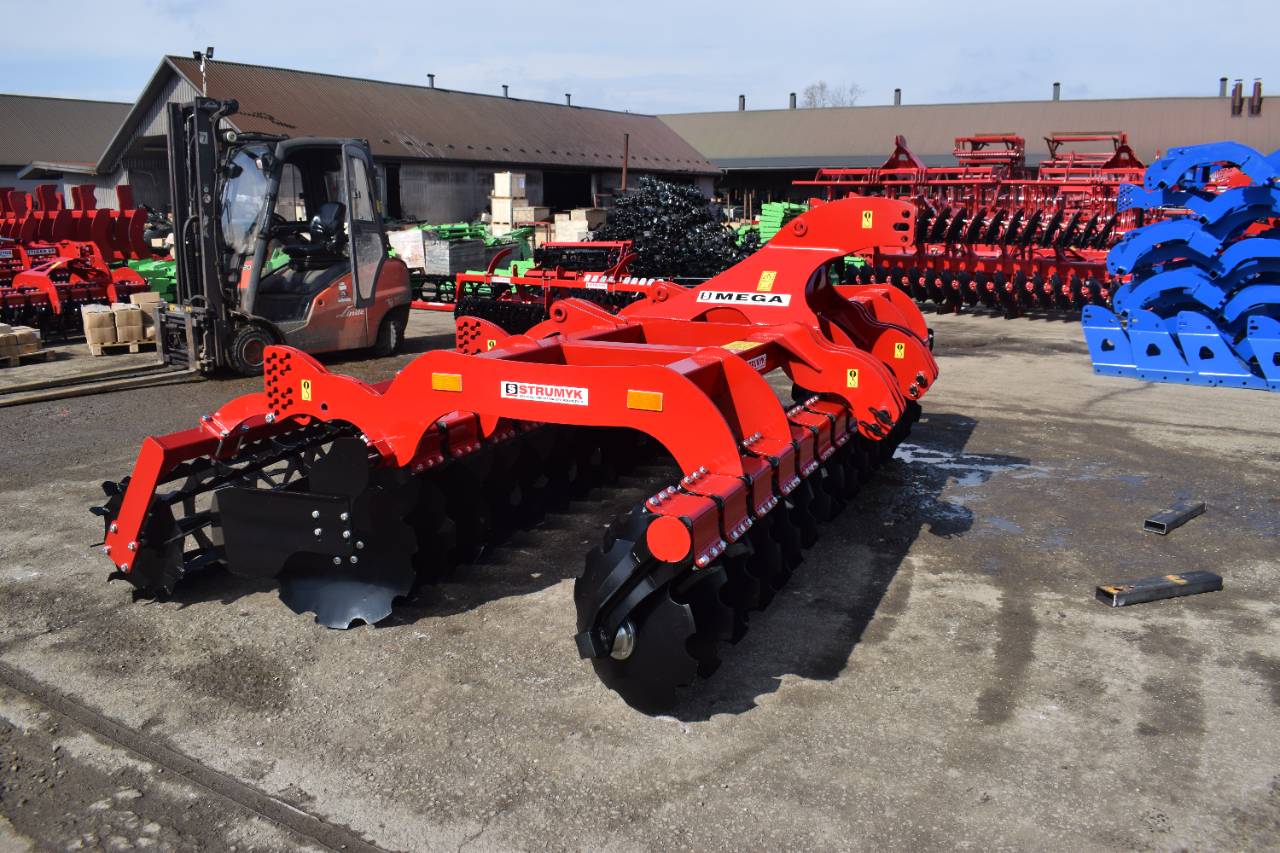

MEGA

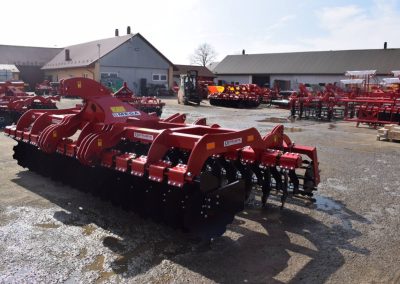

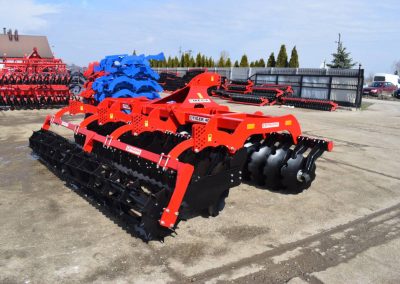

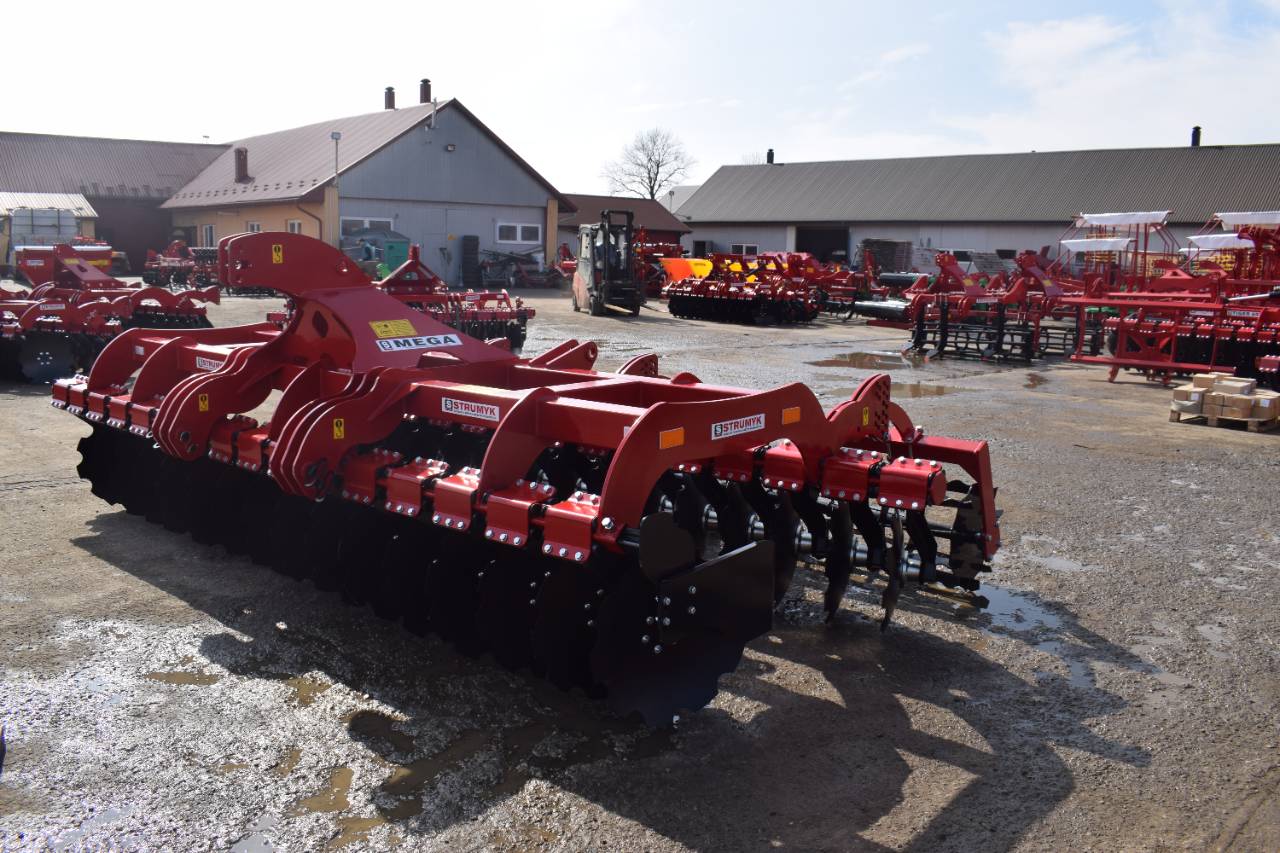

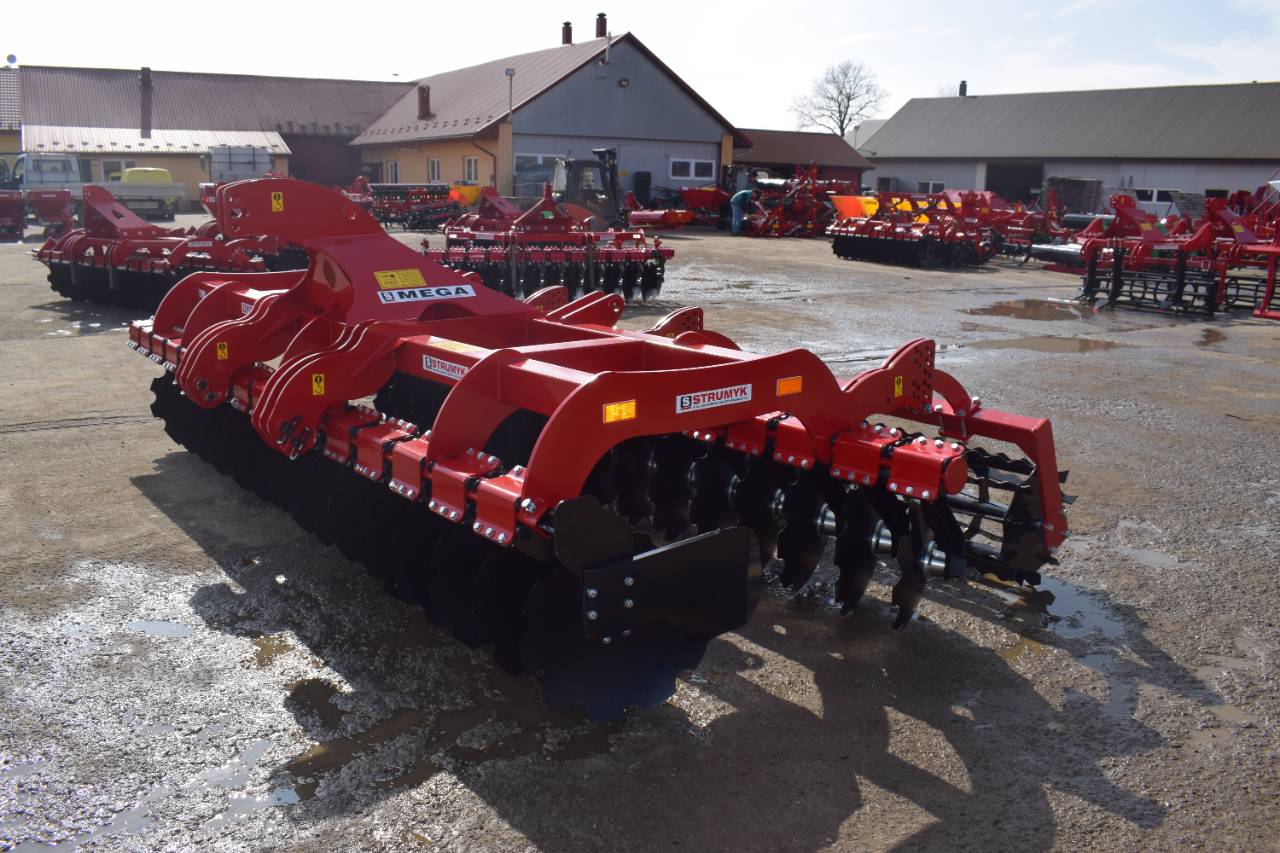

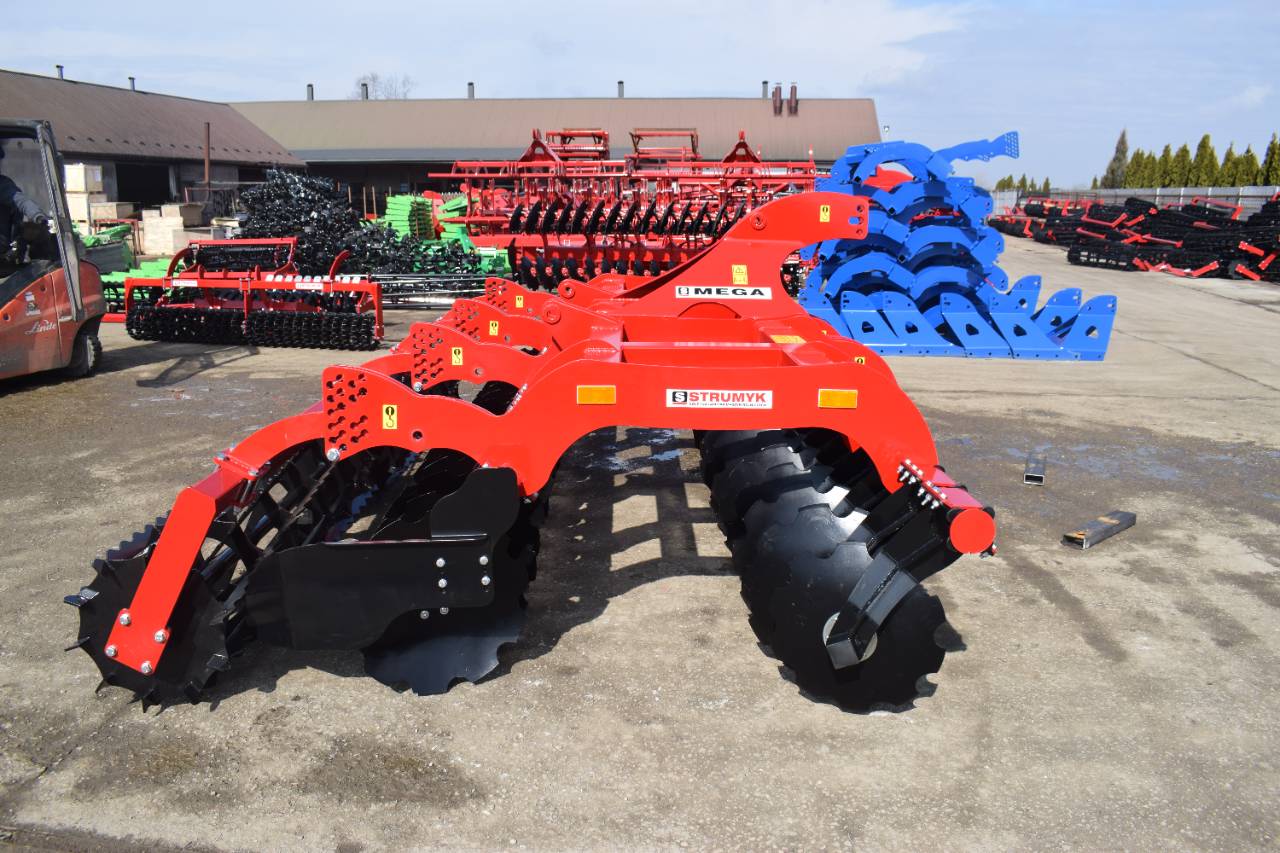

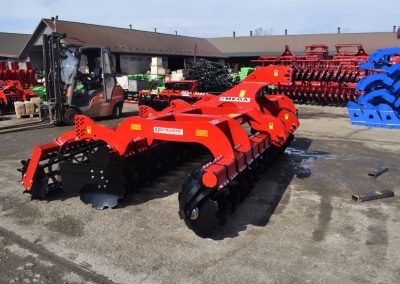

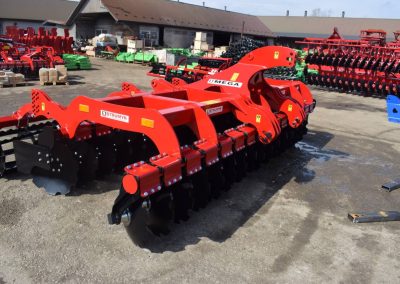

Disc harrow
The robust and heavily reinforced construction has been designed for intensive use on medium and large areas. Boron steel discs ensure effective mixing of crop residues and uniform soil cultivation across the entire working width.
The shock-absorption system, which uses rubber rollers, improves operational stability and protects the working parts from overload, thereby ensuring the machine’s long service life. The fixed disc spacing ensures a consistent and uniform tillage result.
The option to fit various types of rollers and a transport trolley allows the configuration to be flexibly adapted to soil conditions and the tractor available, making the equipment a practical choice for farms focused on efficiency and reliability.
| WIDTH (M) | 2,5 | 2,7 | 3,0 | 3,5 | 4,0 |
|---|---|---|---|---|---|
| NUMBER OF PLATES | 20 | 22 | 24 | 28 | 32 |
| DIAMETER OF THE PLATES | 560/610/660 | 560/610/660 | 560/610/660 | 560/610/660 | 560/610/660 |
| SPACING BETWEEN ROWS OF PLATES | 120 | 120 | 120 | 120 | 120 |
| WEIGHT (KG) | 1240 | 1265 | 1340 | 1650 | 1850 |
| POWER REQUIREMENT (HP) | 75–100 | 80–110 | 90–120 | 110–150 | 120–160 |
| OUTPUT (HA/H) | 1.7–2.2 | 1.9–2.8 | 2.1–3.3 | 2.3–3.8 | 2.5–4.2 |
| DRAWBAR + TRANSPORT TROLLEY (KG) | +950 | ||||
Standard equipment
560 mm Polish boron steel plate
reinforced construction
6-hole hubs
a shock-absorbing system consisting of rubber rollers
side screens
universal tow bar system for categories II and III suspensions
rear tubular or string shaft
powder coating
Optional extras
Polish plates, 560–660 mm, made of boron steel
SKF maintenance-free hubs
packer shaft
canopy shaft
Crosskill shaft
drawbar + transport trolley

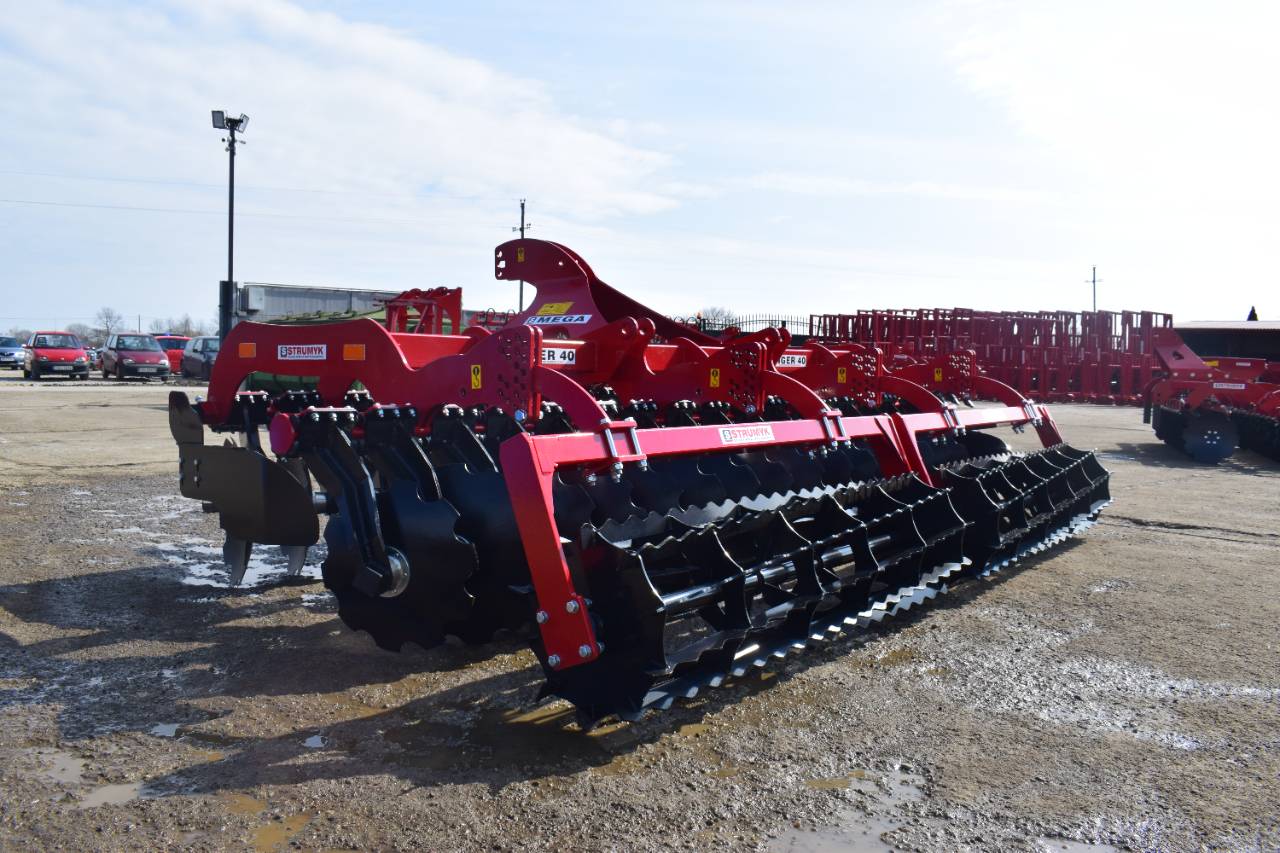

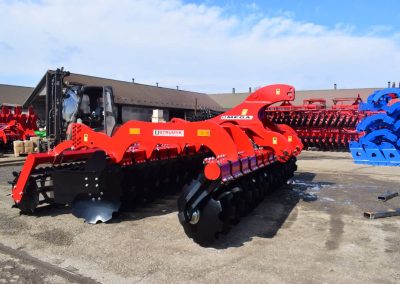

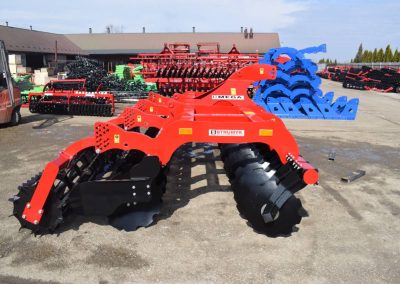

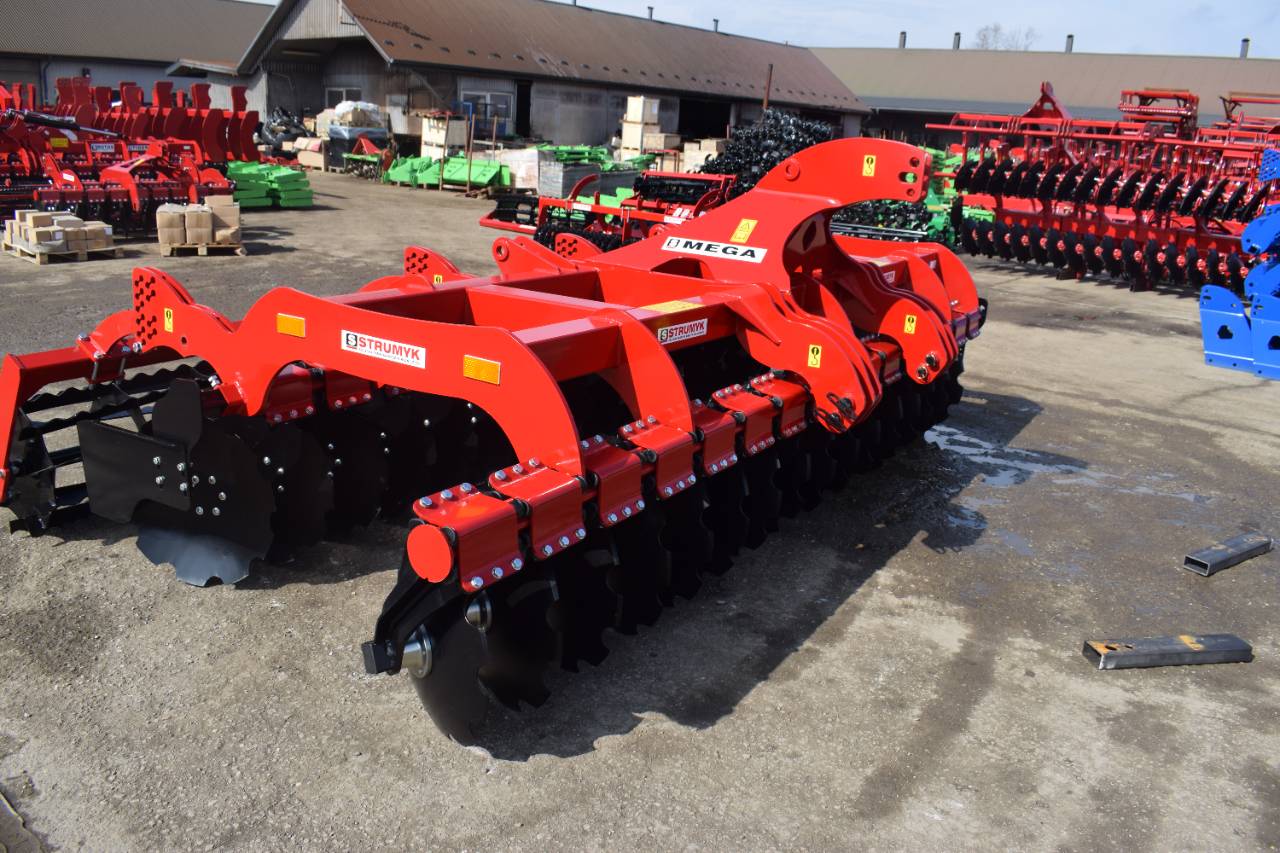

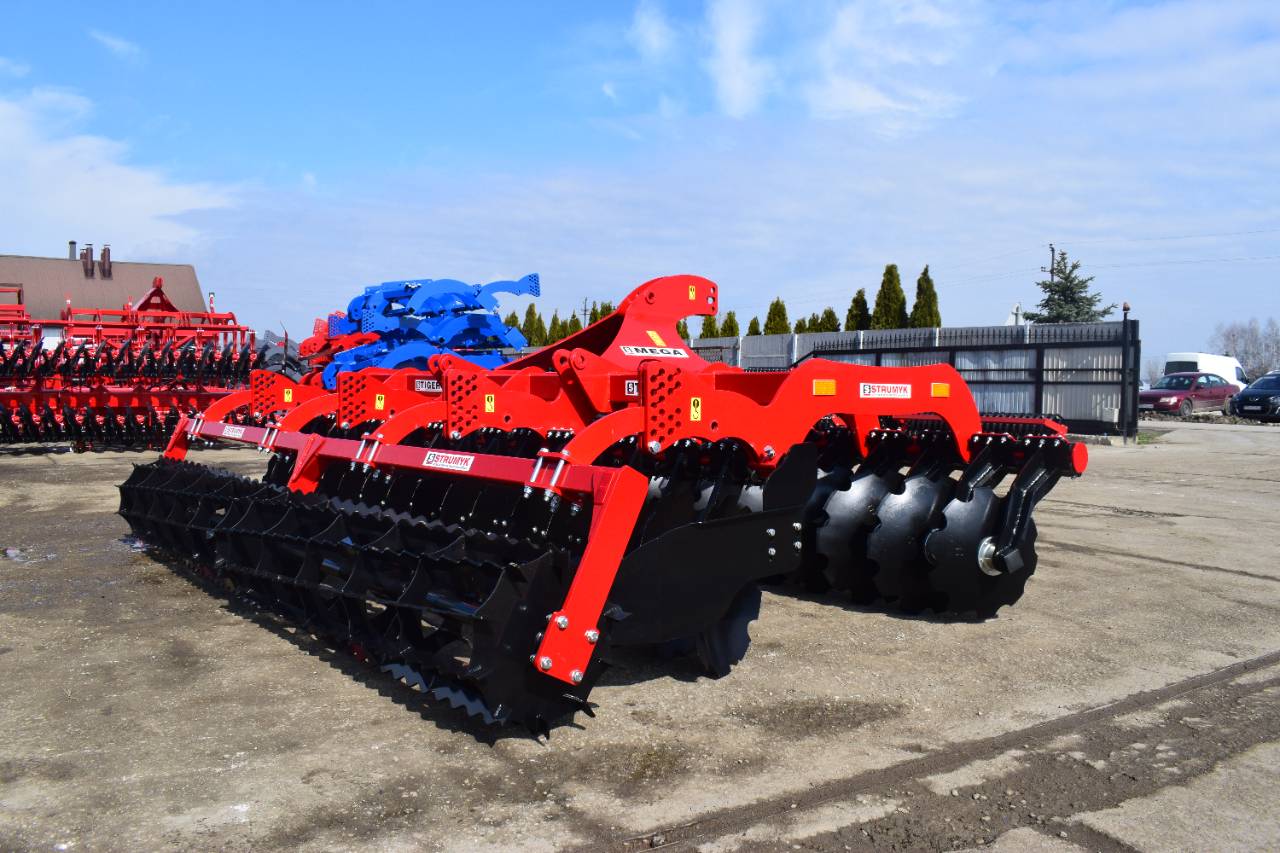

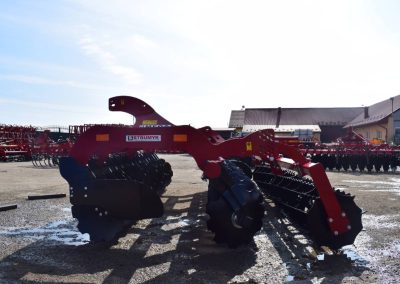

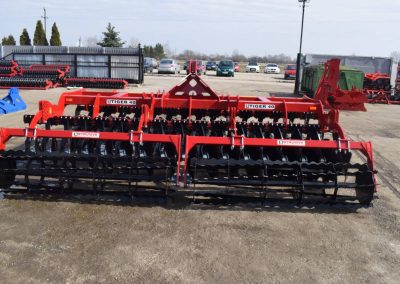

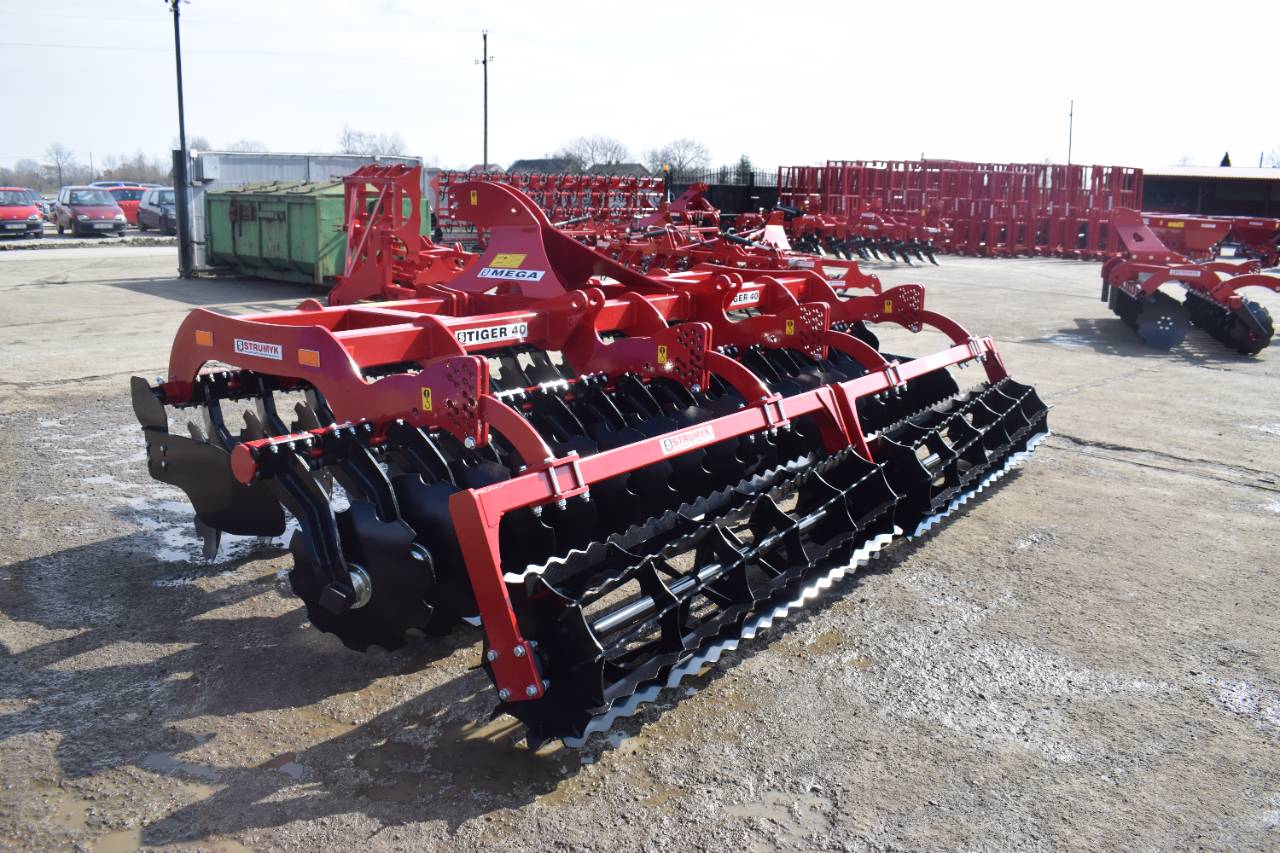

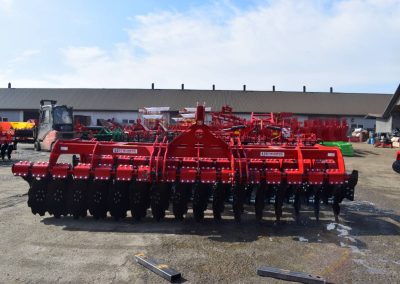

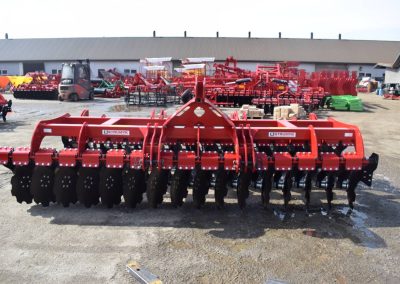

Gallery
