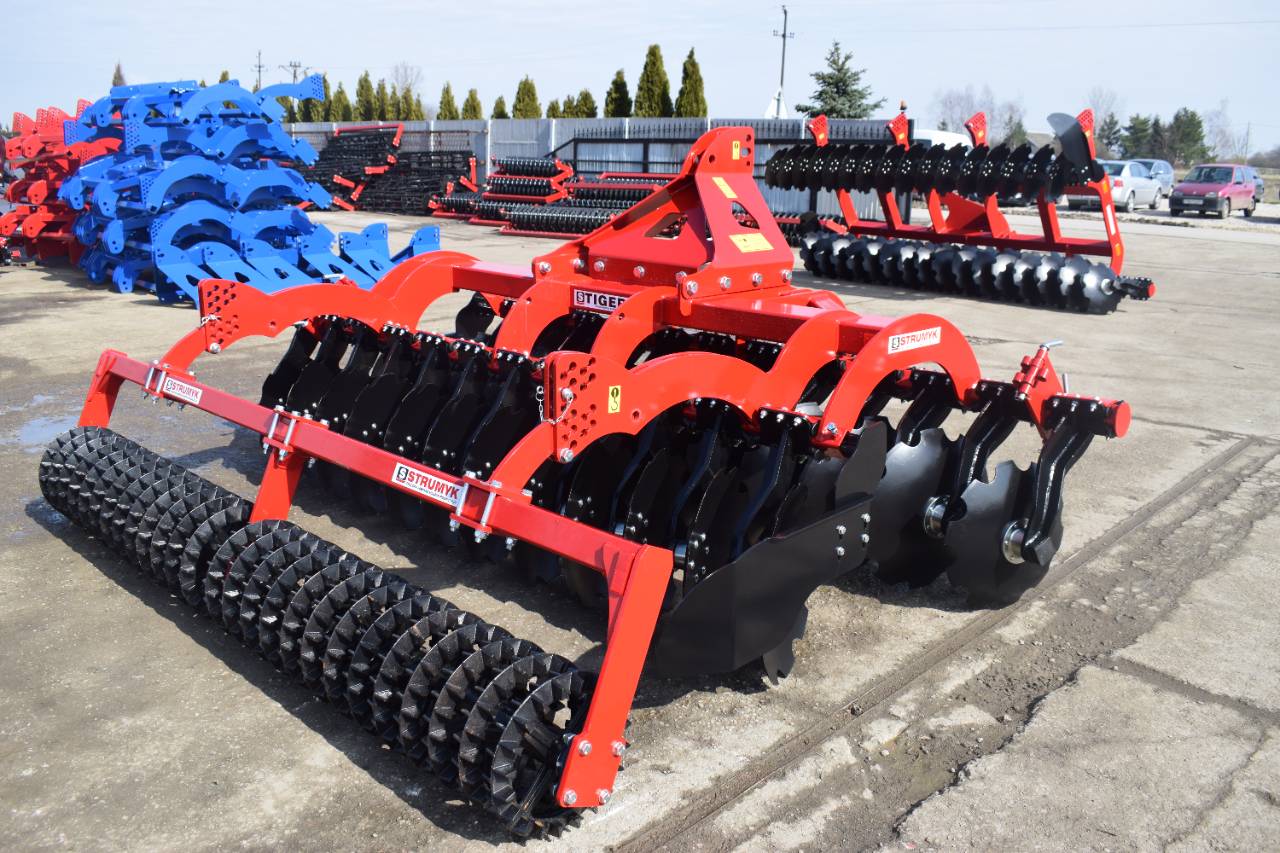

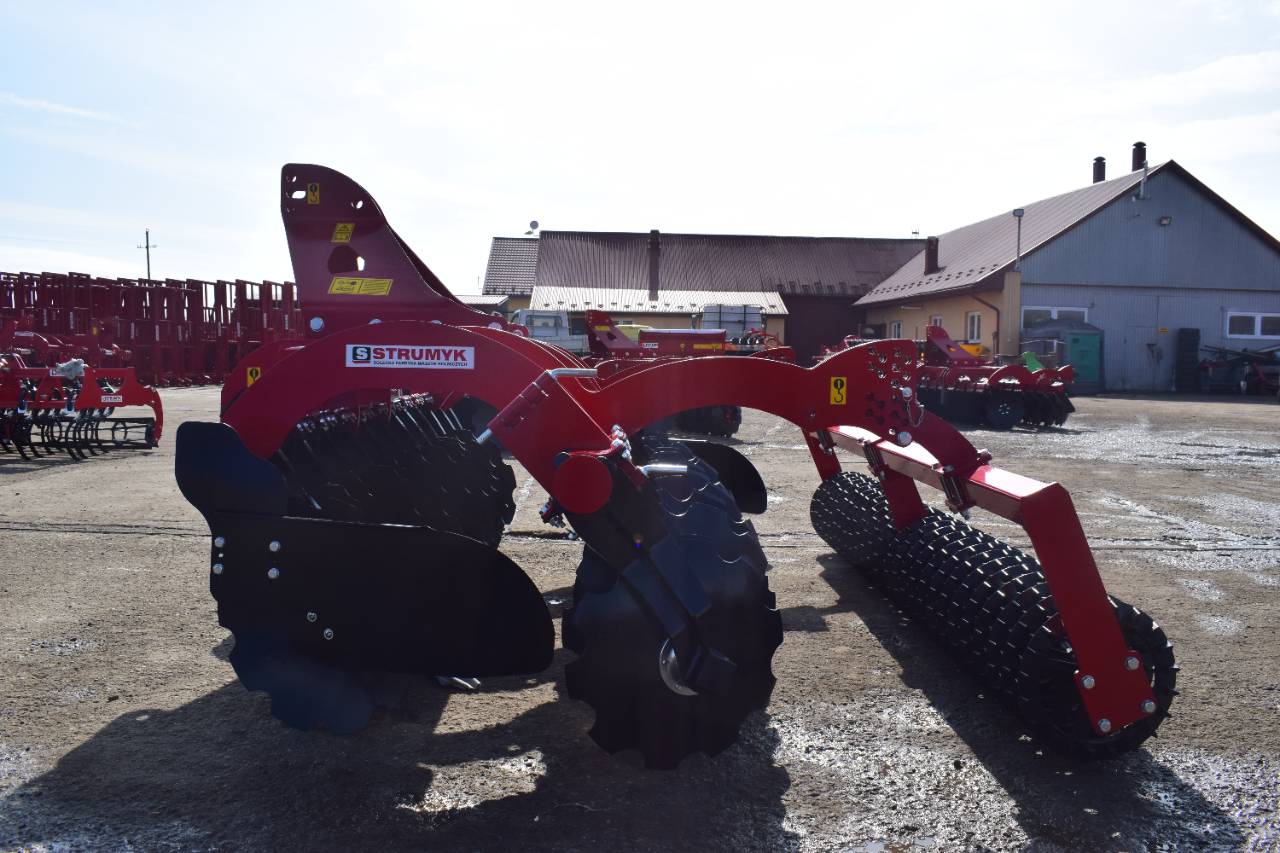

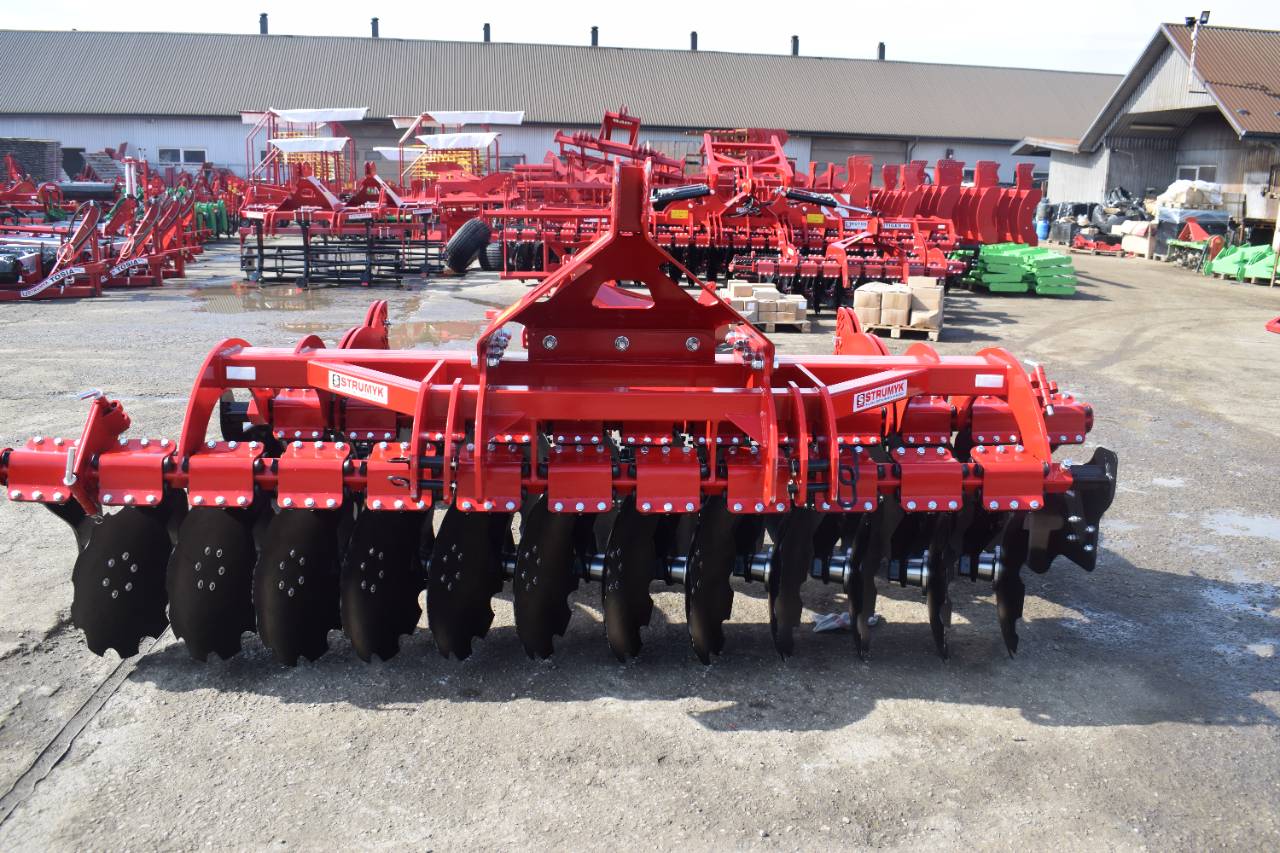

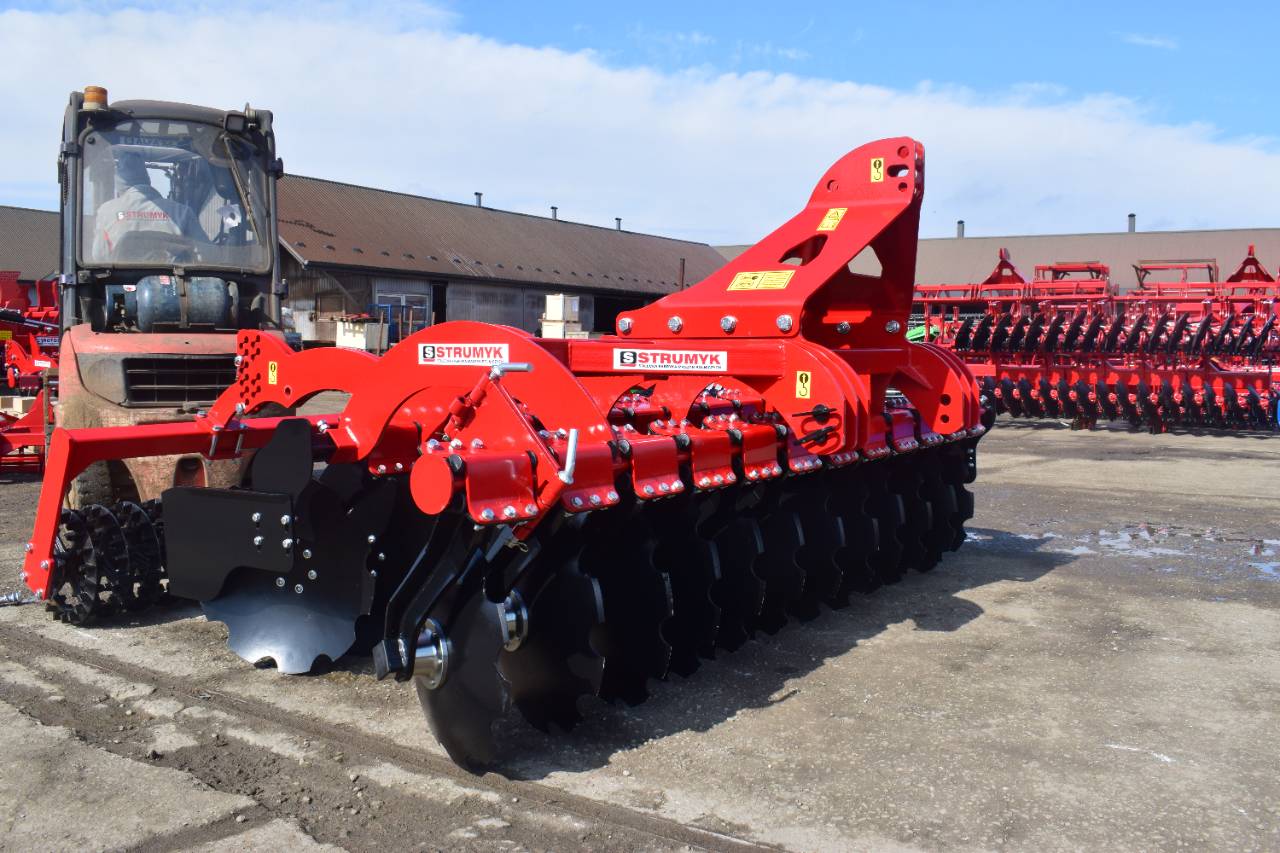

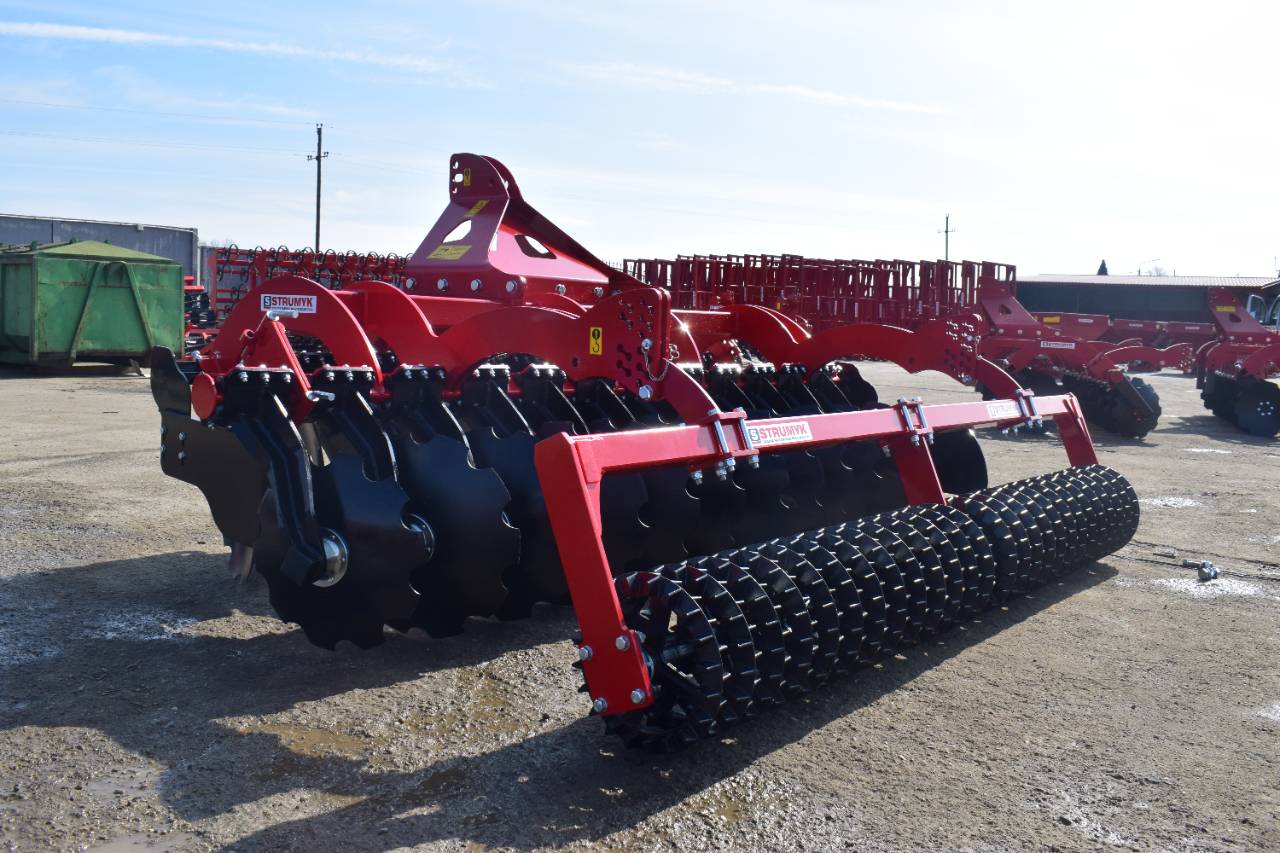

TIGER II
Disc harrow
Its compact yet robustly reinforced design enables effective soil cultivation whilst maintaining high operational stability. Boron steel discs effectively mix crop residues, ensuring an even result across the entire working width.
The shock-absorption system, which uses rubber rollers, protects the working parts from overload and improves working comfort. The fixed disc spacing allows for precise soil cultivation even in more challenging field conditions.
With a wide range of working widths and the option to fit various types of rollers and a transport trolley, the equipment can be easily adapted to the tractor’s power and the needs of a farm focused on efficient and reliable operation.
| TYPE | T II 25 | T II 27 | T II 30 | Vol. II, No. 35 | T II 40 |
|---|---|---|---|---|---|
| WIDTH (M) | 2,5 | 2,7 | 3,0 | 3,5 | 4,0 |
| NUMBER OF PLATES | 20 | 22 | 24 | 28 | 32 |
| DIAMETER OF THE PLATES | 560/610/660 | 560/610/660 | 560/610/660 | 560/610/660 | 560/610/660 |
| SPACING BETWEEN ROWS OF PLATES | 90 | 90 | 90 | 90 | 90 |
| WEIGHT (KG) | 990 | 1015 | 1090 | 1400 | 1600 |
| POWER REQUIREMENT (HP) | 70–90 | 75–100 | 80–110 | 110–150 | 120–160 |
| OUTPUT (HA/H) | 1.7–2.2 | 1.9–2.8 | 2.1–3.3 | 2.3–3.8 | 2.5–4.2 |
| DRAWBAR + TRANSPORT TROLLEY (KG) | +800 | ||||
Standard equipment
560 mm Polish boron steel plate
reinforced construction
6-hole hubs
a shock-absorbing system consisting of rubber rollers
side screens
universal tow bar system for categories II and III suspensions
rear tubular or string shaft
powder coating
Optional extras
Polish plates, 560–660 mm, made of boron steel
SKF maintenance-free hubs
packer shaft
canopy shaft
Crosskill shaft
drawbar + transport trolley

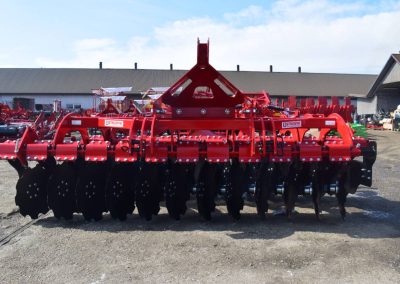

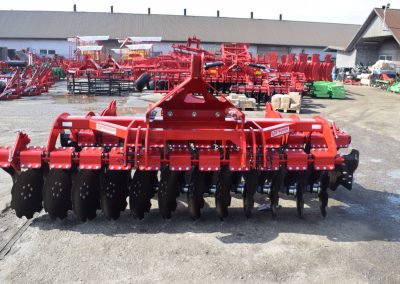

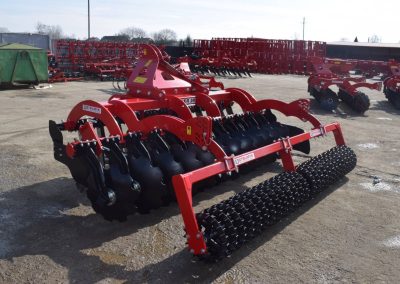

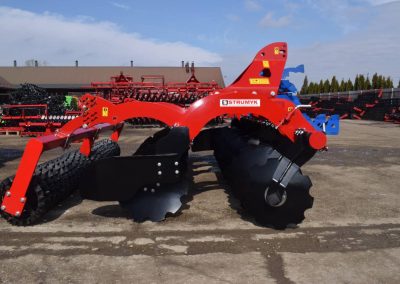

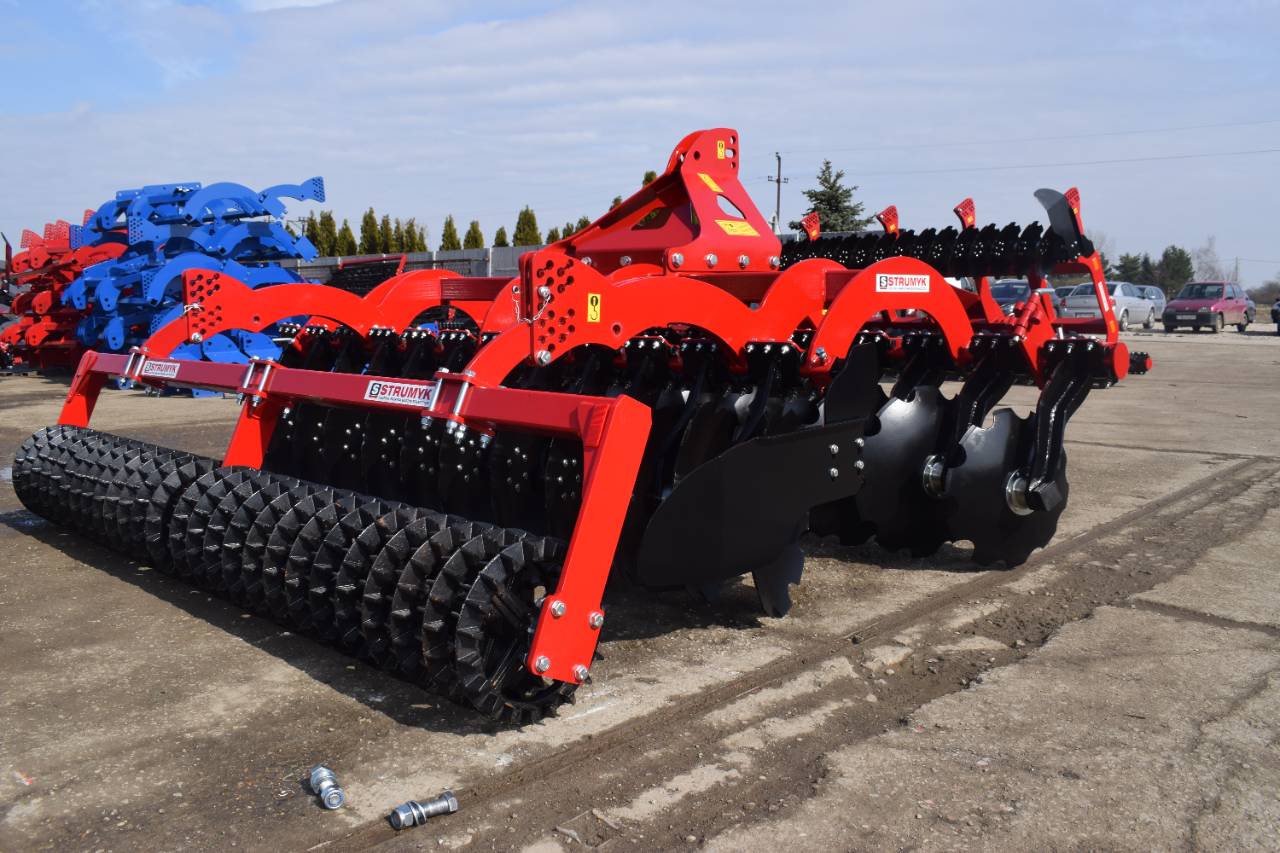

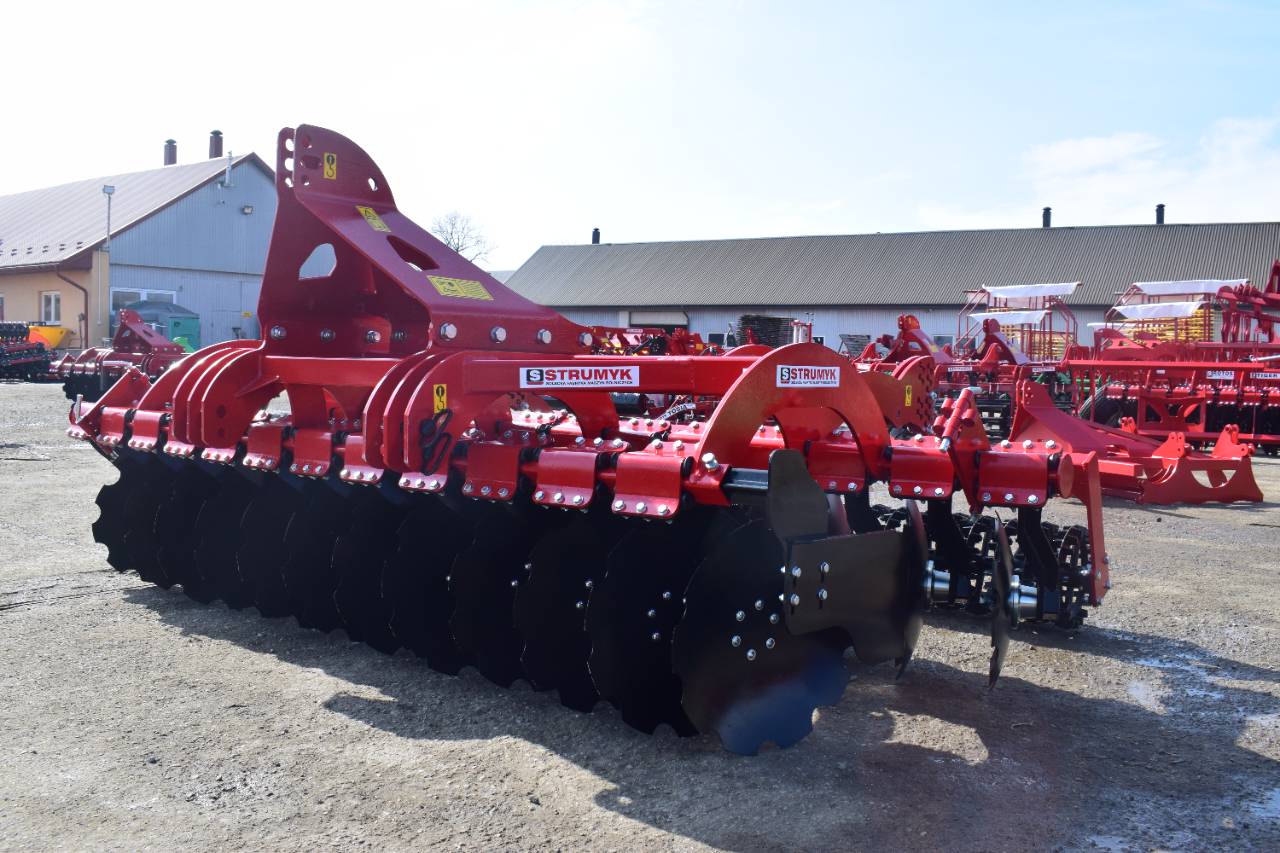

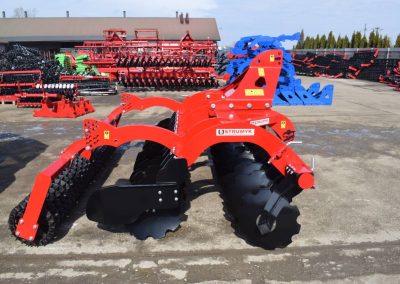

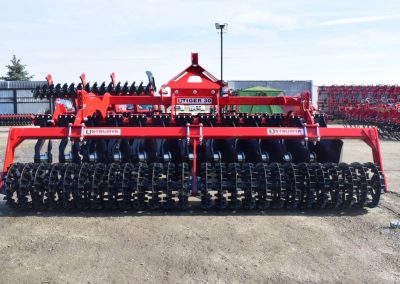

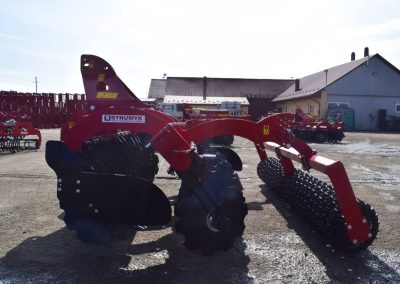

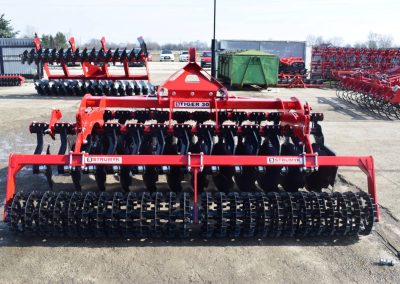

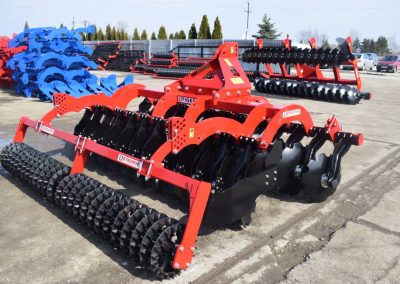

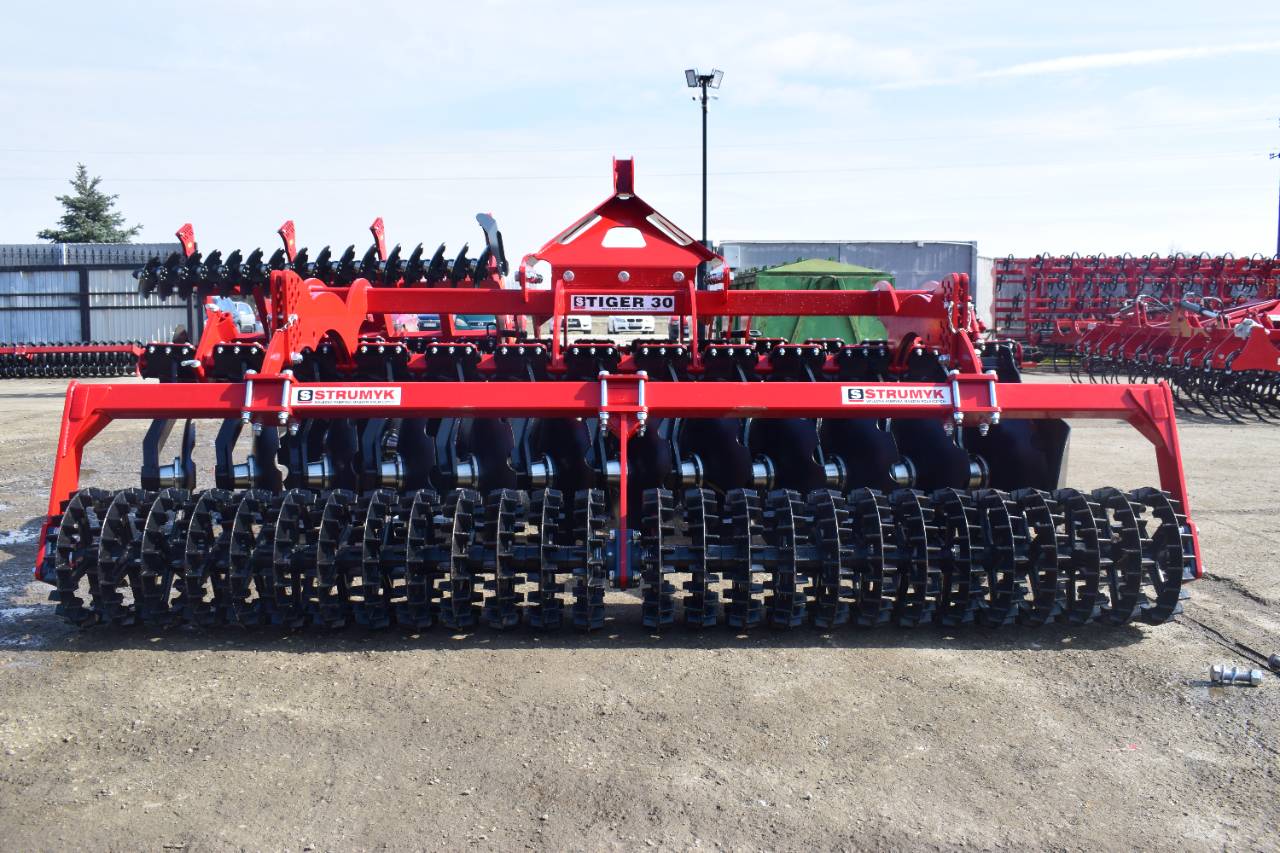

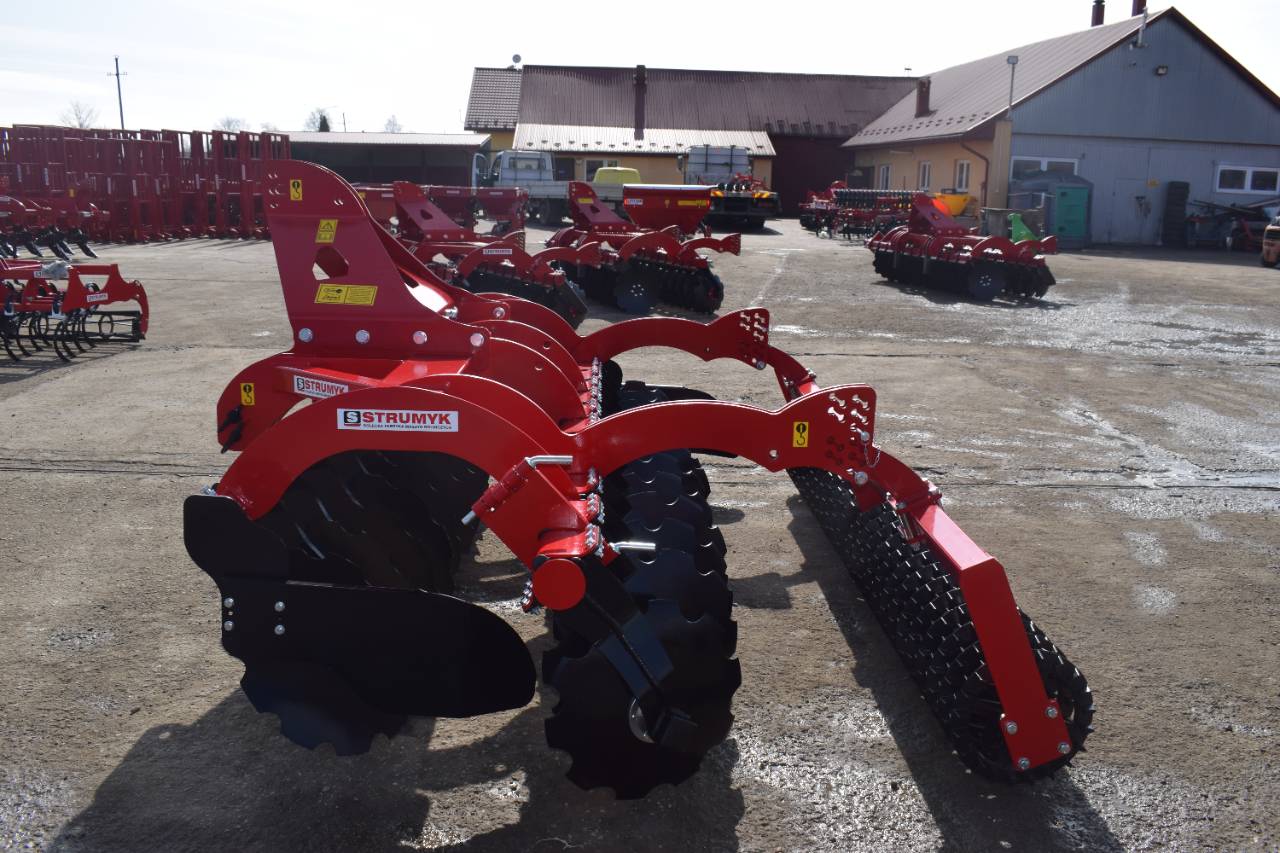

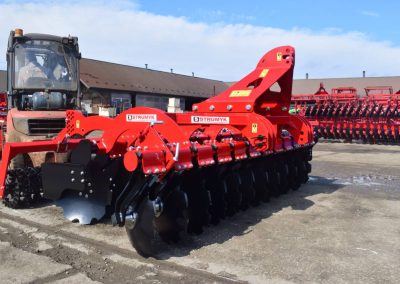

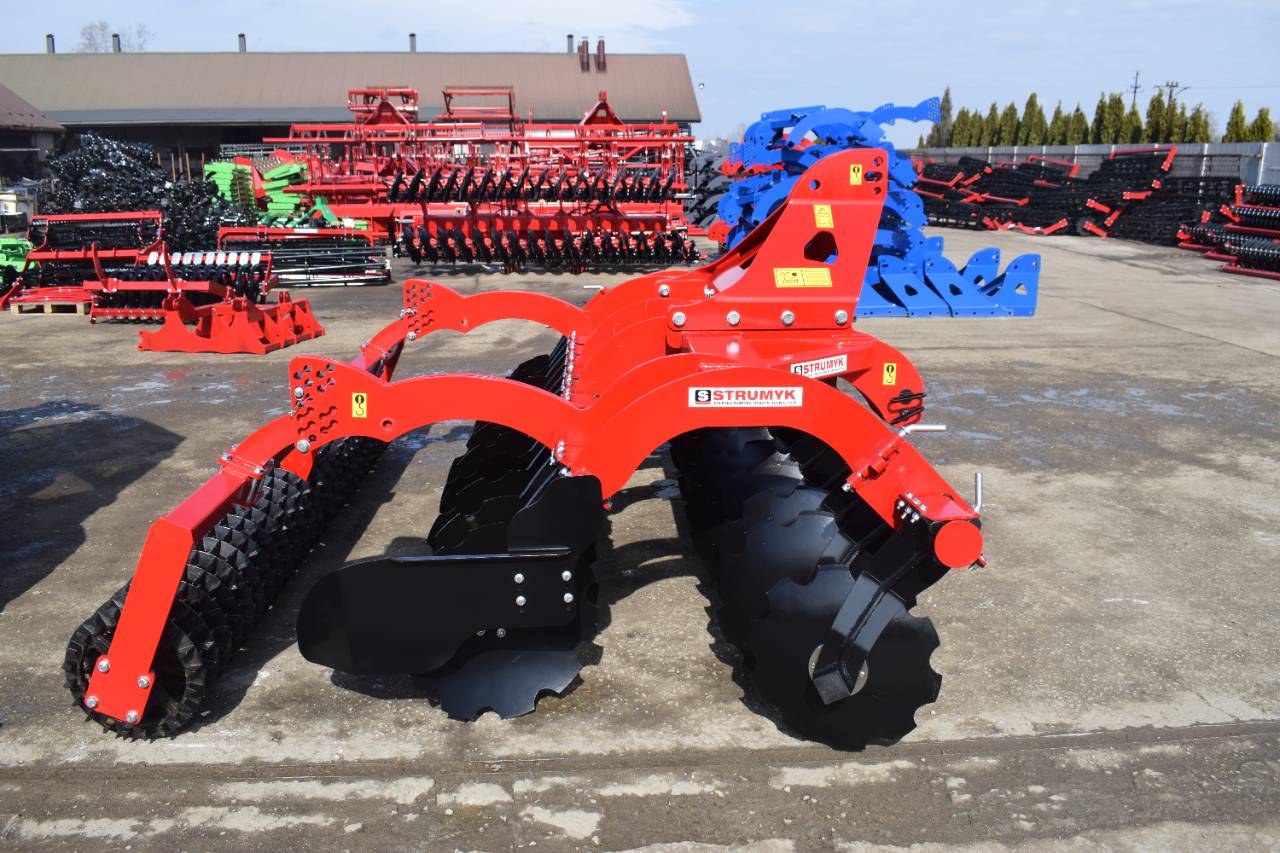

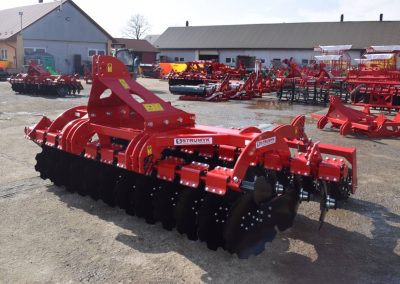

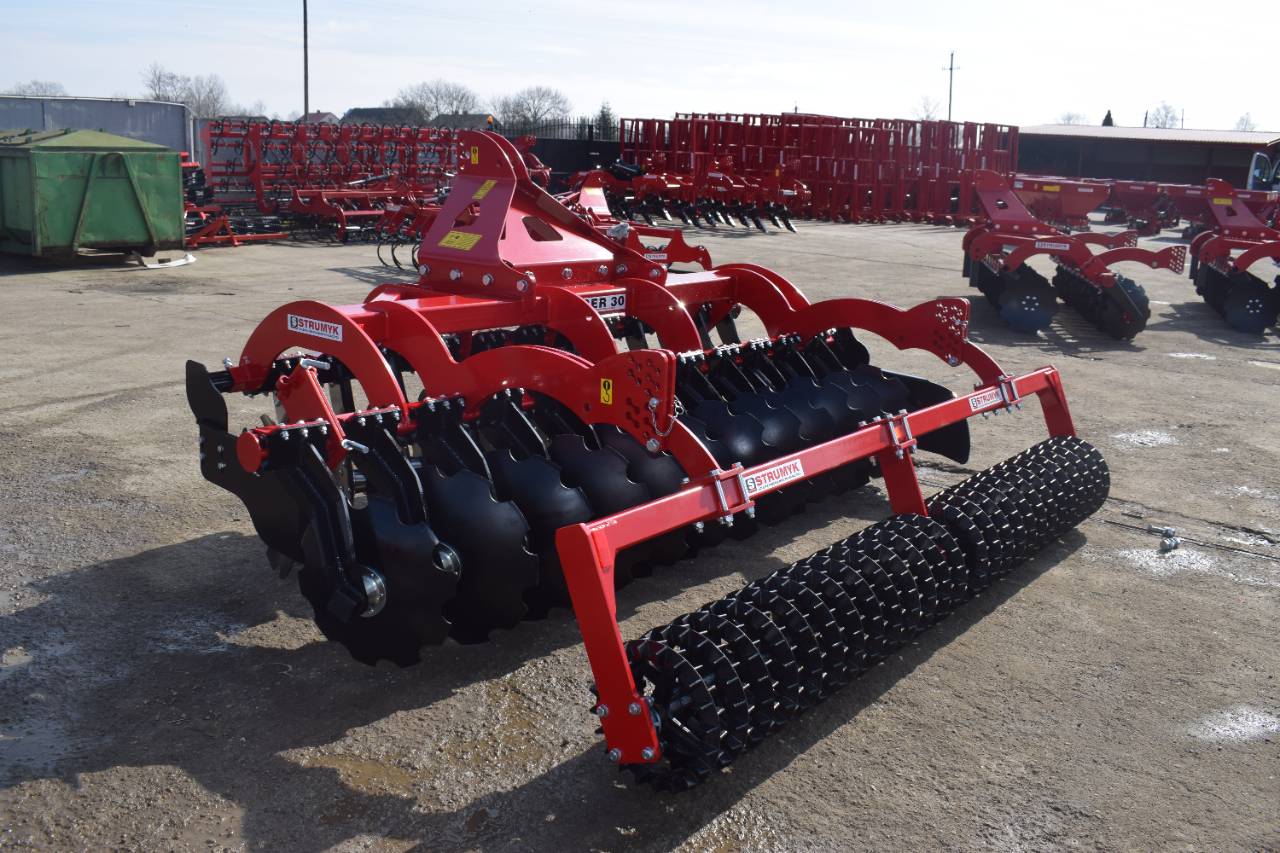

Gallery
