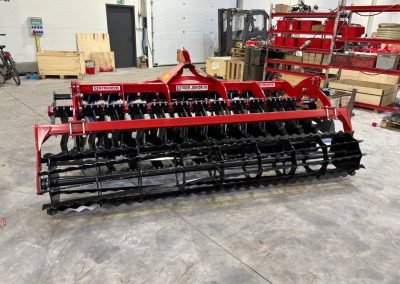

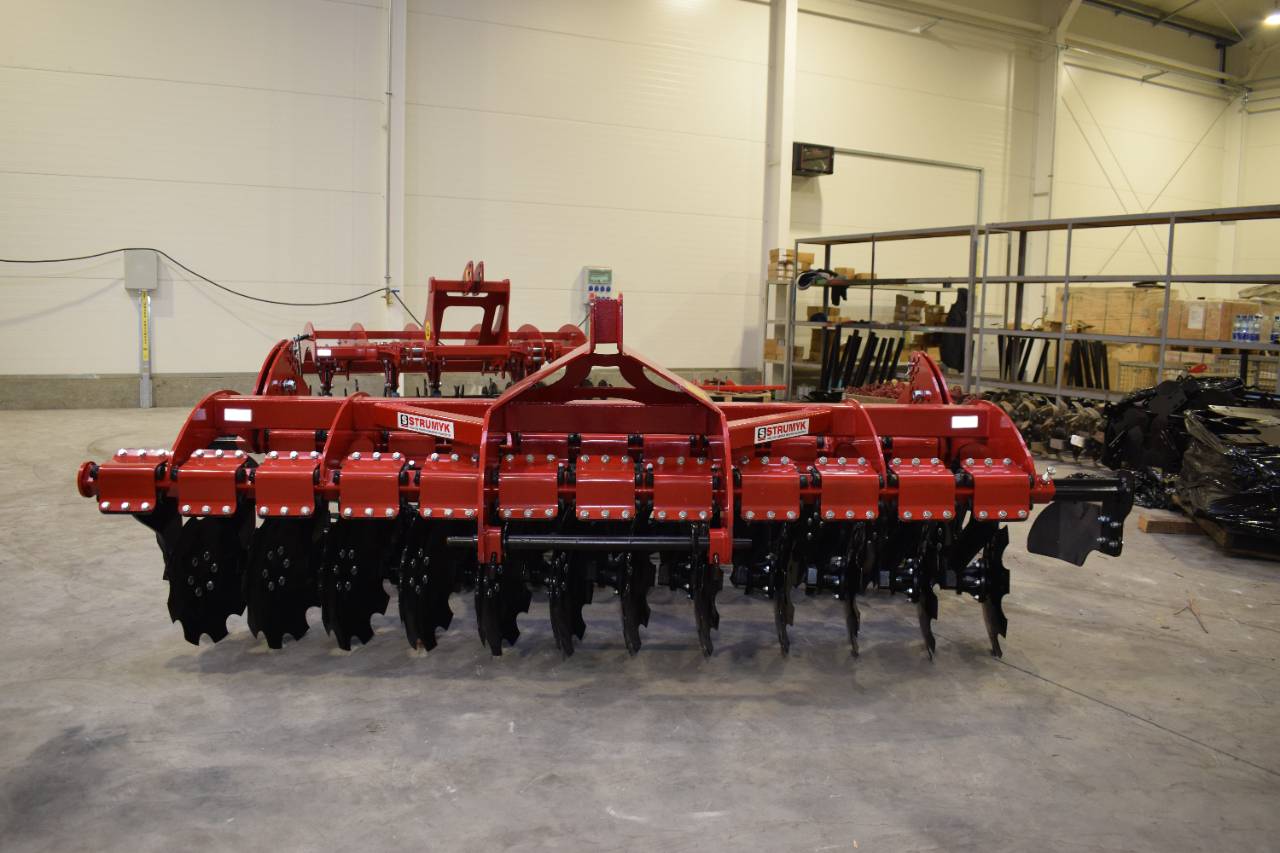

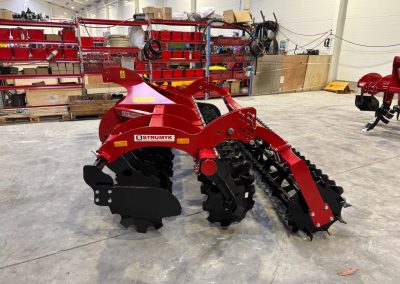

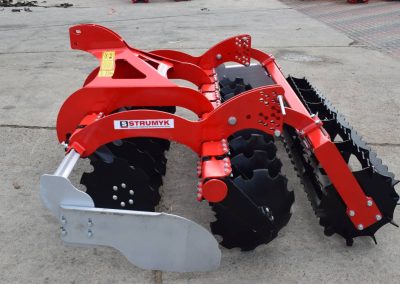

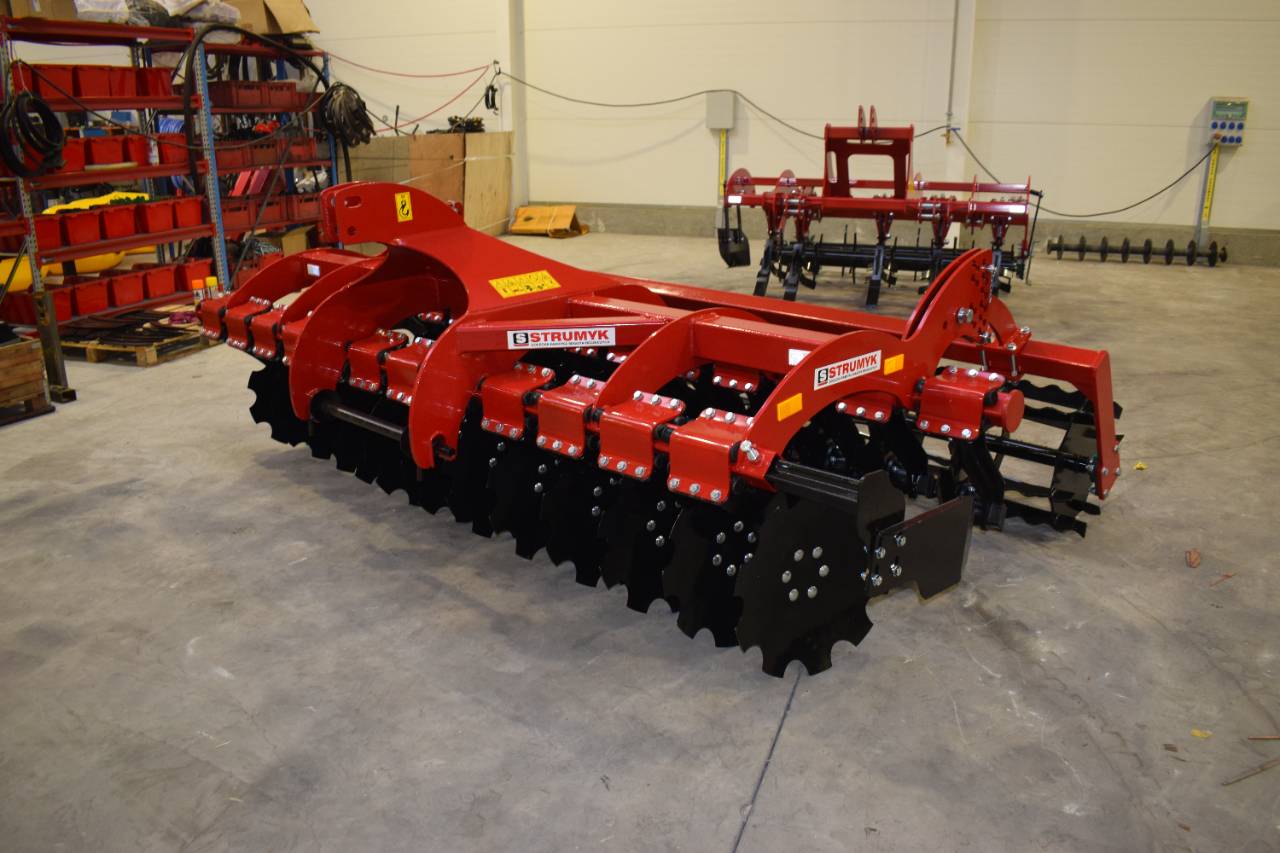

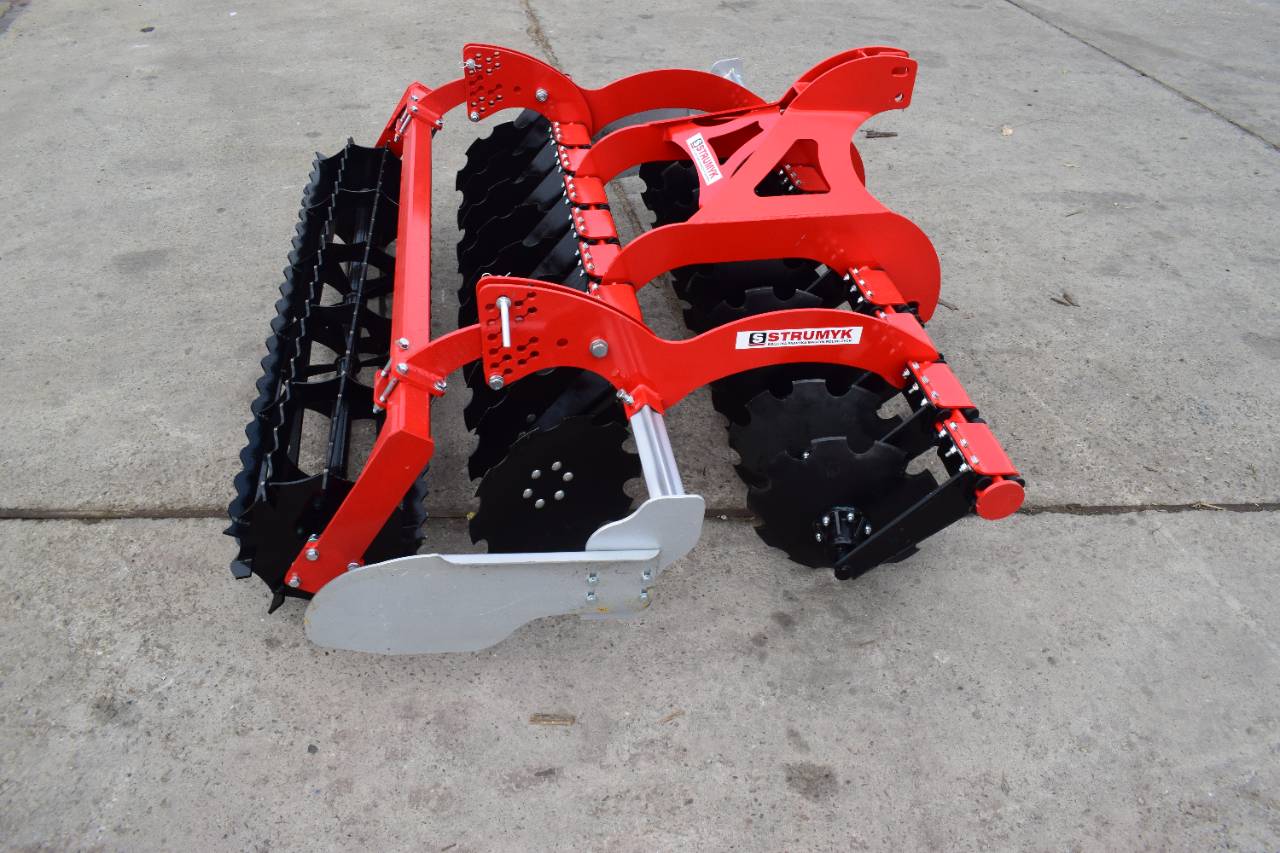

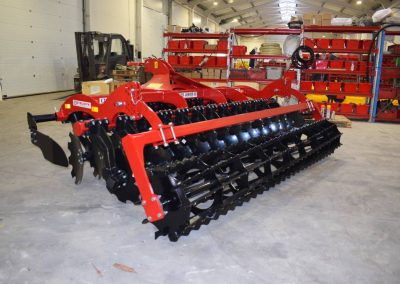

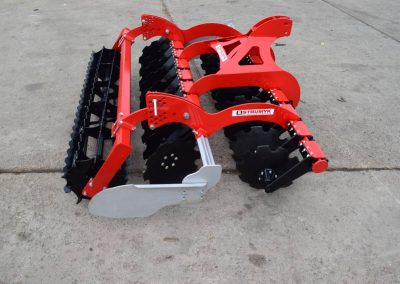

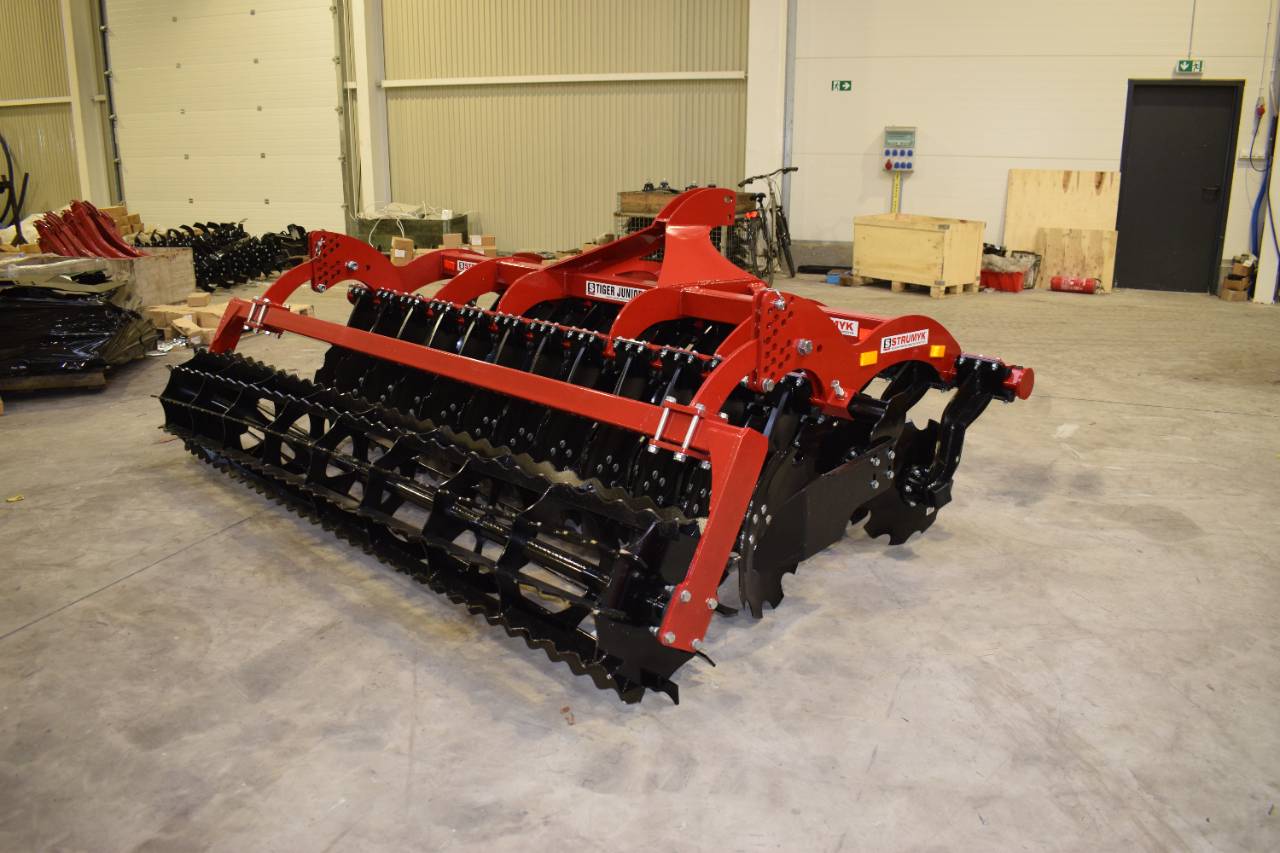

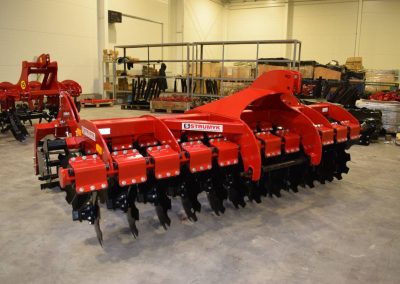

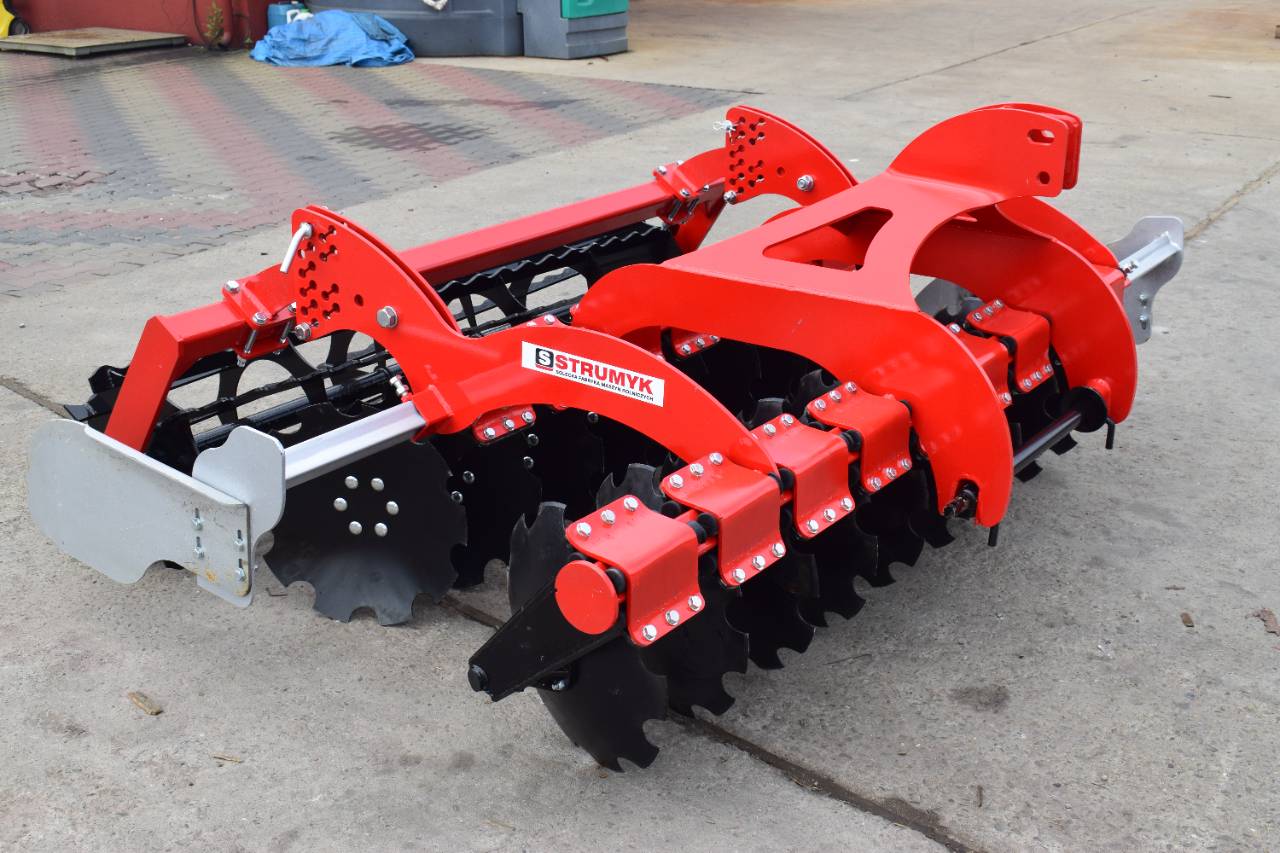

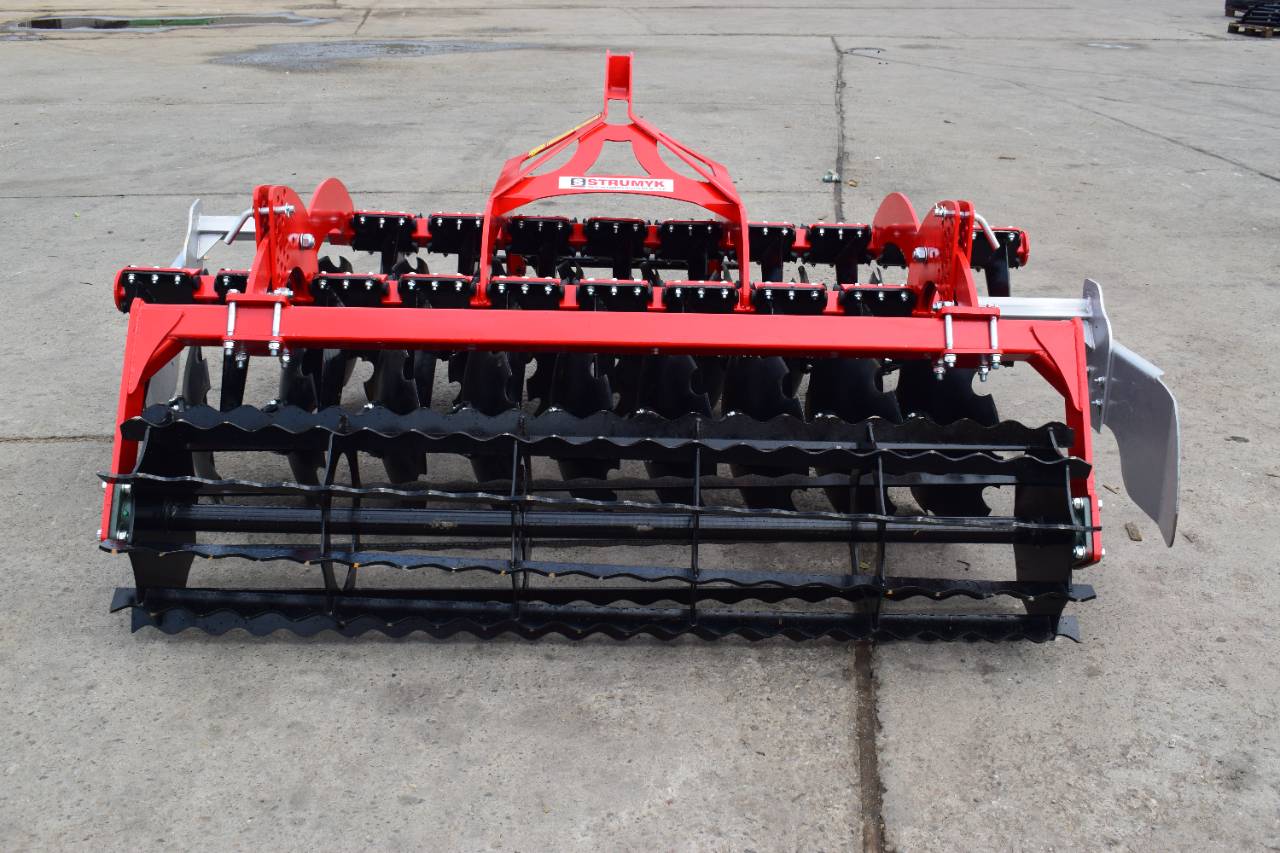

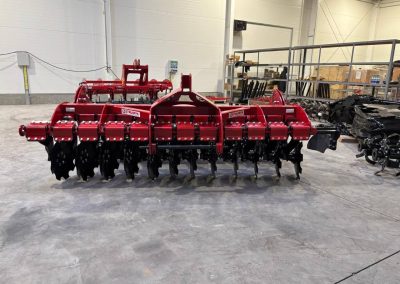

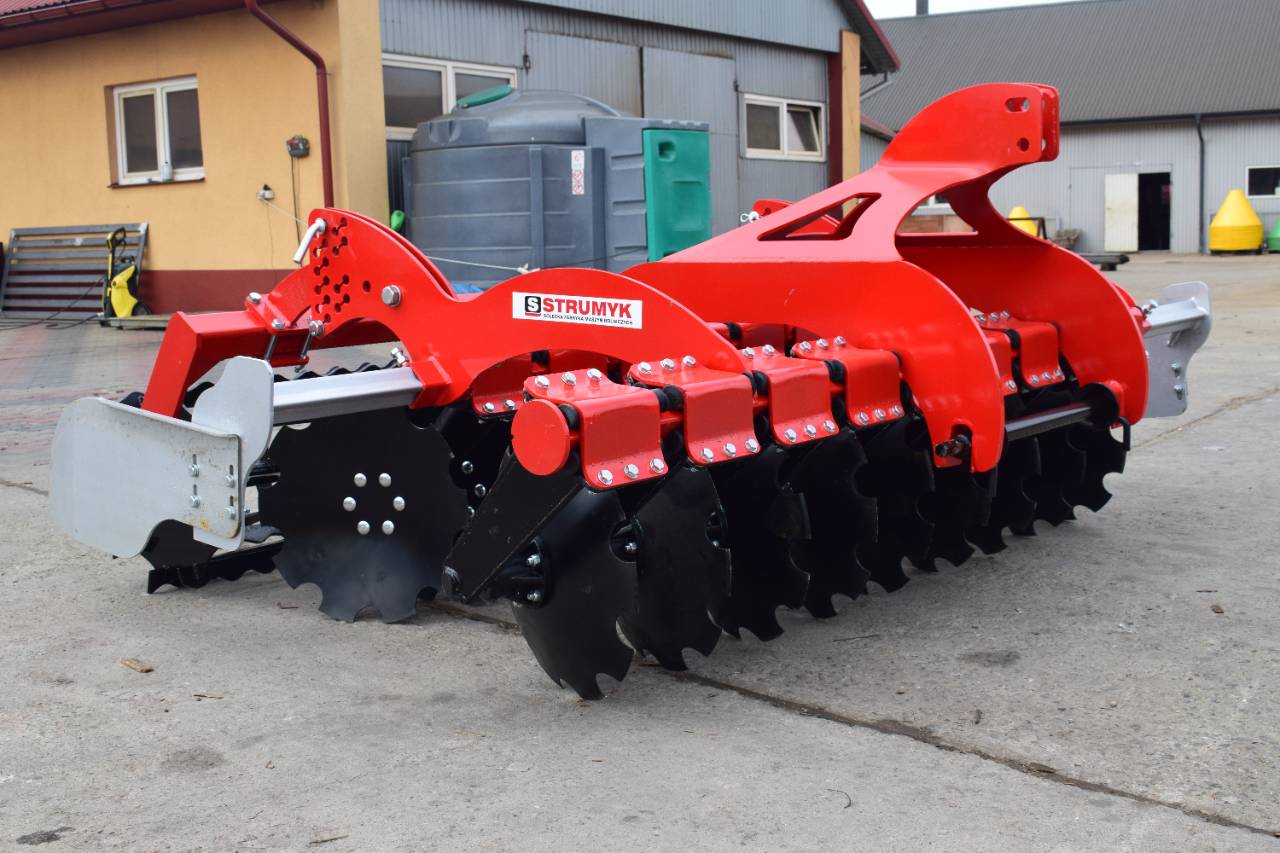

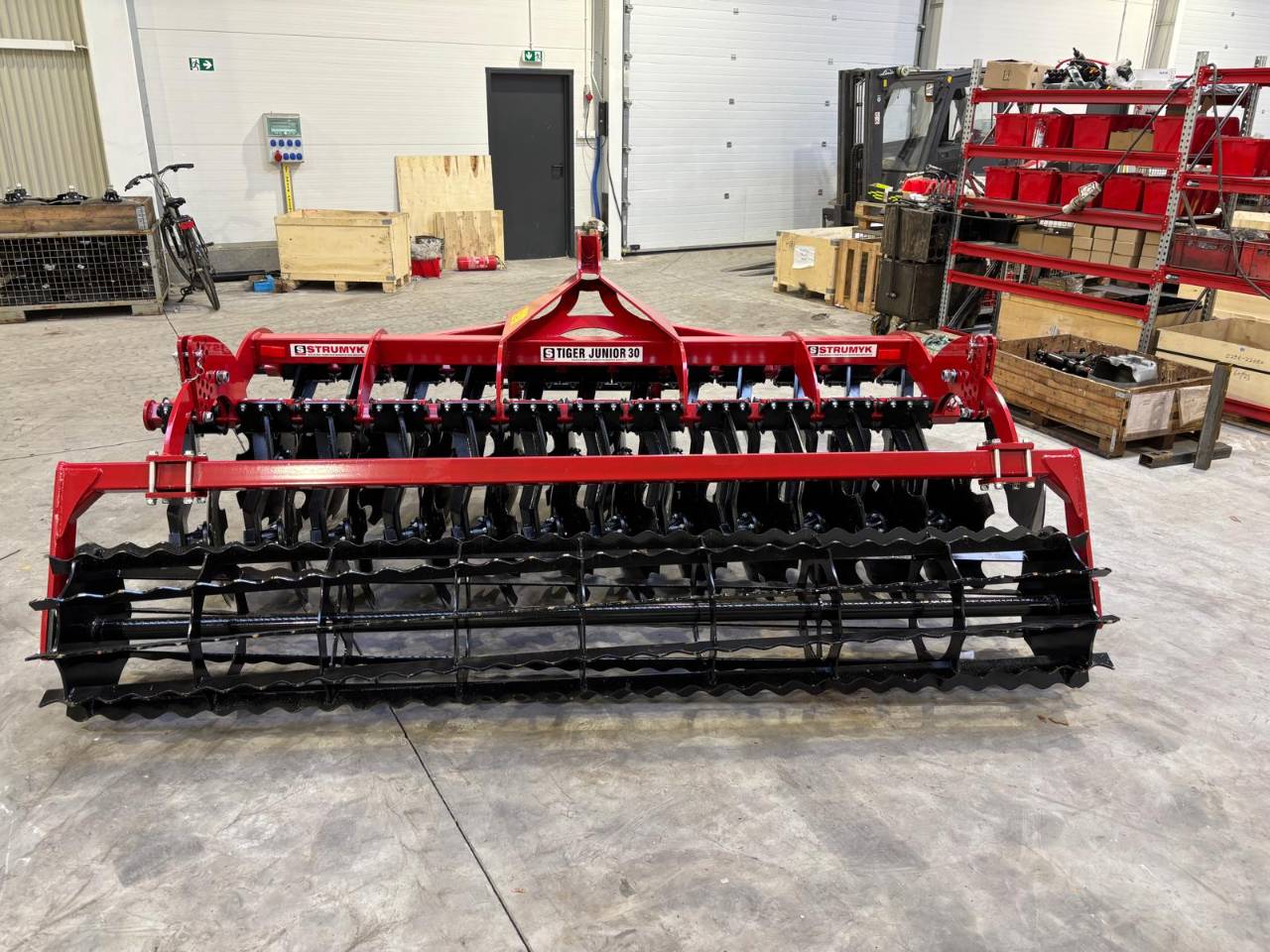

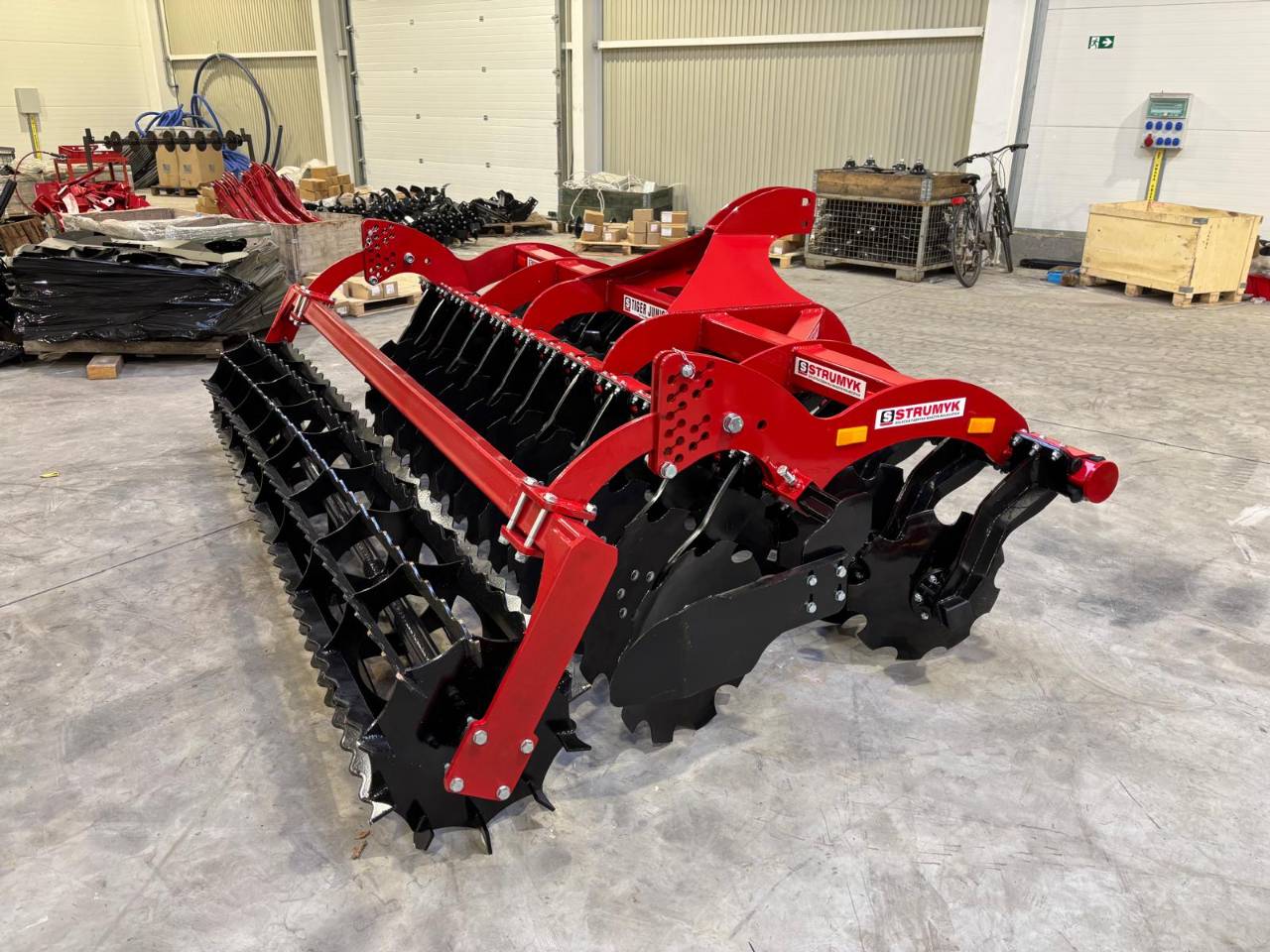

TIGER JUNIOR
Disc harrow
Its compact design makes the machine ideal for use with small and medium-sized tractors, offering effective soil cultivation on a variety of terrain. The reinforced frame and boron steel plates ensure durability and stability even under heavy use.
The shock-absorption system, which uses rubber rollers, improves working comfort and protects the working parts from overload. The precise disc spacing ensures that crop residues are mixed evenly and the soil is thoroughly loosened.
A wide range of working widths and the option to fit various types of rollers make it easy to adapt the equipment to the farm’s needs, making it a versatile solution for everyday cultivation tasks.
| TYPE | TJI 14 | TJI 16 | TJI 18 | TJI 20 | TJI 22 | TJI 25 | TJI 27 | TJI 30 |
|---|---|---|---|---|---|---|---|---|
| WIDTH (M) | 1,4 | 1,6 | 1,8 | 2,0 | 2,2 | 2,5 | 2,7 | 3,0 |
| NUMBER OF PLATES | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| DIAMETER OF THE PLATES | 460/510/560 | |||||||
| SPACING BETWEEN ROWS OF PLATES | 75 | |||||||
| WEIGHT (KG) | 430 | 480 | 530 | 580 | 630 | 720 | 810 | 900 |
| POWER REQUIREMENT (HP) | 12–25 | 15–25 | 20–40 | 40–60 | 45–65 | 60–80 | 65–85 | 75–95 |
| OUTPUT (HA/H) | 0.7–1.4 | 0.9–1.4 | 1.1–1.7 | 1.3–1.8 | 1.5–2.0 | 1.7–2.2 | 1.9–2.8 | 2.1–3.3 |
Standard equipment
560 mm Polish boron steel plate
reinforced construction
6-hole hubs
a shock-absorbing system consisting of rubber rollers
side screens
universal tow bar system for categories II and III suspensions
rear tubular or string shaft
powder coating
Optional extras
Polish plates, 560–660 mm, made of boron steel
SKF maintenance-free hubs
packer shaft
canopy shaft
Crosskill shaft
drawbar + transport trolley

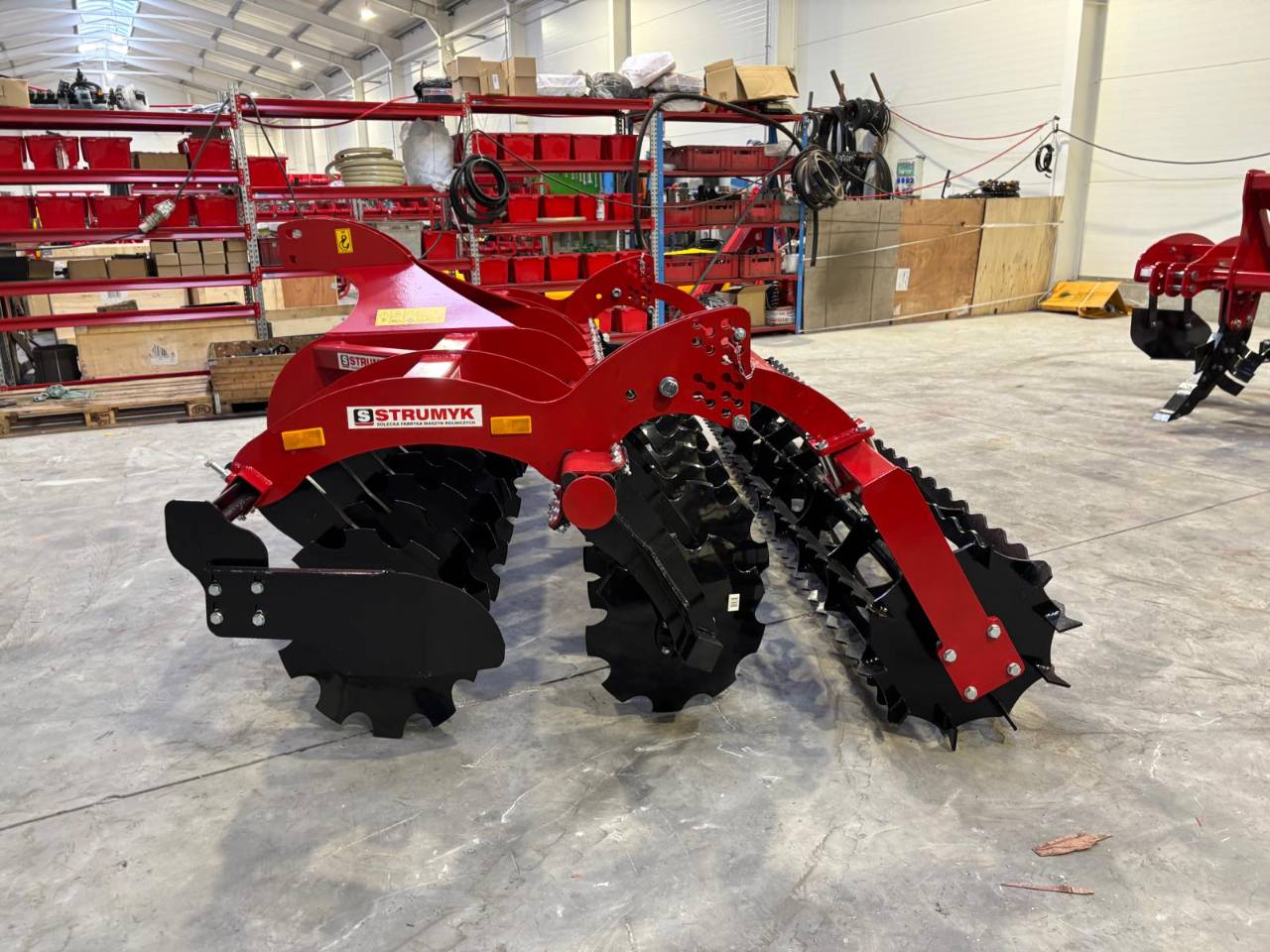

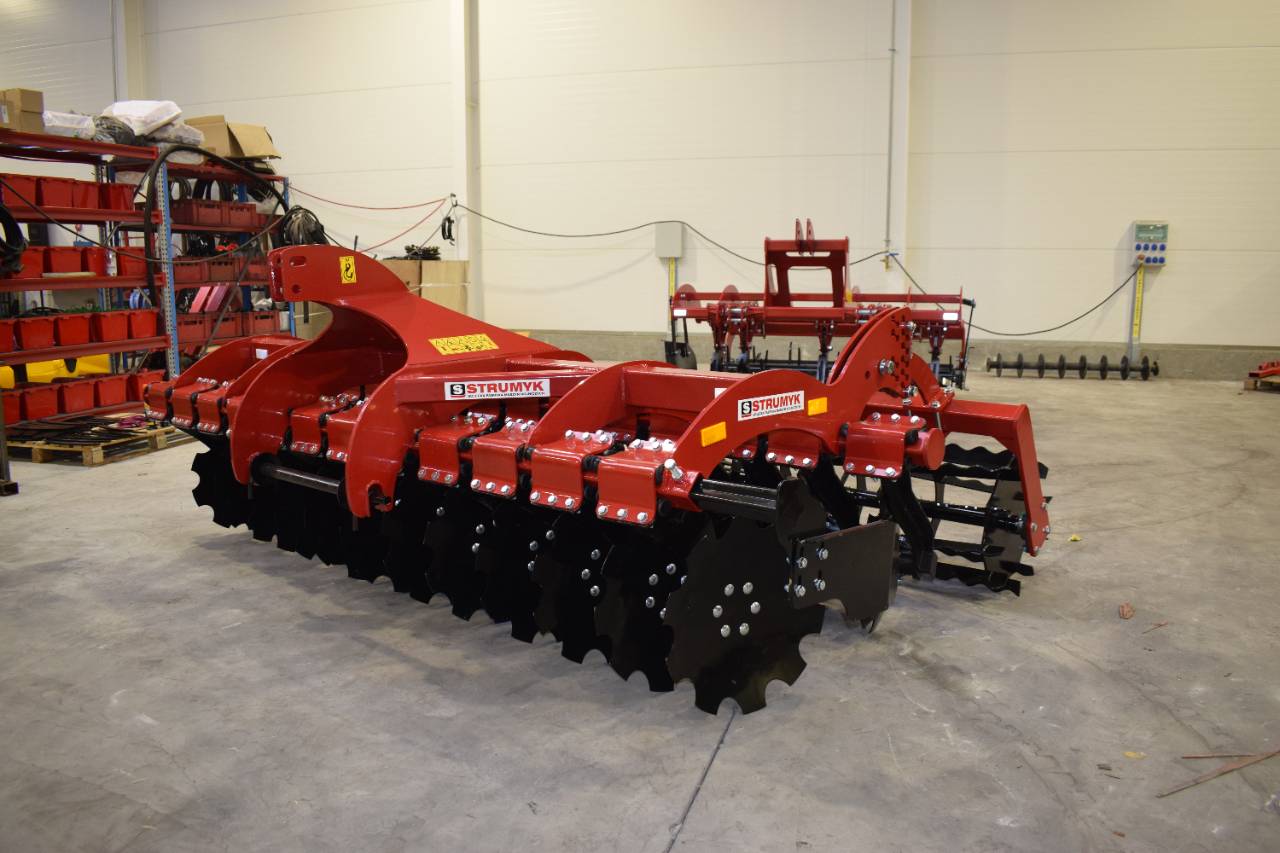

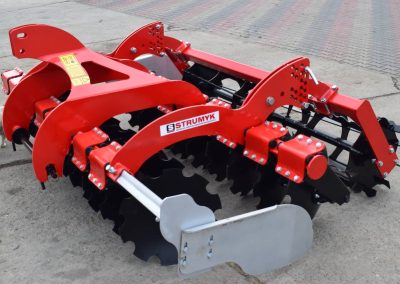

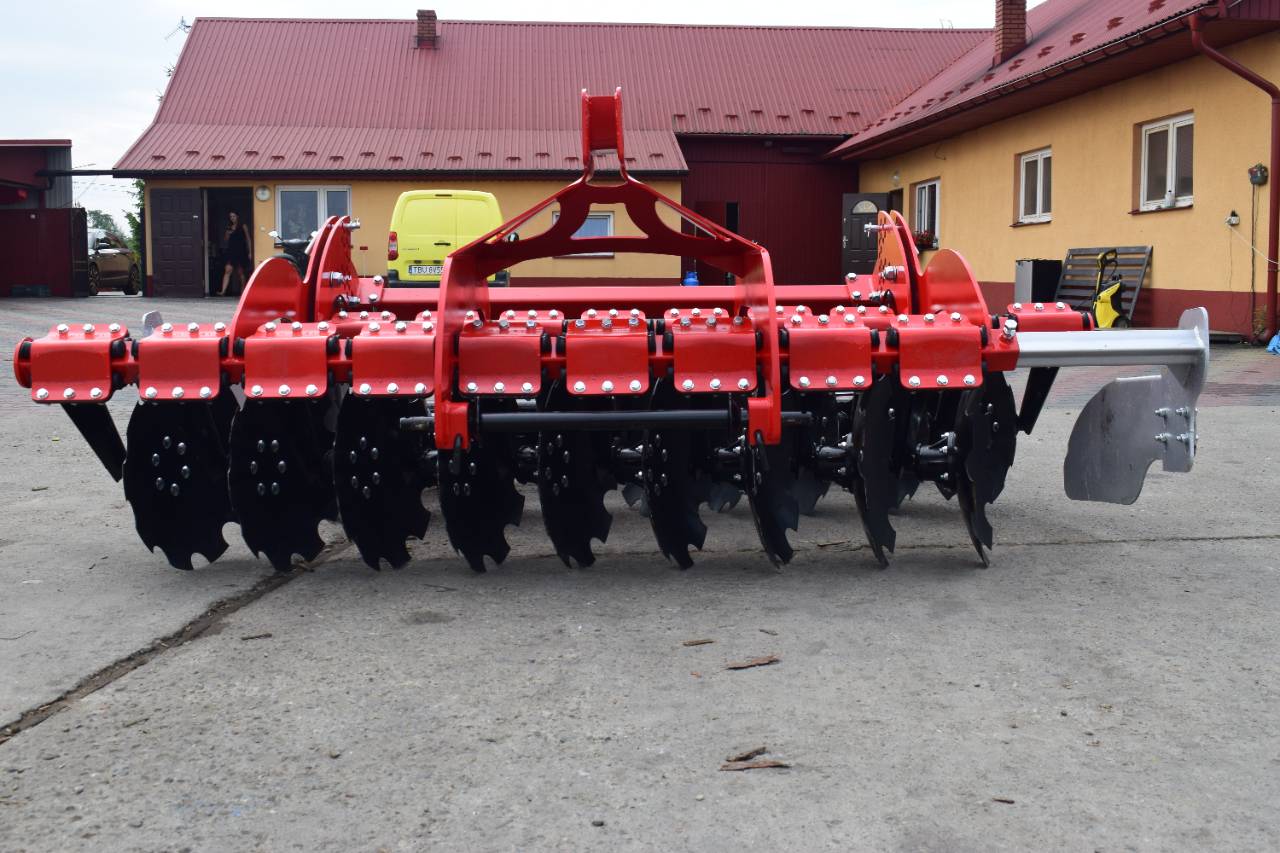

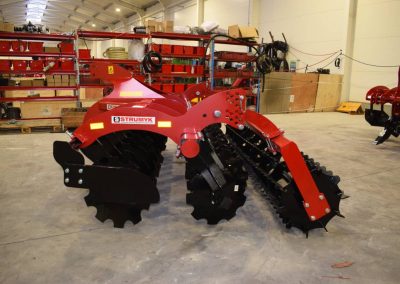

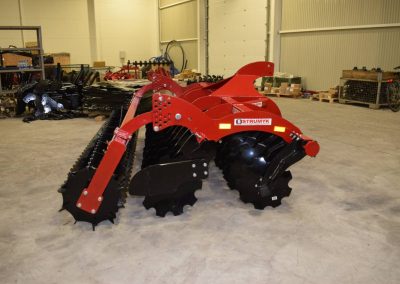

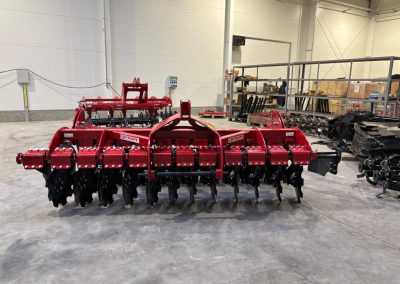

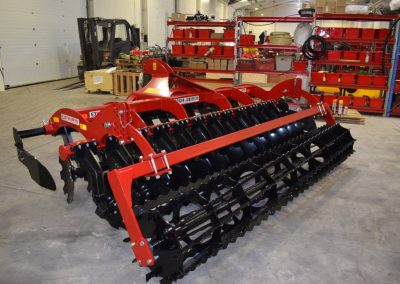

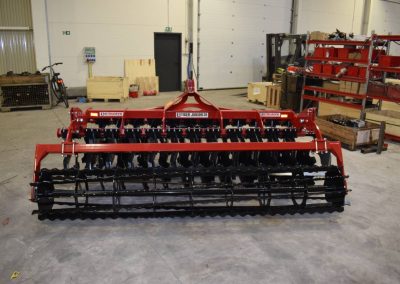

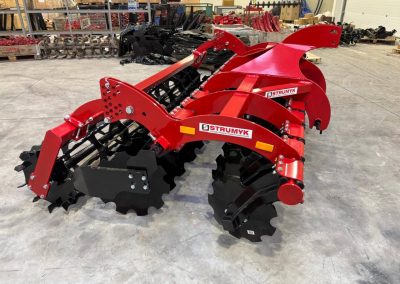

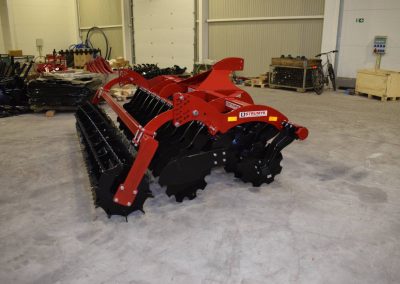

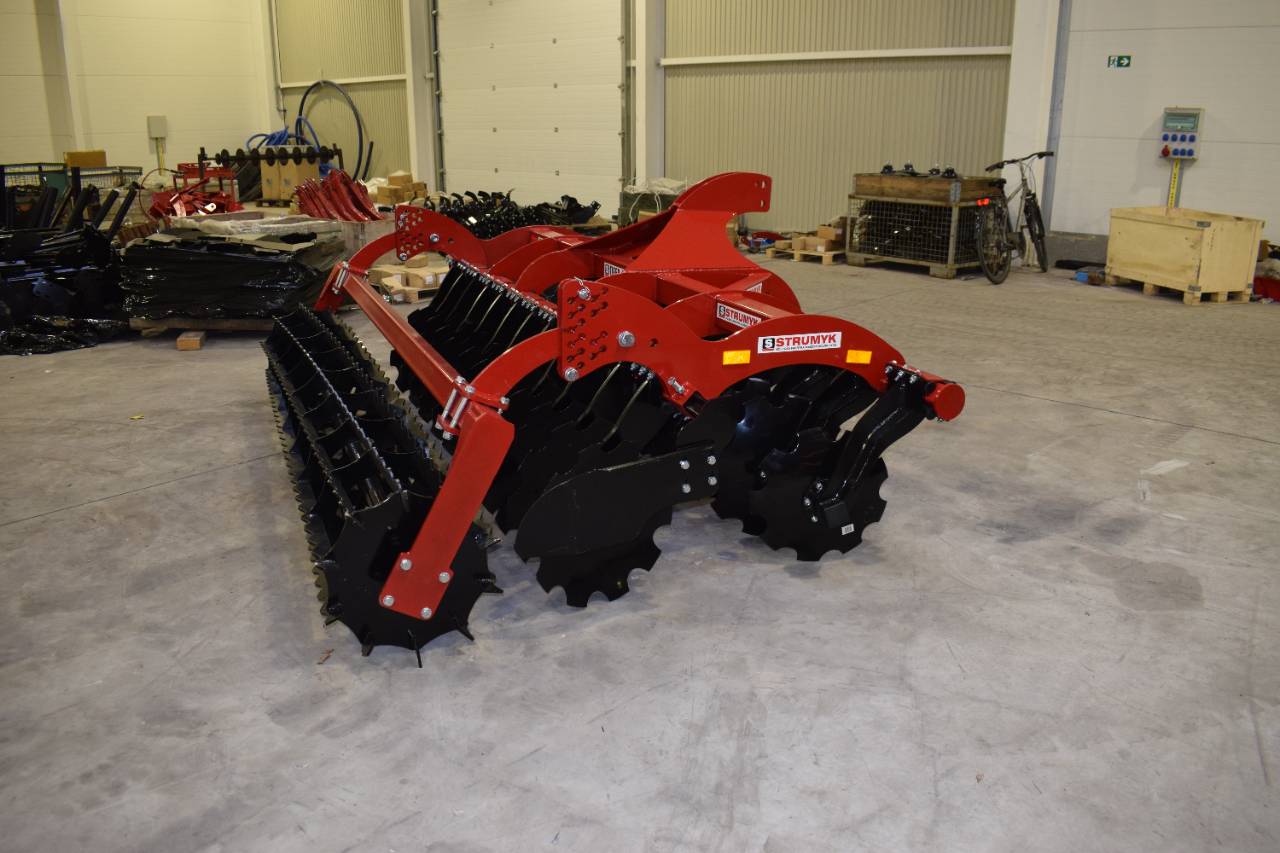

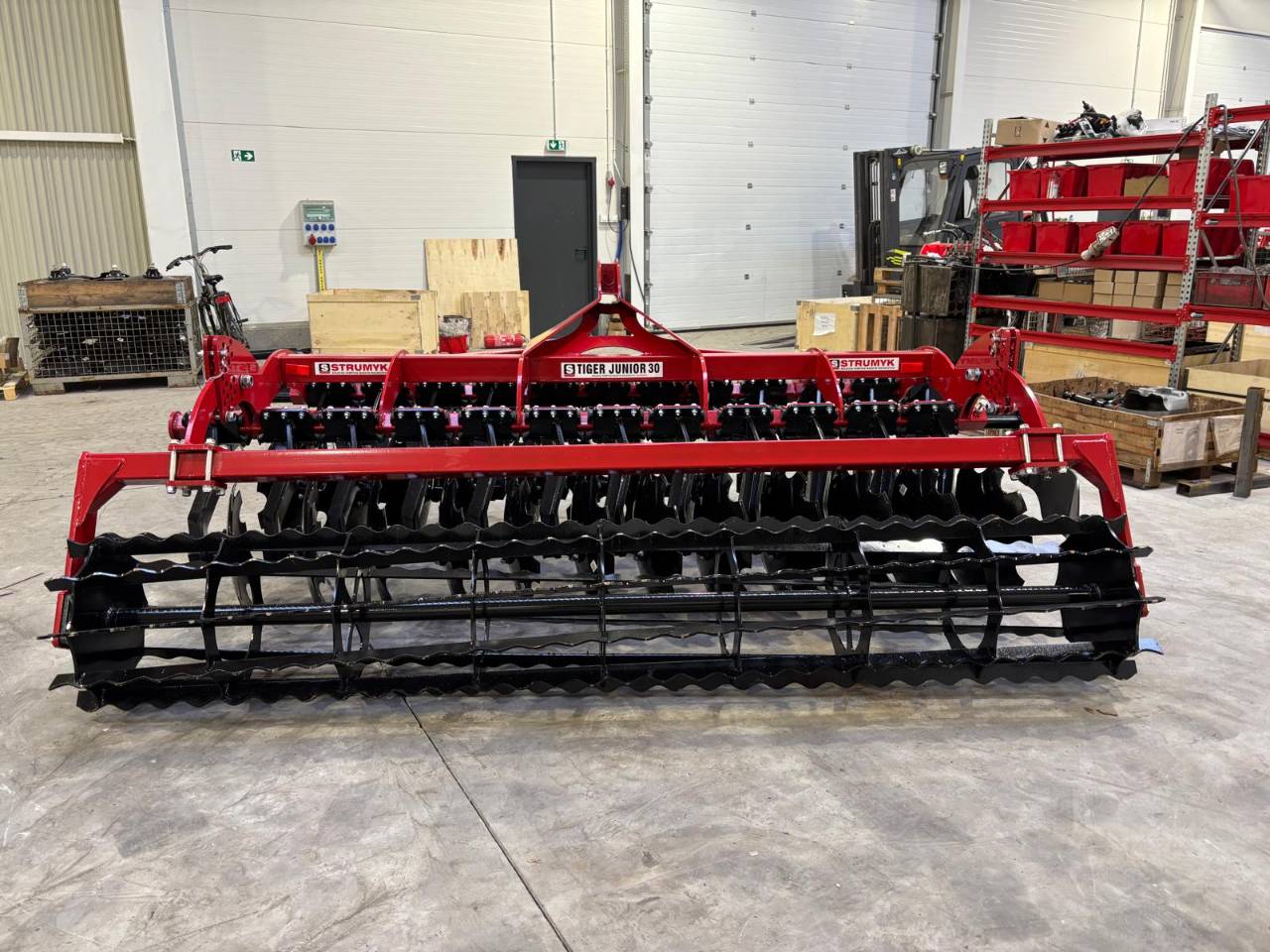

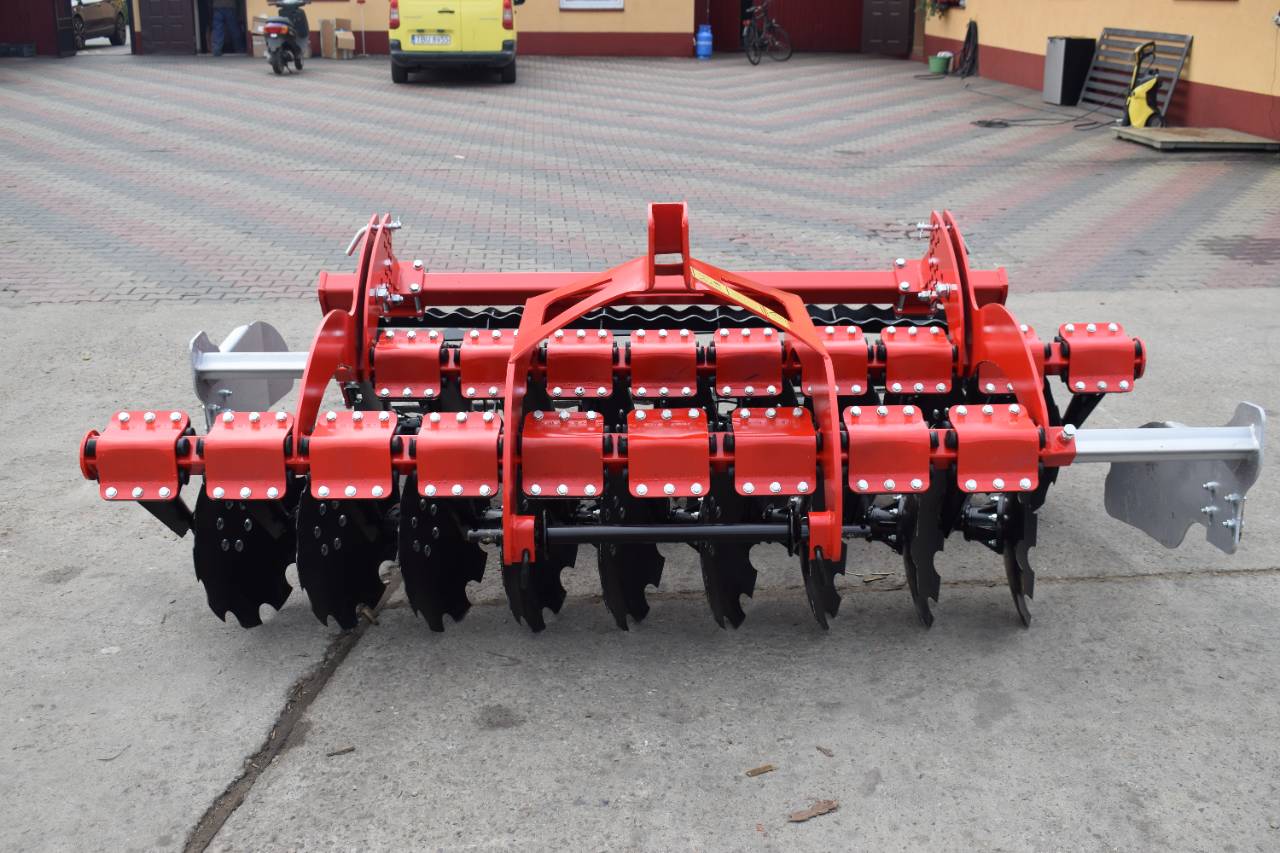

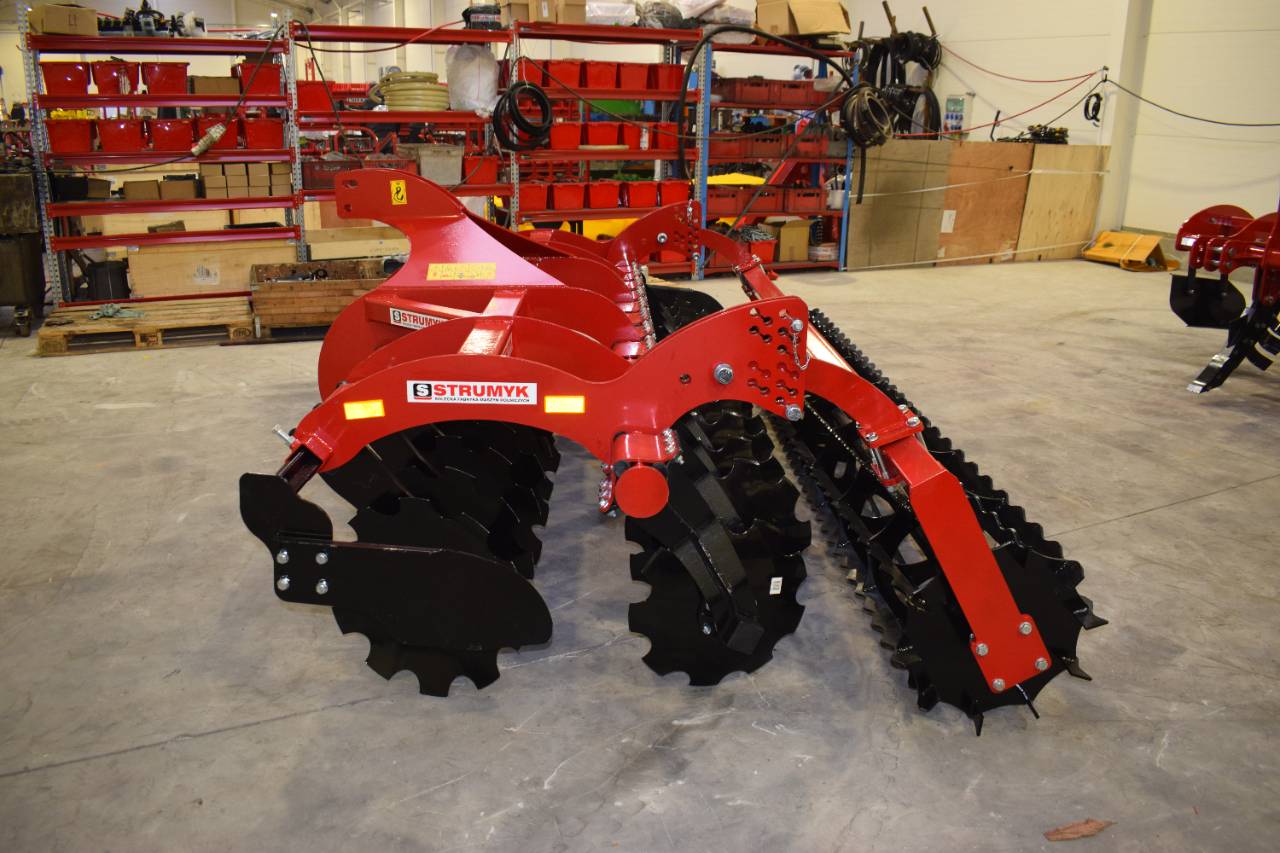

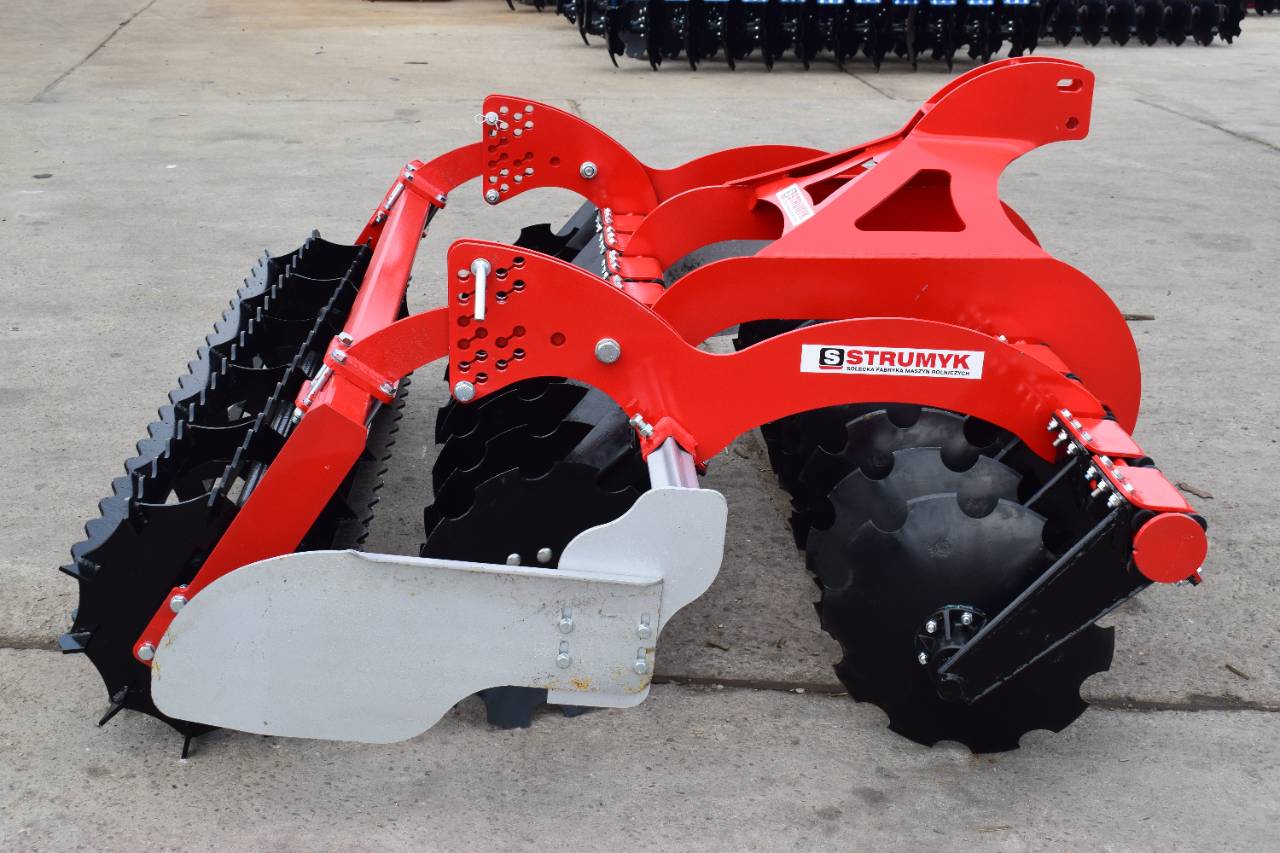

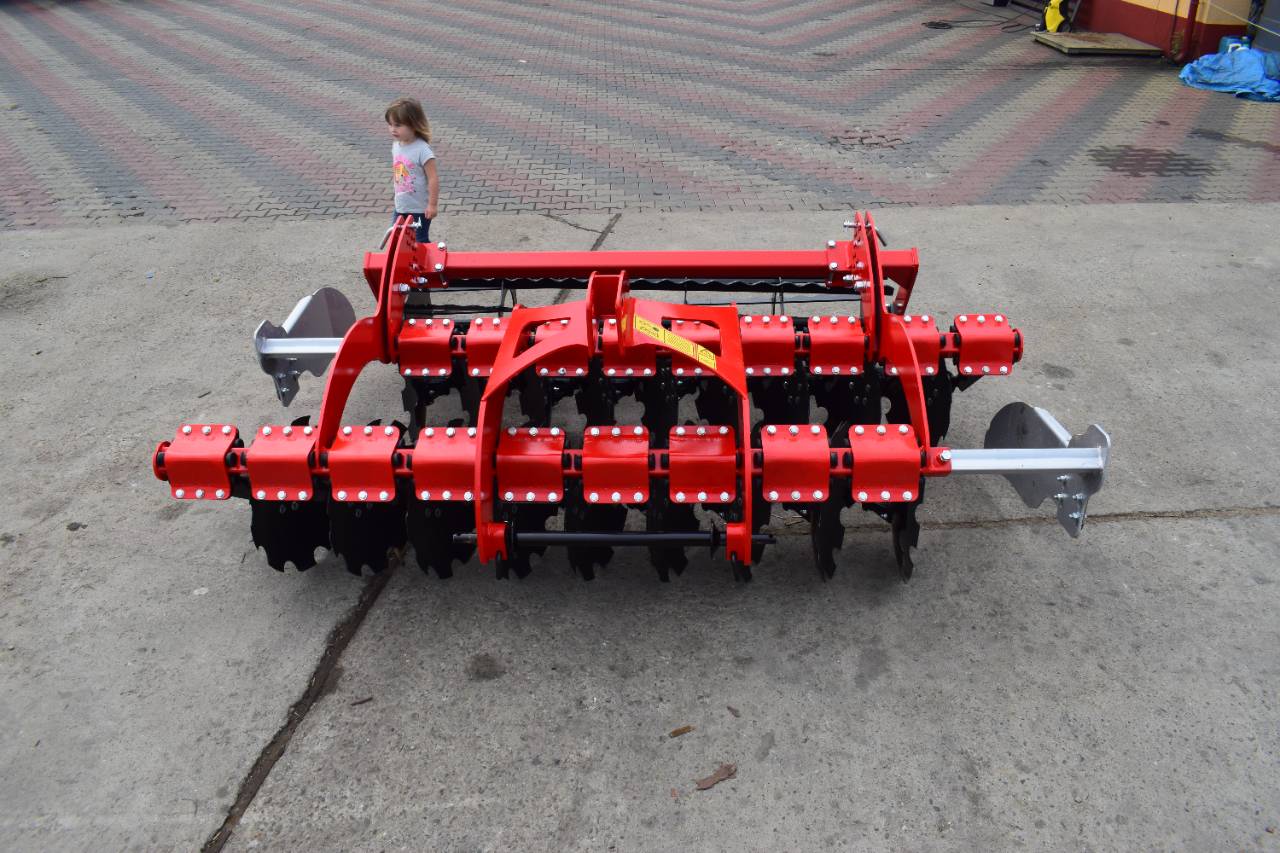

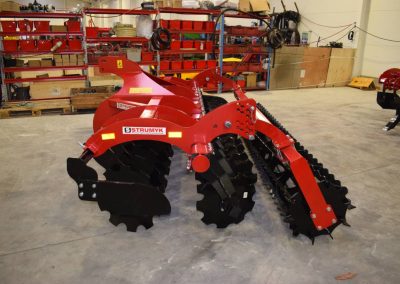

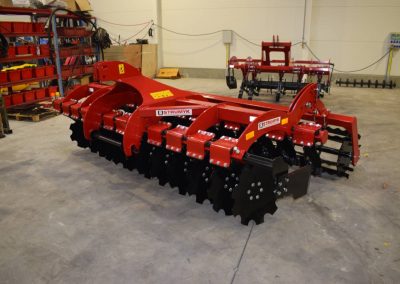

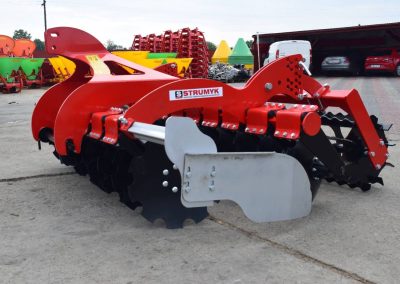

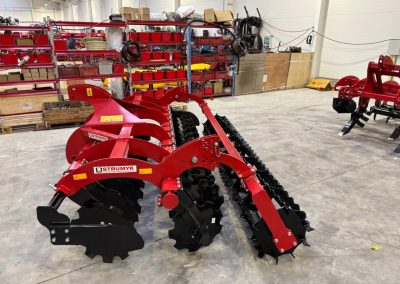

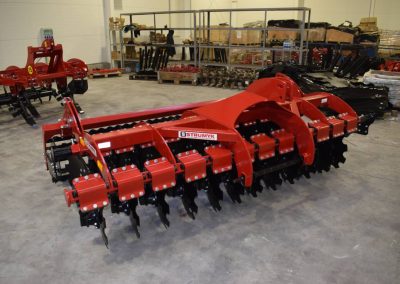

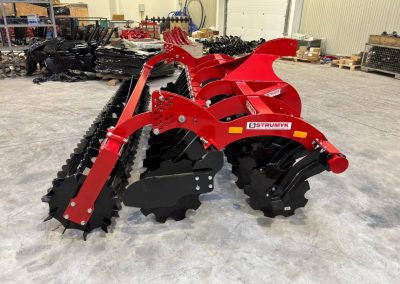

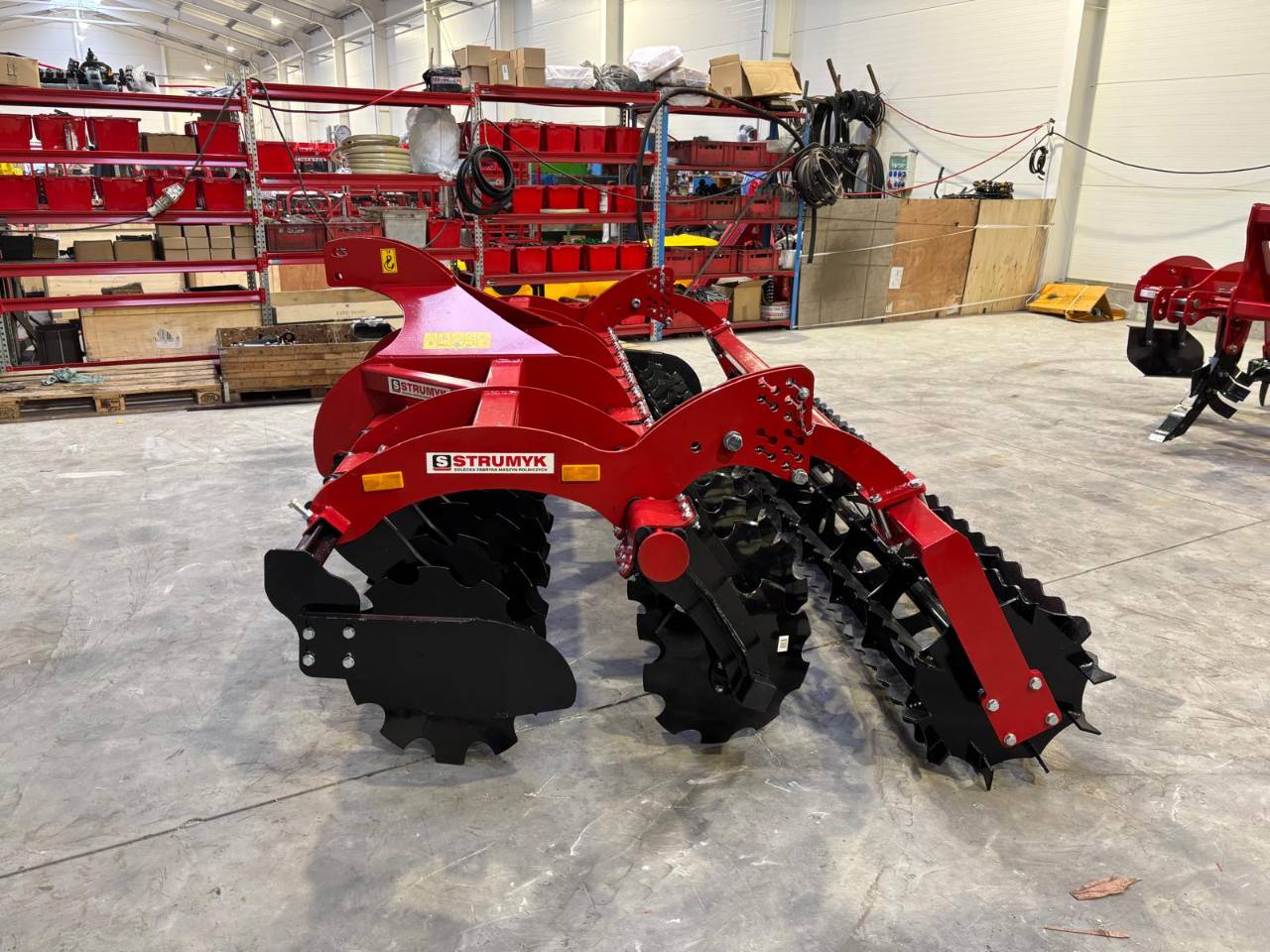

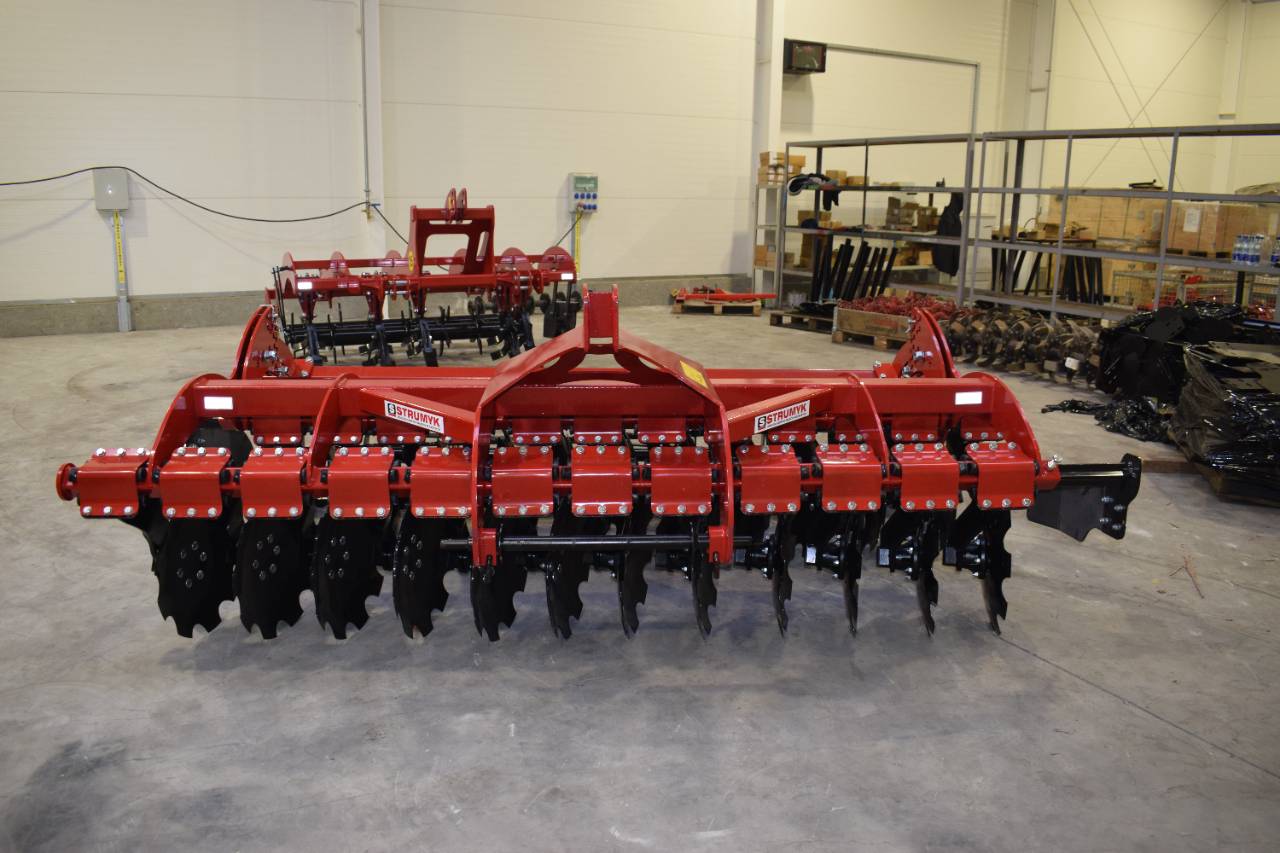

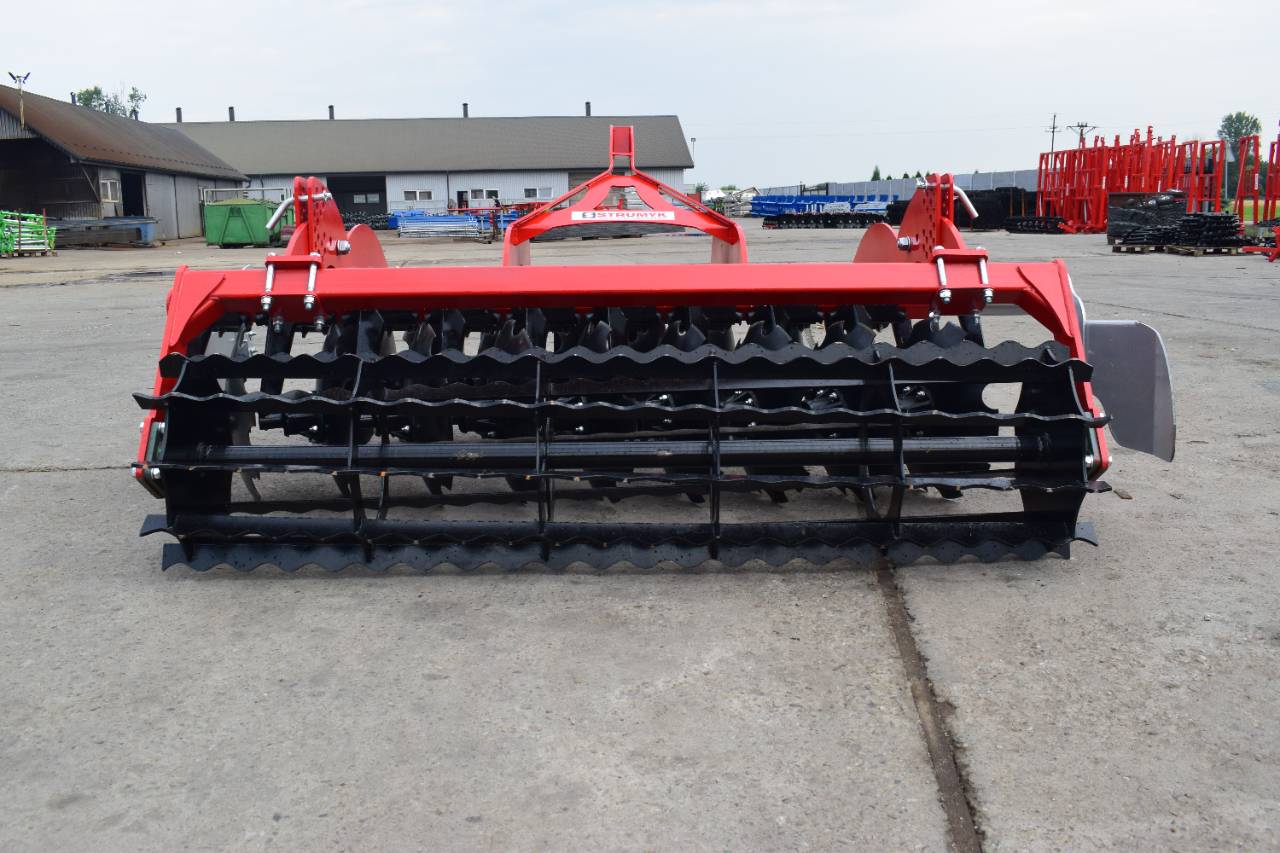

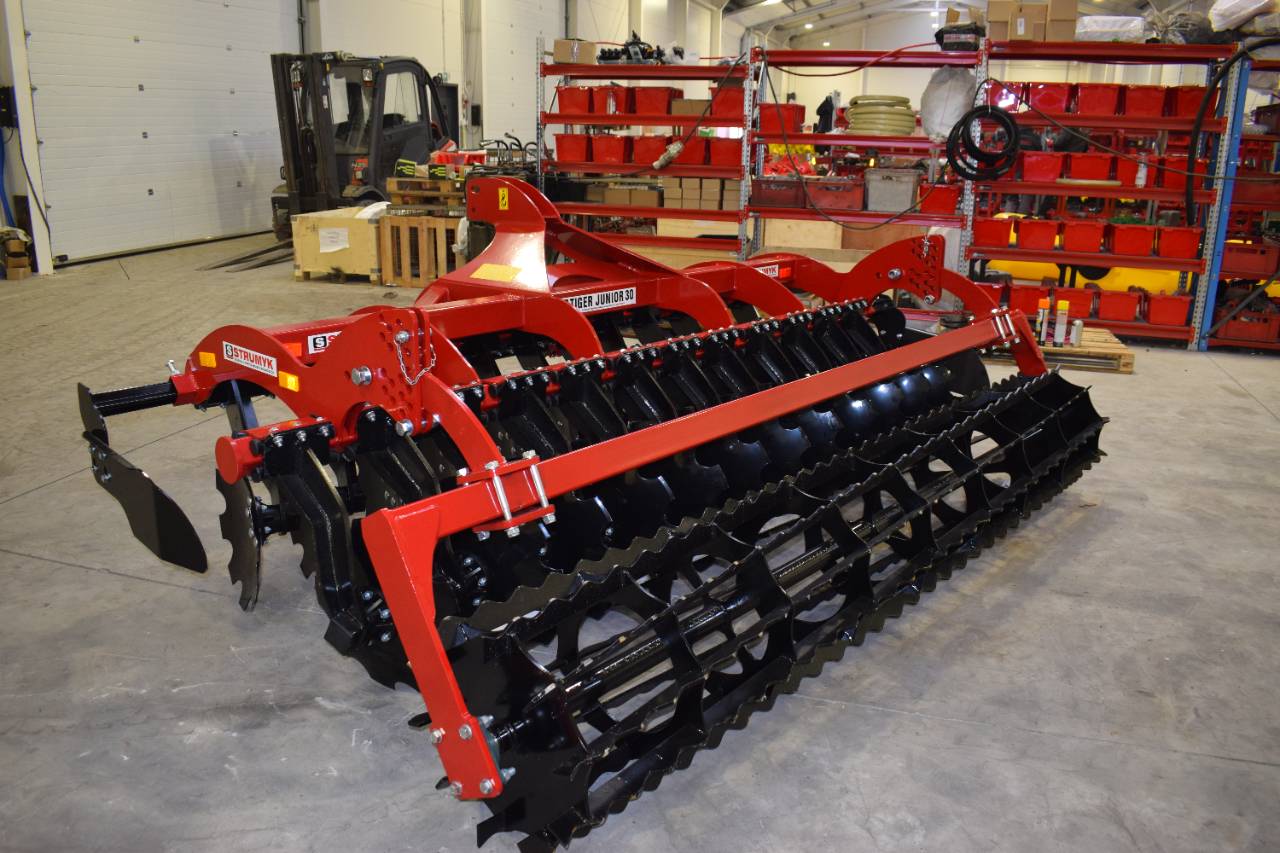

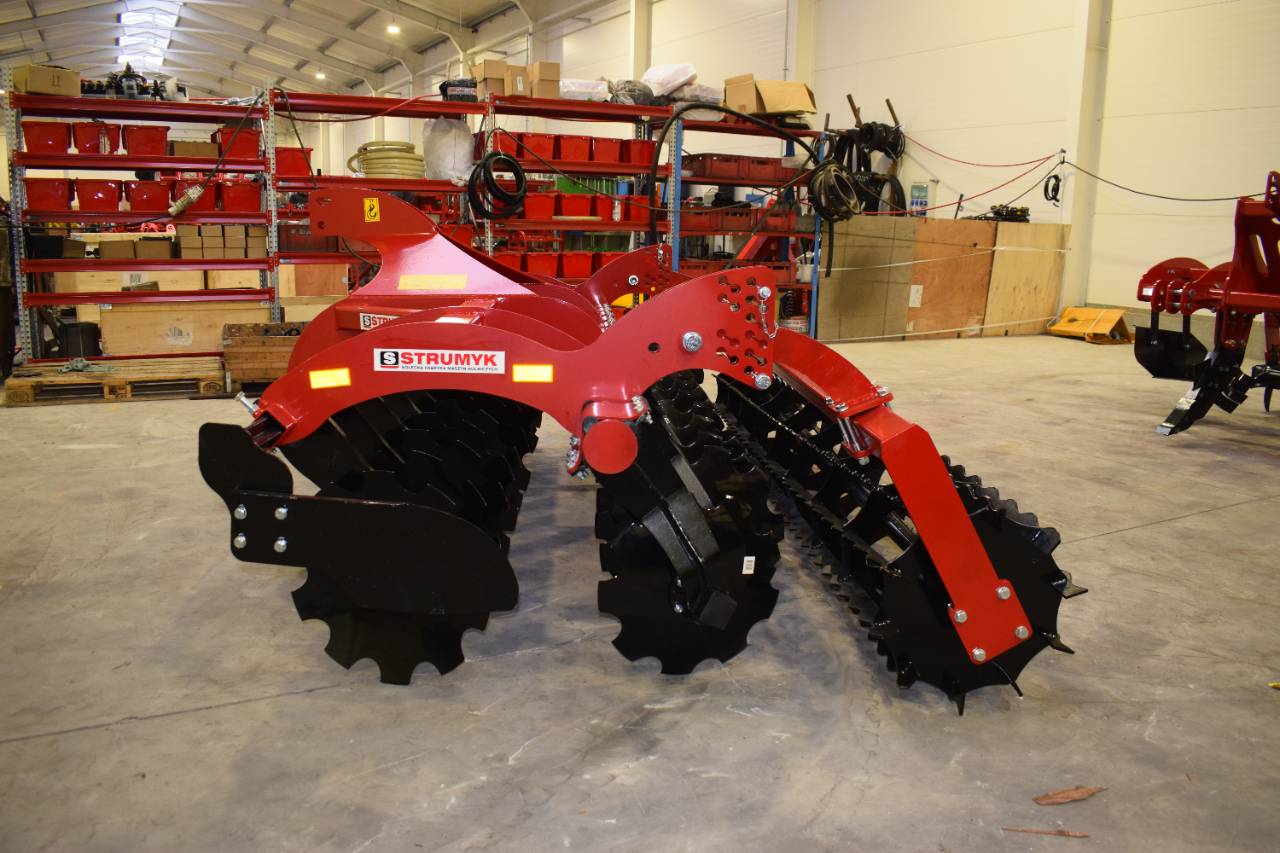

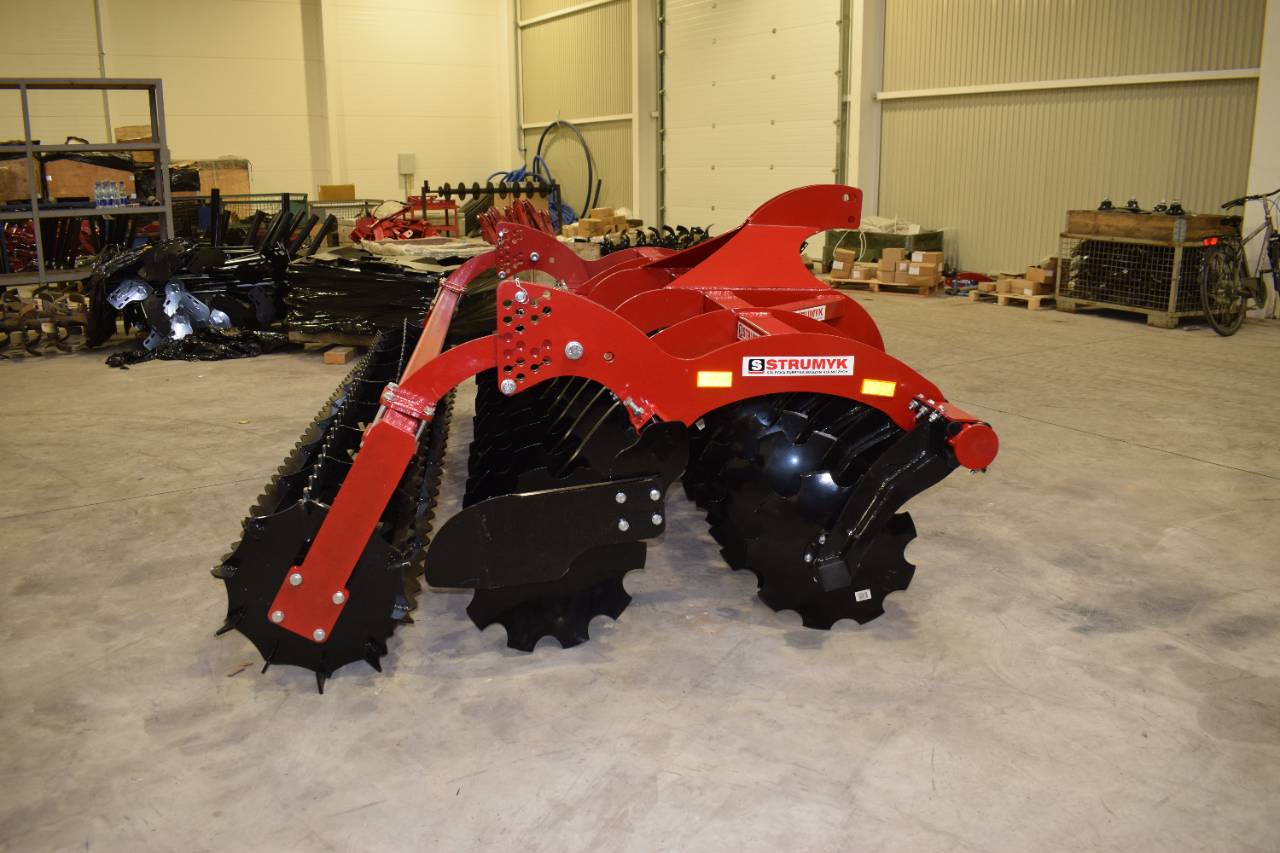

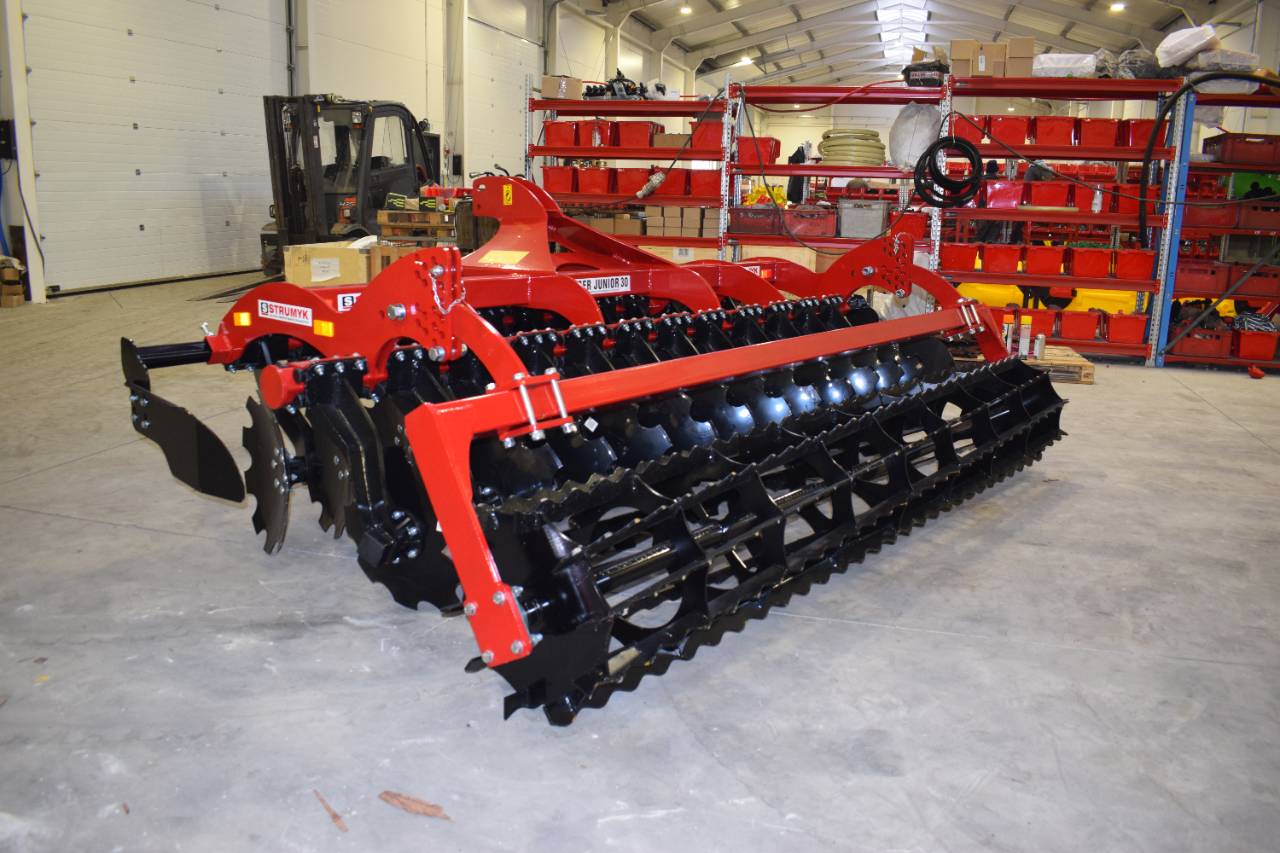

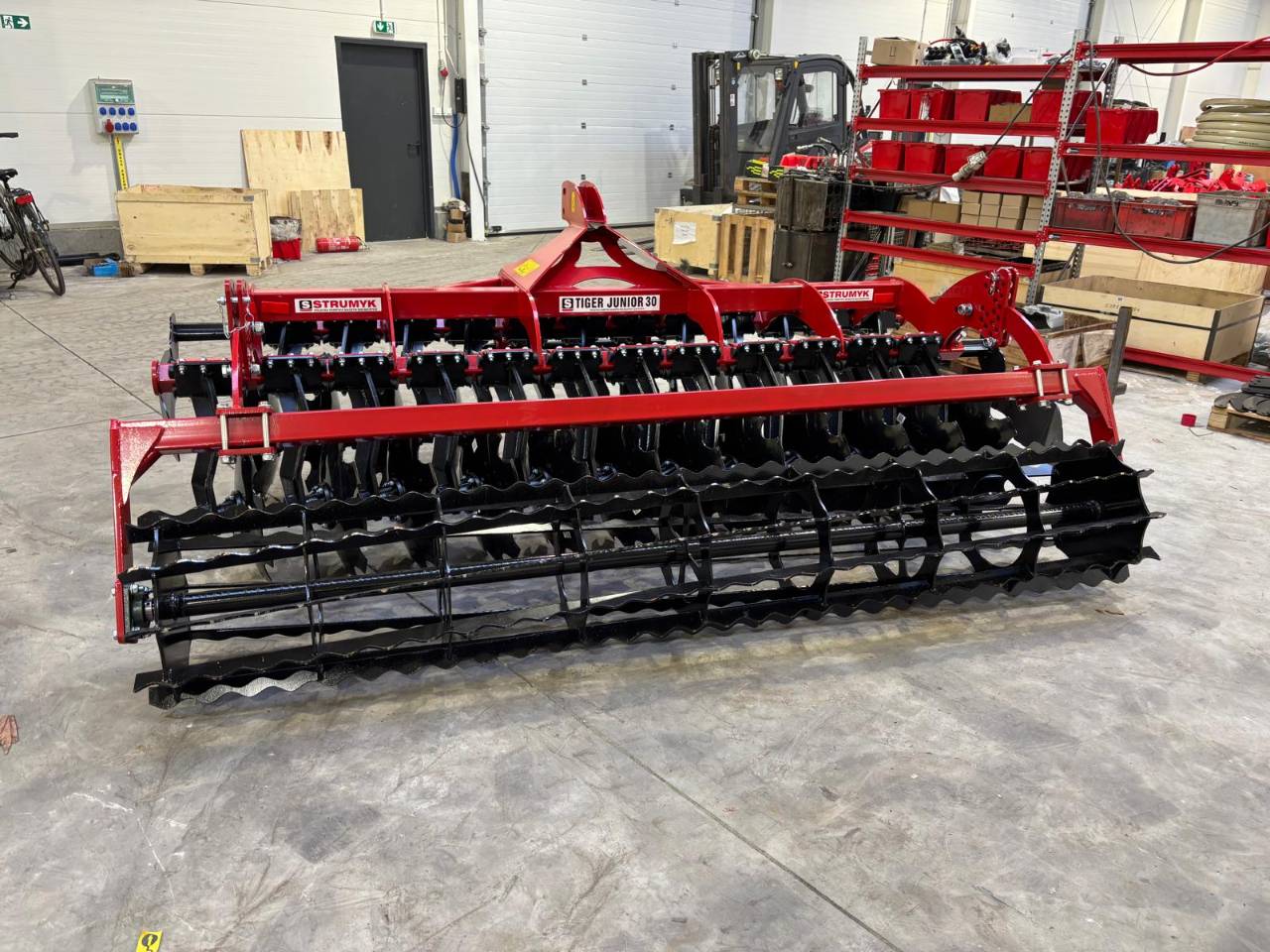

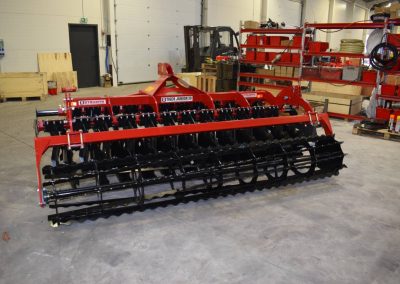

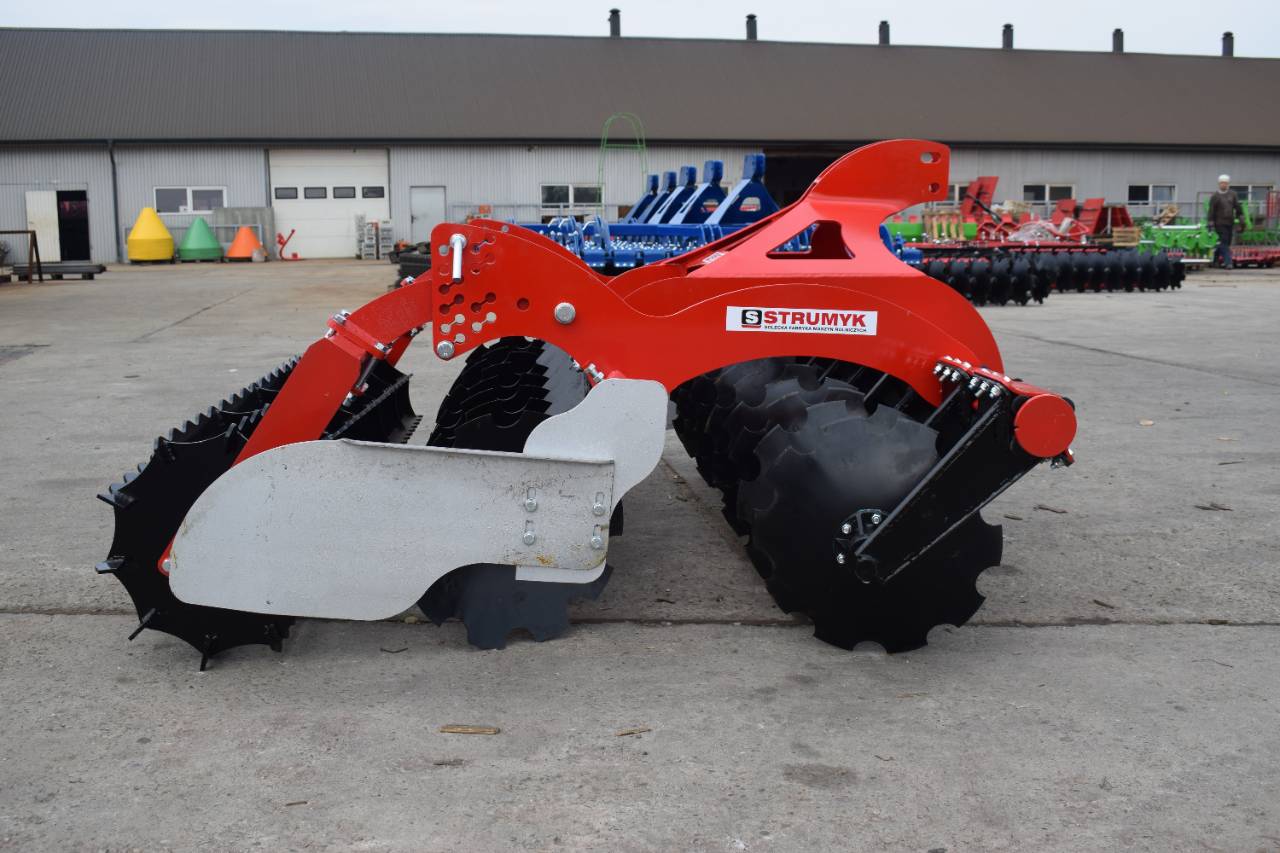

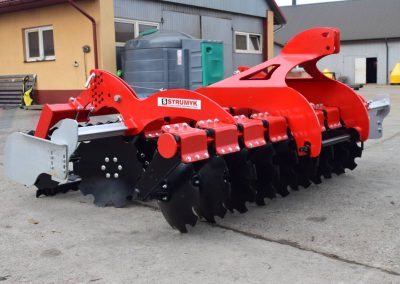

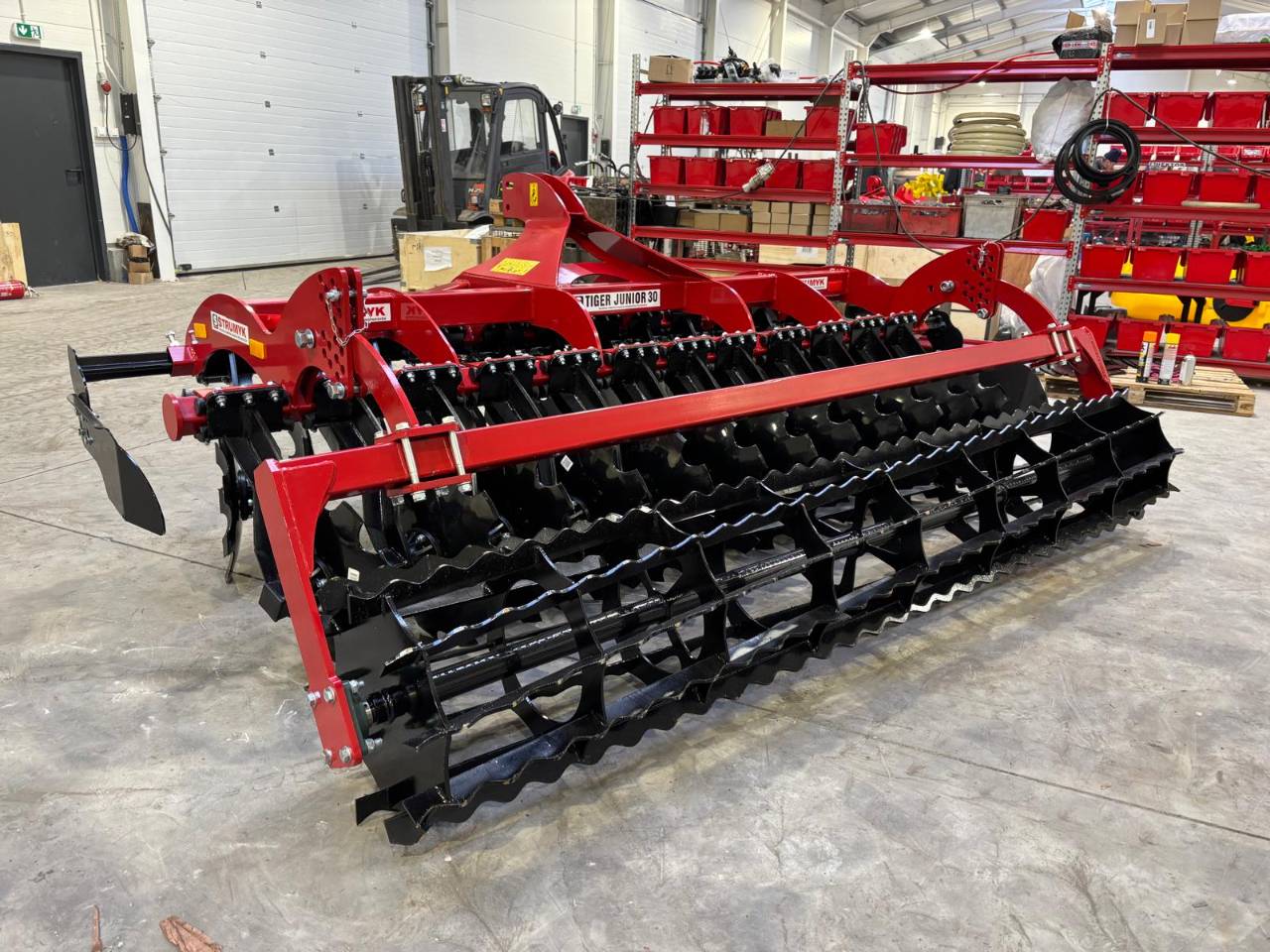

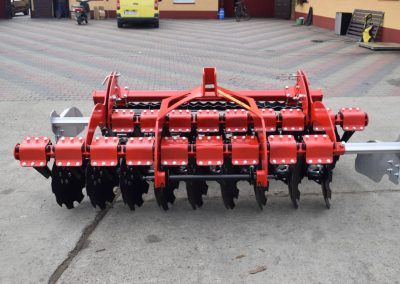

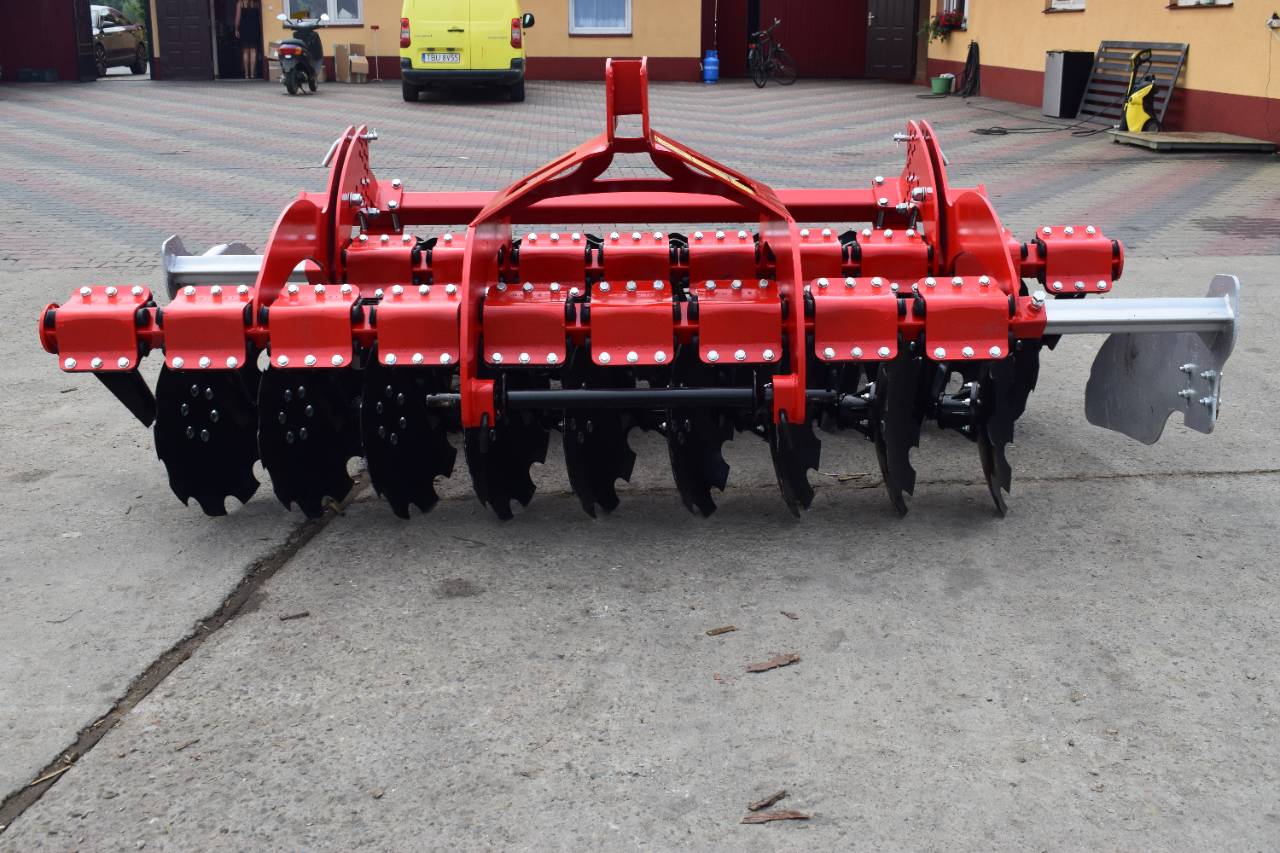

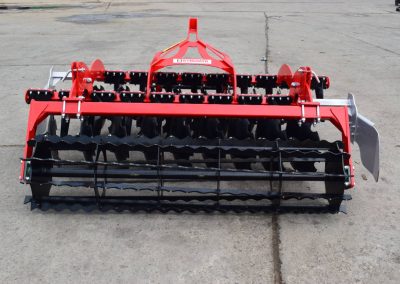

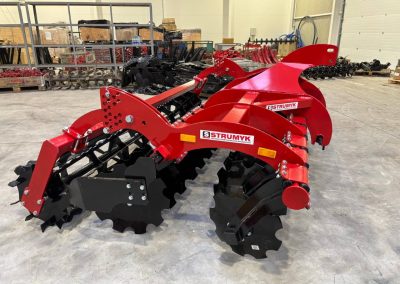

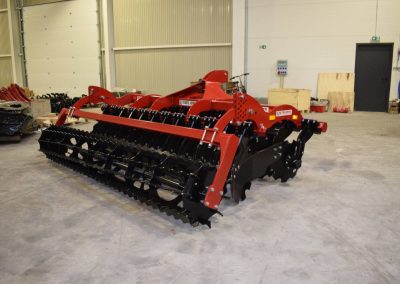

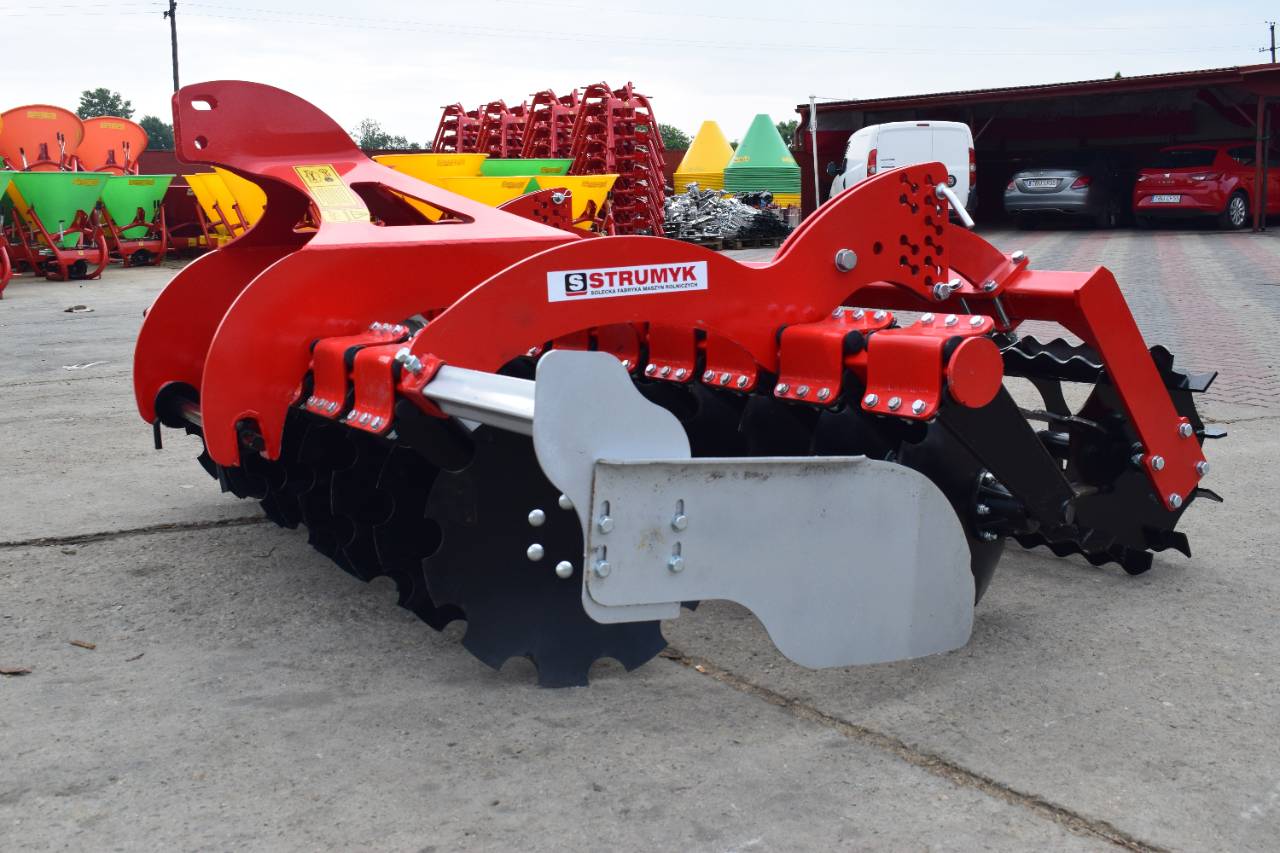

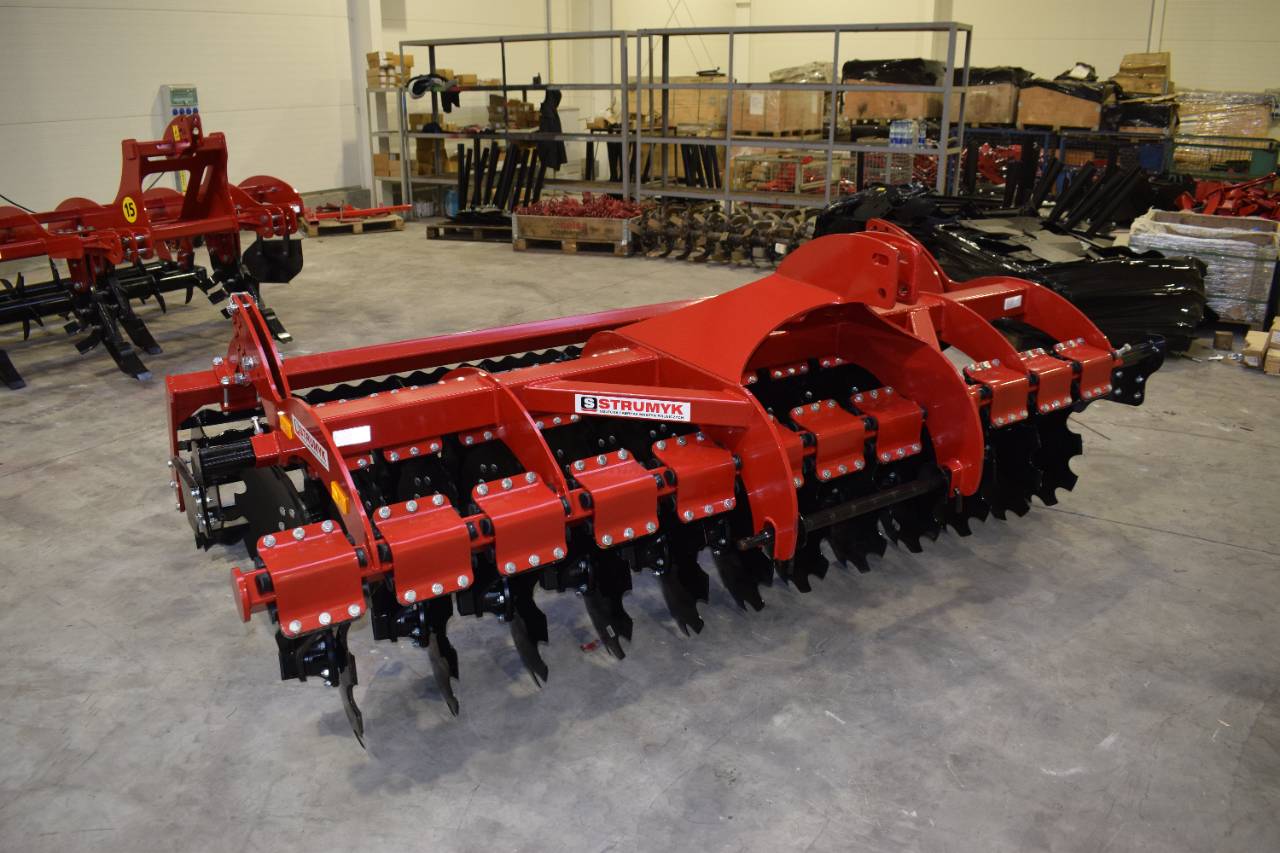

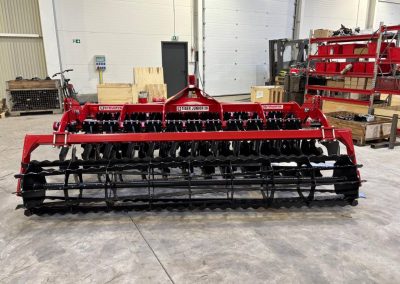

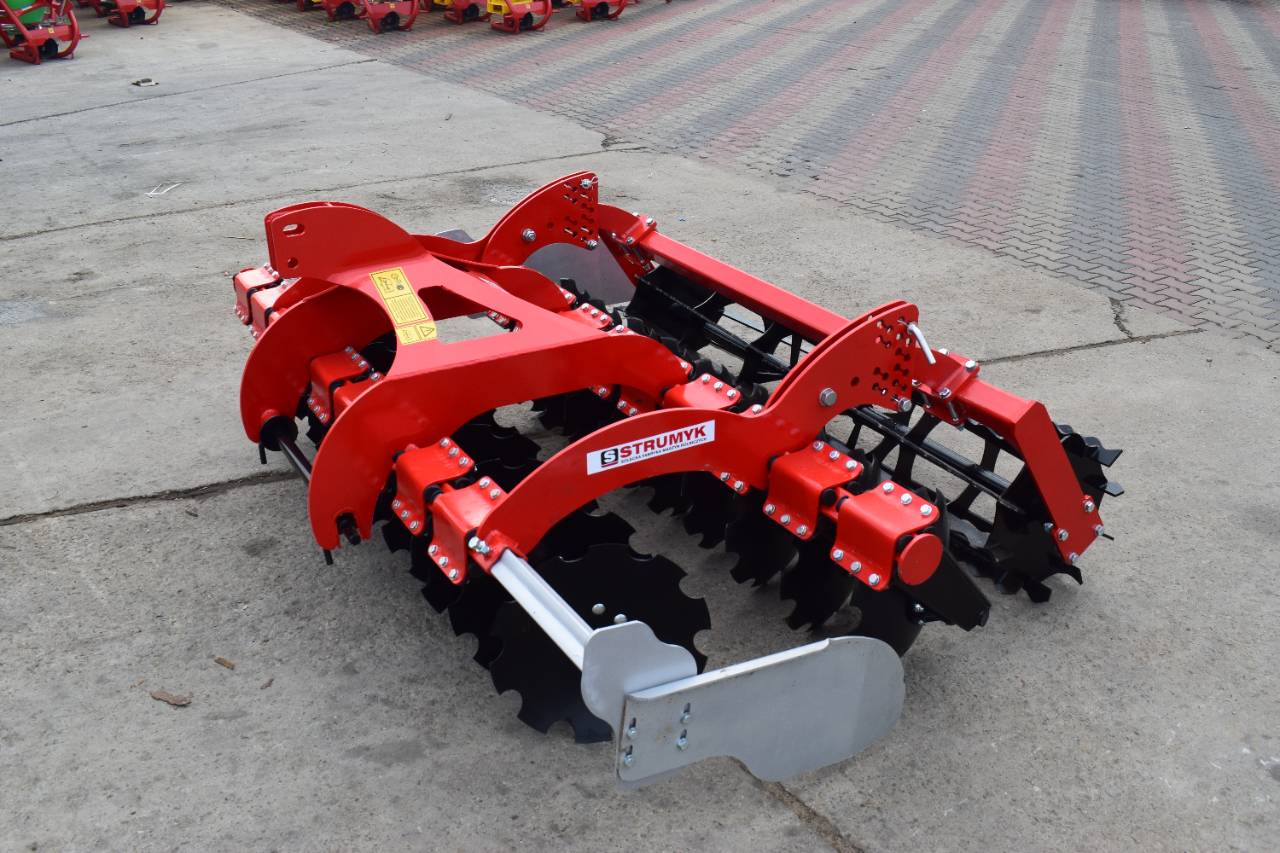

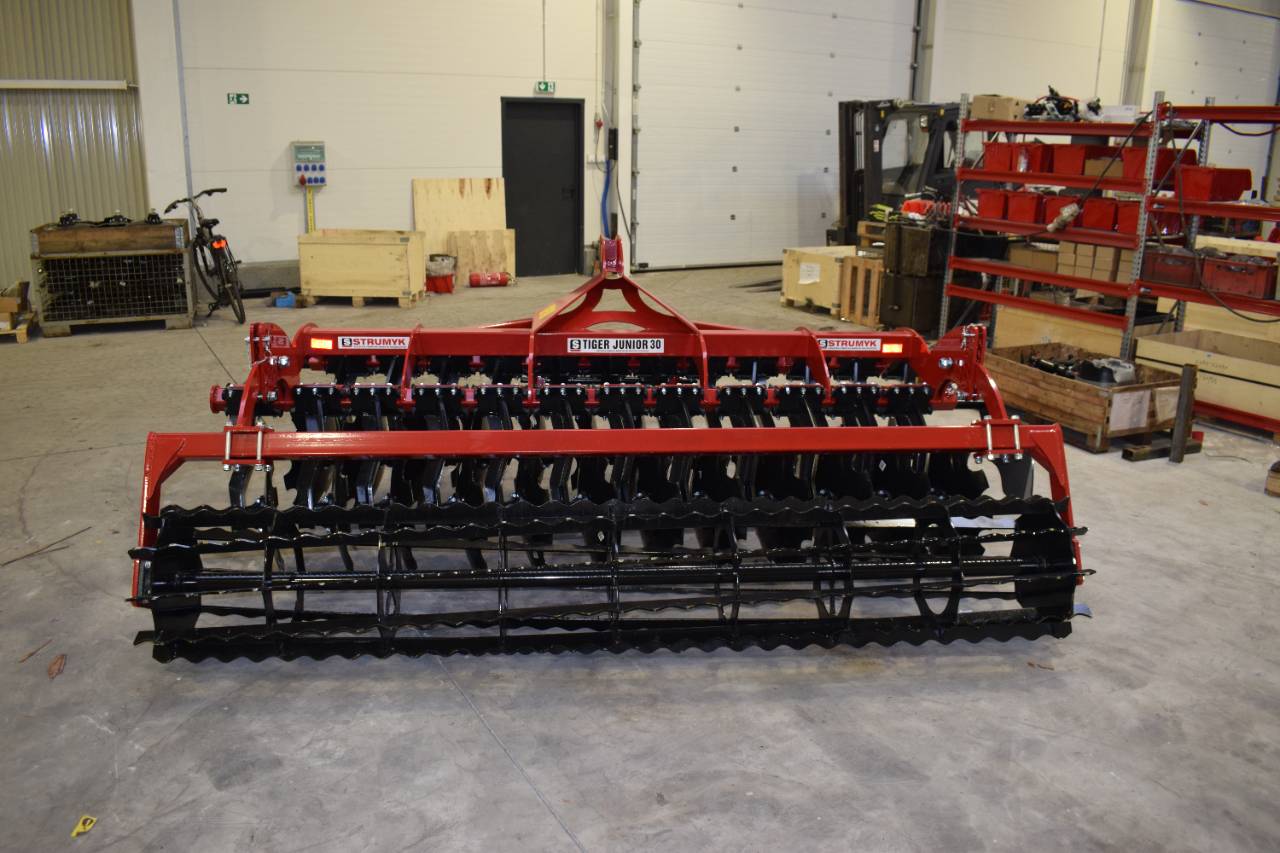

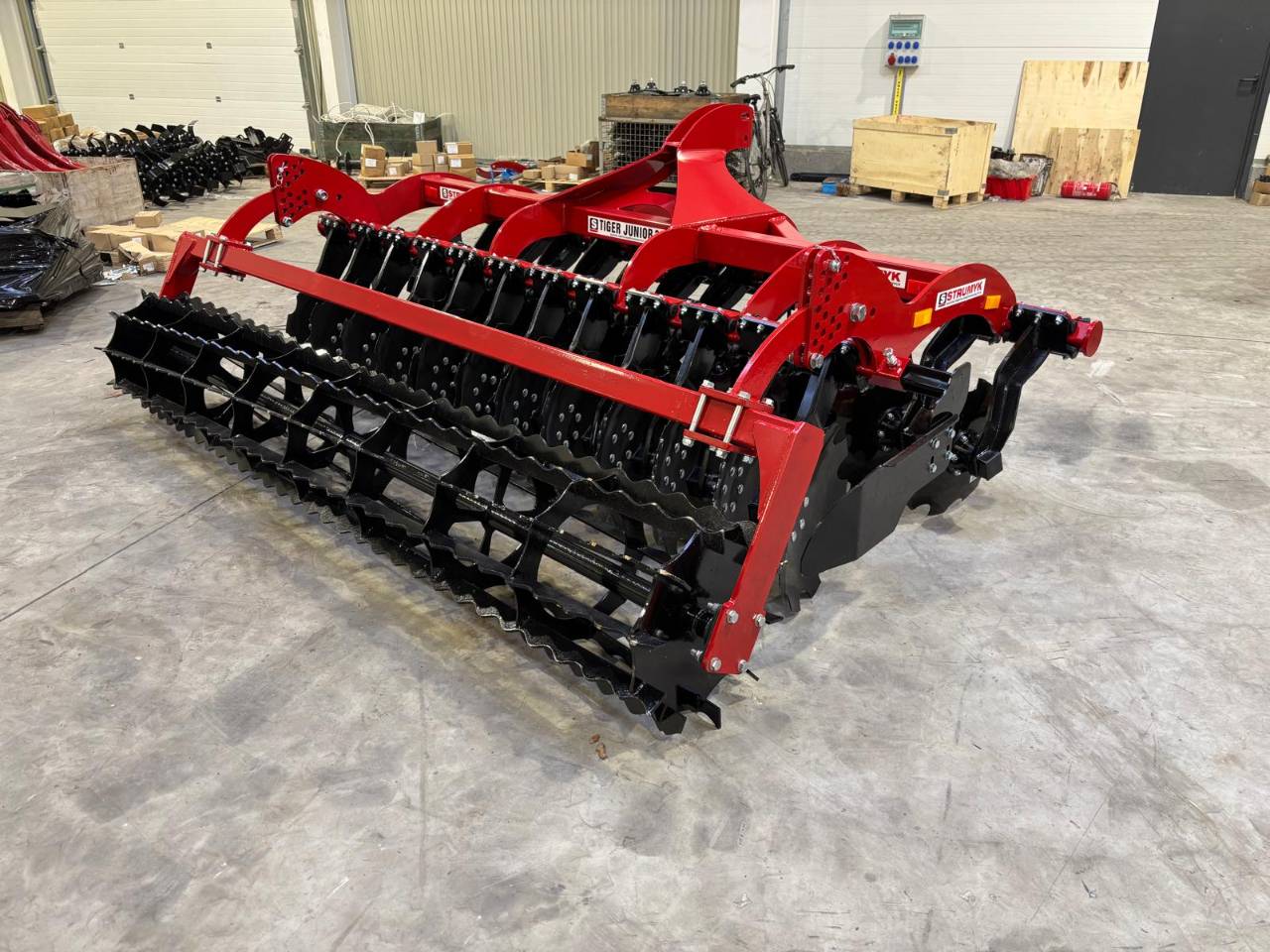

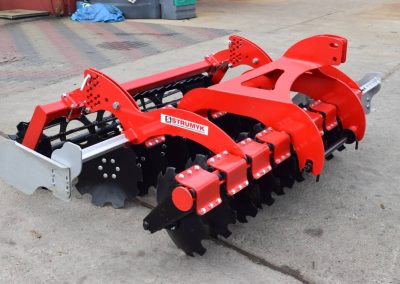

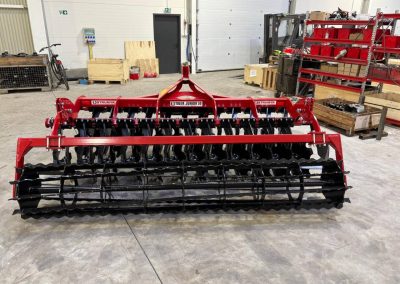

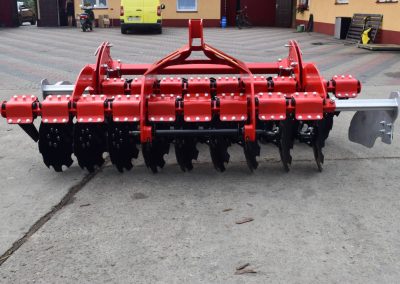

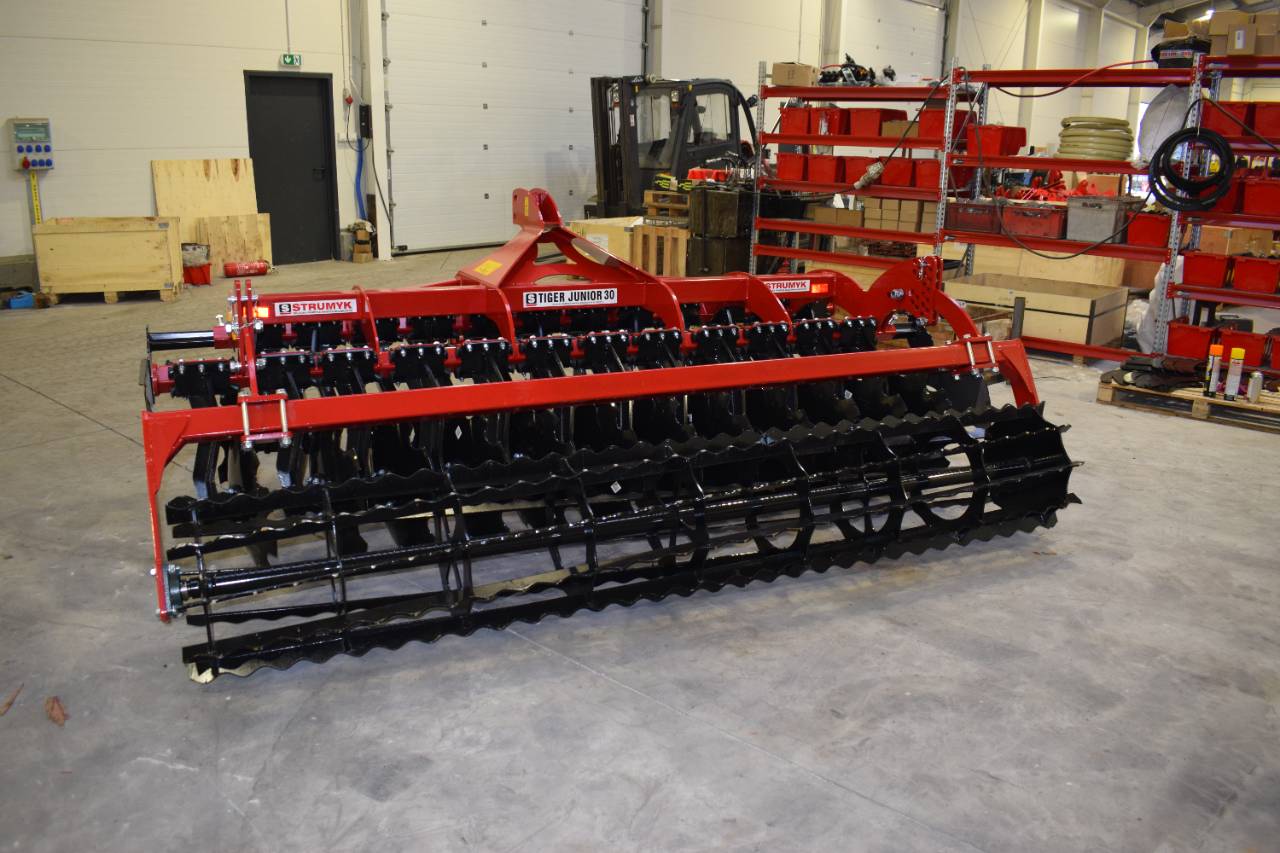

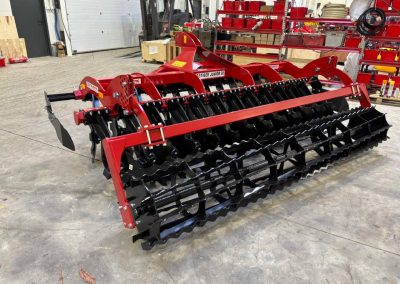

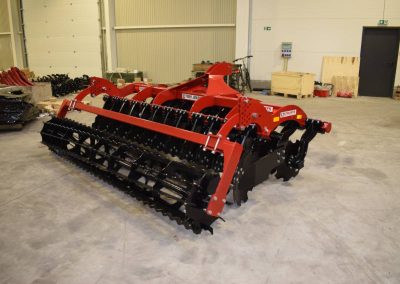

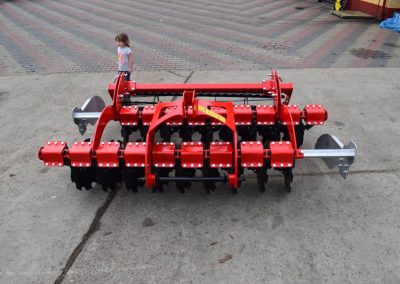

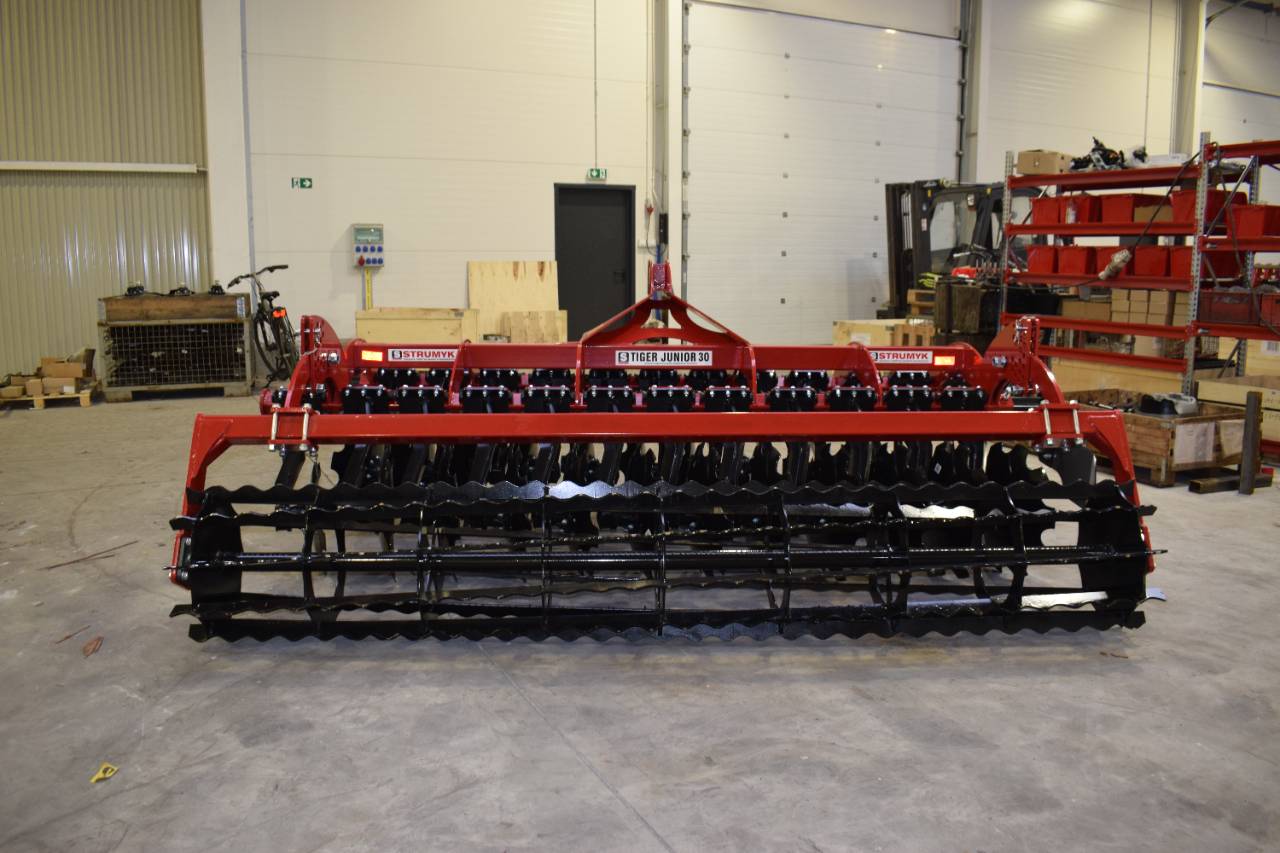

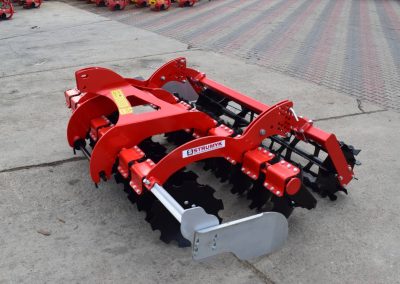

Gallery
